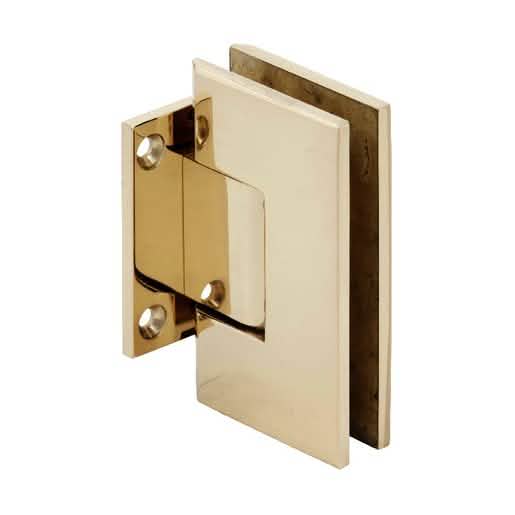

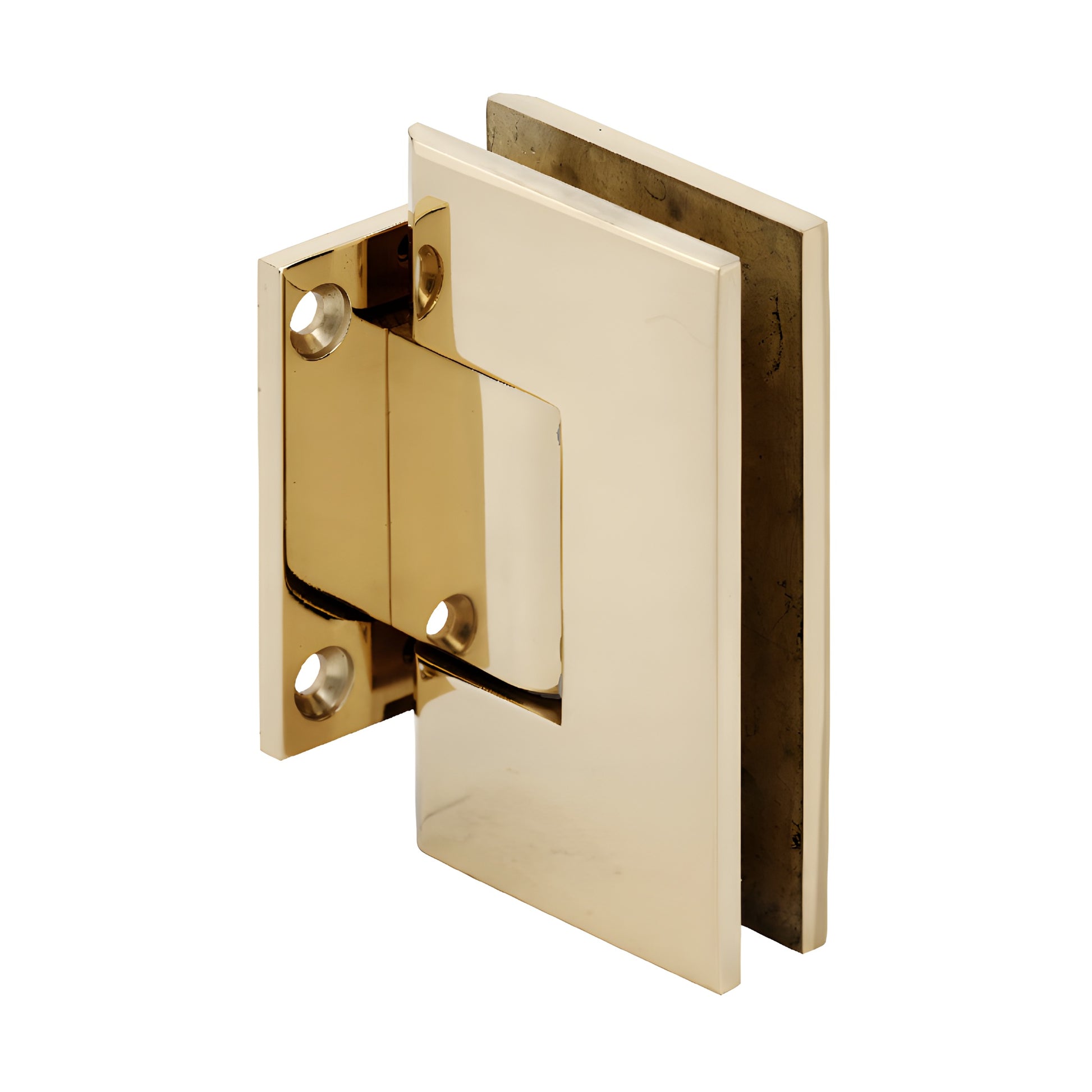

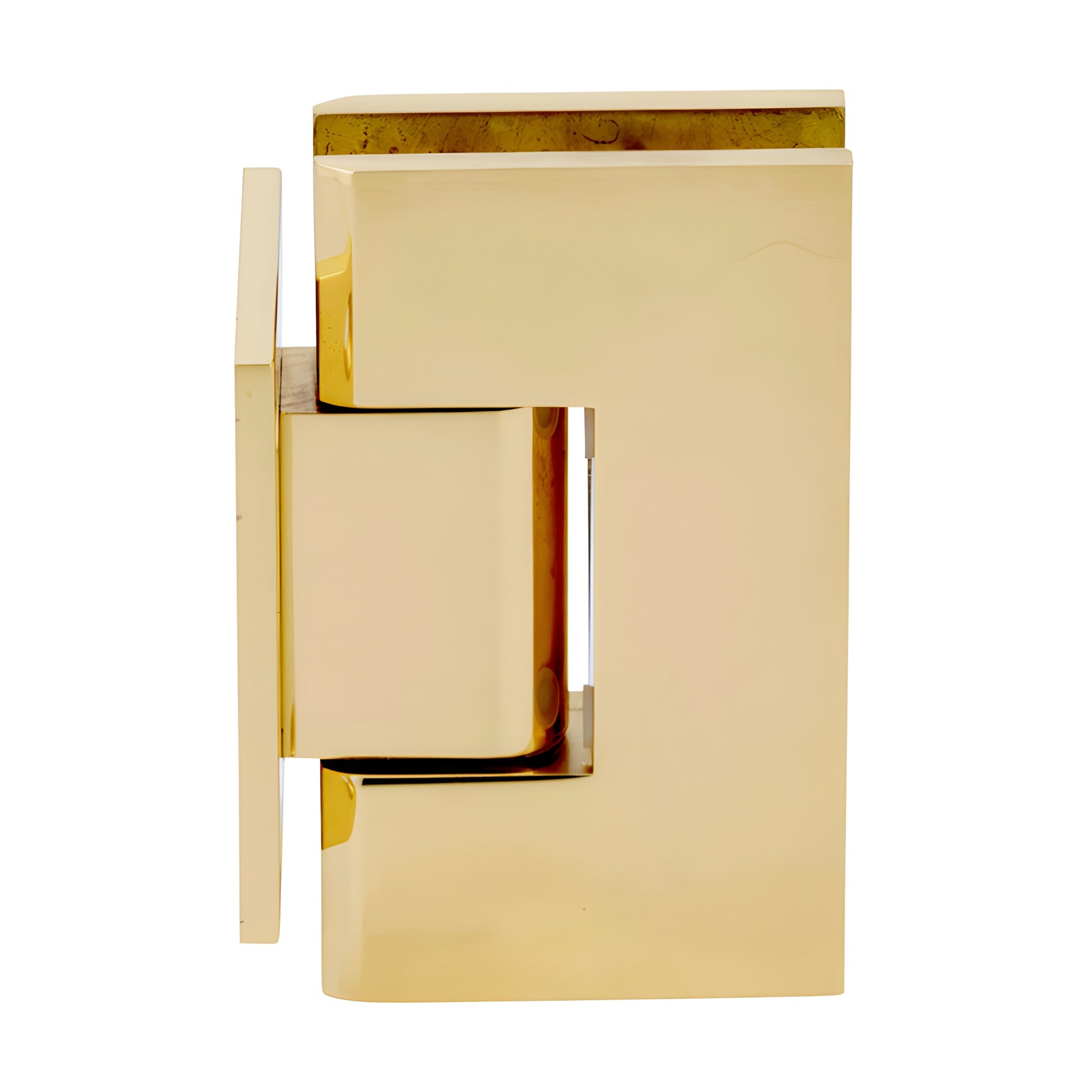

CRL Vienna 074 Unlacquered Brass Wall-Mount Short Back Plate Hinge

CRL Vienna 074 Unlacquered Brass Wall-Mount Short Back Plate Hinge

$85.90 CAD
$85.90 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# V1E074ULBR
Shipping Weight: 1.91 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

5 Degree Pre-Set
No
Adjustable
No
Back Plate
Short
Design Style
Squared
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Unlacquered Brass
Glazing Thickness
3/8 in. to 1/2 in. (10 mm to 12 mm)

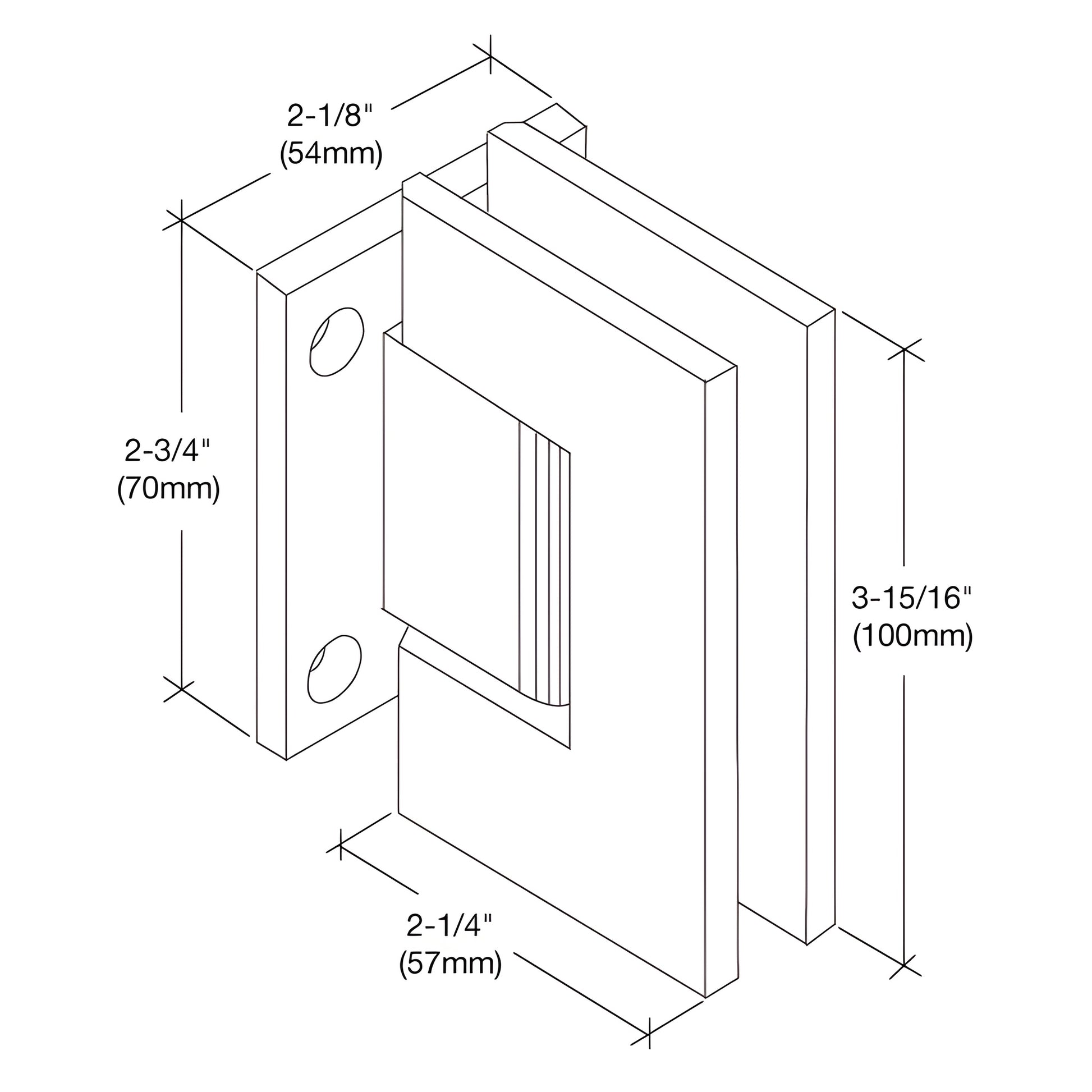

Height
3-15/16 in. (100 mm)
Material
Brass
Maximum Clamping Screw Torque
60 lbf.in (677.9 cN.m)
Maximum Door Weight - 2 Hinges
100 lbs. (45.4 kg)
Maximum Door Weight - 3 Hinges
130 lbs. (59 kg)
Maximum Door Width - 1/2 Glass
32 in. (813 mm)
Maximum Door Width - 3/8 Glass
34 in. (864 mm)
Maximum Door Width -1/2 Glass
32
Mounting Type
Wall Mount
Opening Style
Swing(side)
Self-Centering
Yes
Series
Vienna
Width
2-1/4 in. (57 mm)

Overview

  • Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
  • Available in several beautiful finishes (custom finishes available on request)
  • 3 Year Warranty

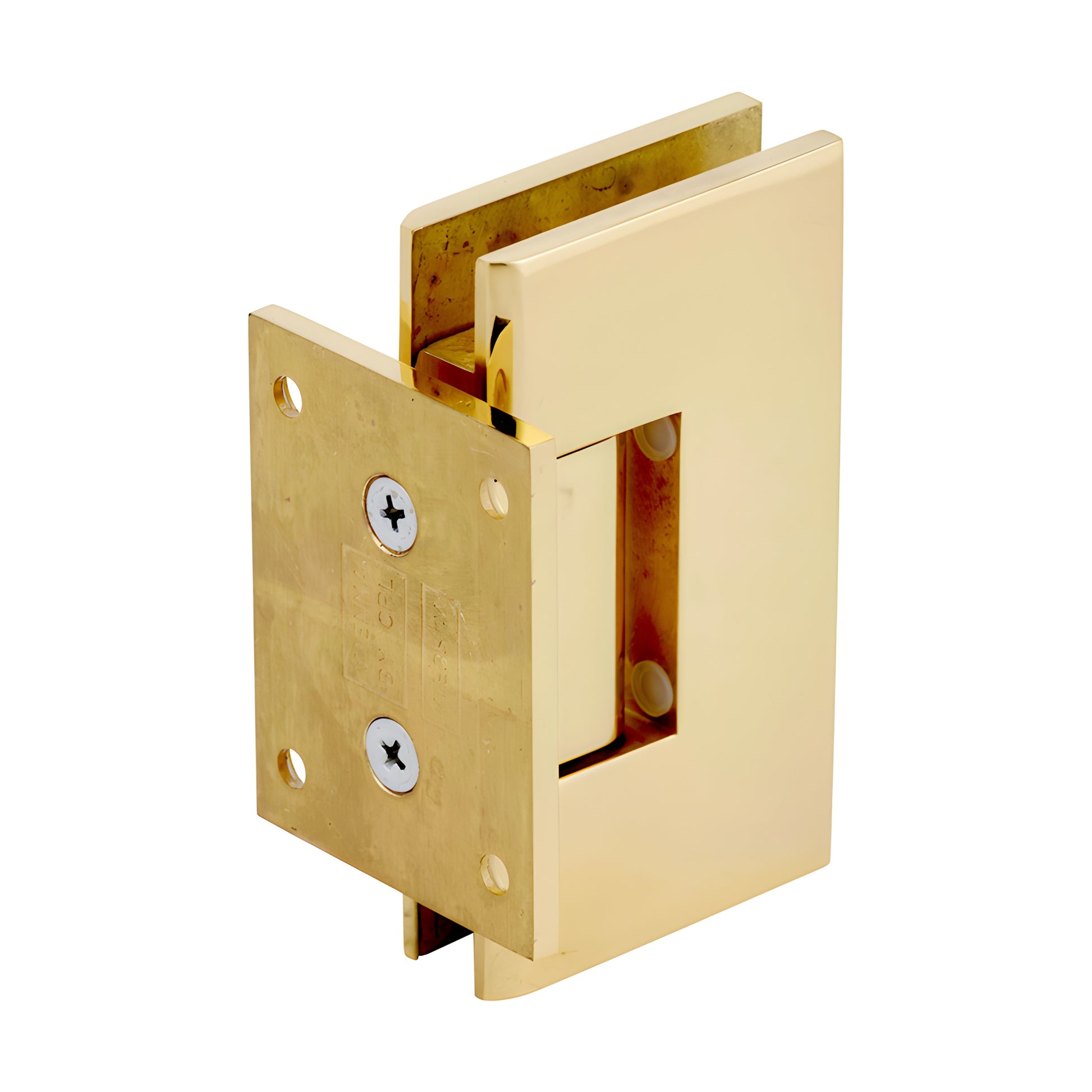

  • Wall mount short back plate — ideal for tight spaces and retrofit installations
  • Designed for monolithic tempered glass shower doors

CRL Vienna Hinges (SKU: V1E074ULBR) are heavy-duty shower door hinges engineered for wider, heavier glass doors when standard hinges are insufficient. Internal dual steel pins provide two template/mounting options: leave pins installed for compatibility with CRL "mouse-ears" cut-outs, or remove them to increase adjustability and fit CRL rectangular (square-corner) cut-outs — in some cases fitting competitive rectangular cut-outs as well.


Standard Reversible Pivot Pin: Each Vienna Hinge contains a reversible pivot pin with 90° marked on one side and 85° on the other. Standard models ship with the 90° side active; Pre-Set models ship with 85° for a 5° tighter closure into the shower interior. The pin can be rotated (not flipped) to select the opposite stop.


Custom Pivot Pins: Specify a custom pivot pin for off-angle installations (up to 45°) when wall-to-door angles are not square and the standard 5° offset does not achieve the desired closing position.


Load Ratings & Maximum Door Widths

Using two hinges with 3/8" glass (10 mm): holds up to 100 lbs (45 kg); maximum door width 34" (864 mm).

Using two hinges with 1/2" glass (12 mm): holds up to 100 lbs (45 kg); maximum door width 32" (813 mm).

Using three hinges with 3/8" glass (10 mm): holds up to 130 lbs (59 kg); maximum door width 34" (864 mm).

Using three hinges with 1/2" glass (12 mm): holds up to 130 lbs (59 kg); maximum door width 32" (813 mm).


SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Cut-out required — except V1E092 which requires cut-out for door and two holes for fixed panel
Includes: Gaskets, screws, and glass fabrication dimensions

Specifications

Templates
V1E074 Template
