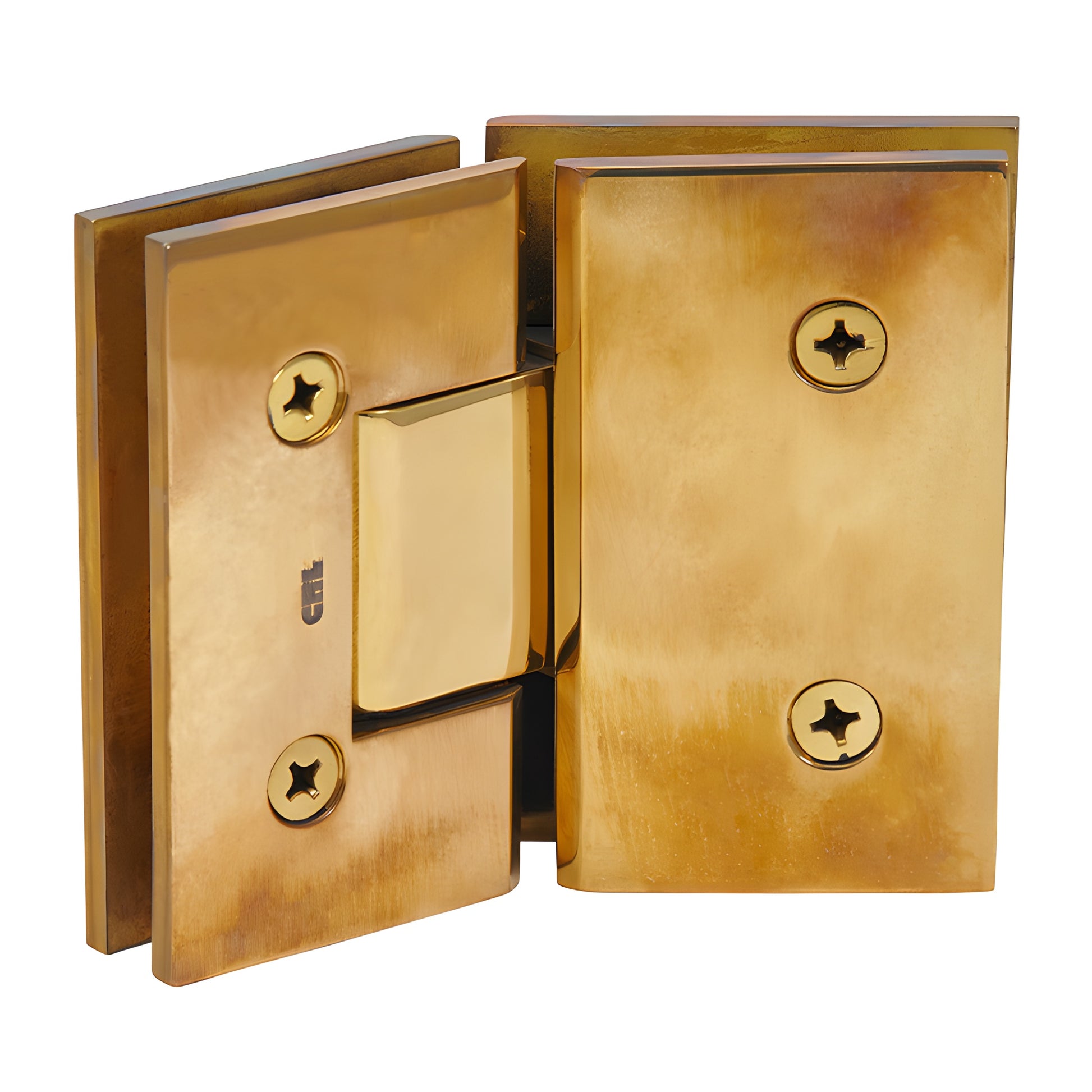

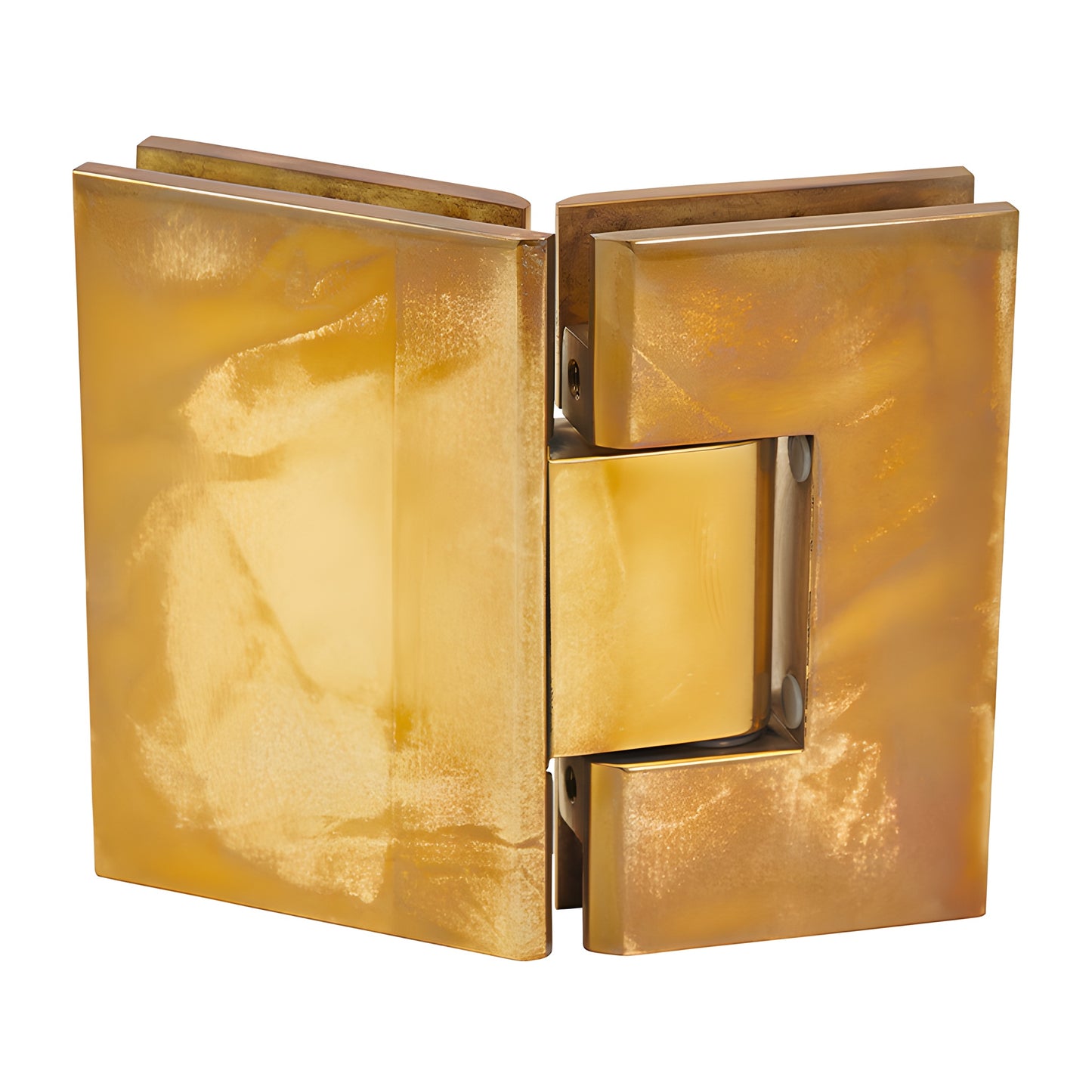

CRL Vienna 045 135° Unlacquered Brass Glass-to-Glass Shower Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) glass
• Available in several durable finishes
• 3 year warranty
• 135° glass-to-glass configuration
• For use with monolithic tempered glass

CRL Vienna Hinges (SKU: V1E045ULBR) provide heavy-duty support for wider frameless shower doors that standard hinges cannot handle. Internal dual steel pins offer two template options: leave both pins in for compatibility with CRL "mouse-ears" cut-outs, or remove them for increased adjustability and compatibility with CRL rectangular, square-cornered cut-outs (may fit some competitive cut-outs). These features make the Vienna Hinge ideal for frameless glass shower door installations requiring robust support and flexible glass cut-out options.

STANDARD REVERSIBLE PIVOT PIN: Each Vienna Hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active. Pre-set models ship at 85° for a 5° tighter closure into the shower interior. Rotate the pin (do not flip) to switch angles.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle walls or non-90° jambs—specify the required angle up to 45° for precise closing performance.

Load Capacity:
- Using two hinges with 3/8"–1/2" glass: supports up to 110 lbs. (50 kg), maximum door width 36" (914 mm).
- Using three hinges with 3/8"–1/2" glass: supports up to 140 lbs. (63 kg), maximum door width 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out (pivot for bi-directional swing)
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: See model details (except V1E092 which requires cut-out for door plus two holes for fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes available on request—contact CRL Technical Sales, Shower Door Department.

Product Warning:

CRL shower door hinges are designed for residential and hotel shower use. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge; CRL cut-out dimensions
