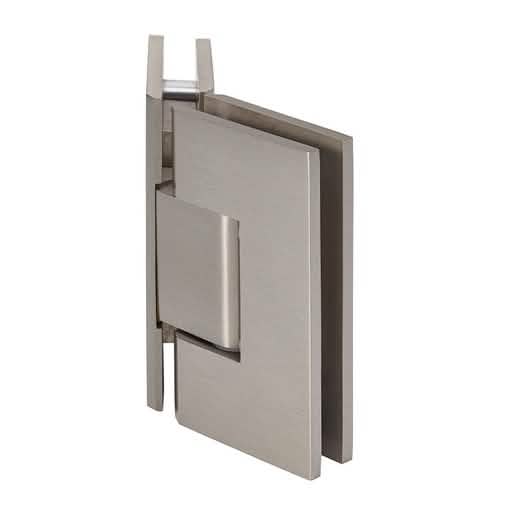

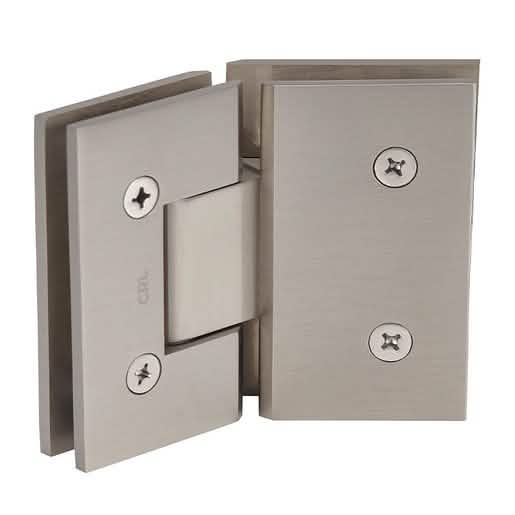

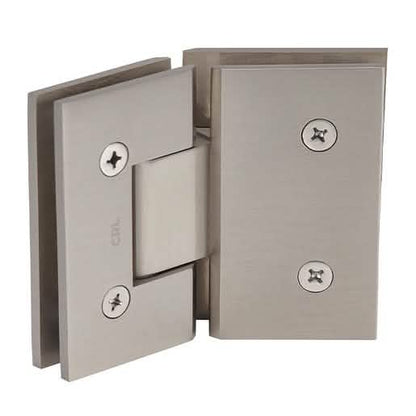

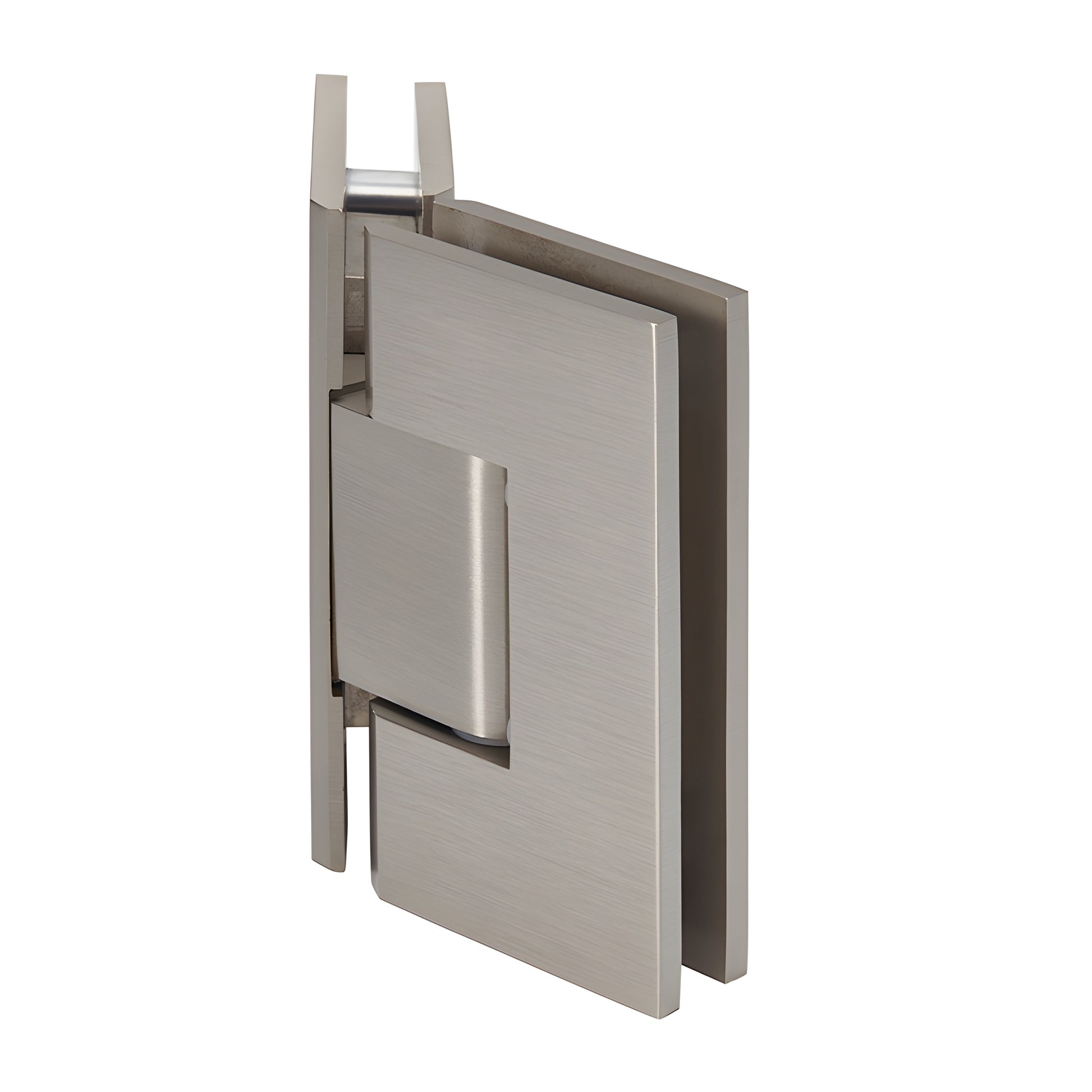

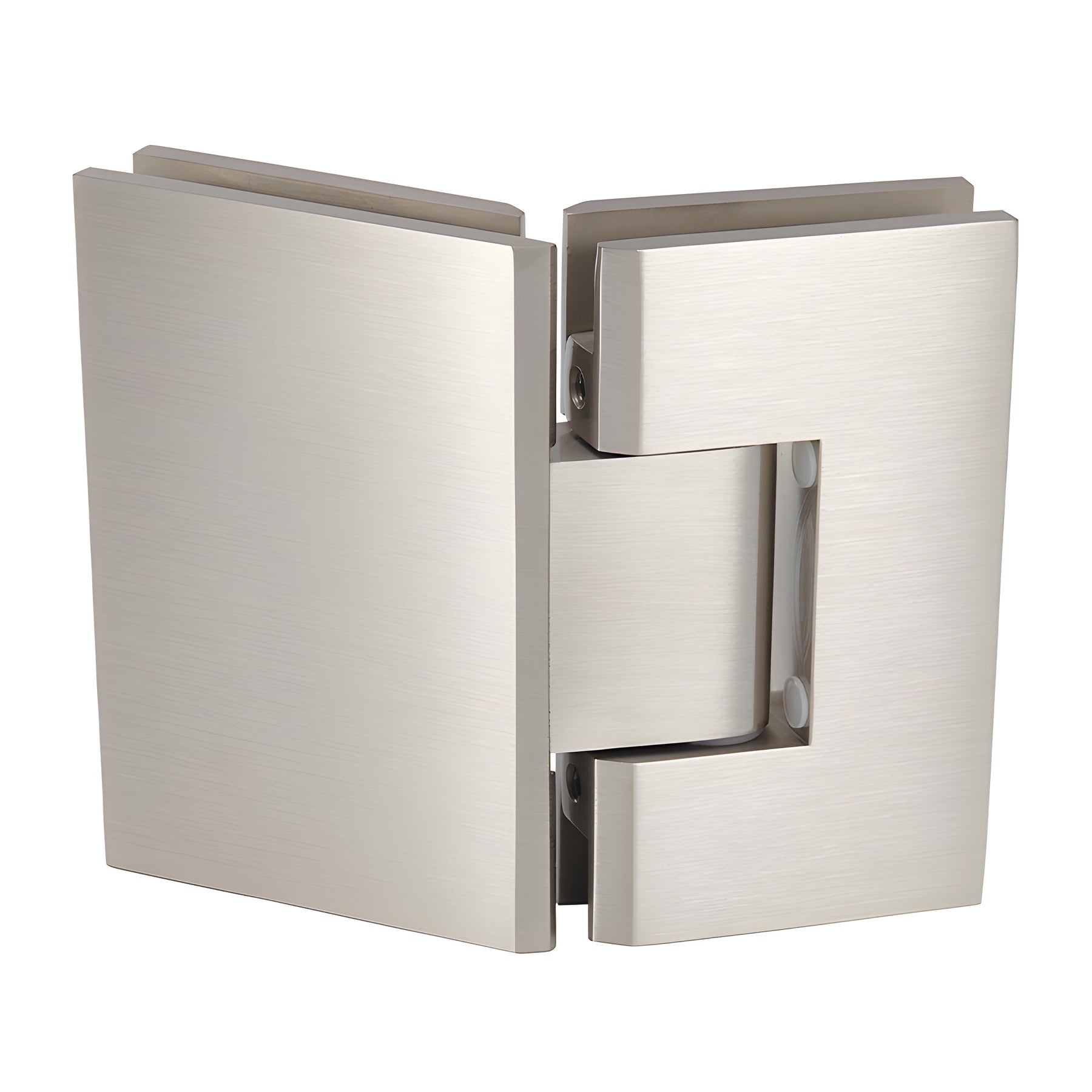

CRL Vienna 045 135° Brushed Nickel Glass-to-Glass Shower Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Available in several attractive finishes (custom finishes on request)
• 3 Year Warranty
• 135° glass-to-glass configuration for seamless shower door installations
• Designed for monolithic tempered glass

CRL Vienna Hinges (SKU: V1E045BN) are heavy-duty shower door hinges engineered for wider, heavier frameless glass doors that standard hinges cannot support. Solid brass construction with two internal steel pins gives installers template flexibility: leave pins in for CRL "mouse-ears" cut-outs, or remove pins to fit CRL rectangular (square-corner) cut-outs and, in some cases, compatible competitive rectangular cut-outs.

STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active; Pre-Set models ship pre-set to 85° for a 5° tighter closure into the shower interior. Rotate the pin (do not flip) to change the active angle.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle wall-to-door conditions—specify up to 45° if the standard 5° adjustment does not achieve the desired closing position.

Load Capacity:

• Two hinges (3/8"–1/2" glass): supports up to 110 lb (50 kg), max door width 36" (914 mm)
• Three hinges (3/8"–1/2" glass): supports up to 140 lb (63 kg), max door width 36" (914 mm)

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass — corrosion-resistant, heavy-duty shower door hinge for frameless glass doors
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Requires CRL cut-out pattern (except V1E092, which requires cut-out for door plus two holes for fixed panel). Use only the template included with this hinge—CRL cut-outs may differ from other brands.
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes and custom pivot angles are available on request—contact CRL Technical Sales, Shower Door Department for quotes and lead times.
