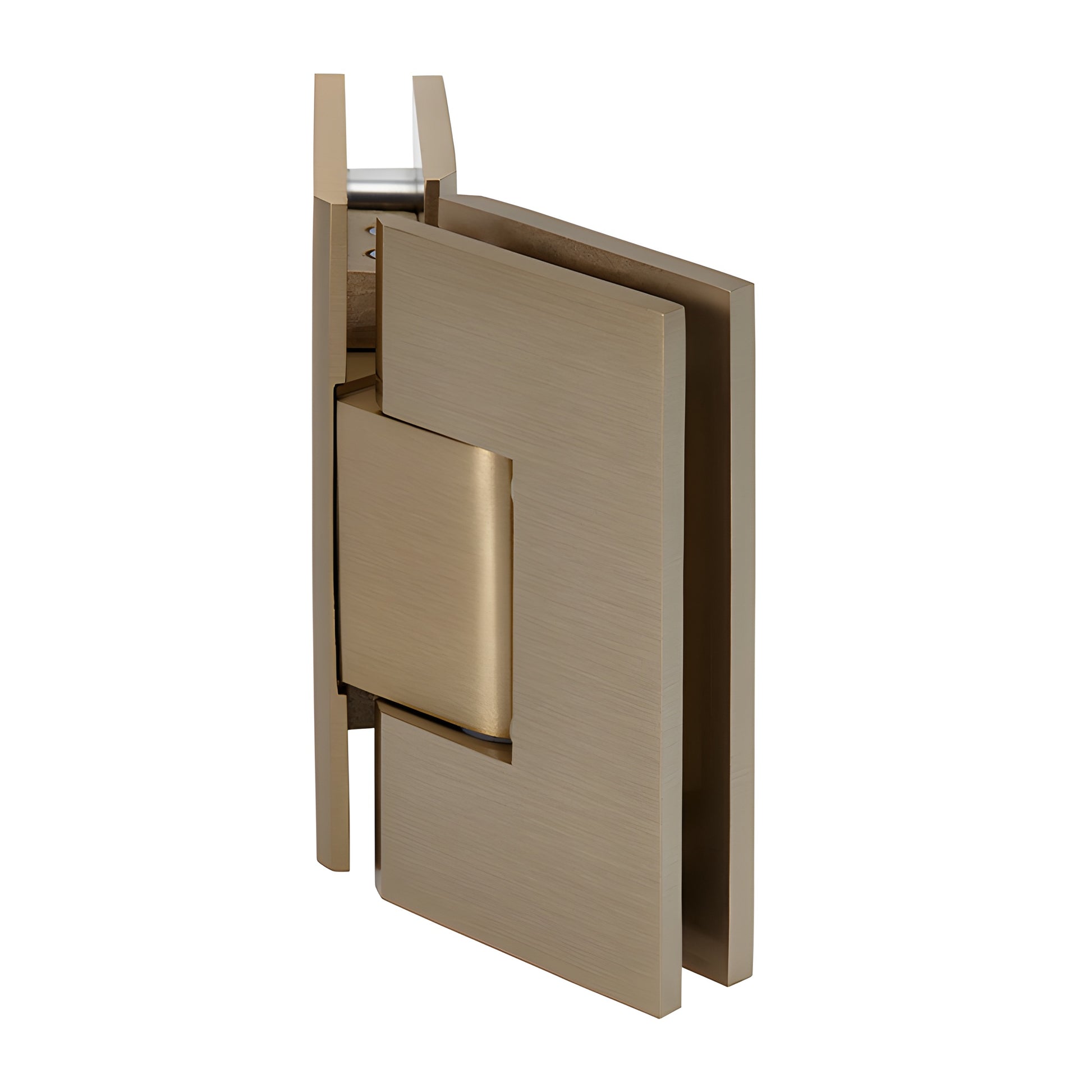

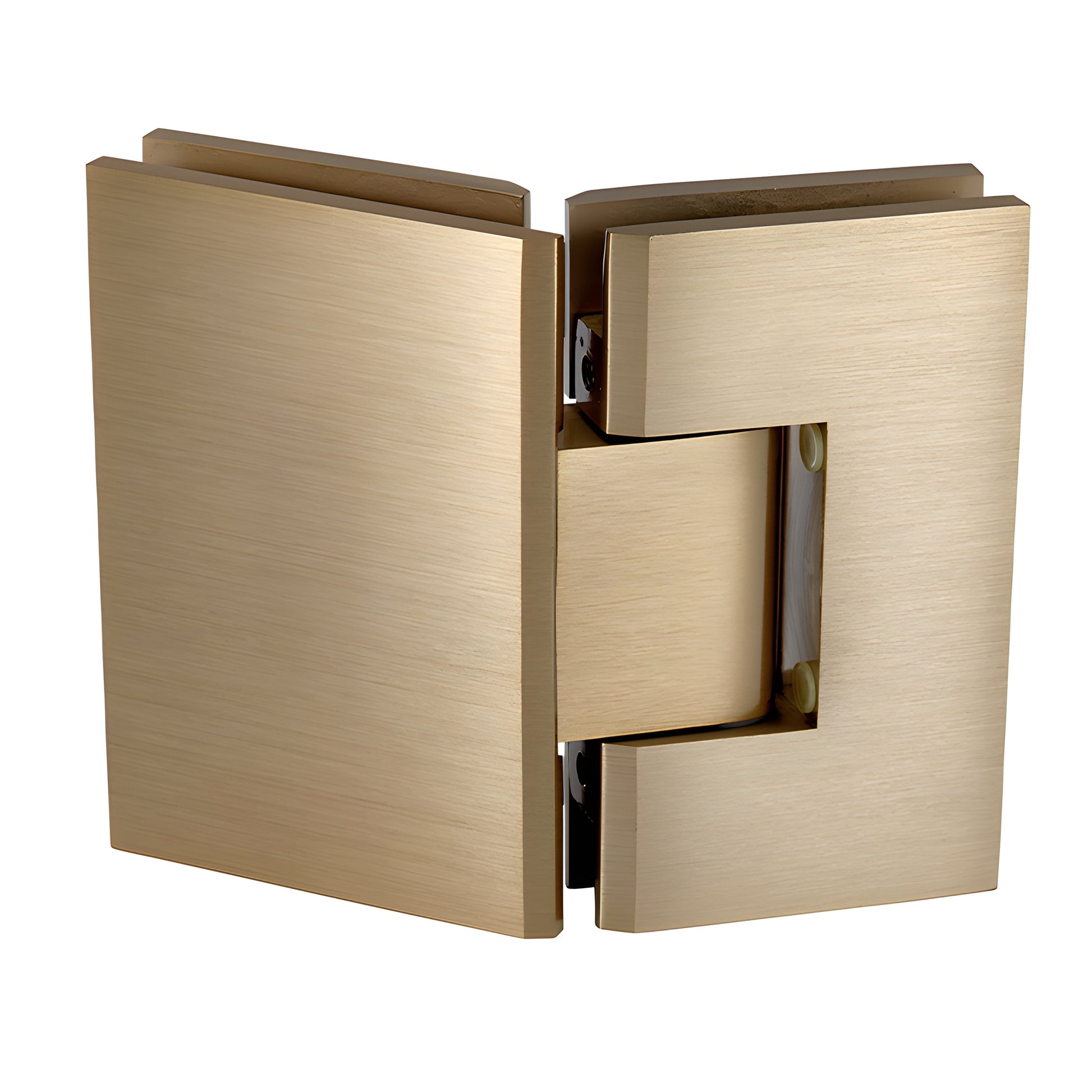

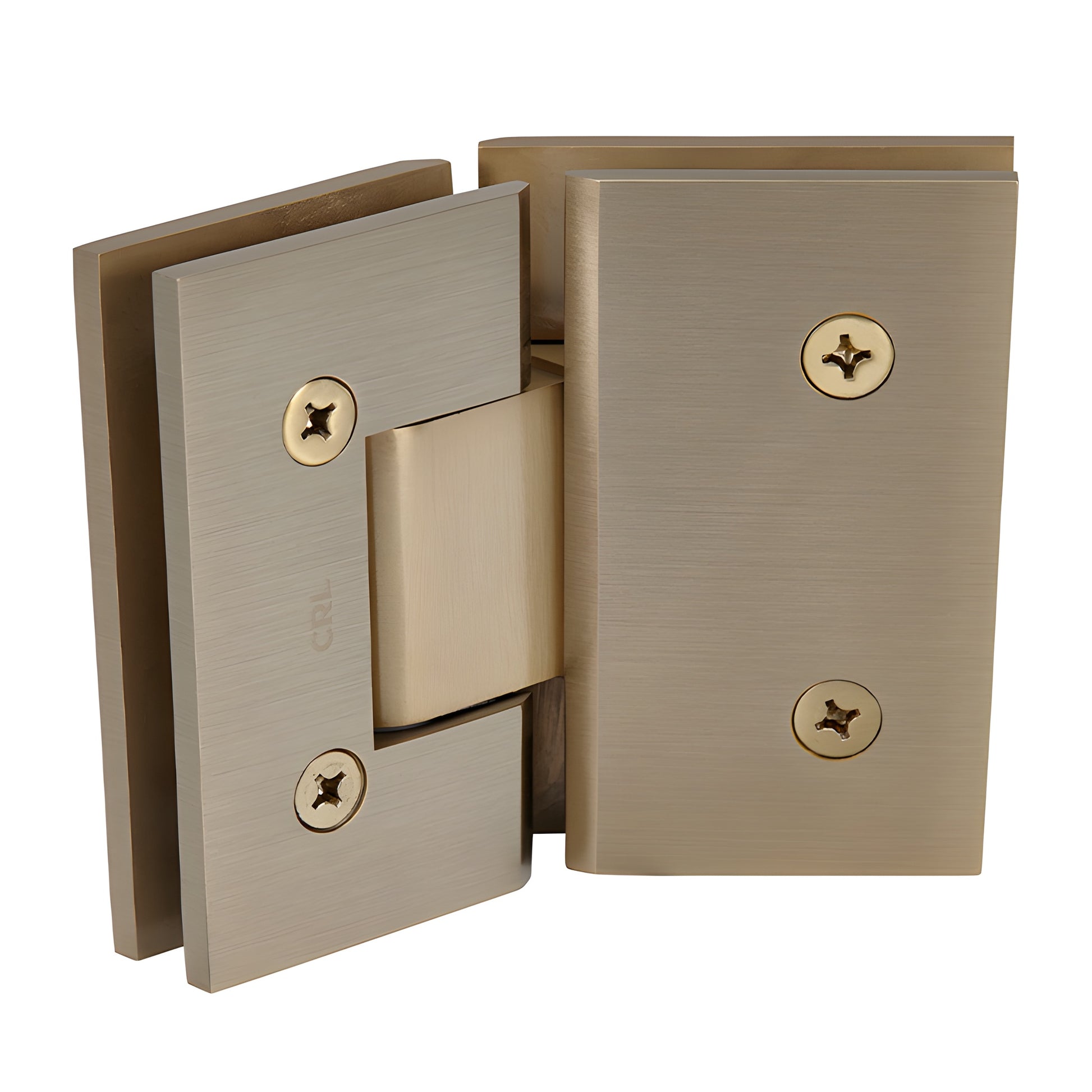

CRL Vienna 045 135° Brushed Bronze Glass-to-Glass Shower Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Available in several beautiful finishes
• 3 Year Warranty
• 135° glass-to-glass hinge for frameless shower doors
• Use with monolithic tempered glass

CRL Vienna Hinges (SKU: V1E045BBRZ) are heavy-duty glass shower door hinges engineered for wider, heavier frameless shower doors when standard hinges are not strong enough. Built from solid brass, Vienna Hinges feature two internal steel pins for mounting template options: leave the pins in for CRL "mouse-ears" cut-outs, or remove them for increased adjustability and compatibility with CRL rectangular (square-corner) cut-outs—and in some cases competitive rectangular cut-outs.

STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship set to 90°; pre-set models ship at 85° for a 5° tighter closure into the shower. Rotate (do not flip) the pin to change the setting.

CUSTOM PIVOT PIN: Custom pivot pins are available up to 45° to accommodate off-angle walls or non-90° installations.

Performance & Capacity:
Using two hinges with 3/8"–1/2" (10–12 mm) glass: supports up to 110 lbs (50 kg), maximum door width 36" (914 mm).
Using three hinges with 3/8"–1/2" (10–12 mm) glass: supports up to 140 lbs (63 kg), maximum door width 36" (914 mm).

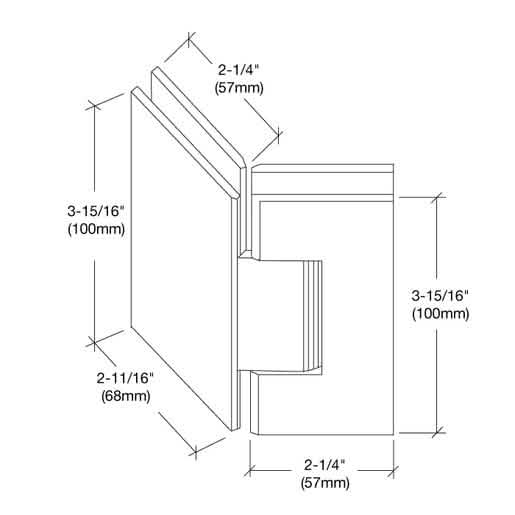

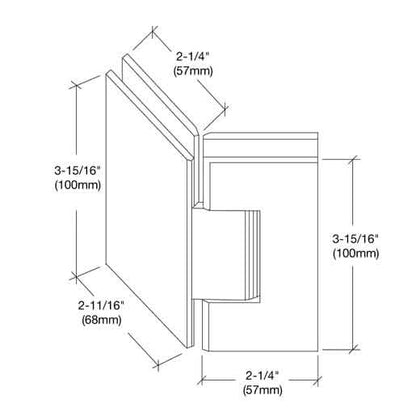

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Except V1E092 which requires cut-out for door and two holes for fixed panel
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes are available on request; contact CRL Technical Sales Shower Door Department for finish options and lead times.
