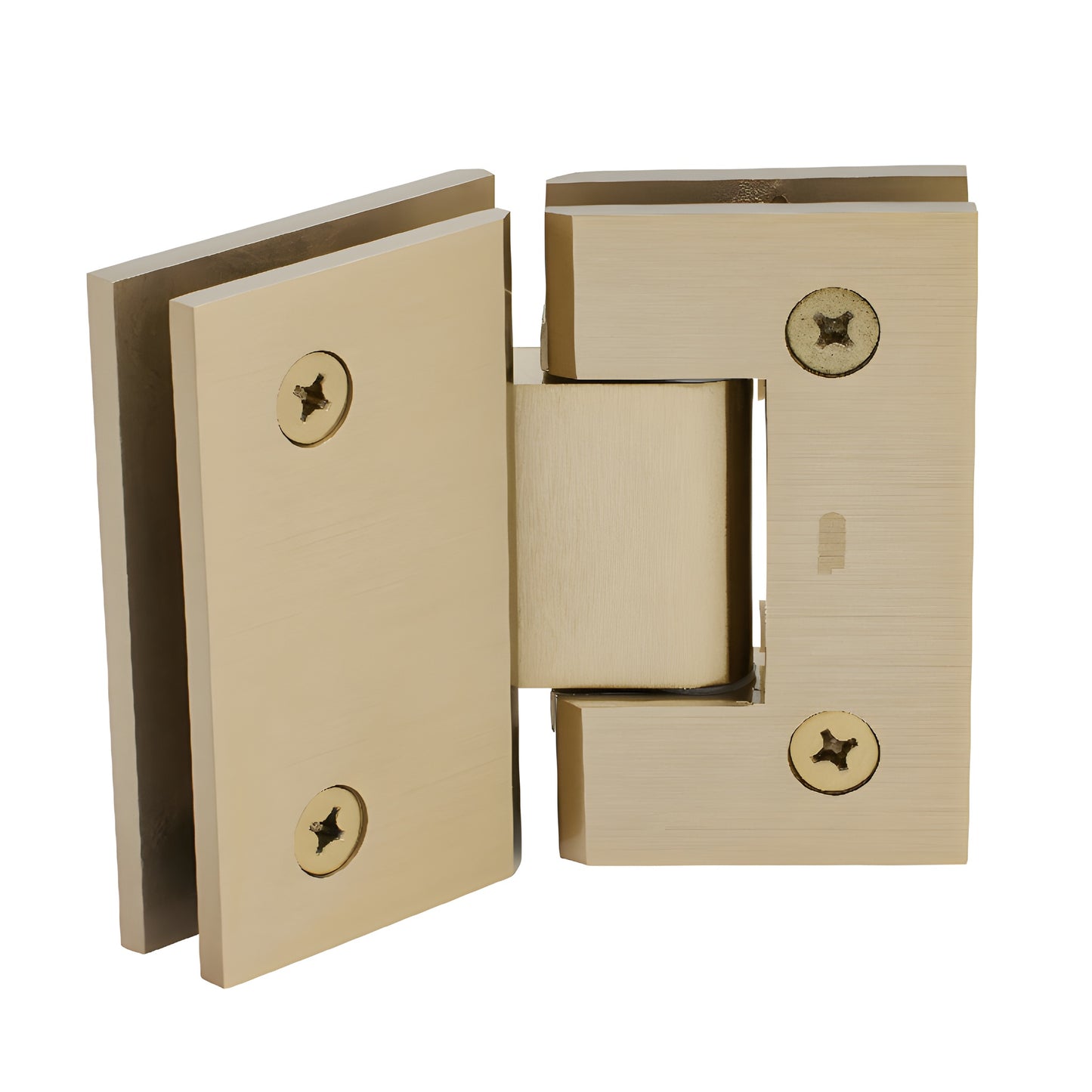

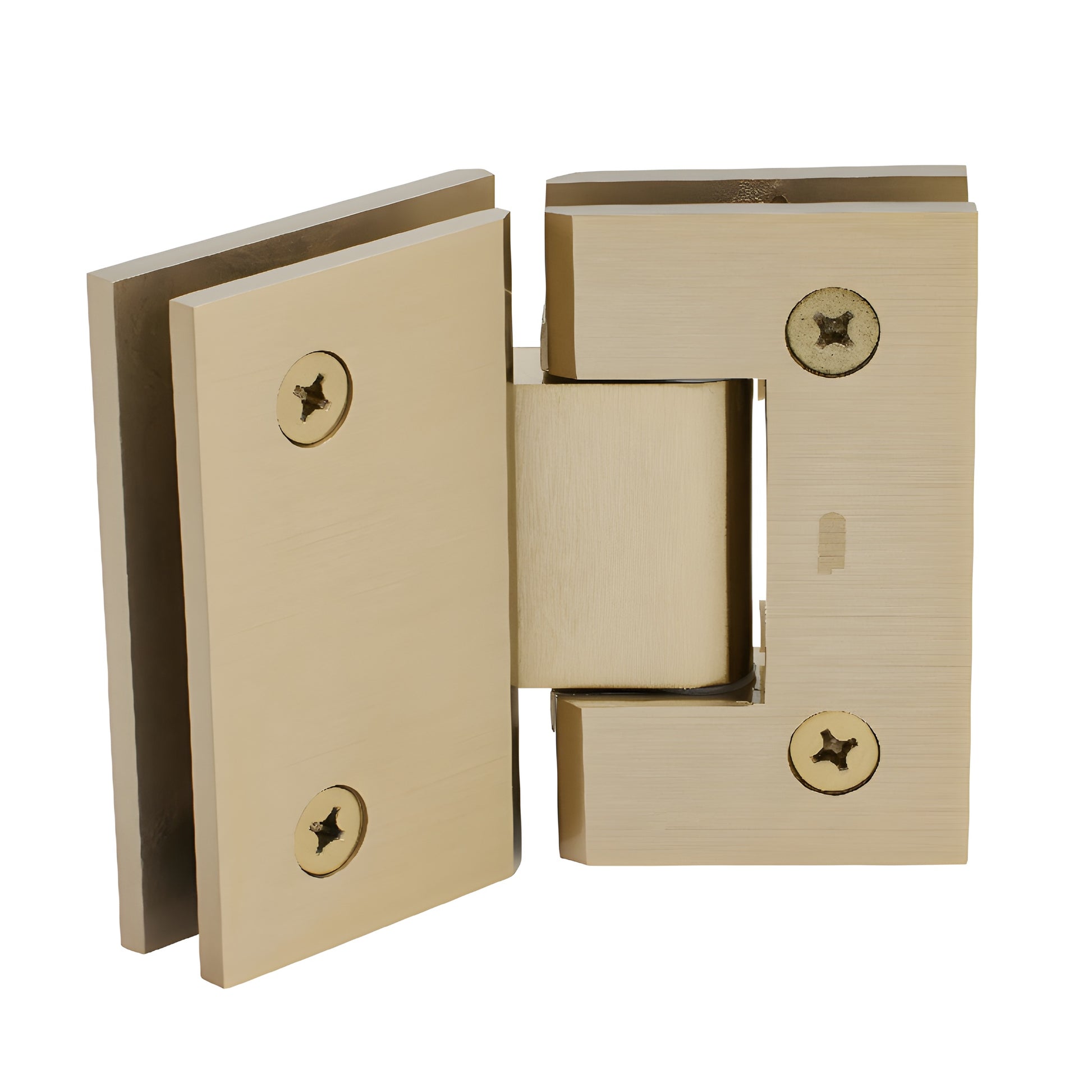

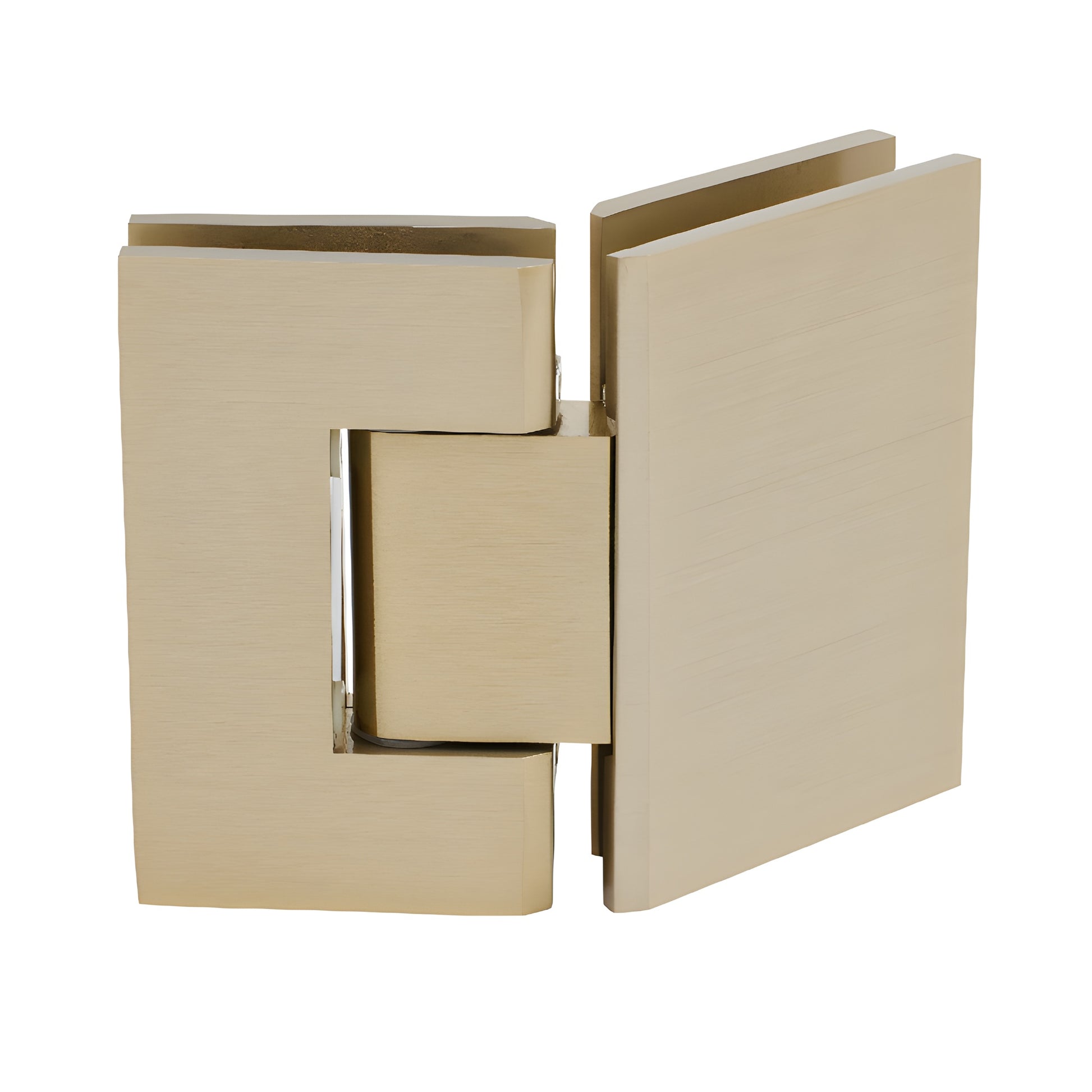

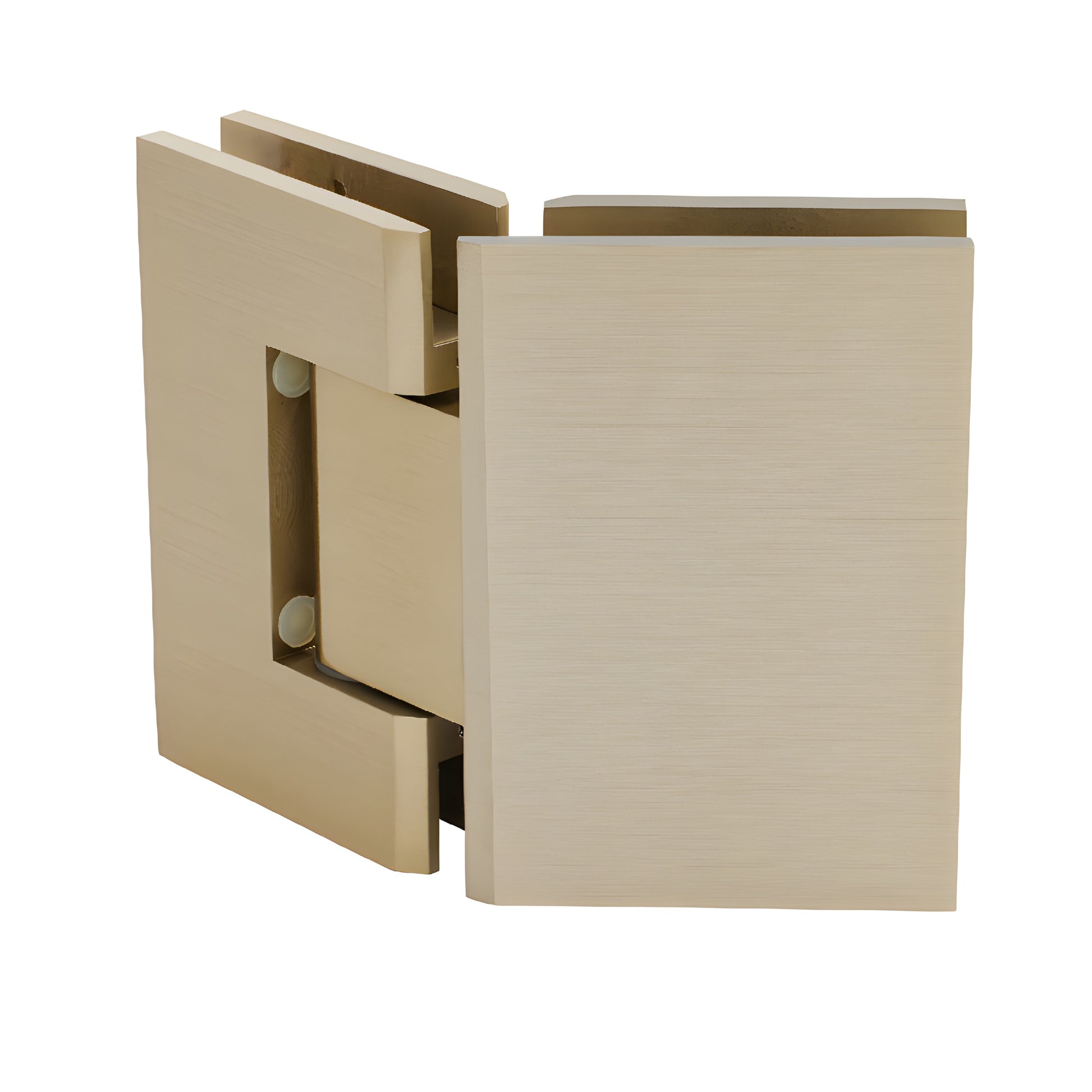

CRL Geneva 045 Brushed Bronze 135° Glass-to-Glass Shower Hinge

• Self-centering with reversible 5° pivot pin
• Available in several beautiful finishes
• Three year warranty
• 135° glass-to-glass standard model (factory set for standard closing position)
• Use monolithic tempered glass

CRL Geneva Series professional shower door hinges (SKU: GEN045BBRZ) fit 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass. Six styles—three wall-mount and three glass-to-glass—provide design flexibility. Geneva hinges are self-centering and include a reversible 5° pivot pin; custom pivot pins are available for off-angle installations. Constructed of solid brass with stainless steel pins and springs for reliable, corrosion-resistant performance.

Standard Reversible Pivot Pin: Each hinge contains a reversible pivot pin marked 90° on one side and 85° on the other. Standard hinges ship with the 90° side activated; offset models are pre-set to 85° (5° tighter closure into the shower interior). The pin can be rotated to change the closing angle.

Custom Pivot Pin: Custom pivot pins (Cat. No. GENP1N) can be specified up to 45° for off-angle installations. If the 5° reversible pin does not provide the desired closing position, contact the Technical Sales Shower Door Department. Note: glass sizes and enclosure aesthetics may be affected when using a custom pivot pin.

Capacity:
- Two hinges (8–12 mm glass): holds up to 80 lbs (36 kg), maximum door width 28" (711 mm).
- Three hinges (8–12 mm glass): holds up to 120 lbs (54 kg), maximum door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Choice of Standard model (factory set at 0° closing) or 5° pre-set model for tighter closure into shower interior
Construction: Solid brass with stainless steel pins and springs
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack required separately for use with 5/16" (8 mm) tempered glass.

Custom finishes available on request—contact the Technical Sales Shower Door Division for details.

Product Warning:
CRL shower door hinges are designed for residential or hotel shower
