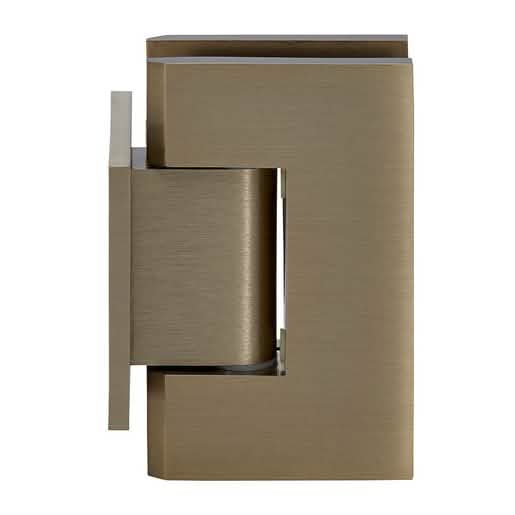

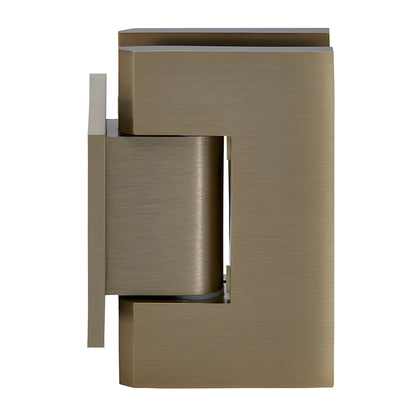

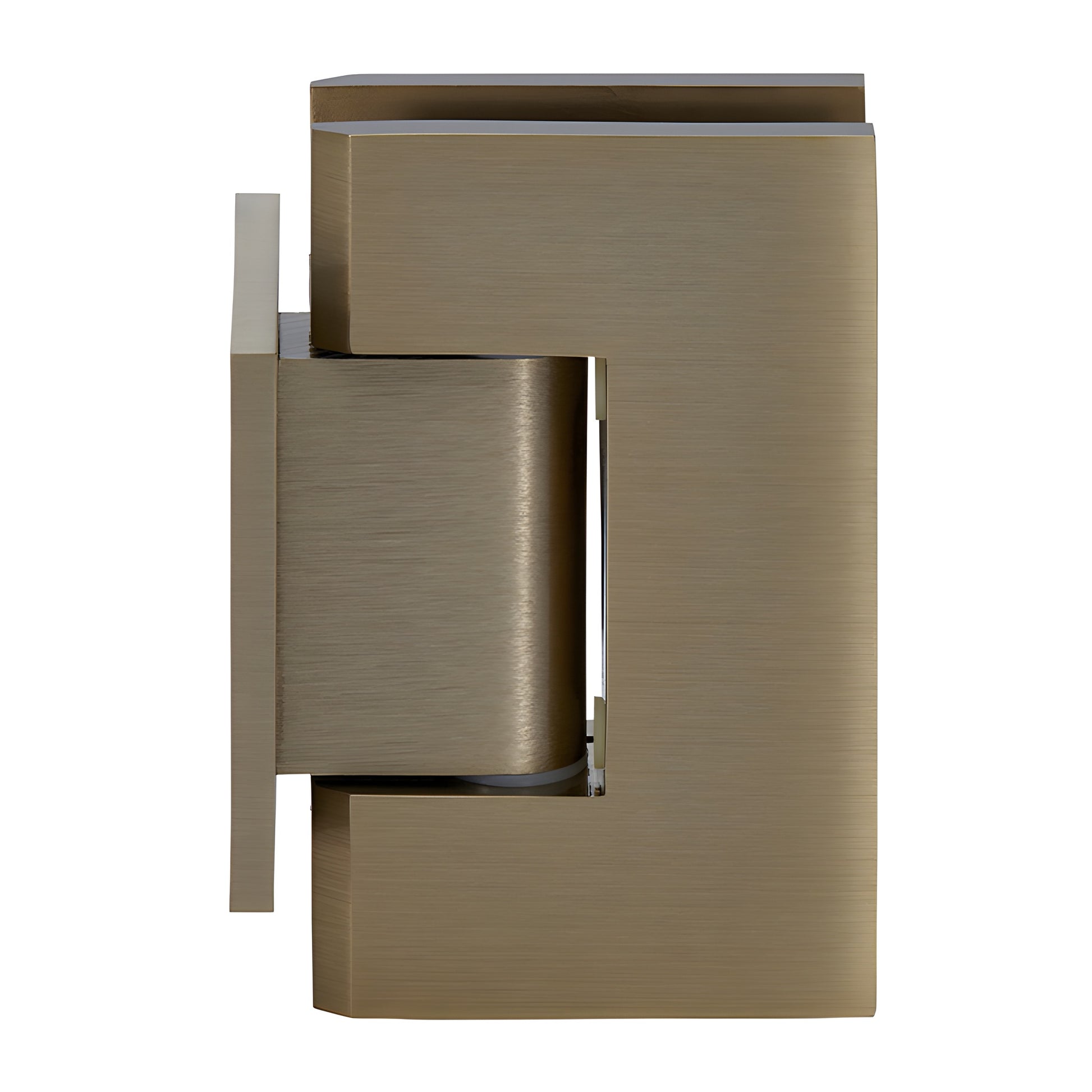

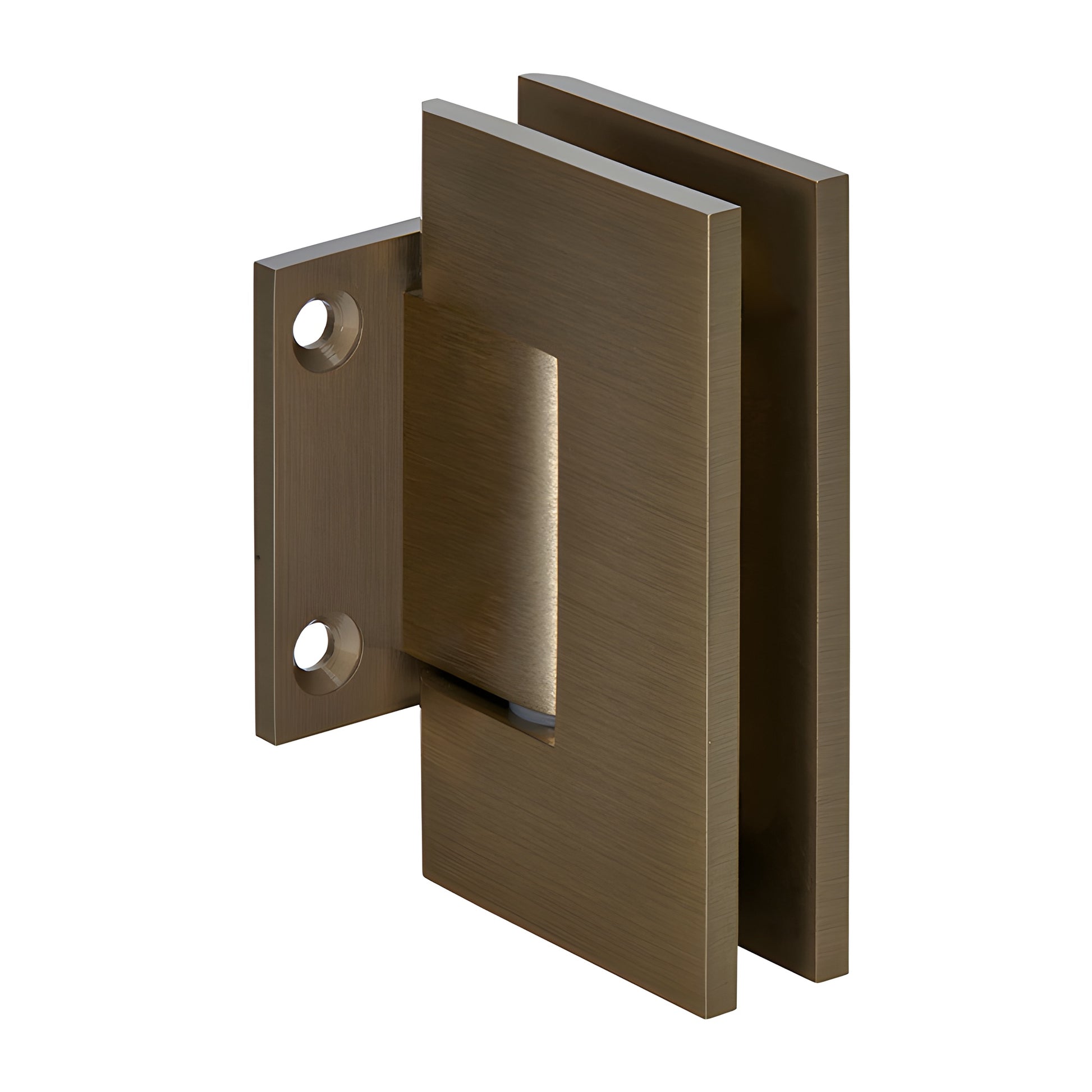

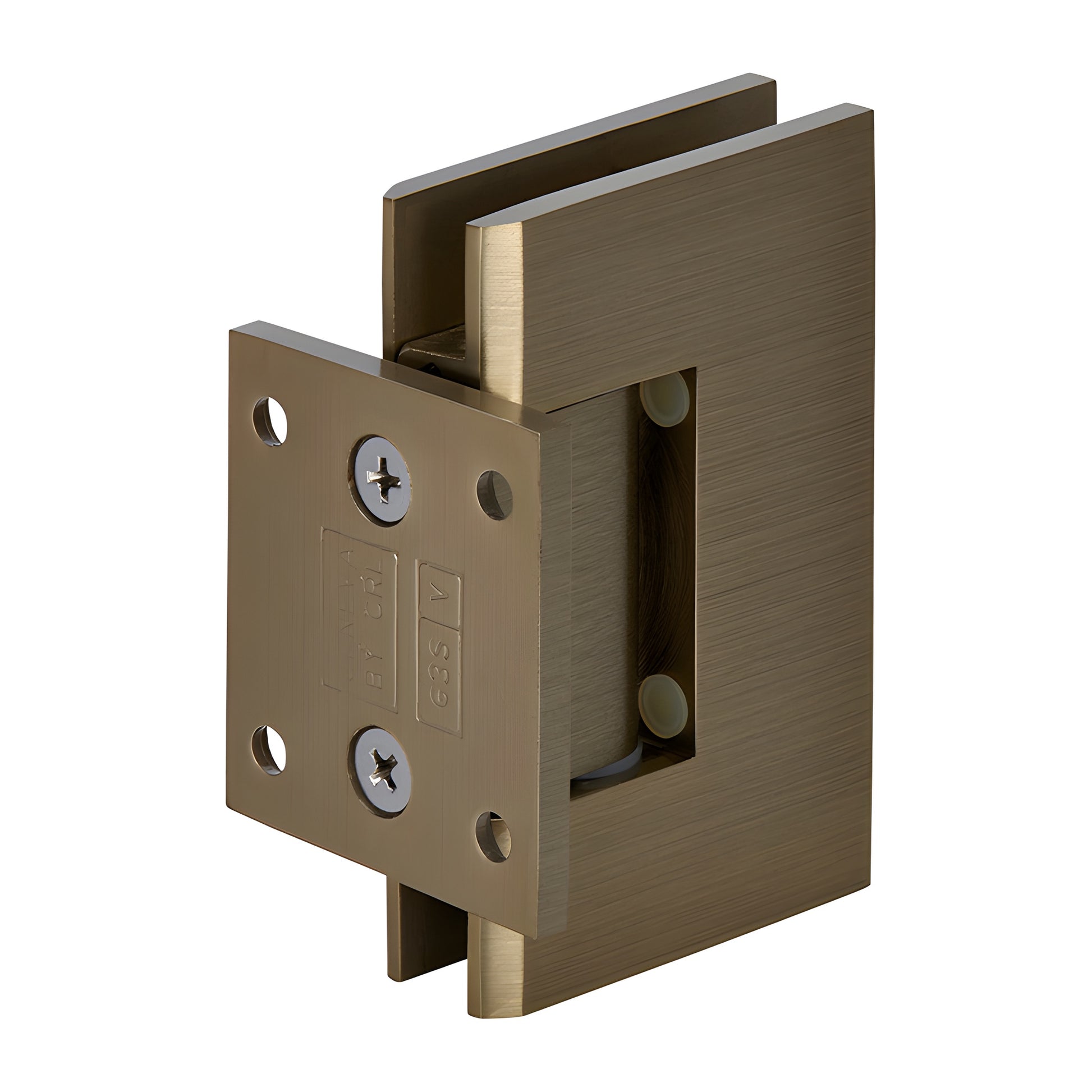

CRL Geneva 074 Brushed Bronze Wall-Mount Short Back Plate Door Hinge

• Self-centering hinge with reversible 5° pivot pin
• Available in multiple brushed and plated finishes
• Three-year warranty
• Standard wall-mount short back plate model
• Designed for monolithic tempered safety glass

The CRL Geneva Series professional hinge (SKU: GEN074BBRZ) fits 5/16" (8 mm) to 1/2" (12 mm) tempered glass and is ideal as a shower door hinge for glass enclosures. Six styles provide design flexibility—three Wall Mount and three Glass-to-Glass—while solid brass construction and stainless steel pins/springs deliver corrosion resistance for wet environments.

Key differentiators: self-centering performance, reversible 5° pivot pin for adjustable closing, available custom pivot pins for off-angle installations (up to 45°), and compatibility with monolithic tempered glass shower doors.

Standard Reversible Pivot Pin: Each Geneva hinge includes a reversible pivot pin marked 90° and 85°. Standard models ship set at 90°. Offset models ship pre-set at 85° for a 5° tighter closure into the shower interior. Rotate the pin (do not flip) to change the active side.

Custom Pivot Pin: Custom pivot pins (Cat. No. GENP1N) are available to achieve off-angle or specialty closures—specify the required angle (up to 45°). Using a custom pin may affect glass sizing and enclosure aesthetics; contact Technical Sales Shower Door Department for assistance.

Capacity:

• Using two hinges (8–12 mm glass): holds up to 80 lbs. (36 kg); max door width 28" (711 mm).
• Using three hinges (8–12 mm glass): holds up to 120 lbs. (54 kg); max door width 32" (813 mm).

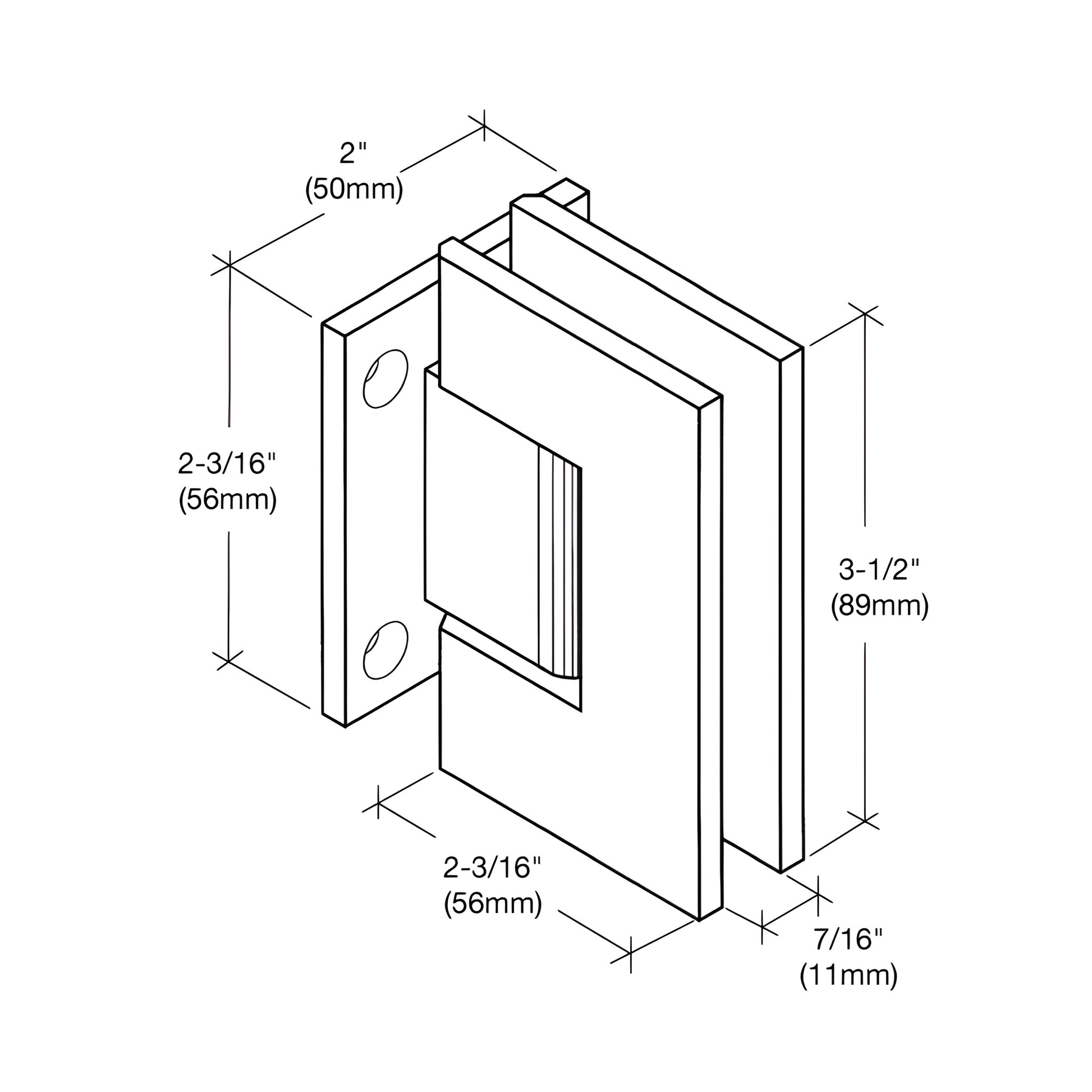

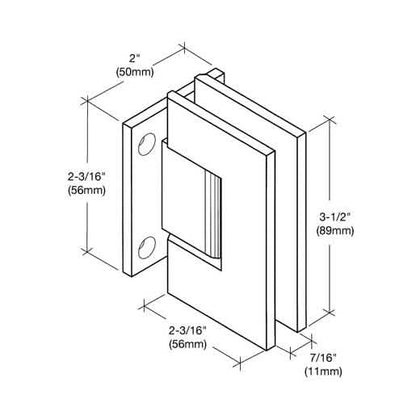

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Choice of Standard (0°) or 5° Pre-Set model for tighter closure into shower interior
Construction: Solid brass with stainless steel pins and springs
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 Gasket Pack required separately for use with 5/16" (8 mm) glass.

Custom finishes available on request—contact Technical Sales Shower Door Division for lead times and options.

Product Warning:

CRL shower door hinges are designed for residential and hotel shower use only. For alternate applications, obtain approval from
