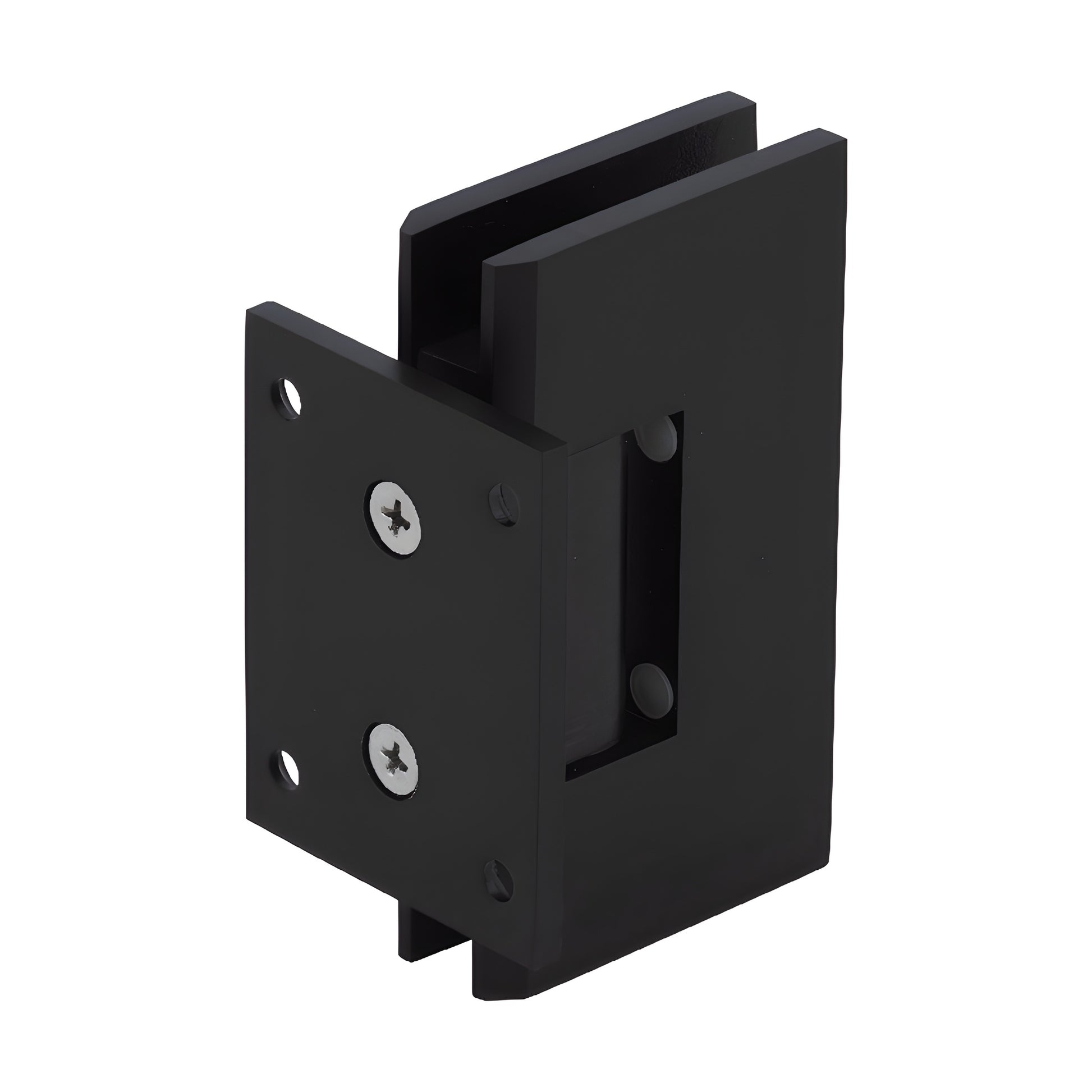

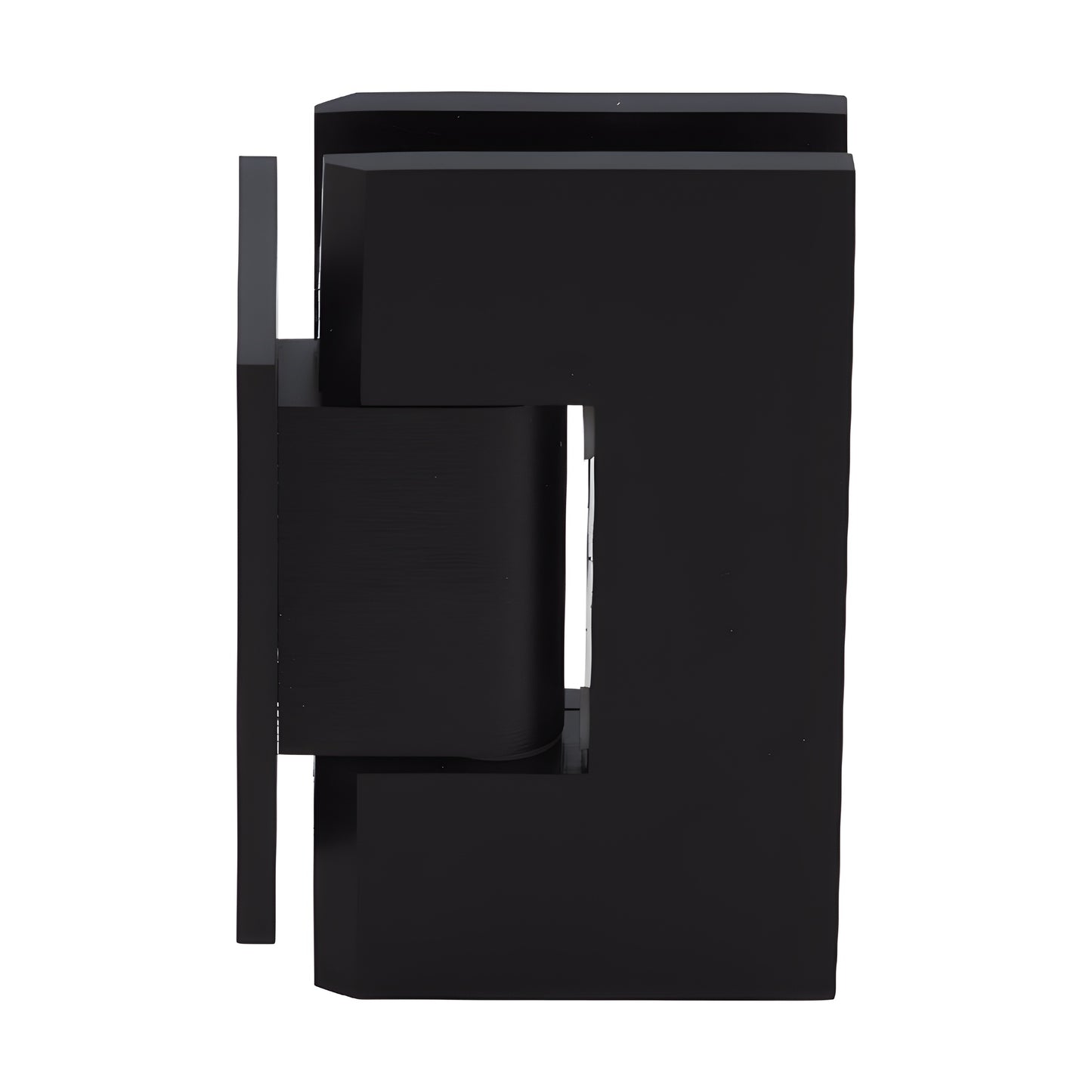

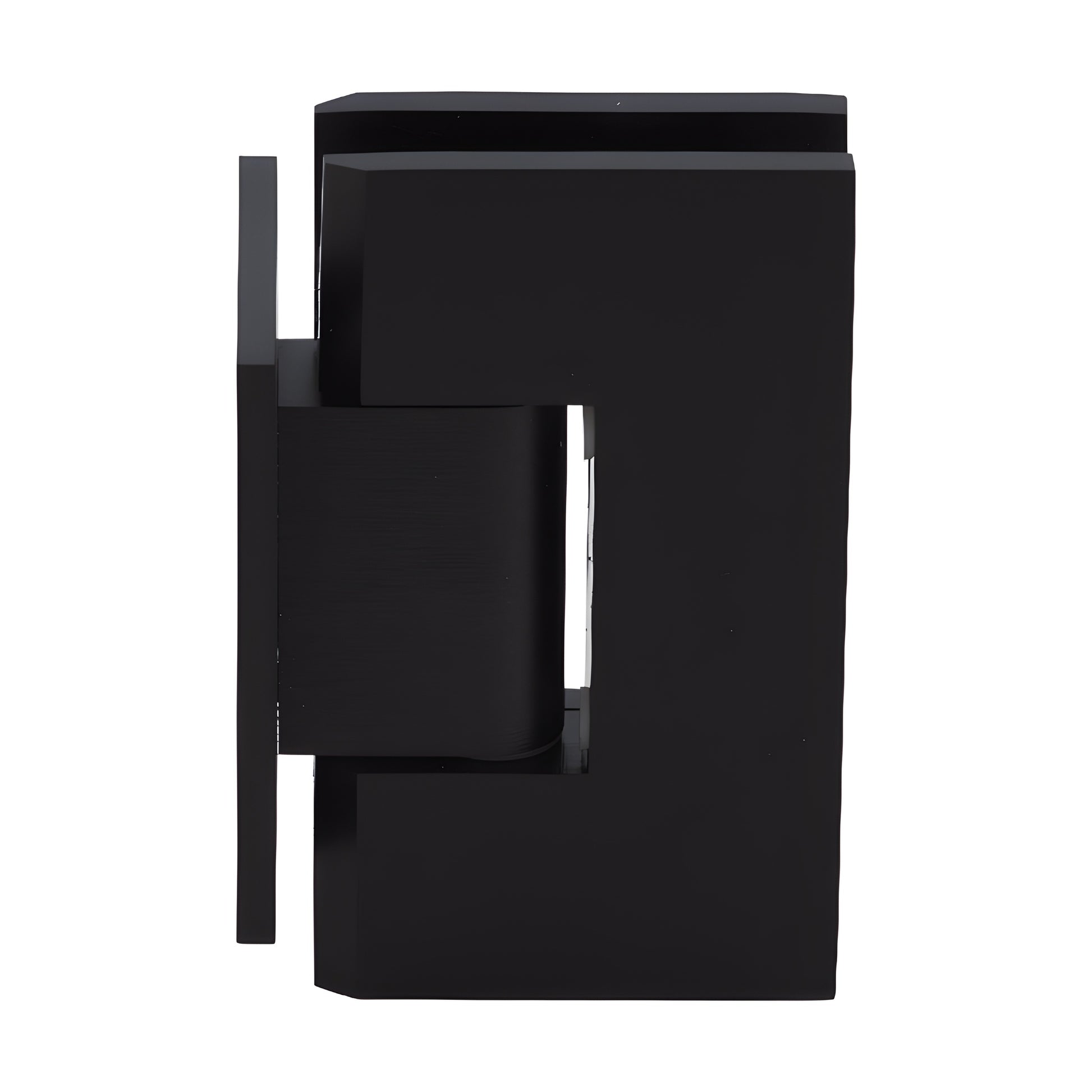

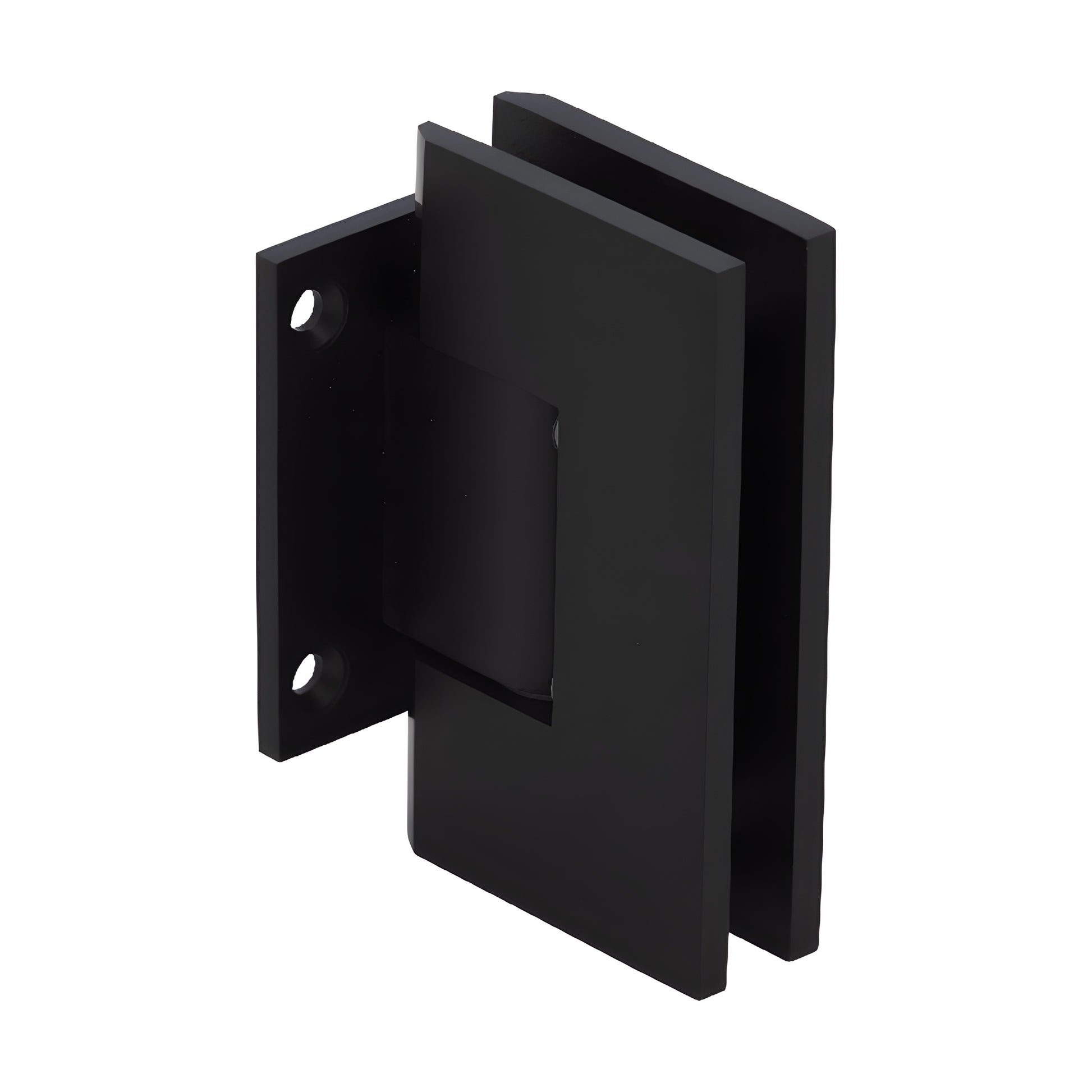

CRL Geneva 074 Oil Rubbed Bronze Wall Mount Short Backplate Door Hinge

• Self-Centering with Reversible 5 Degree Pivot Pin
• Available in several beautiful finishes
• Three year warranty
• Wall mount short back plate standard model
• Use with monolithic tempered glass

The CRL Geneva Series professional hinge (SKU: GEN0740RB) supports 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass and comes in six styles—three Wall Mount and three Glass-to-Glass—offering design flexibility for frameless shower enclosures. Made of solid brass with stainless steel pins and springs, Geneva Hinges are self-centering and include a reversible 5° pivot pin for improved door closing. Custom pivot pins are available for off-angle installations.

Standard Reversible Pivot Pin: Each hinge contains a reversible pivot pin marked 90° and 85°. Standard models ship with the 90° side active; Offset models ship pre-set to 85° for a tighter closure into the shower interior. The pin can be rotated to switch sides.

Custom Pivot Pin: Custom Pivot Pins (Cat. No. GENP1N) are available up to 45° for off-angle doors. If the 5° reversible pin does not achieve the desired closure, specify the needed angle and contact our Technical Sales Shower Door Department. Using a custom pin may affect glass dimensions and enclosure aesthetics.

Capacity:

• Two hinges (8–12 mm glass): holds up to 80 lbs (36 kg), max door width 28" (711 mm).
• Three hinges (8–12 mm glass): holds up to 120 lbs (54 kg), max door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Choice of Standard model factory set at 0° closing or 5° Pre-Set model for tighter interior closure
Construction: Solid brass with stainless steel pins and springs
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering within 15° of closed position
Cut-Out Required Includes: gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack required separately for 5/16" (8 mm) glass.

Custom finishes available on request—contact Technical Sales Shower Door Division.

Product Warning:

CRL shower door hinges are designed for residential and hotel shower use only. For other applications, obtain approval from CRL Shower
