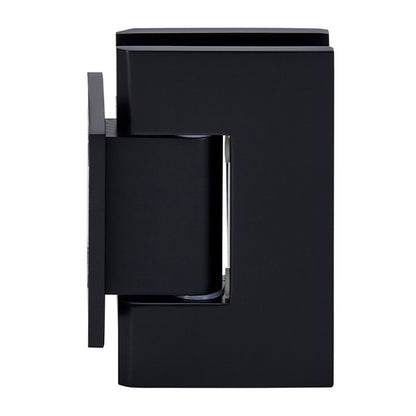

CRL Matte Black Geneva 074 Series Wall Mount Short Back Plate Hinge

5 Degree Pre-Set

No

Adjustable

No

Back Plate

Short

Finish/Color

Matte Black

Glazing Thickness

5/16 in. To 1/2 in. (8 mm To 12 mm)

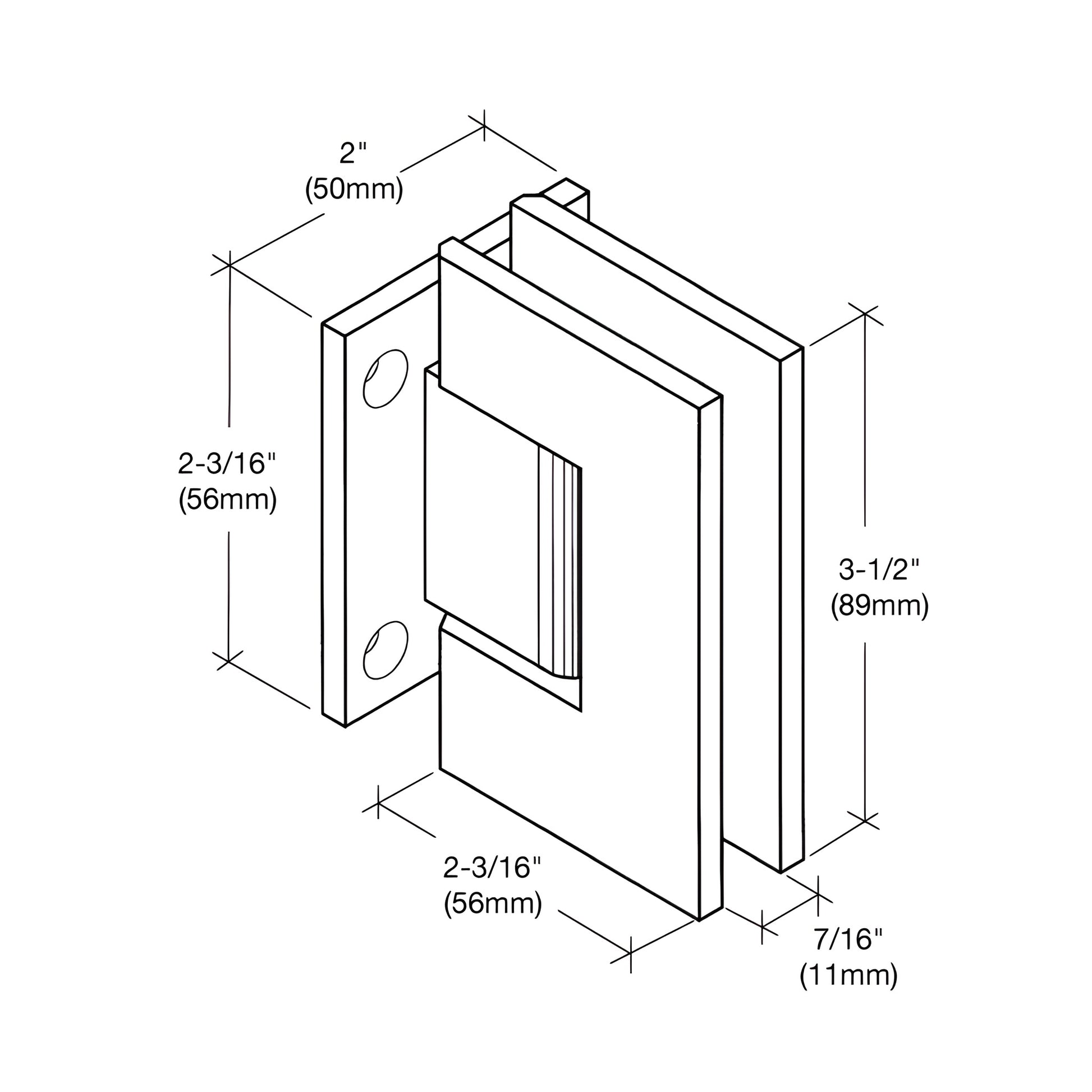

Height

3-1/2 in. (89 mm)

Material

Brass

Maximum Door Weight - 2 Hinges

80 lbs. (36.3 kg)

Maximum Door Weight - 3 Hinges

120 lbs. (54.4 kg)

Maximum Door Width - 2 Hinges

28

Maximum Door Width - 3 Hinges

32

Mounting Type

Wall Mount

Self-Centering

Yes

Series

Geneva

Width

2-3/16 in. (56 mm)

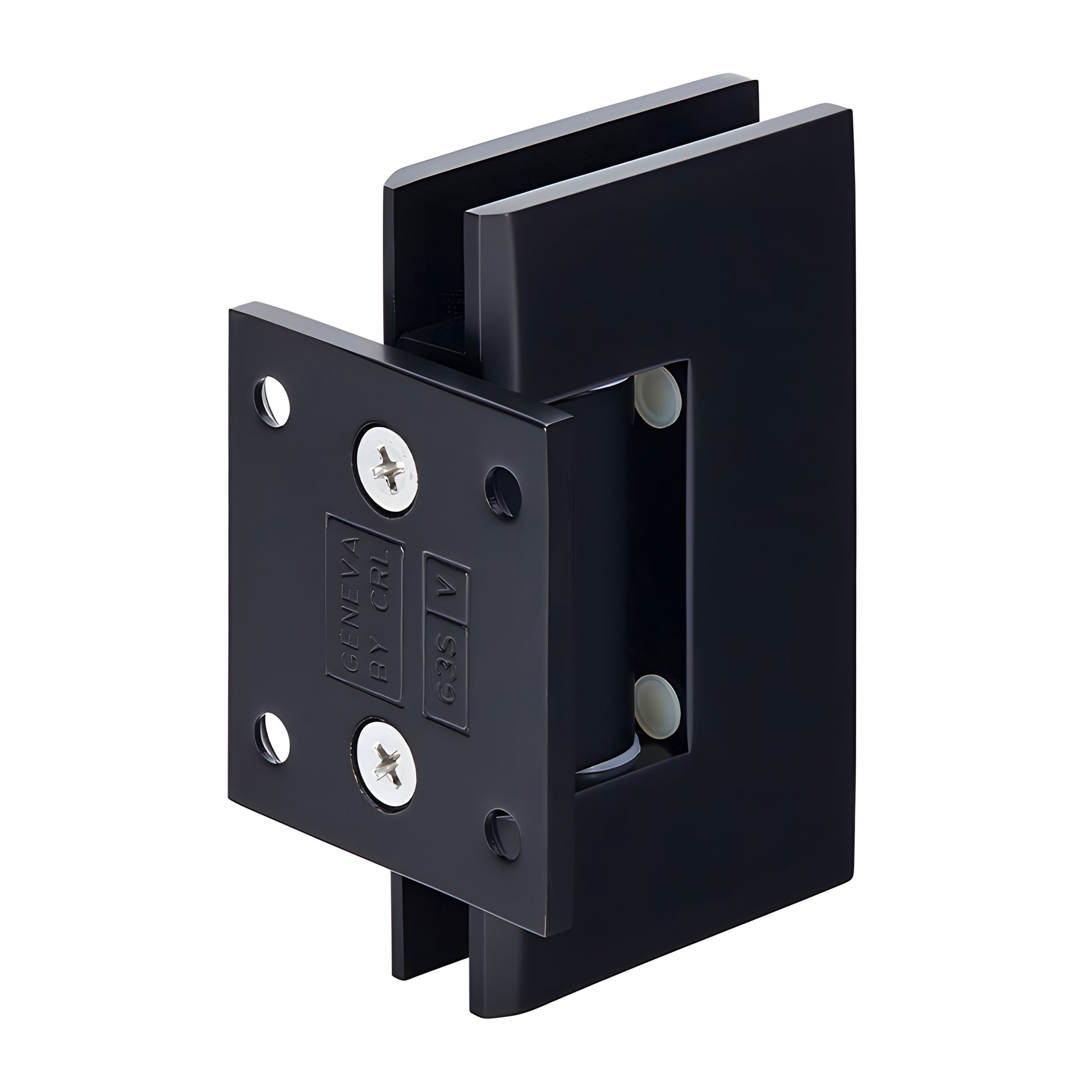

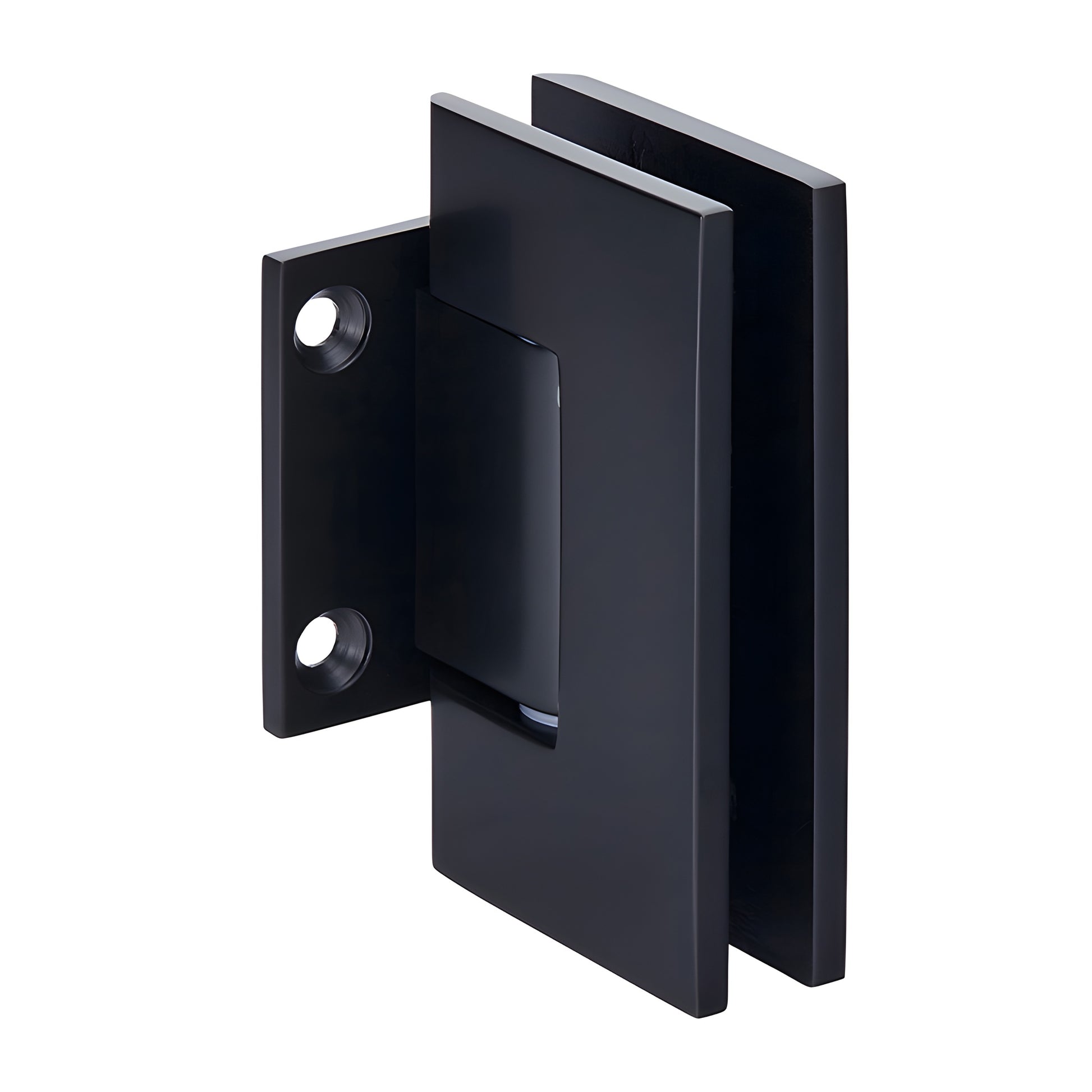

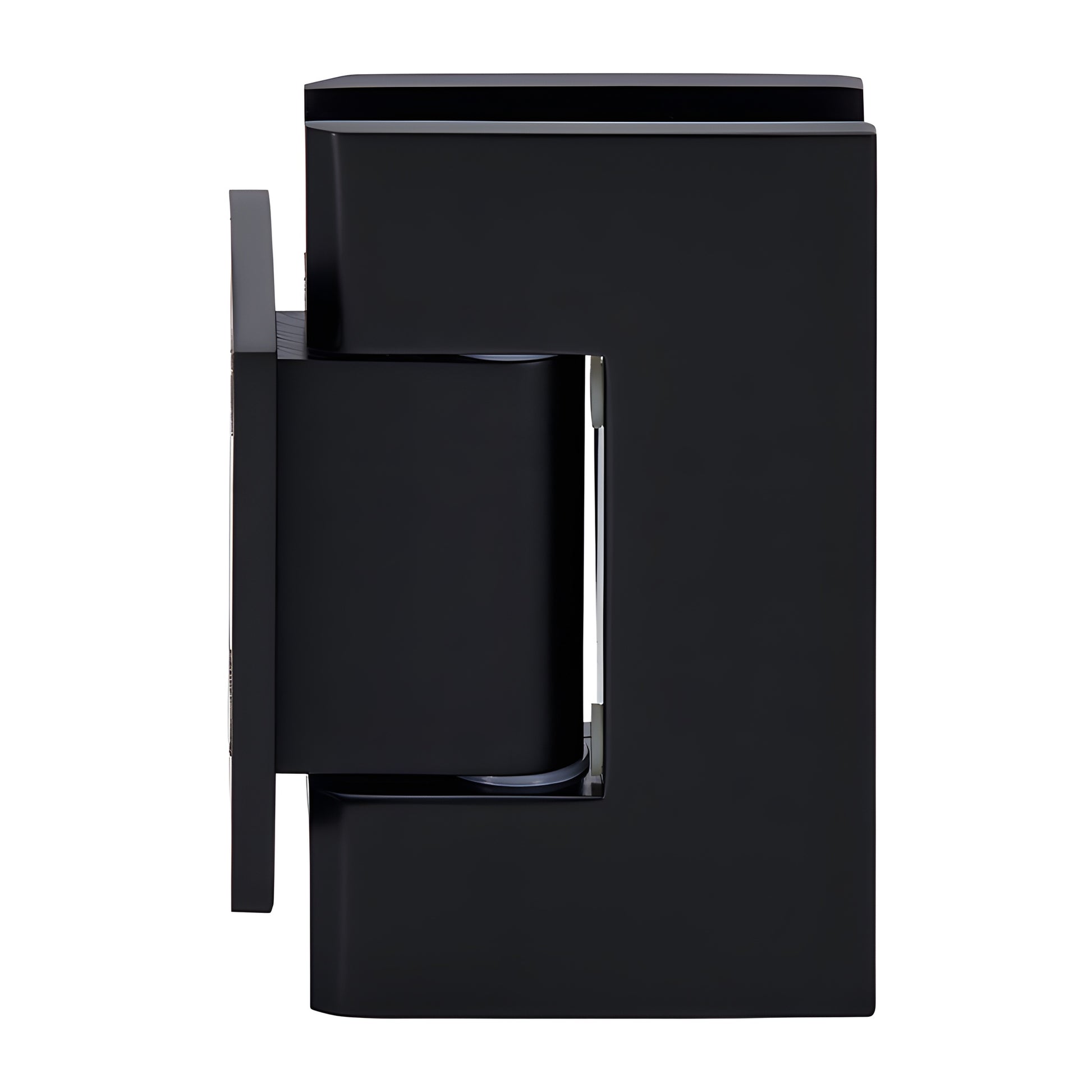

CRL Geneva 074 Matte Black Wall Mount Shower Door Hinge with Short Back Plate

Enhance your frameless shower enclosure with the CRL Geneva 074 Series Wall Mount Shower Door Hinge, featuring a sleek matte black finish and short back plate for a modern aesthetic. This hinge is ideal for residential or hotel shower installations, providing both elegance and robust functionality.

Key Features:

• Self-Centering design with a Reversible 5 Degree Pivot Pin for precise alignment
• Accommodates monolithic tempered safety glass from 5/16" (8 mm) to 1/2" (12 mm)
• Available in multiple premium finishes to match your décor
• Solid brass construction with stainless steel moving parts (pins and springs) for long-lasting durability
• Three-year warranty for added confidence

Installation Flexibility:

• Factory-set Standard Model at 0 degrees or optional 5-degree pre-set for tighter closure into the shower interior
• Custom Pivot Pins available (Cat. No. GENP1N) for off-angle installations up to 45 degrees (consult Technical Sales for details)

Load Capacity:

• Two hinges support up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm)
• Three hinges support up to 120 lbs. (54 kg) with a maximum door width of 32" (813 mm)

Specifications:

• Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
• Hinge Swing: 90 degrees inward and outward
• Closing Mechanism: Self-centering within 15 degrees of the closed position
• Includes: Mounting screws, gaskets, and fabrication dimensions. (Cat. No. GEN13 Gasket Pack required separately for 5/16" (8 mm) glass)

Important Notes:

• Designed specifically for shower enclosures; approval required for other uses
• Use the included template to ensure proper cut-out dimensions
• Contact CRL Customer Service for exact shipping weights if necessary
• Colors shown may vary based on monitor settings

Order the CRL Geneva 074 Matte Black Hinge today for a stylish, secure, and seamless shower installation.

Brochures & Literature

Frameless Shower Door Hardware Catalog

Quote Request Forms

Frameless Shower Door Quote Request Form

Templates

GEN074 Template

CAD Drawings - pdf

GEN074 Detailed CAD Drawings.pdf

CAD Drawings - dwg

GEN074 Detailed CAD Drawings.dwg

Cleaning & Maintenance

Frameless Shower Door Glass and Hardware Cleaning Instructions
