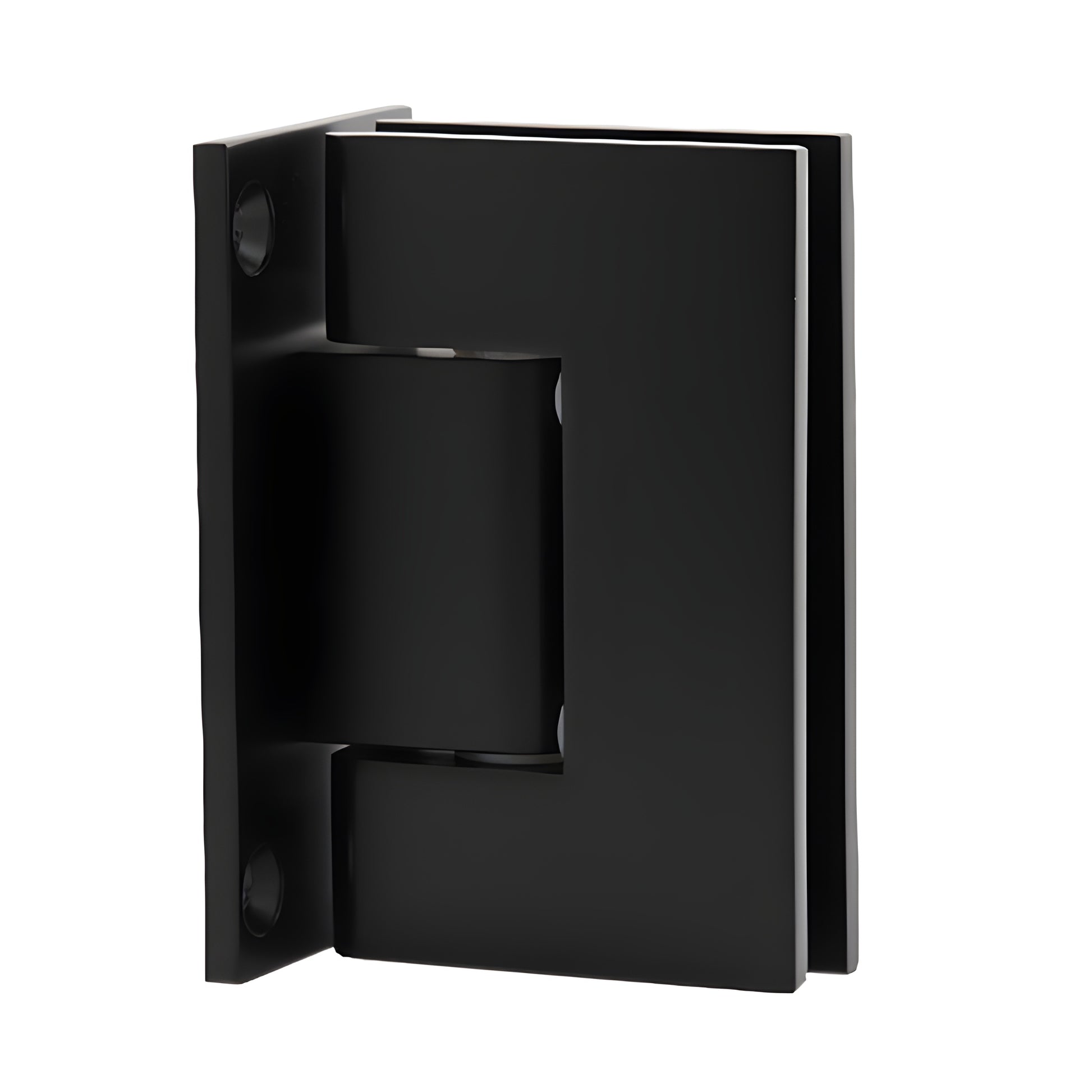

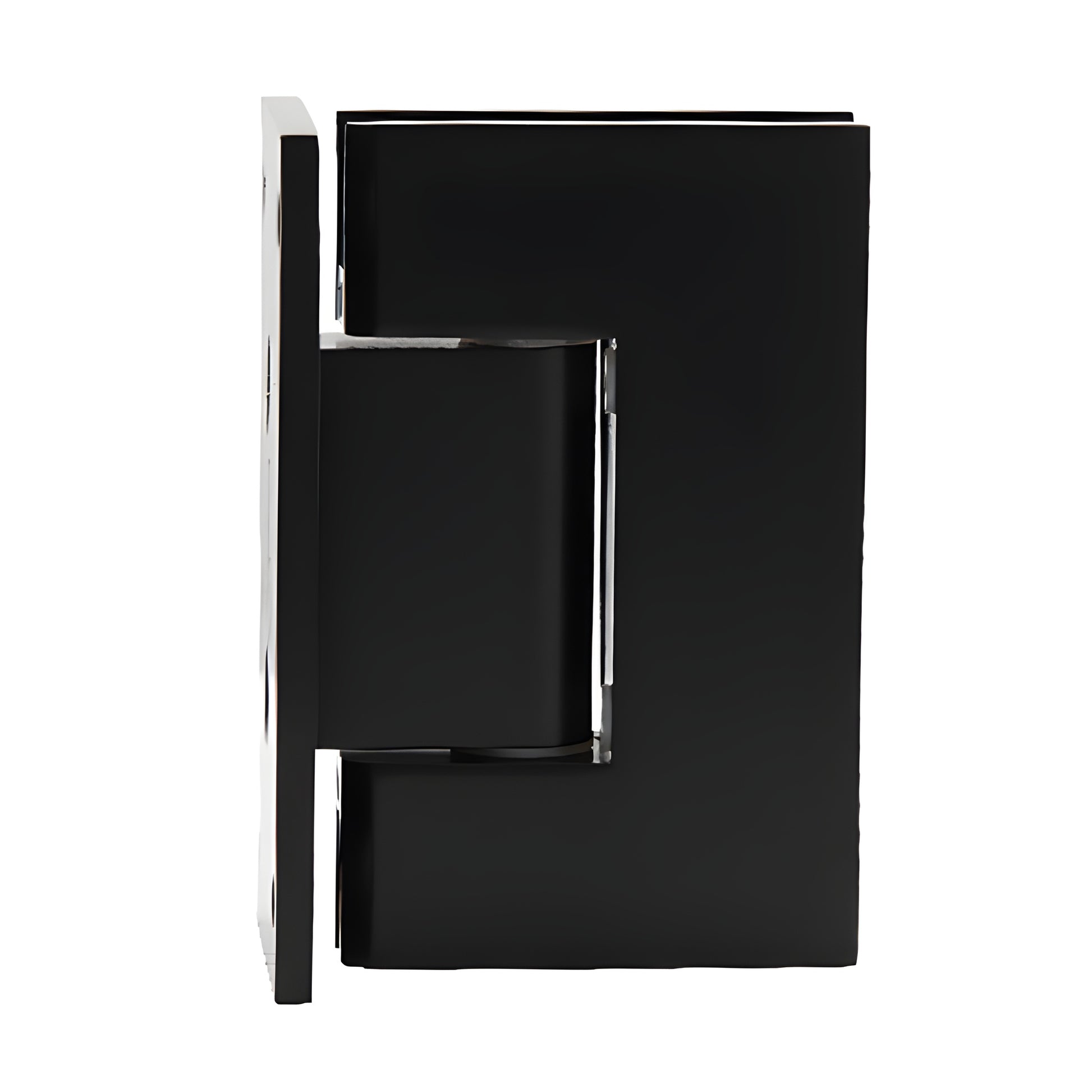

CRL Matte Black Geneva 037 Glass Door Wall Hinge with Full Back Plate

• Self-Centering with Reversible 5 Degree Pivot Pin
• Use Monolithic Tempered Glass
• Available in Several Beautiful Finishes
• Three Year Warranty
• Wall Mount Full Back Plate Standard Model (Factory Set for Standard Closing Position)

The CRL Geneva Series professional hinge for glass shower doors fits 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass. Six style options (three Wall Mount and three Glass-to-Glass) give design flexibility for frameless shower enclosures and custom glass shower doors. Key differentiators: solid brass construction, stainless steel pins and springs, reversible 5° pivot pin for self-centering action, and availability of custom pivot pins for off-angle installations. Ideal long-tail searches: "Geneva series glass shower door hinge", "adjustable shower door hinge for 8mm to 12mm glass", and "self-centering reversible pivot shower hinge".

Standard Reversible Pivot Pin: Each hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard Geneva hinges ship with the 90° side active; Offset models ship preset to 85° (tighter closure into shower interior). Rotate (do not flip) the pin to change the active side.

Custom Pivot Pin (Cat. No. GENP1N): Custom pivot pins are available up to 45° for off-angle installations. If the standard 5° reversible pin does not achieve the desired closing position, specify the needed angle and contact our Technical Sales Shower Door Department. Note: using a custom pivot pin may affect glass dimensions and enclosure aesthetics.

Performance: using two hinges with 5/16"–1/2" (8–12 mm) glass supports up to 80 lbs (36 kg) and a maximum door width of 28" (711 mm). Using three hinges supports up to 120 lbs (54 kg) with a maximum door width of 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Choice of Standard Model (factory set at 0° closing) or 5° Pre-Set Model for tighter closure into shower interior.
Construction: Solid Brass with stainless steel pins and springs
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 Gasket Pack must be purchased separately for use with 5
