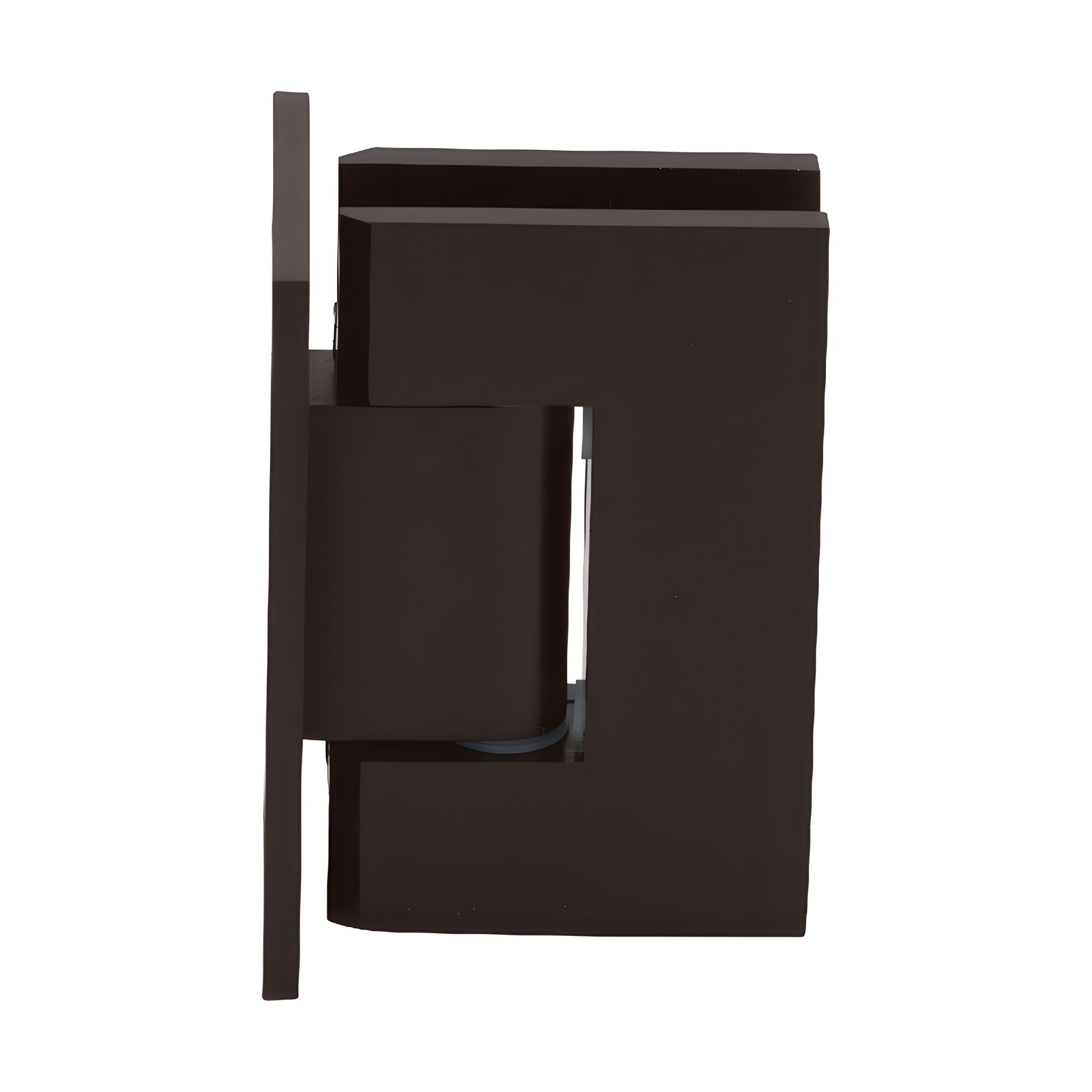

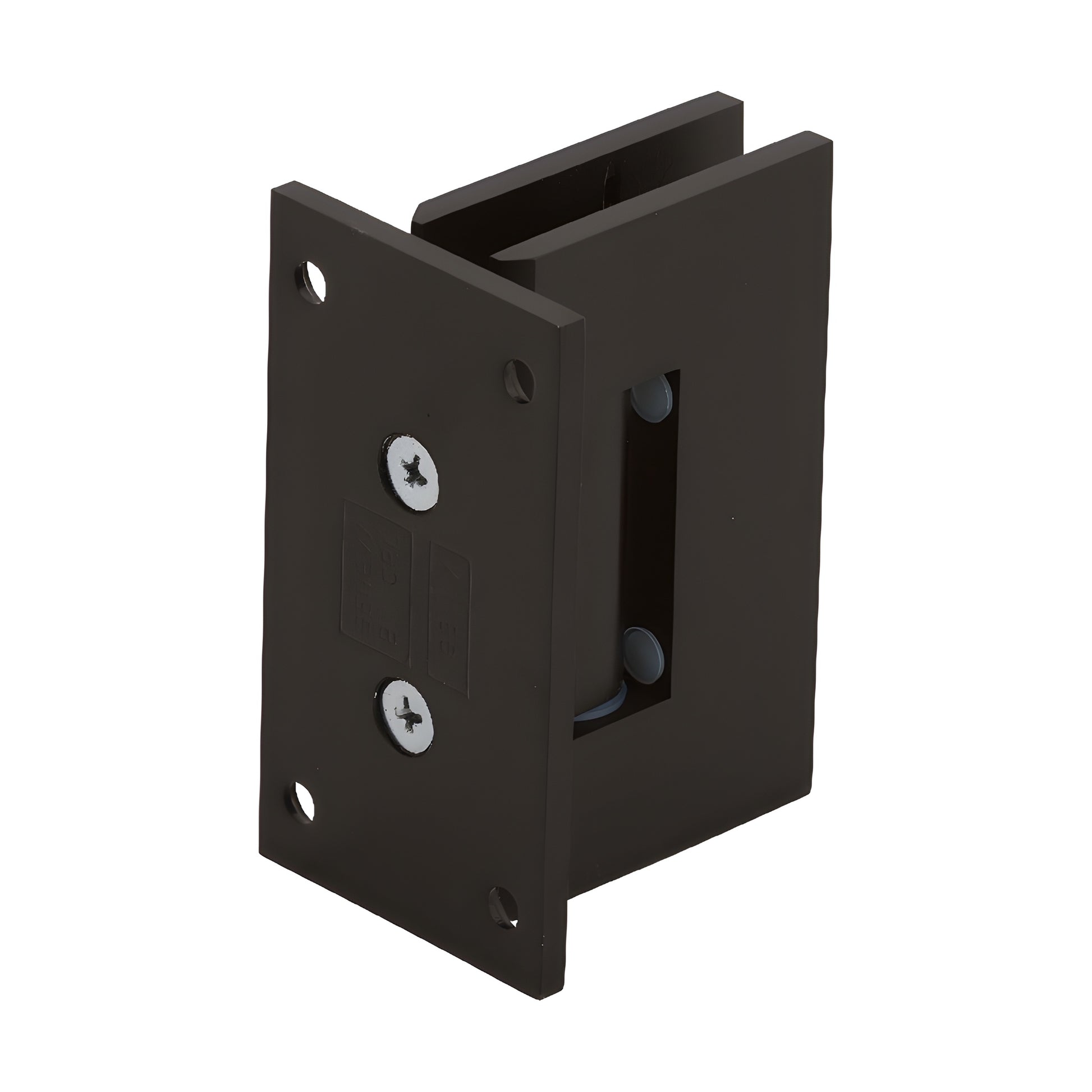

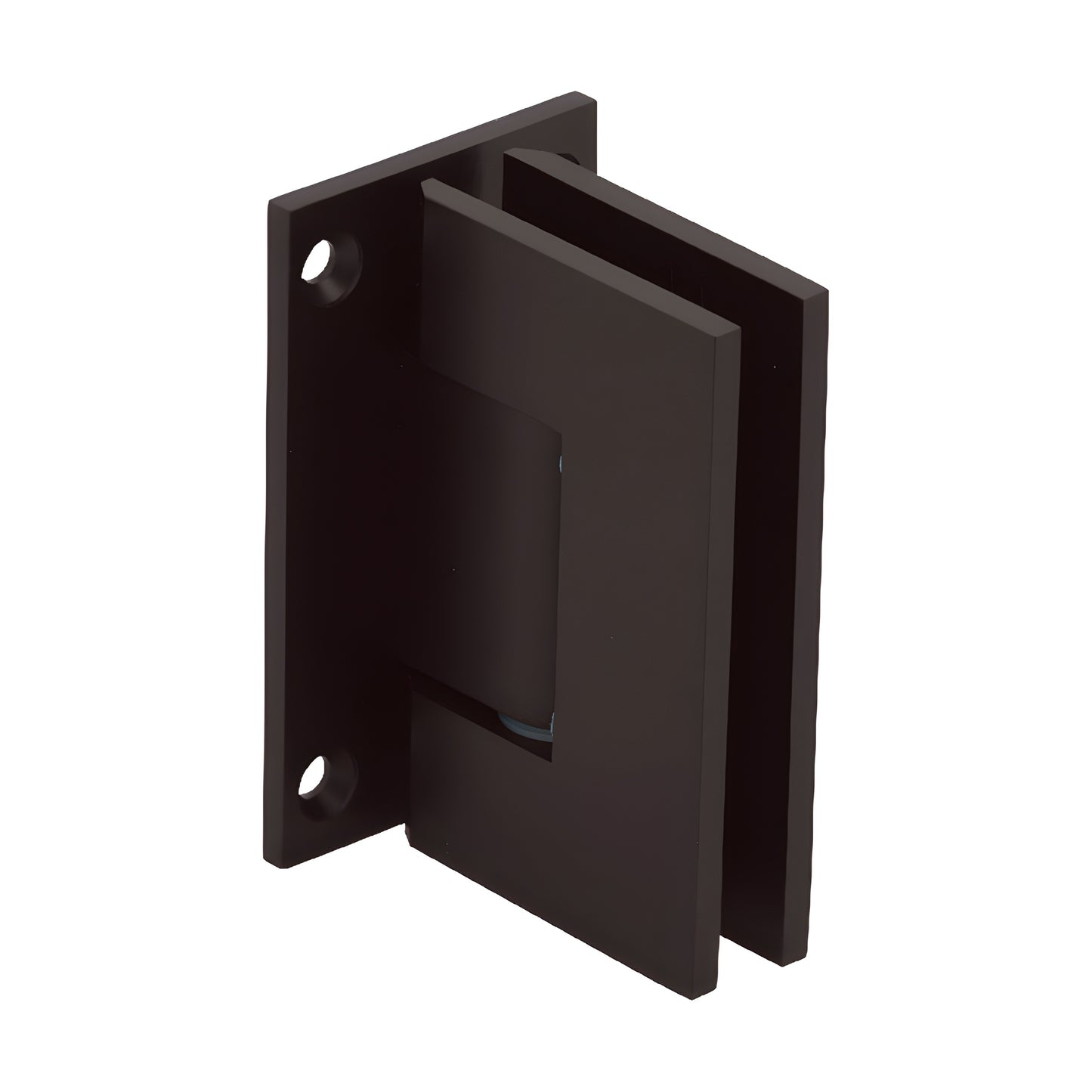

CRL Geneva 037 Oil Rubbed Bronze Wall-Mount Back Plate Door Hinge

• Self-centering hinge with reversible 5° pivot pin
• Uses monolithic tempered glass (5/16"–1/2" / 8–12 mm)
• Available in several decorative and custom finishes
• Three-year warranty
• Wall-mount full back plate — standard model (factory set for standard closing position)

The CRL Geneva Series glass shower door hinge (SKU: GEN0370RB) is a professional-grade, solid brass hinge designed for frameless glass shower enclosures. It fits 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass and is offered in six styles (three wall-mount and three glass-to-glass) for design flexibility. Geneva Hinges are self-centering and include a reversible 5° pivot pin; custom pivot pins are available for off-angle installations. All moving parts (pins and springs) are stainless steel for corrosion resistance in wet environments.

Standard Reversible Pivot Pin: Each hinge includes a reversible pivot pin with one side marked 90° (standard) and the opposite side marked 85° (5° tighter closure into the shower). Standard models ship with 90° active; offset models ship pre-set to 85°. The pin can be rotated to select the desired closing angle.

Custom Pivot Pin: Custom pivot pins (Cat. No. GENP1N) can be ordered to accommodate off-angle installations up to 45°. Specifying a custom angle may affect glass dimensions and enclosure aesthetics—consult our Technical Sales Shower Door Department when ordering.

Performance: Using two hinges with 8–12 mm glass, each hinge set supports up to 80 lbs (36 kg) with a maximum door width of 28" (711 mm). Using three hinges supports up to 120 lbs (54 kg) with a maximum door width of 32" (813 mm).

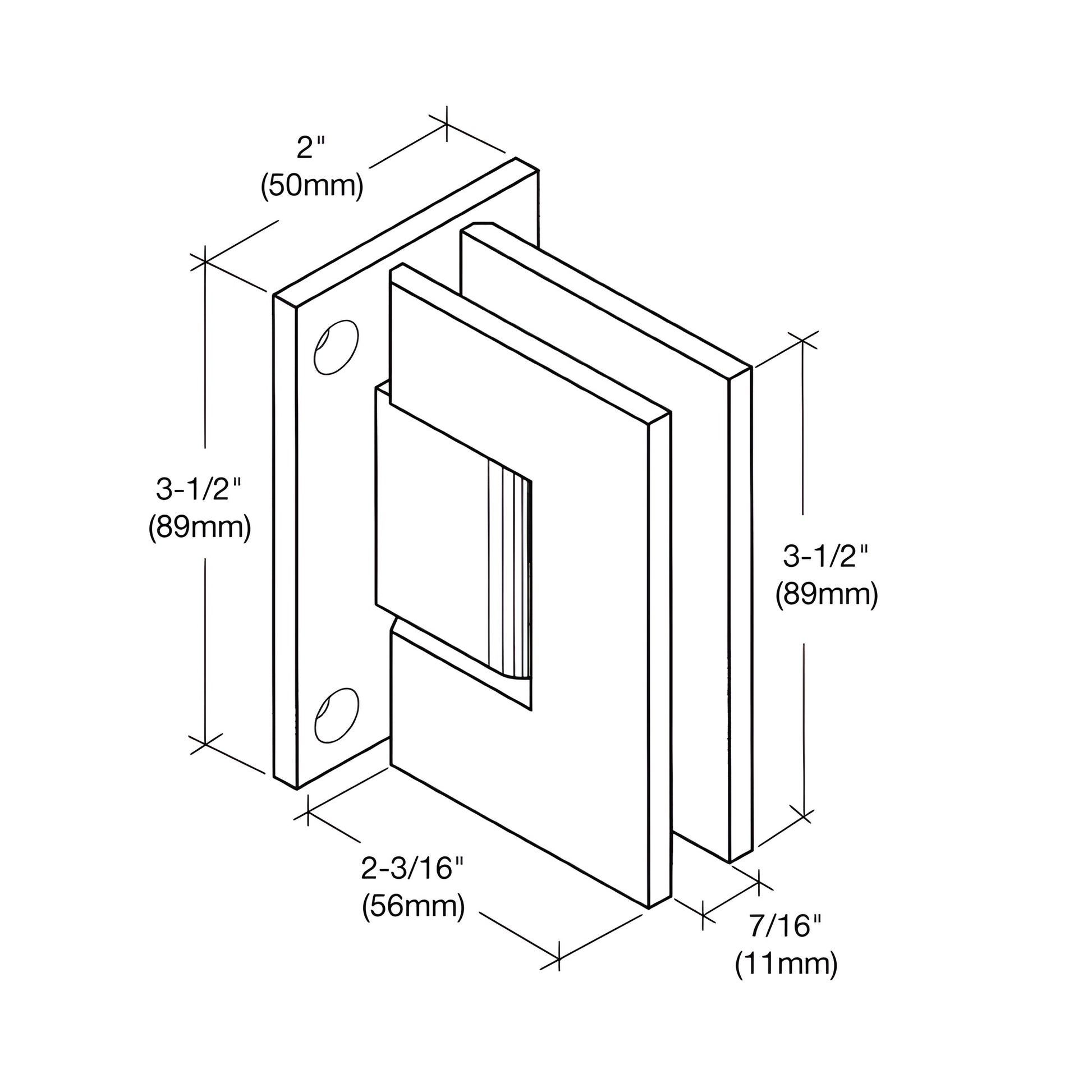

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Choice of Standard model (0° closing position) or 5° Pre-Set model for tighter closure into shower interior
Construction: Solid brass with stainless steel pins and springs
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack required separately for use with 5/16" (8 mm) glass.

Custom finishes available on request—contact Technical Sales Shower Door Division.
<
