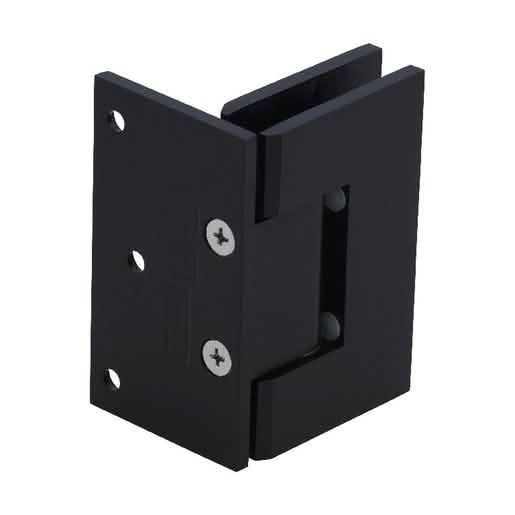

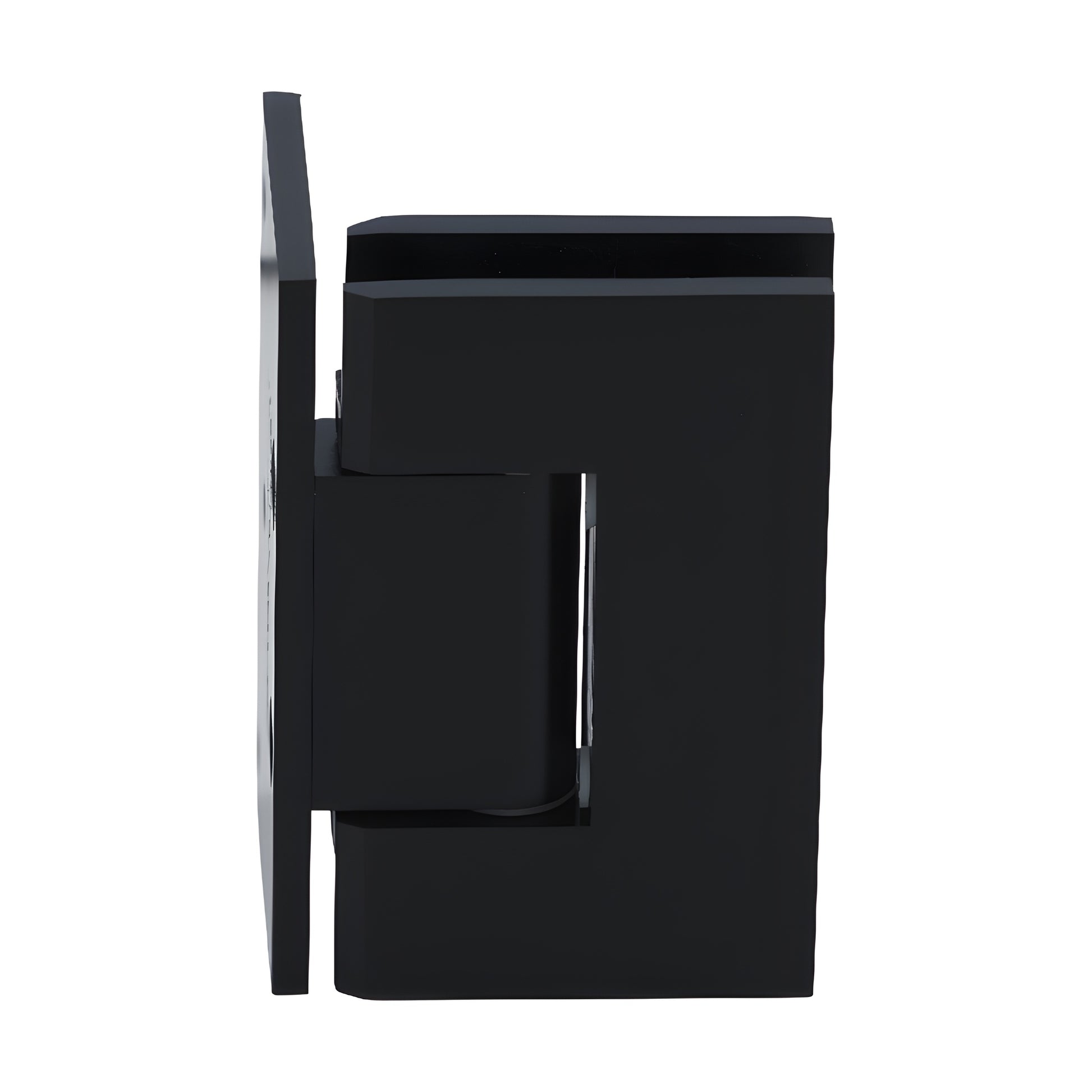

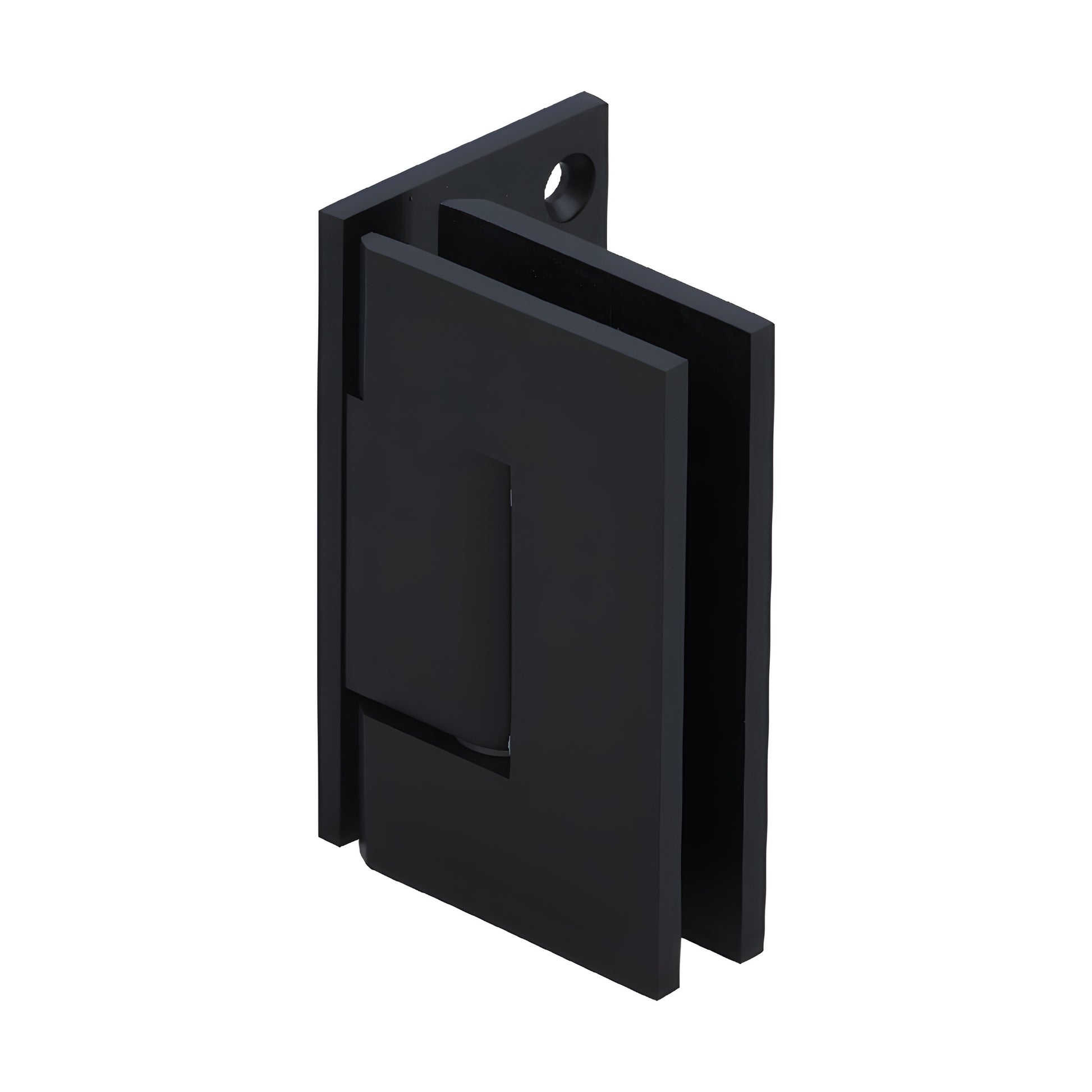

CRL Geneva 044 Oil Rubbed Bronze Offset Hinge for Glass Door

• Self-Centering with Reversible 5 Degree Pivot Pin
• Available in several durable finishes
• Three Year Warranty
• Wall Mount Offset Back Plate (factory set for standard closing position)
• Use with monolithic tempered safety glass

The CRL Geneva Series professional hinge (SKU: GEN0440RB) fits 5/16" (8 mm) to 1/2" (12 mm) tempered glass and is offered in six styles — three Wall Mount and three Glass-to-Glass — for design flexibility. Made of solid brass with stainless steel pins and springs, these shower door hinges provide reliable, corrosion-resistant performance for residential and hotel shower enclosures.

Geneva Hinges are self-centering and include a reversible 5° pivot pin. One side of the pivot pin is marked 90° (standard closure); the opposite side is marked 85° for a tighter 5° pre-set closure into the shower interior. The pivot pin can be rotated to change the active angle. Custom pivot pins (Cat. No. GENP1N) are available up to 45° for off-angle installations; contact Technical Sales if custom angles are required — glass sizes and enclosure aesthetics may be affected.

Load capacity:

• Two hinges: holds up to 80 lbs (36 kg); maximum door width 28" (711 mm)
• Three hinges: holds up to 120 lbs (54 kg); maximum door width 32" (813 mm)

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Choice of Standard Model (factory set at 0° closing) or 5° Pre-Set Model for tighter closure into shower interior
Construction: Solid brass with stainless steel pins and springs
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack must be purchased separately for use with 5/16" (8 mm) glass.

Custom finishes available on request — contact the Technical Sales Shower Door Division for options.

Product Warning:
CRL shower door hinges are designed for residential or hotel shower use only. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge; cut-out dimensions may not match other brands.
