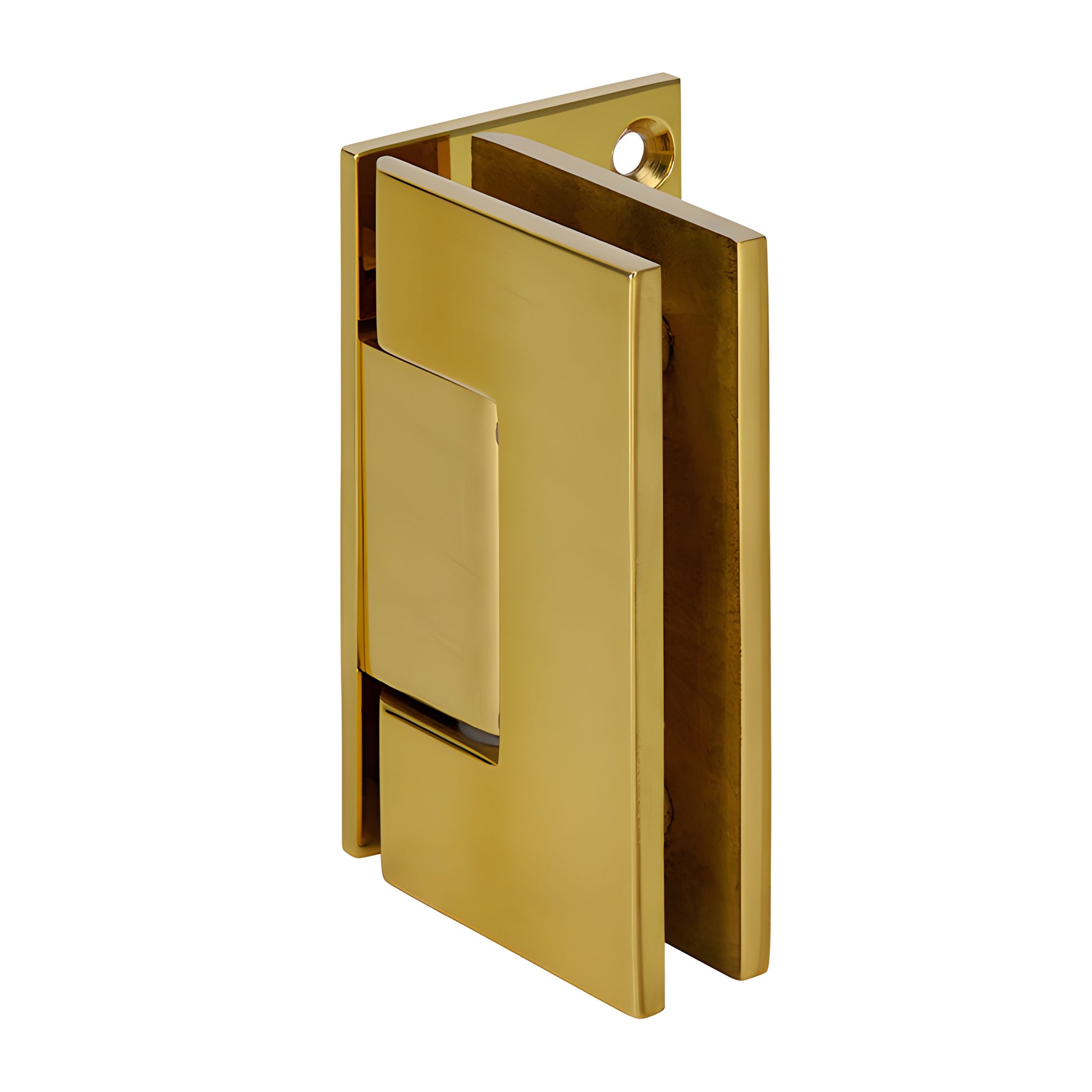

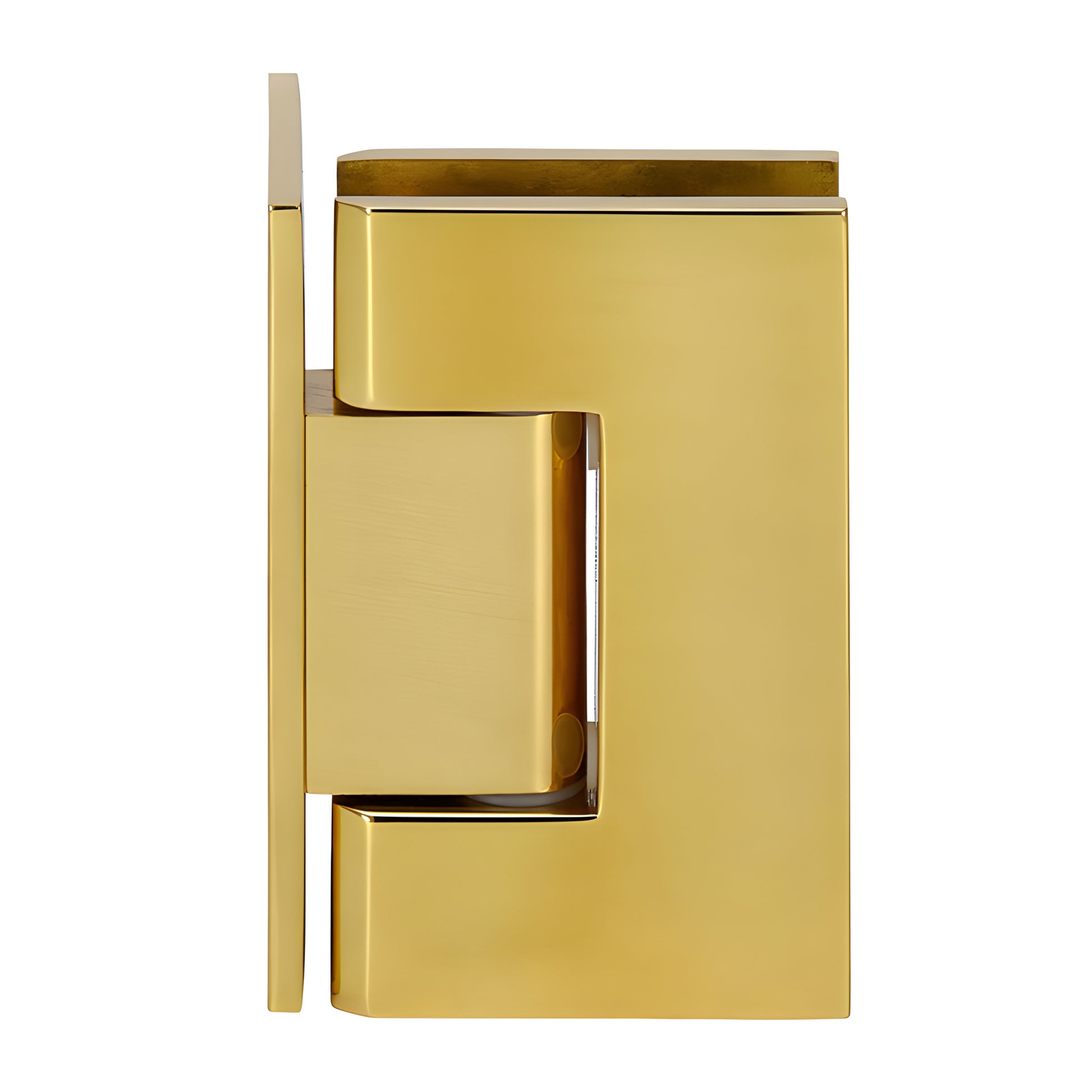

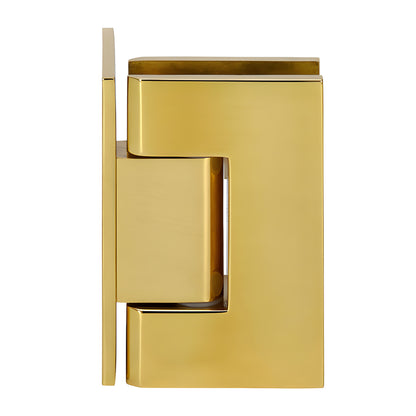

CRL Geneva 044 Polished Brass Offset Wall-Mount Back-Plate Hinge

• Self-centering hinge with reversible 5° pivot pin
• Available in several beautiful finishes
• Three year warranty

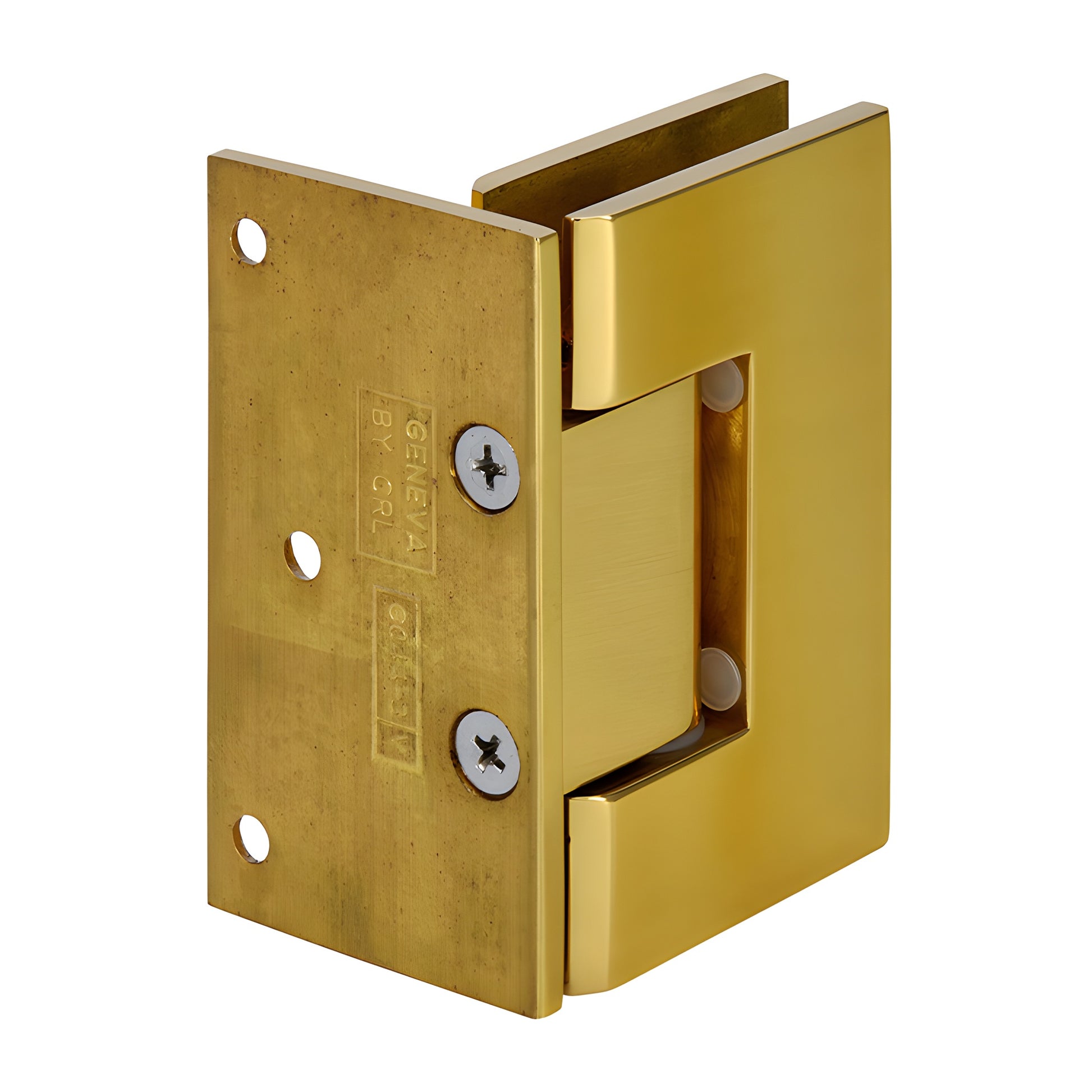

• Wall-mount offset back plate (factory set for standard closing position)
• Use with monolithic tempered glass

The CRL Geneva Series brass shower door hinges accommodate 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass and are available in six styles for design flexibility: three wall-mount and three glass-to-glass options. Geneva Hinges are self-centering and include a reversible 5° pivot pin; custom pivot pins are also available for off-angle installations. All moving parts (pins and springs) are stainless steel for reliable, corrosion-resistant performance.

Each Geneva Hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active; Pre-Set models ship with the 85° side active for a 5° tighter closure into the shower interior. The pin can be rotated (not flipped) to change the active angle.

Custom Pivot Pin: Custom Pivot Pins (Cat. No. GENP1N) accommodate off-angle installations—specify the required angle up to 45°. Using a custom pin may affect glass sizes and enclosure aesthetics; contact Technical Sales Shower Door Department for assistance.

Load capacity:

• Two hinges (8–12 mm glass): holds up to 80 lbs (36 kg), max door width 28" (711 mm)
• Three hinges (8–12 mm glass): holds up to 120 lbs (54 kg), max door width 32" (813 mm)

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Choose Standard model (0° closing) or 5° Pre-Set model for tighter interior closure
Construction: Solid brass with stainless steel pins and springs
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required Includes: gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack must be purchased separately for 5/16" (8 mm) tempered glass.

Custom finishes available on request—contact Technical Sales Shower Door Division.

Product Warning:

CRL shower door hinges are designed for residential or hotel shower use. For other uses, obtain approval from CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions may not match other brands.
