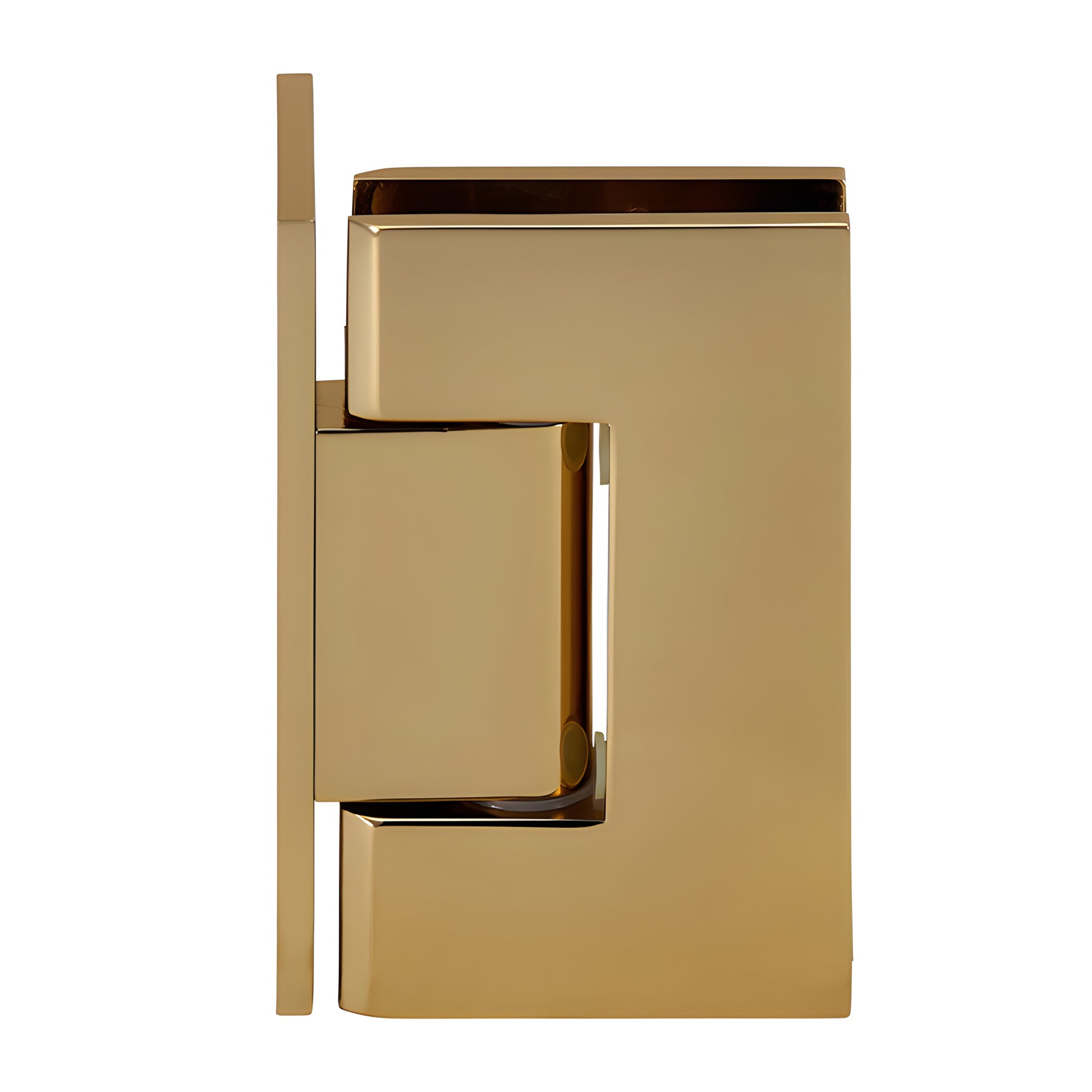

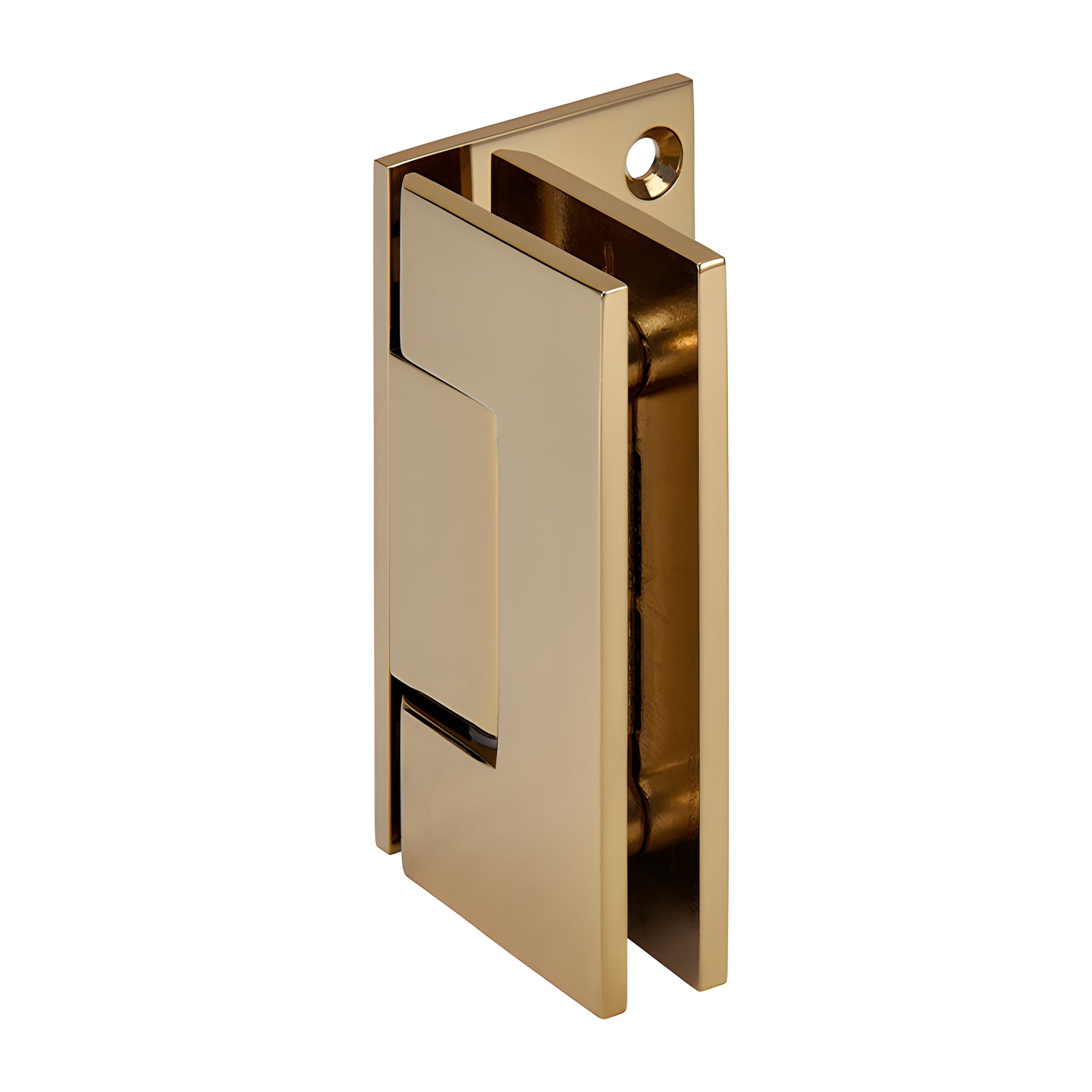

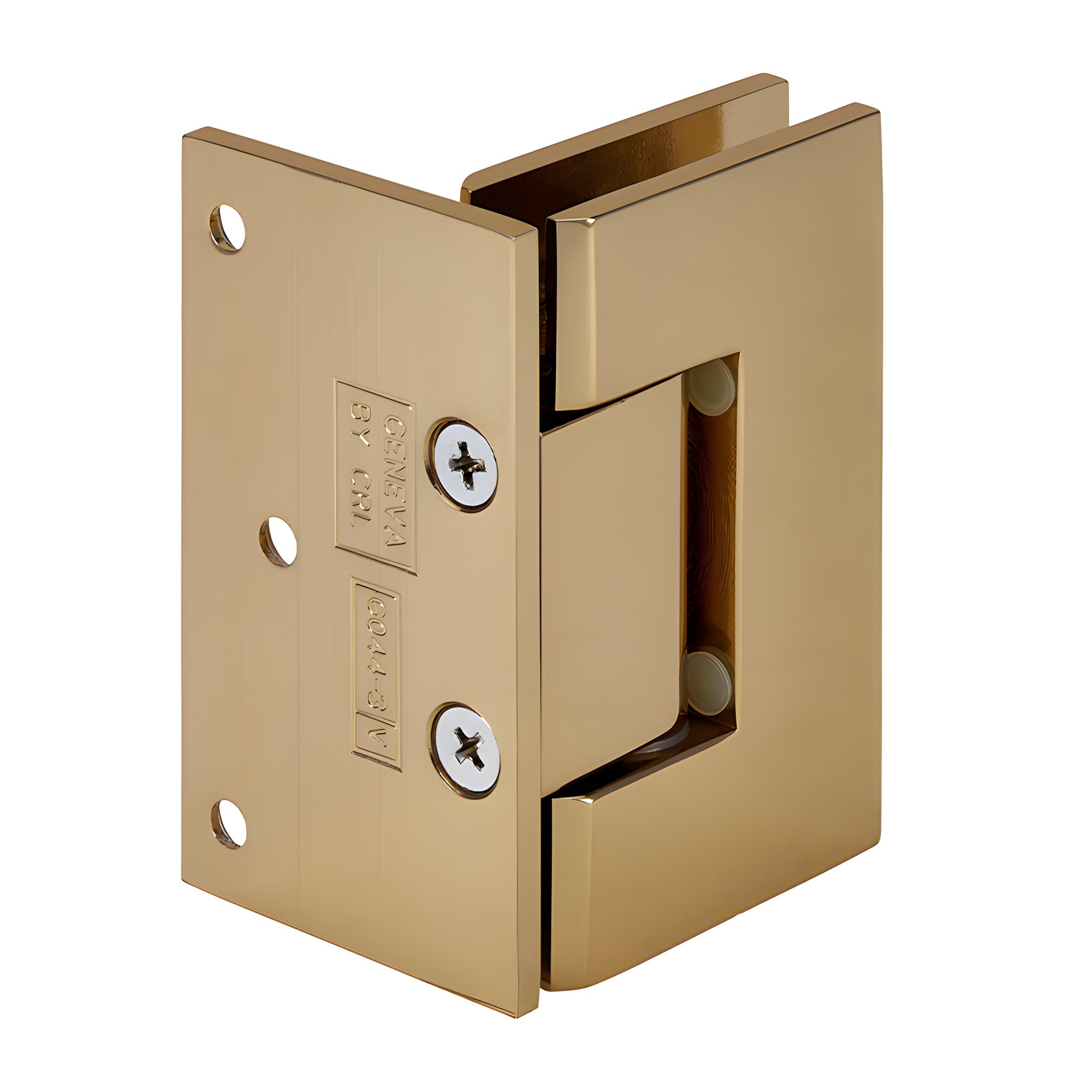

CRL Geneva 044 Gold-Plated Wall-Mount Offset Glass Door Hinge

• Self-Centering with Reversible 5 Degree Pivot Pin
• Available in several beautiful finishes
• Three Year Warranty
• Wall Mount Offset Back Plate (factory set for standard closing position)
• Use with monolithic tempered glass

The CRL Geneva Series professional hinges (SKU: GEN044GP) accommodate 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass. Six style options—three Wall Mount and three Glass-to-Glass—provide design flexibility for frameless shower enclosures. Geneva hinges are self-centering and feature a reversible 5 Degree pivot pin; custom pivot pins are also available for off-angle installations. Constructed from solid brass with stainless steel pins and springs for corrosion resistance and long-lasting performance.

Each Geneva hinge contains a reversible pivot pin: one side marked 90° (standard) and the opposite side marked 85° (pre-set 5° for tighter closure into the shower interior). The pin can be rotated to switch active sides. Pre-Set models arrive with the 85° side activated.

Custom Pivot Pin: Cat. No. GENP1N custom pivot pins are available up to 45° to accommodate off-angle doors. If the reversible 5° pivot pin does not achieve the desired closure, specify the required angle. Contact Technical Sales Shower Door Division for assistance—using a custom pin may affect glass sizes and enclosure aesthetics.

Load capacities:

• Two hinges (5/16"–1/2" glass): holds up to 80 lbs. (36 kg); max door width 28" (711 mm).
• Three hinges (5/16"–1/2" glass): holds up to 120 lbs. (54 kg); max door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Choice of Standard Model (0° factory set) or 5° Pre-Set Model for tighter interior closure
Construction: Solid brass with stainless steel pins and springs
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack required separately for 5/16" (8 mm) glass.

Custom finishes available on request—contact Technical Sales Shower Door Division.

Product Warning:

CRL shower door hinges are designed for residential or hotel shower use. For other applications, obtain approval from CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions may differ from other brands.
