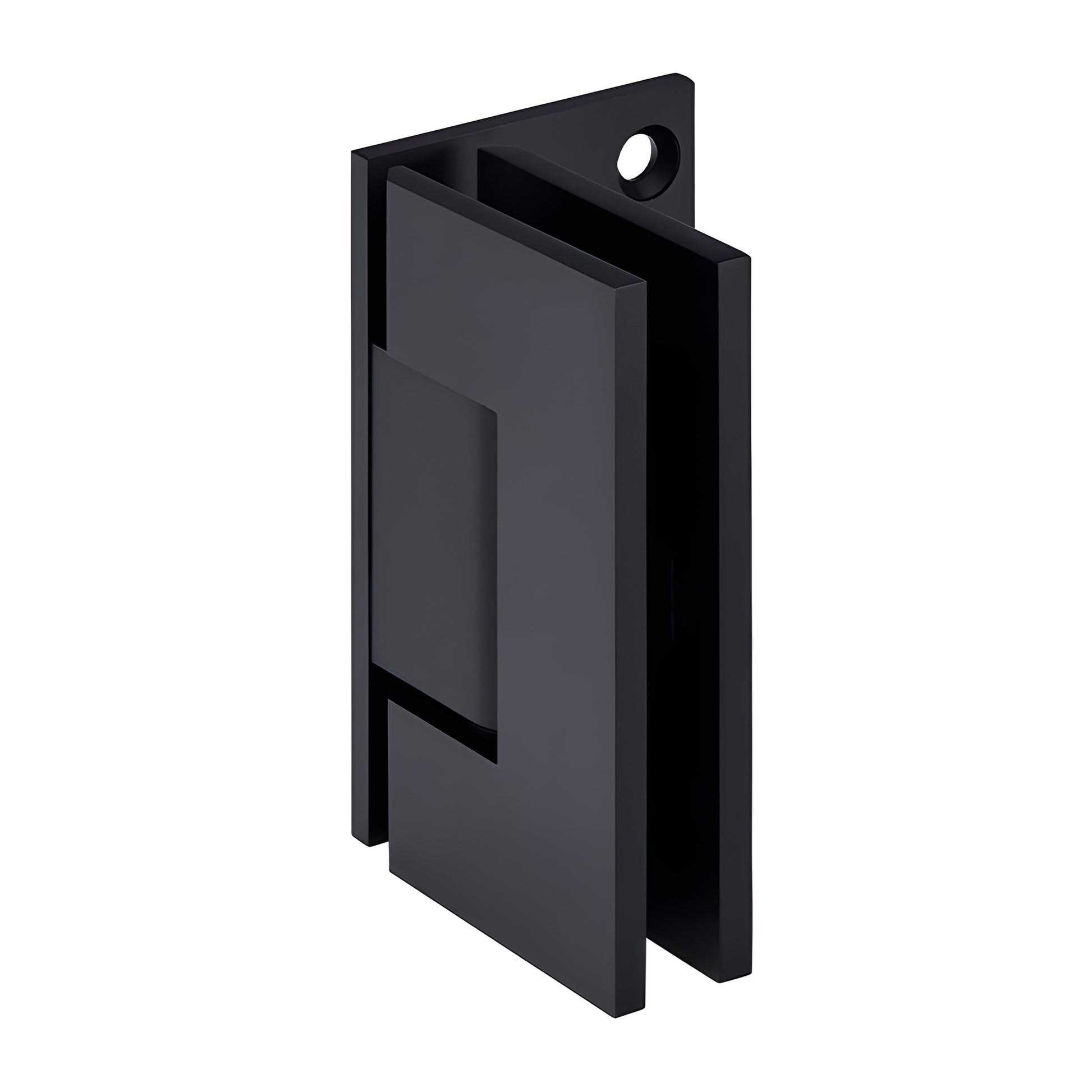

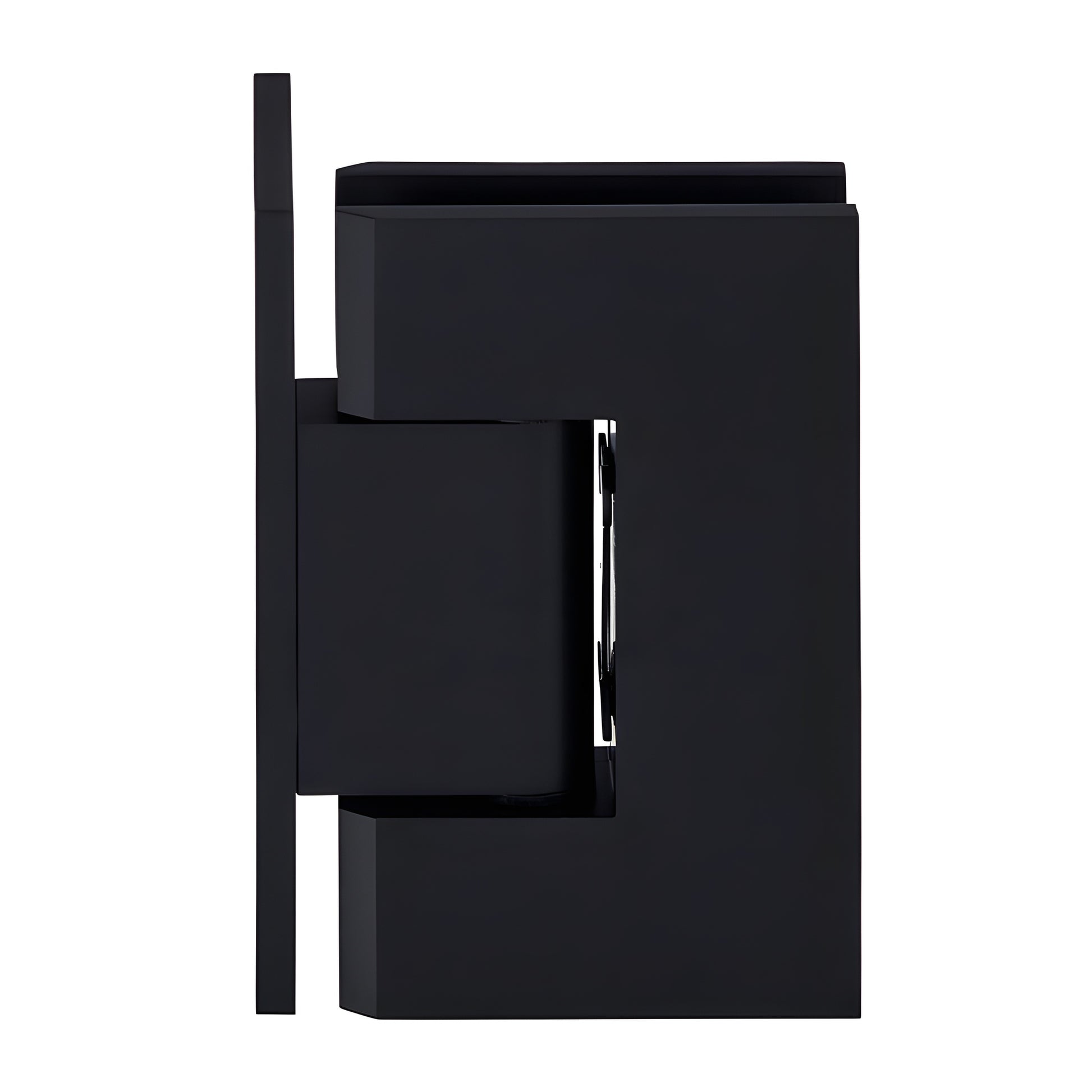

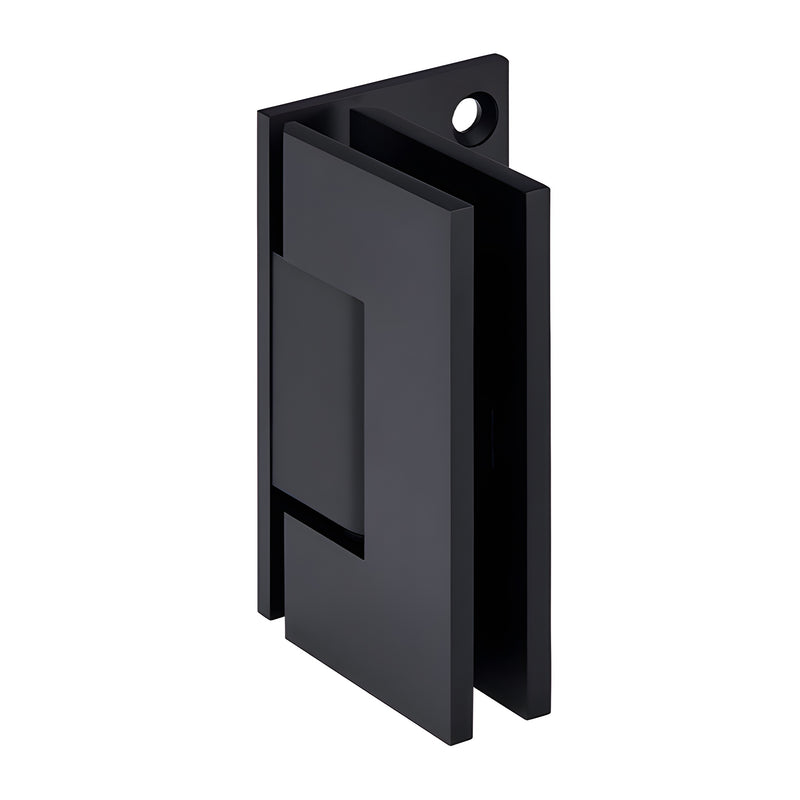

CRL Geneva Matte Black Wall-Mount Offset Back Plate Hinge

• Wall Mount Offset Back Plate Model (Factory Set for Standard Closing Position)
• Self-Centering with Reversible 5 Degree Pivot Pin
• Use Monolithic Tempered Glass

CRL Geneva Series professional hinges (SKU: GEN044MBL) accommodate 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass. Available in six styles—three Wall Mount and three Glass-to-Glass—these solid brass shower door hinges combine durability and design flexibility for frameless shower enclosures and custom glass shower doors.

Key Differentiators: self-centering action, reversible 5° pivot pin for adjustable closure, stainless steel pins and springs, and optional Custom Pivot Pins (Cat. No. GENP1N) for off-angle installations up to 45°. Pre-Set models are factory set to the 85° side of the pivot pin for a 5° tighter closure into the shower interior.

Each Geneva hinge contains a reversible pivot pin: one side marked 90° (standard) and the opposite marked 85° (pre-set). Rotate the pin (do not flip) to switch closure angle. Custom Pivot Pins (GENP1N) are available—contact Technical Sales Shower Door Department to specify the required angle. Using a Custom Pivot Pin may affect glass sizes and enclosure aesthetics.

Load Capacity & Door Width:
- Two hinges (8–12 mm glass): holds up to 80 lbs (36 kg), max door width 28" (711 mm).
- Three hinges (8–12 mm glass): holds up to 120 lbs (54 kg), max door width 32" (813 mm).

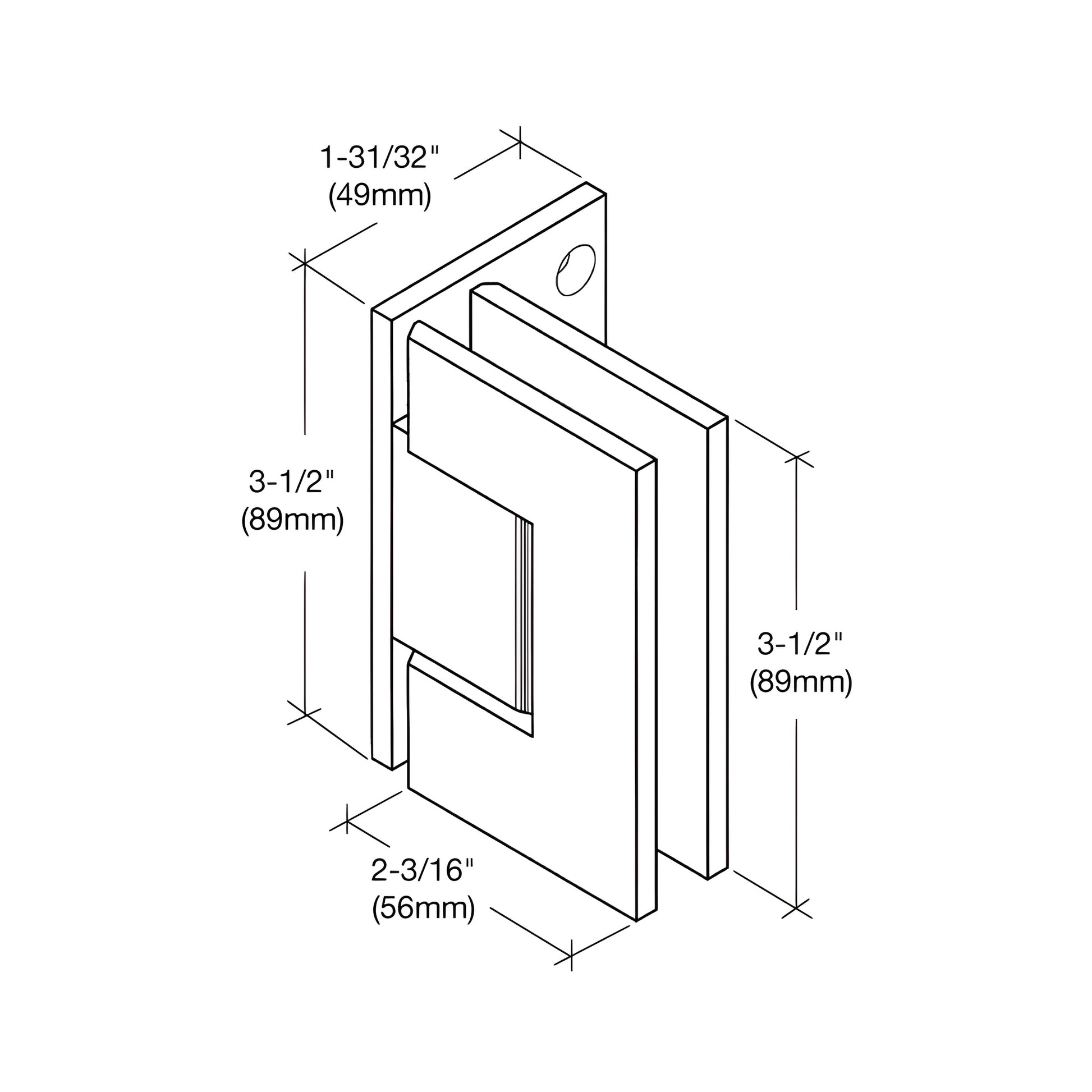

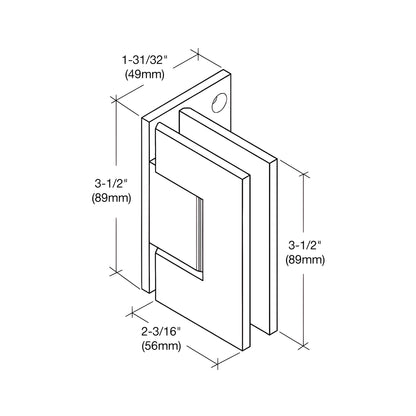

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Choice of Standard Model (0° factory set) or 5° Pre-Set Model for tighter shower closure
Construction: Solid Brass with stainless steel pins and springs
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required Includes: gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack must be purchased separately for use with 5/16" (8 mm) tempered glass.

Custom finishes available on request—contact Technical Sales Shower Door Division.

Product Warning:
These CRL shower door hinges are designed for residential or hotel shower use only. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge—cut-out dimensions may not match other brands.
