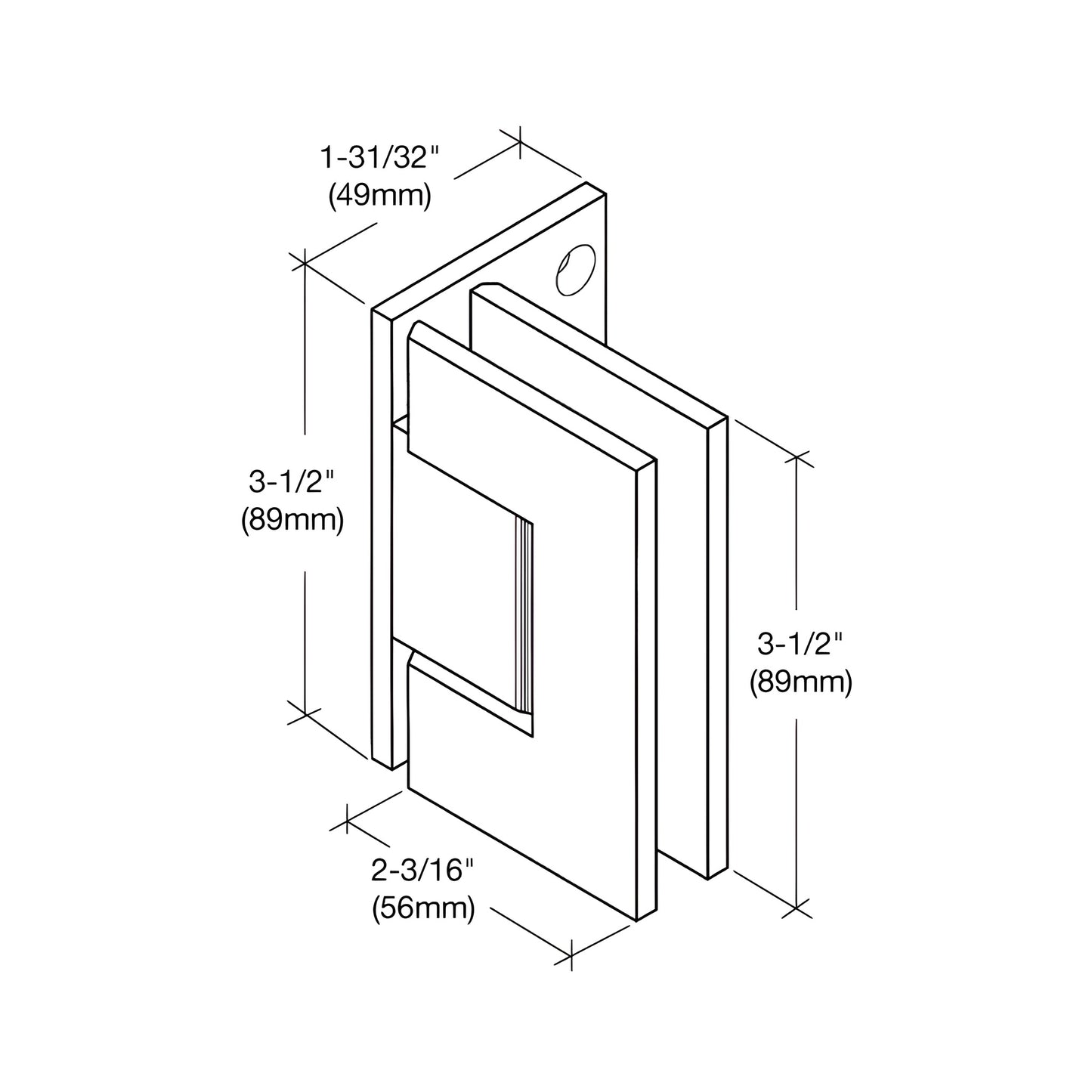

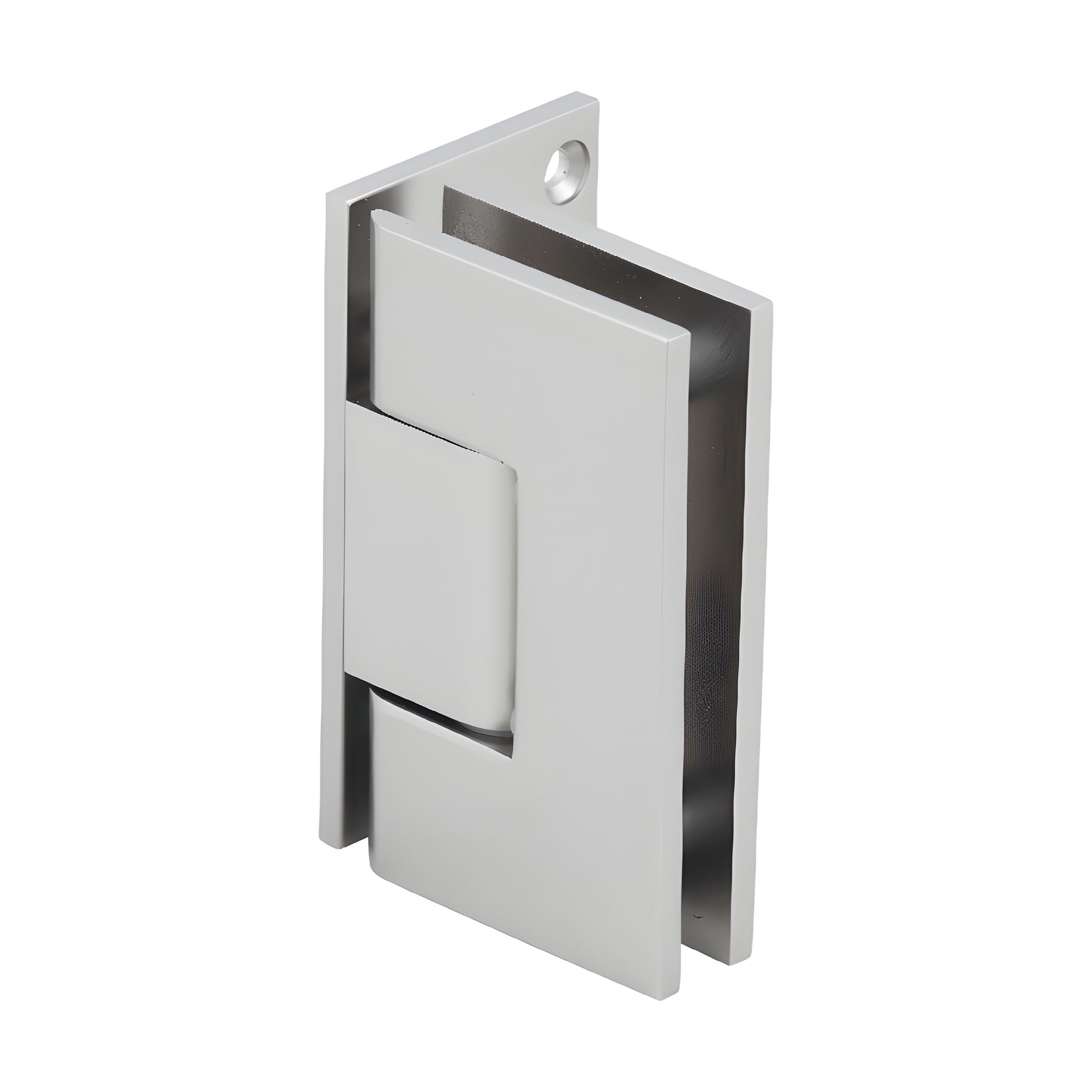

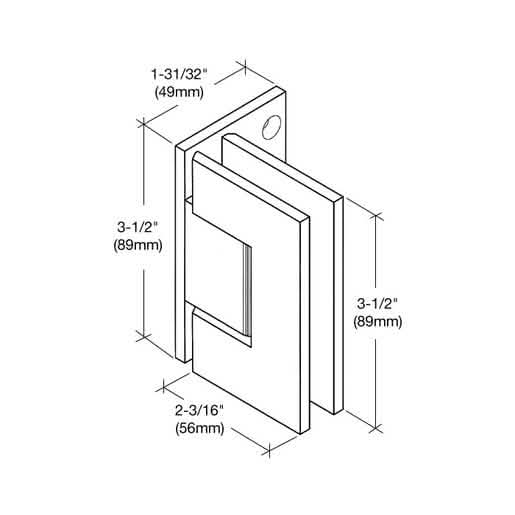

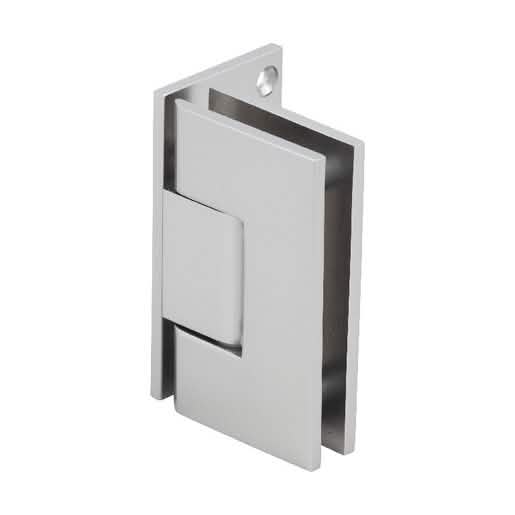

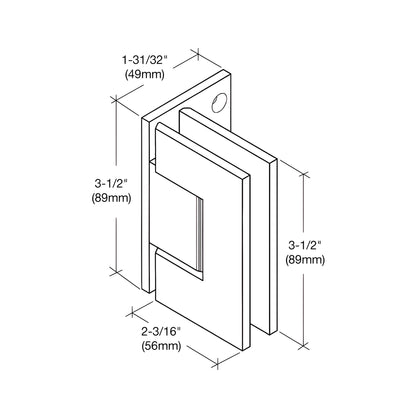

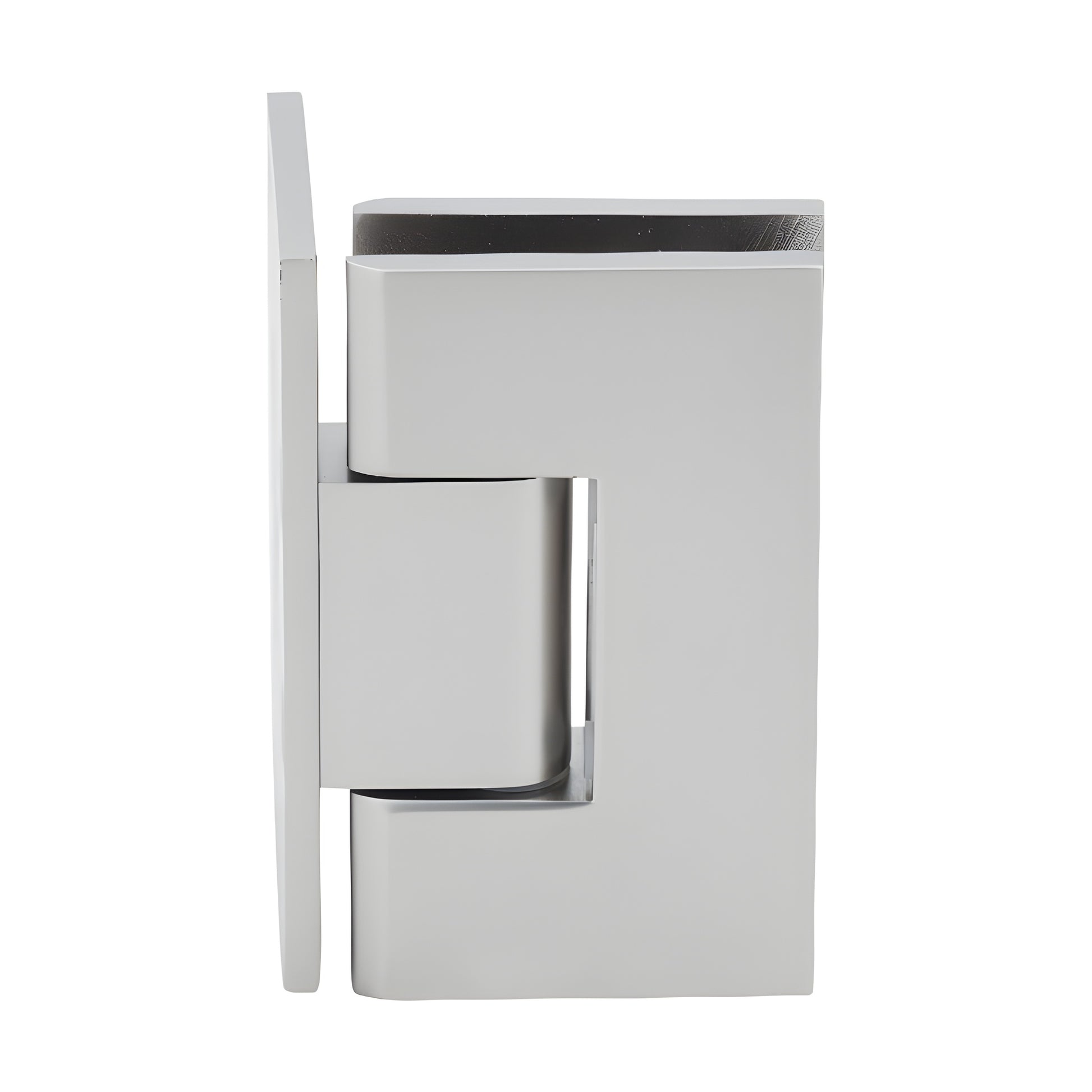

CRL Geneva 044 Satin Nickel Offset Wall-Mount Backplate Hinge

• Self-centering hinge with reversible 5° pivot pin
• Available in several durable finishes
• Three-year warranty

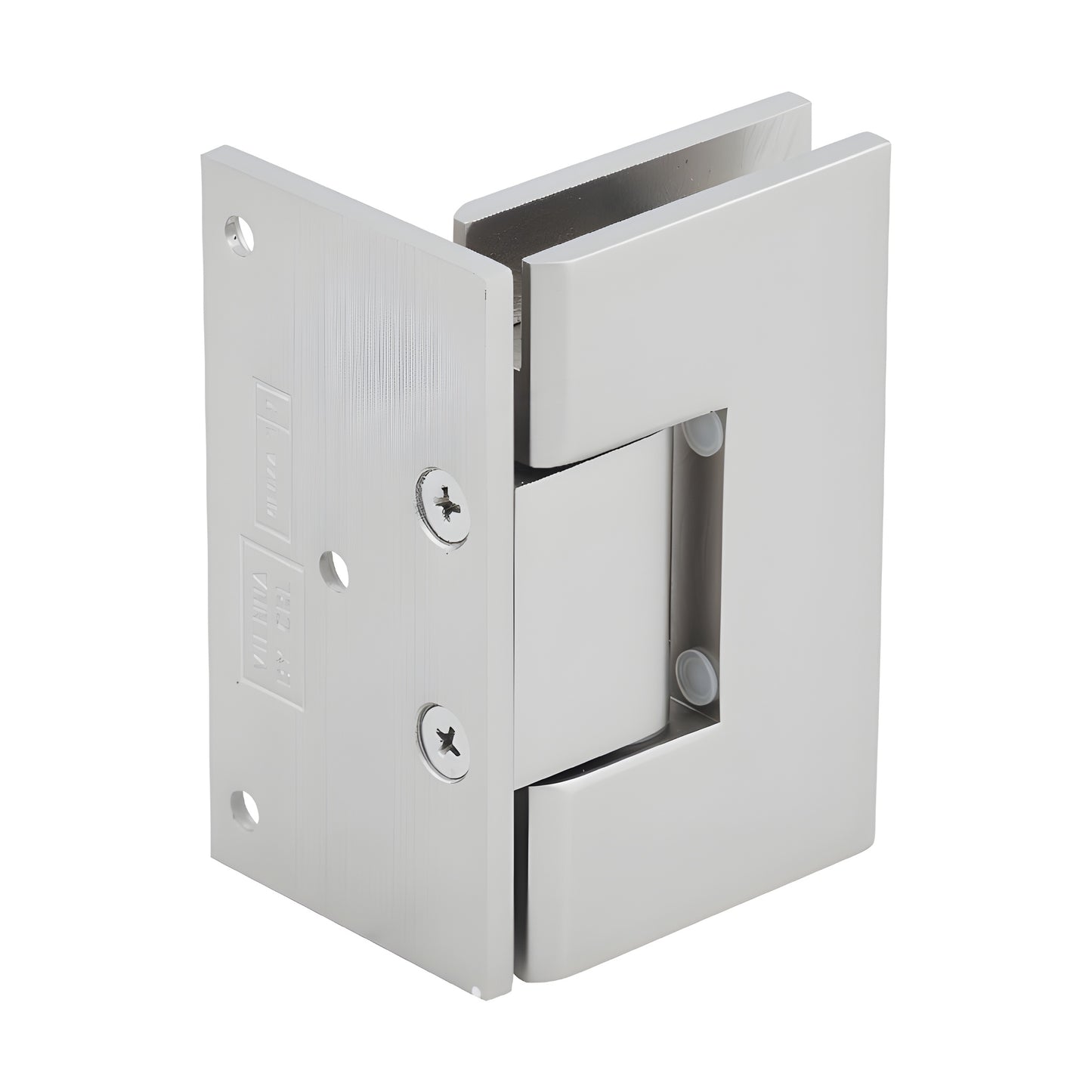

• Wall-mount offset back plate (factory set for standard closing position)
• Designed for monolithic tempered glass

The CRL Geneva Series professional hinges (SKU: GEN044SN) fit 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass and are available in six styles—three Wall Mount and three Glass-to-Glass—to provide design flexibility for frameless shower enclosures. These solid-brass shower door hinges feature stainless-steel pins and springs, a reversible 5° pivot pin for self-centering closure, and optional custom pivot pins for off-angle installations.

Each Geneva hinge contains a reversible pivot pin: one side is marked 90° (standard factory setting) and the opposite side is marked 85° (5° pre-set for tighter closure into the shower interior). The pivot pin can be rotated to switch between settings. For installations requiring angles beyond 5°, order the Custom Pivot Pin (Cat. No. GENP1N) — custom angles up to 45° are available. Contact Technical Sales for assistance; using a custom pivot pin may affect glass dimensions and enclosure aesthetics.

Performance:
- Two hinges (5/16"–1/2" glass): supports up to 80 lb (36 kg), max door width 28" (711 mm).
- Three hinges (5/16"–1/2" glass): supports up to 120 lb (54 kg), max door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Choice of Standard model (0° closing) or 5° Pre-Set model for tighter interior closure
Construction: Solid brass with stainless-steel pins and springs
Hinge Swings: 90° in / 90° out
Closing Type: Self-centering within 15° of closed position
Cut-Out Requirement Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 Gasket Pack must be purchased separately for use with 5/16" (8 mm) tempered glass.

Custom finishes are available on request — contact Technical Sales, Shower Door Division.

Product Warning:

CRL shower door hinges are intended for residential and hotel shower use only. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge; cut-out dimensions may not match other brands.
