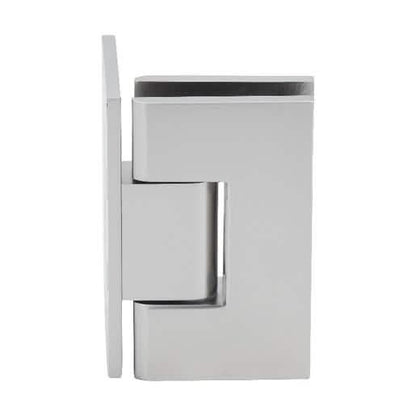

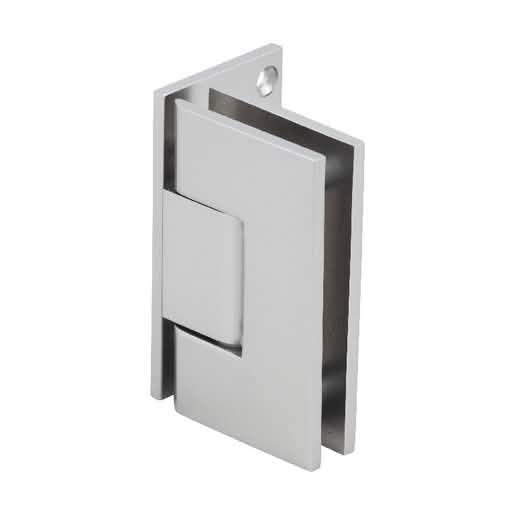

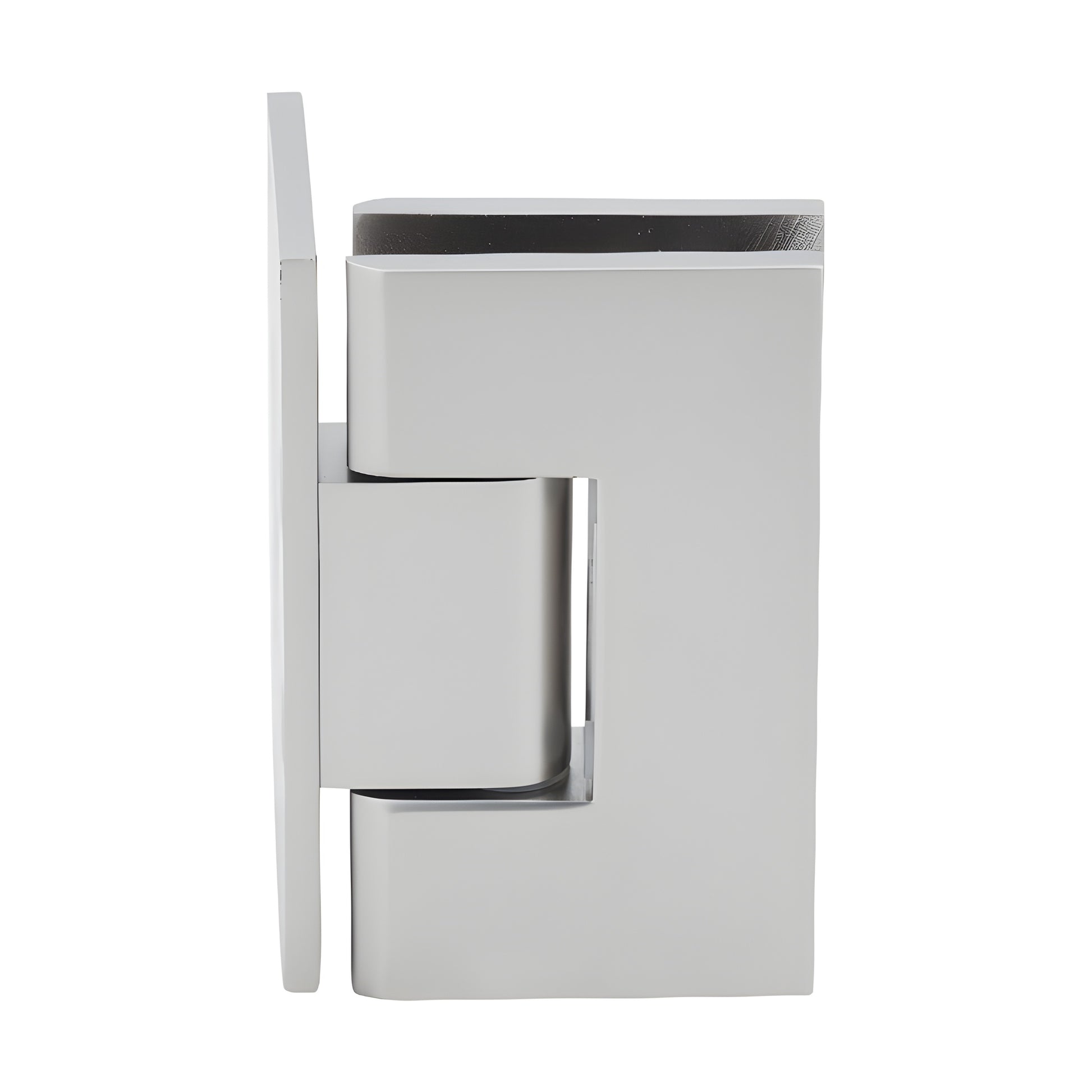

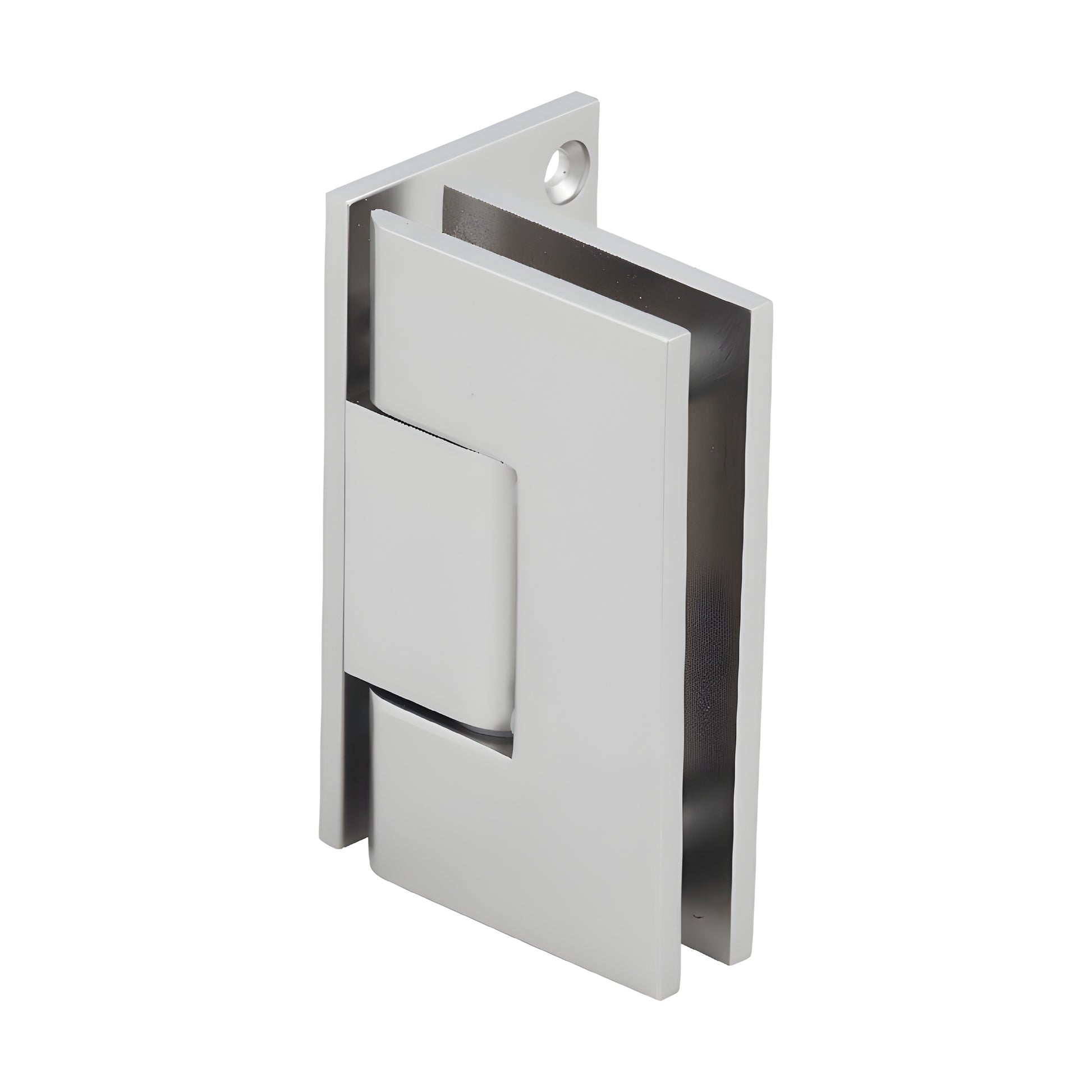

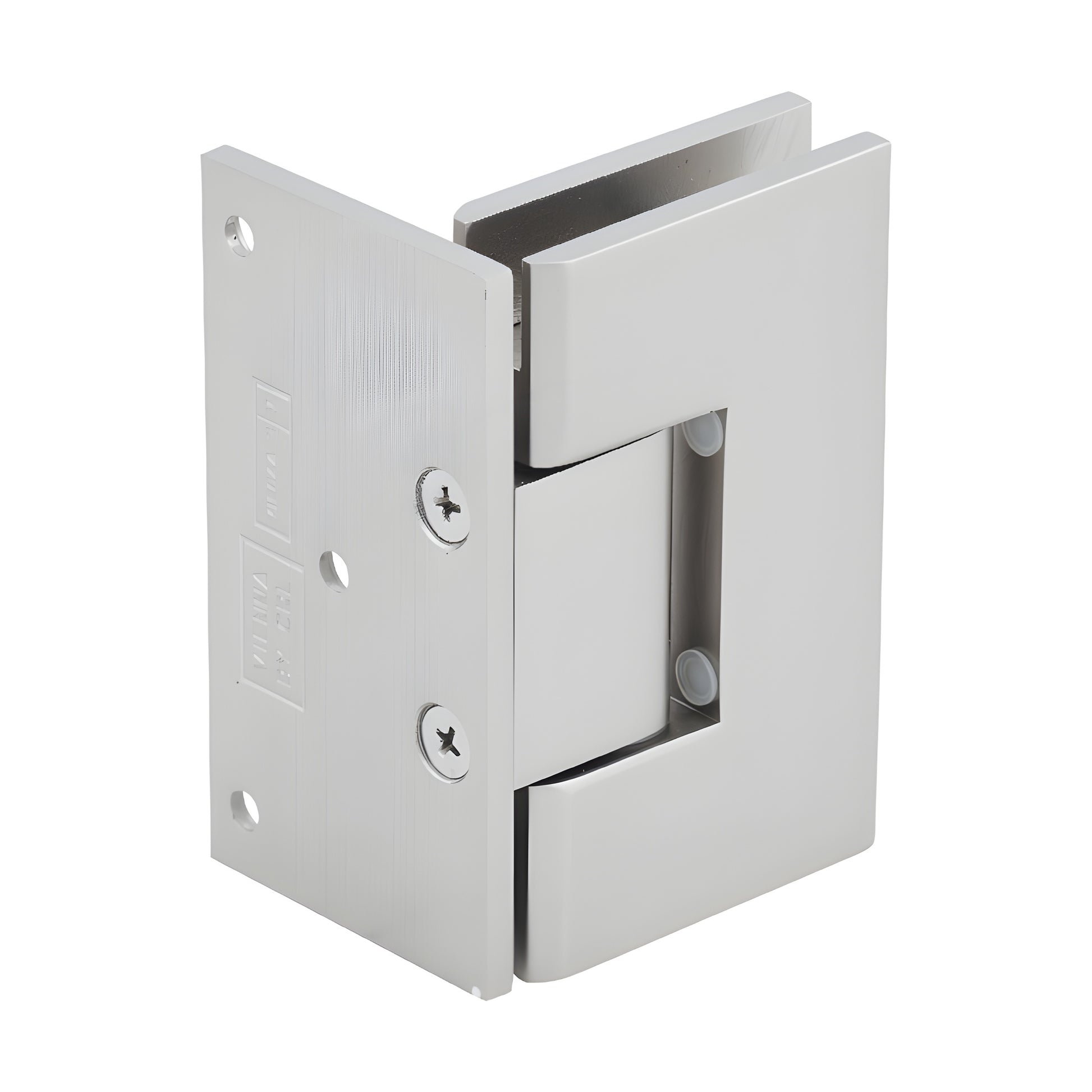

CRL Vienna 044 Satin Nickel Wall-Mount Offset Back-Plate Door Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Available in several beautiful finishes (standard and custom finishes on request)
• 3 Year Warranty
• Wall mount offset back plate — standard model
• Designed for use with monolithic tempered glass

CRL Vienna Hinges (SKU: V1E044SN) are heavy-duty solid brass shower door hinges engineered for wider, heavier doors that standard hinges cannot support. Two internal steel pins give mounting flexibility: keep pins in for compatibility with CRL "mouse-ears" cut-outs, or remove pins for increased adjustability and compatibility with rectangular, square-corner cut-outs (including some competitive cut-outs). These features make the Vienna Hinge a top choice for frameless shower door installations requiring robust support and precise alignment.

Standard Reversible Pivot Pin: Each hinge includes a reversible pivot pin with two settings: 90° (standard) and 85° (pre-set models) for a 5° tighter closure into the shower interior. Rotate the pin (do not flip) to switch sides.

Custom Pivot Pins: Custom pivot pins are available up to 45° to accommodate off-angle walls or non-90° installations—ideal for custom shower layouts.

Load Capacity & Door Size Guidelines:

• Two hinges with 3/8" (10 mm) glass: up to 100 lb (45 kg), max door width 34" (864 mm)
• Two hinges with 1/2" (12 mm) glass: up to 100 lb (45 kg), max door width 32" (813 mm)
• Three hinges with 3/8" (10 mm) glass: up to 130 lb (59 kg), max door width 34" (864 mm)
• Three hinges with 1/2" (12 mm) glass: up to 130 lb (59 kg), max door width 32" (813 mm)

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass (durable, corrosion-resistant finish options available)
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Cut-out required (except V1E092 which requires cut-out for door plus two holes for fixed panel). Use only the template supplied with this hinge—CRL cut-outs may not match other brands.
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)
