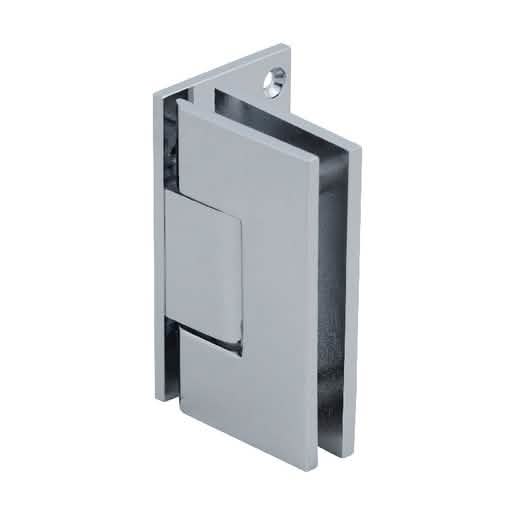

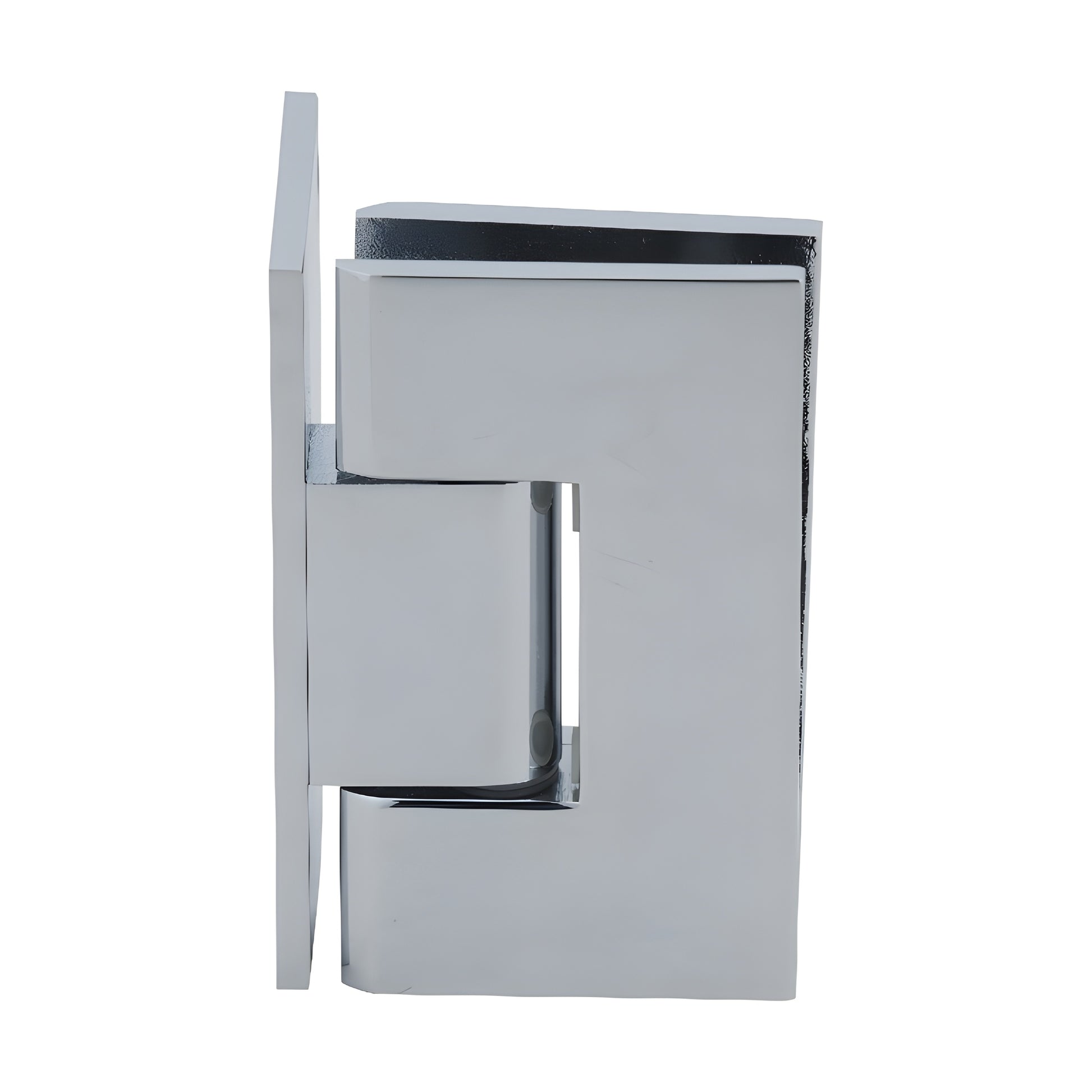

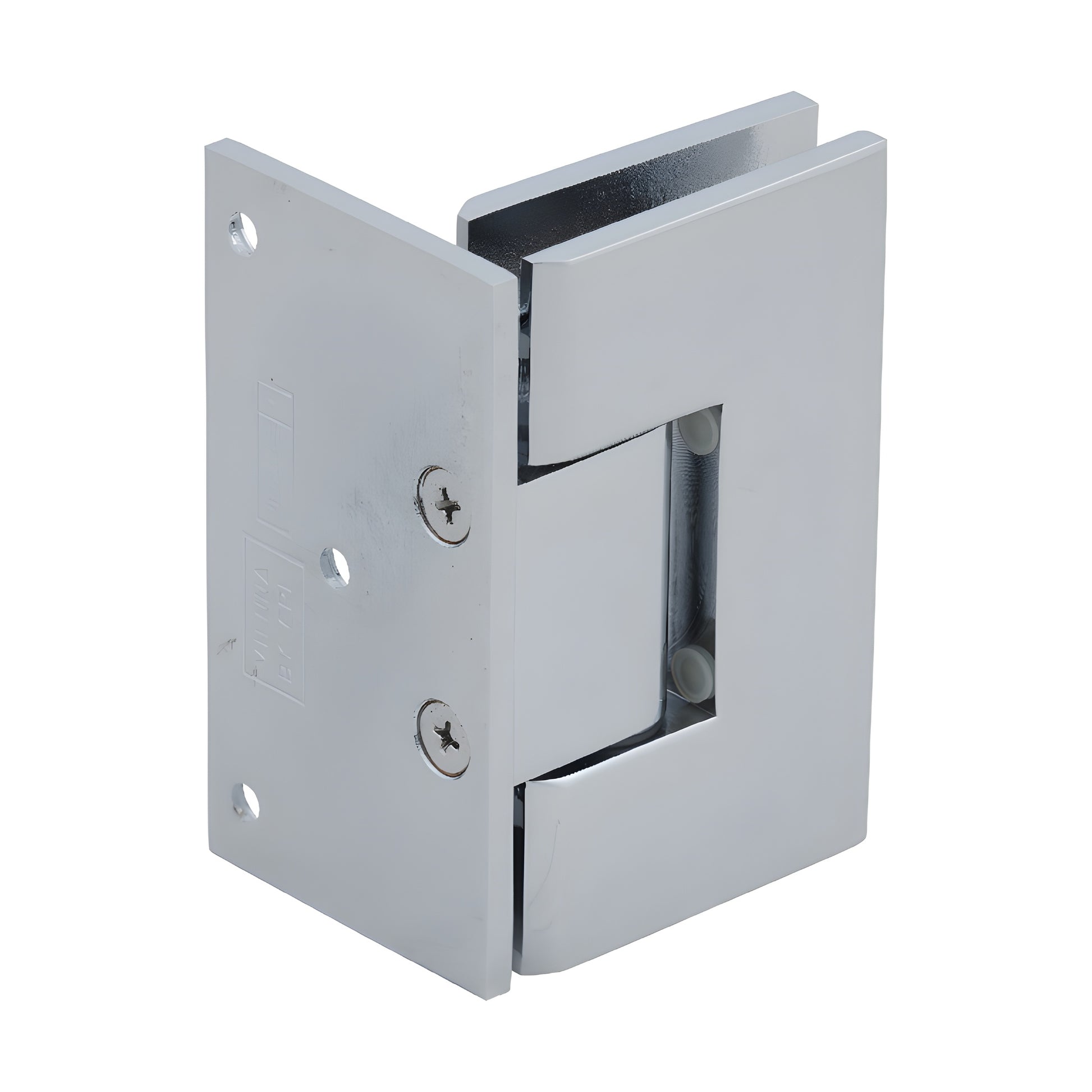

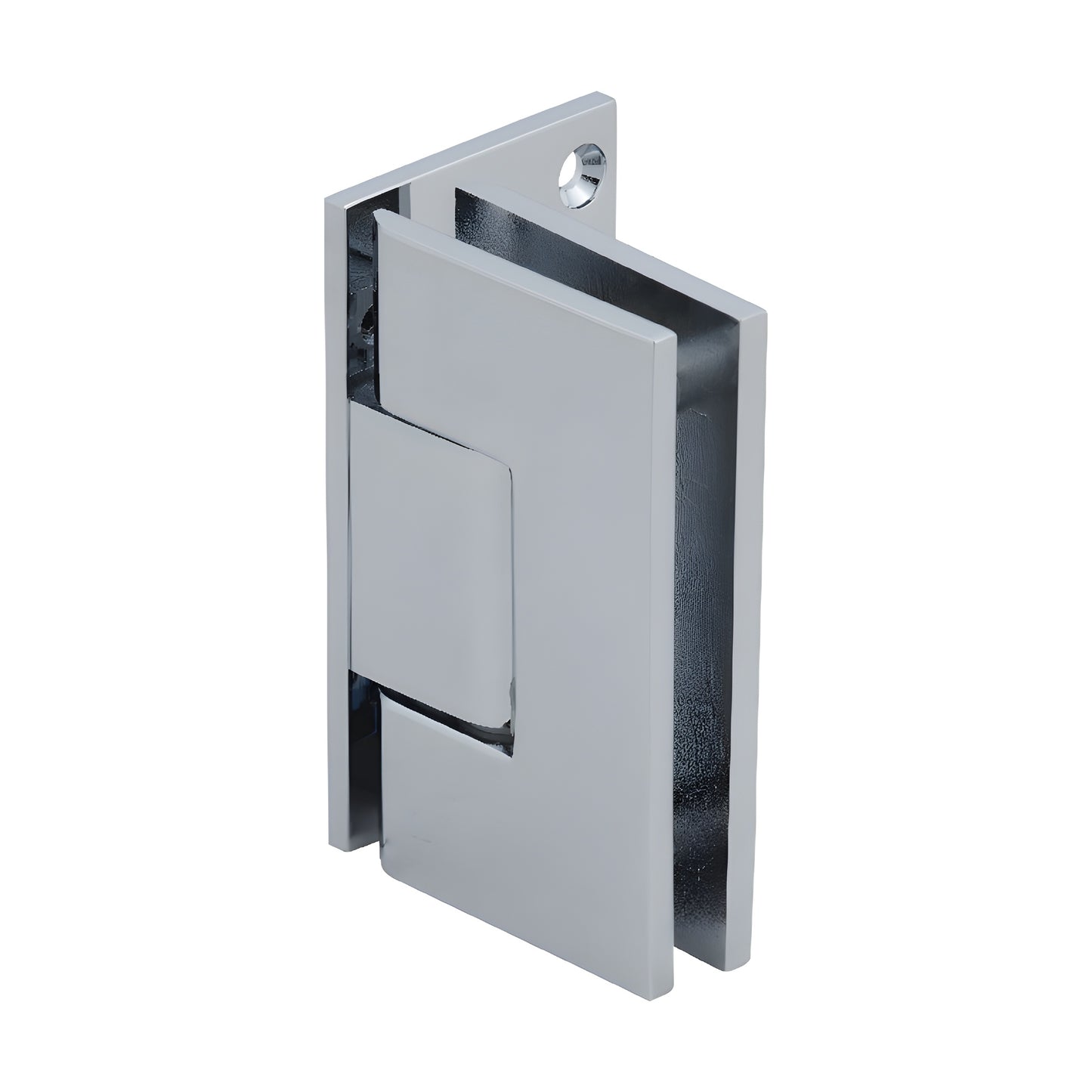

CRL Vienna 044 Polished Chrome Wall-Mount Offset Backplate Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Available in several beautiful finishes
• 3 Year Warranty
• Wall mount offset back plate — standard model
• Designed for monolithic tempered glass shower doors

CRL Vienna Hinges (SKU: V1E044CH) are heavy‑duty shower door hinges engineered for wider, heavier glass doors where traditional hinges fail. Constructed of solid brass with two internal steel pins, the Vienna Hinge offers two template options: keep the pins for compatibility with CRL "mouse‑ears" cut-outs, or remove them for increased adjustability and to fit rectangular, square‑cornered cut-outs (including some competitive patterns). These features make it an ideal tempered glass shower door hinge for custom and retrofit installations.

STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin with factory 90° activation; rotate the pin to use the 85° side for a 5° tighter closure into the shower interior. Pre‑set models come set at 85°.

CUSTOM PIVOT PIN: Custom pivot pins available up to 45° for off‑angle walls or non‑standard installations—specify angle when ordering.

Load Ratings & Door Widths:
Using two hinges with 3/8" (10 mm) glass: holds up to 100 lbs (45 kg), max door width 34" (864 mm).
Using two hinges with 1/2" (12 mm) glass: holds up to 100 lbs (45 kg), max door width 32" (813 mm).
Using three hinges with 3/8" (10 mm) glass: holds up to 130 lbs (59 kg), max door width 34" (864 mm).
Using three hinges with 1/2" (12 mm) glass: holds up to 130 lbs (59 kg), max door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out
Closing Type: Self‑centering when within 15° of closed position
Cut‑Out Required: Cut‑out required (except V1E092 which requires cut‑out for door and two holes for fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf
