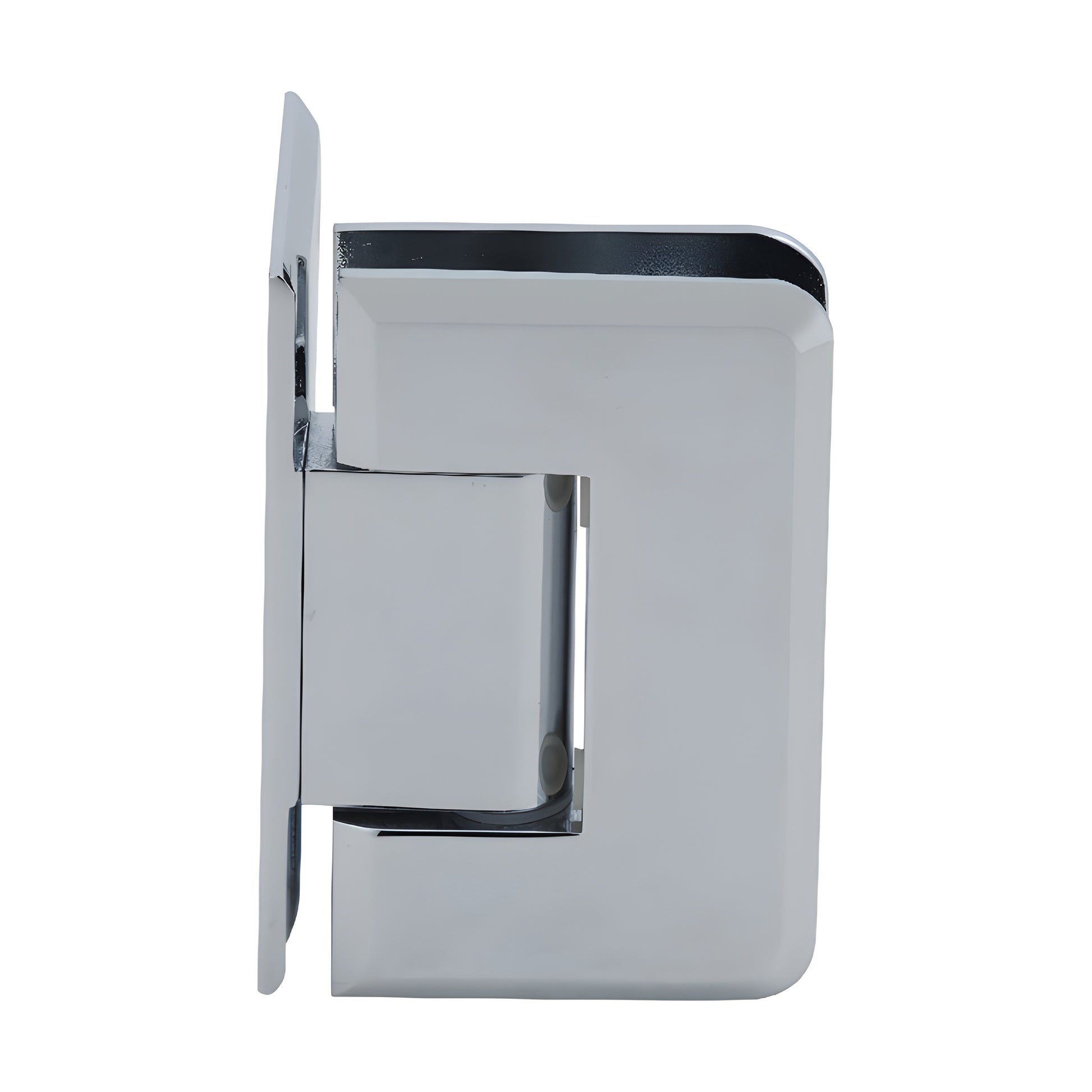

• Pinnacle polished chrome shower door hinge (SKU P1N044CH), solid brass wall-mount offset back plate for 8-12mm glass.

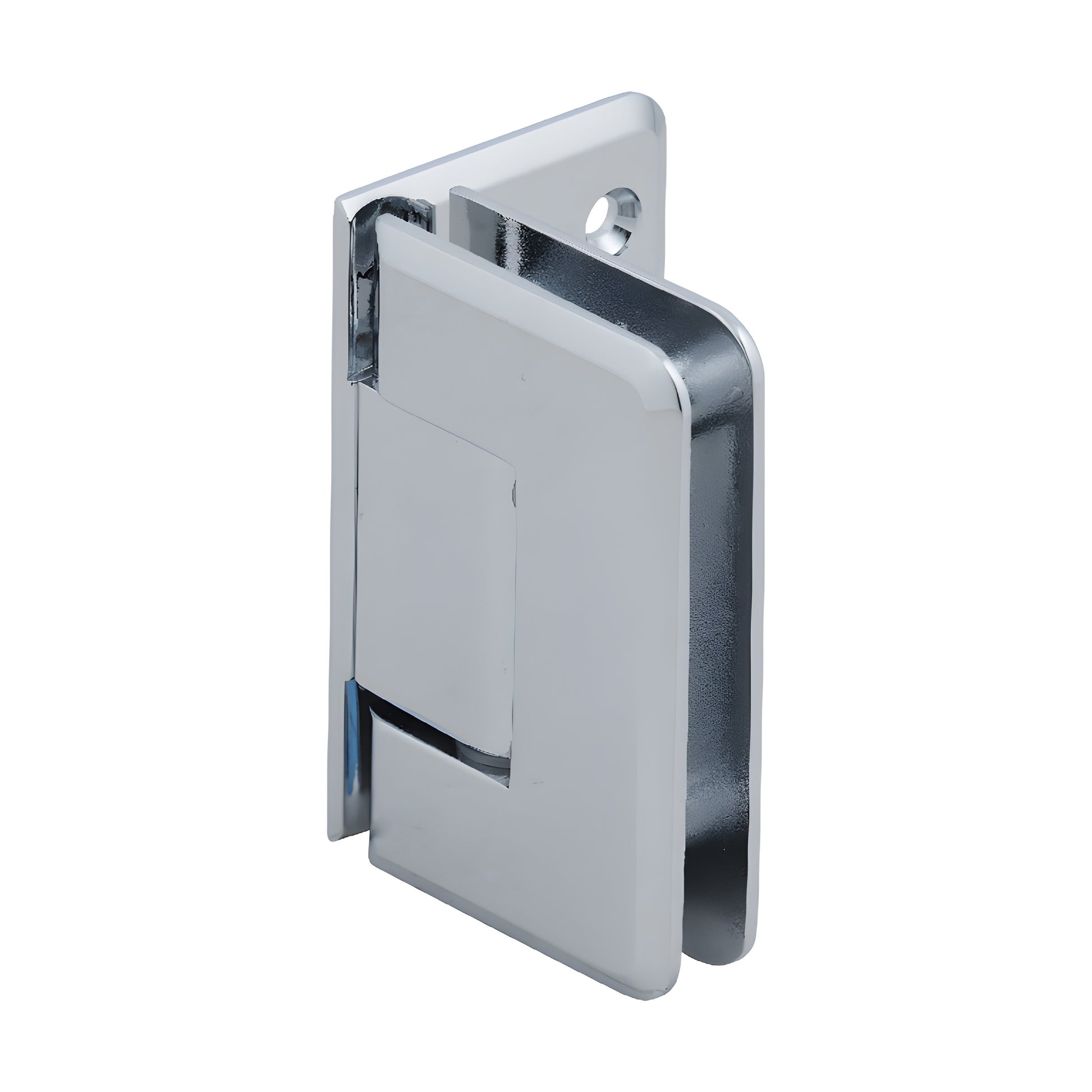

  • Pinnacle polished chrome shower door hinge (SKU P1N044CH), solid brass wall-mount offset back plate for 8-12mm glass.

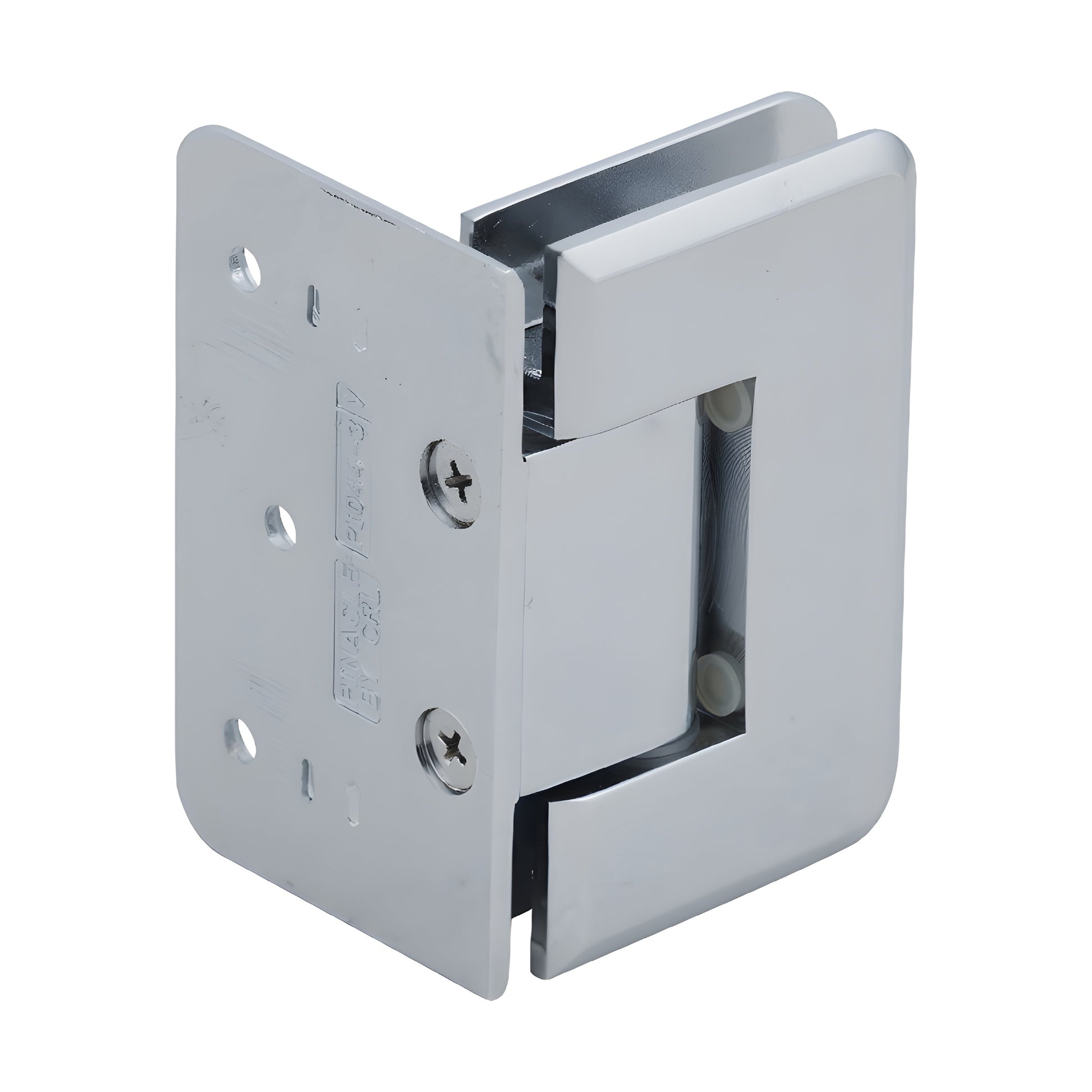

  • Pinnacle polished chrome shower door hinge (SKU P1N044CH), solid brass wall-mount offset back plate for 8-12mm glass.
1 3

CRL

CRL Pinnacle 044 Polished Chrome Glass Door Offset Backplate Hinge

CRL Pinnacle 044 Polished Chrome Glass Door Offset Backplate Hinge

$65.07 CAD
$65.07 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# P1N044CH
Shipping Weight: 1.54 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

5 Degree Pre-Set
No
Adjustable
No
Back Plate
Offset
Edge Profile
Beveled
Finish/Color
Polished Chrome
Glazing Thickness
5/16 in. To 1/2 in. (8 mm To 12 mm)
Height
3-1/2 in. (89 mm)
Material
Brass
Maximum Door Weight - 2 Hinges
80 lbs. (36.3 kg)
Maximum Door Weight - 3 Hinges
120 lbs. (54.4 kg)
Maximum Door Width - 2 Hinges
28
Maximum Door Width - 3 Hinges
32
Mounting Type
Wall Mount
Self-Centering
Yes
Series
Pinnacle
Width
2-3/16 in. (56 mm)

Overview

  • Self-Centering with Reversible 5 Degree Pivot Pin
  • Available in Several Beautiful Finishes
  • Three Year Warranty
  • Wall Mount Offset Back Plate Standard Model (Factory Set for Standard Closing Position)
  • Use Monolithic Tempered Glass

The CRL Pinnacle Hinge (SKU: P1N044CH) is a solid-brass shower door hinge with radius corners and beveled edges for a sleek, premium appearance. Similar to the Geneva Series but refined for contemporary glass showers, Pinnacle Hinges accept 5/16" (8 mm) to 1/2" (12 mm) thick tempered safety glass and are self-centering when the door is within 15 degrees of the closed position. Stainless steel plunger tips, pins, and springs deliver durable, reliable door closure for residential and hotel shower installations. The hinge includes a reversible 5 degree pivot pin (also used in Geneva, Cathedral, Roman, Ultimate, and Elite Series); custom pivot pins up to 45 degrees are available for off-angle installations.

STANDARD REVERSIBLE PIVOT PIN: Each hinge contains a reversible pivot pin with one side marked 90° and the opposite side marked 85°. Standard models ship with the 90° side active; Pre-Set models are factory-set to 85° for a tighter closure into the shower interior. Rotate the pin (do not flip upside down) to switch sides.

CUSTOM PIVOT PIN: Specify a custom pivot pin angle (up to 45°) when a wall or installation requires an off-angle closing solution.

CAPACITY:
Using two hinges: With 5/16"–1/2" (8–12 mm) glass, holds up to 80 lbs (36 kg); maximum door width 28" (711 mm).

Using three hinges: With 5/16"–1/2" (8–12 mm) glass, holds up to 120 lbs (54 kg); maximum door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Wall Mount Hinges and 180° Glass-to-Glass Hinge available as Standard Model (factory set at standard closing position) or 5° Pre-Set Model for tighter interior closure
Construction: Solid Brass with stainless steel internals
Hinge Swings: 90° in and 90° out
