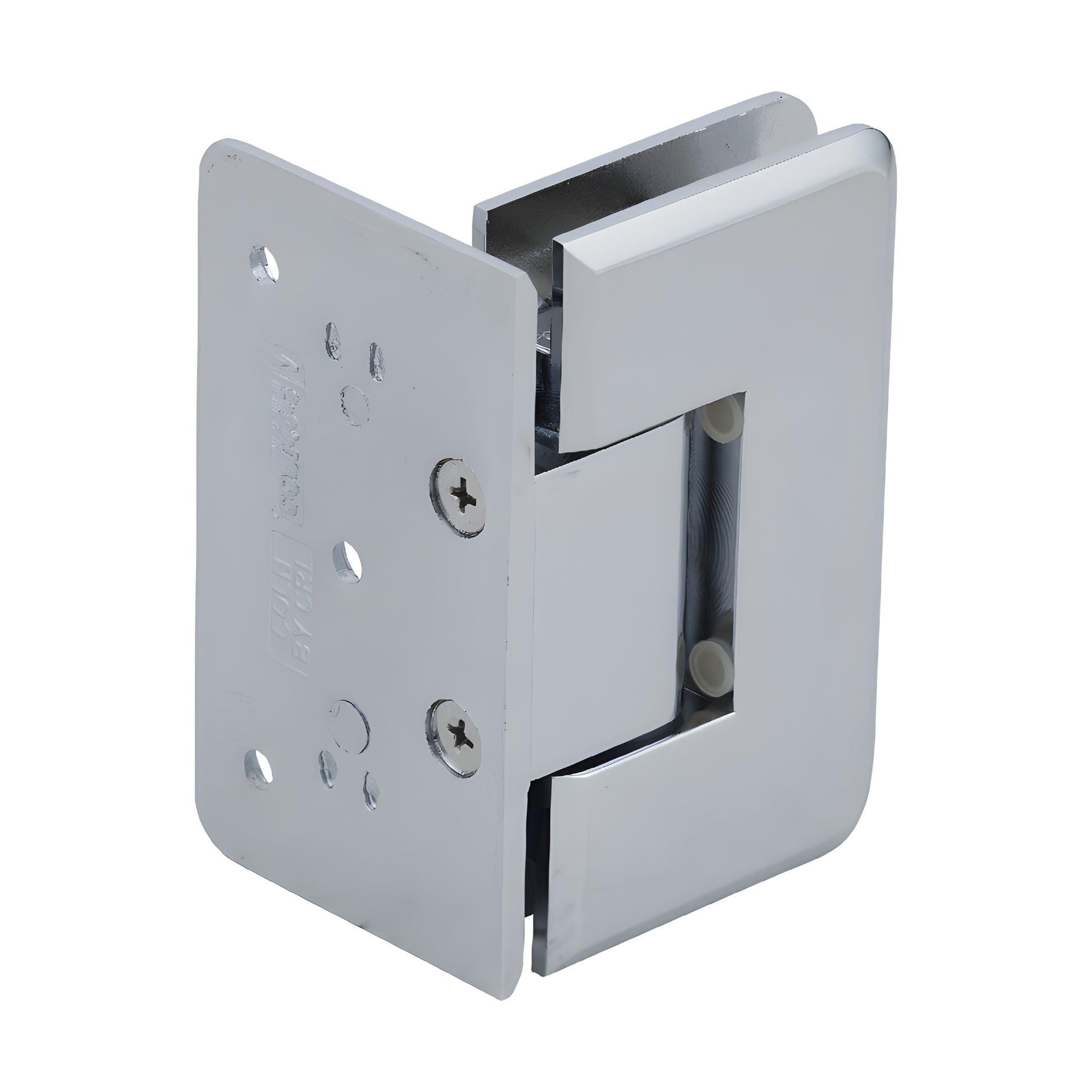

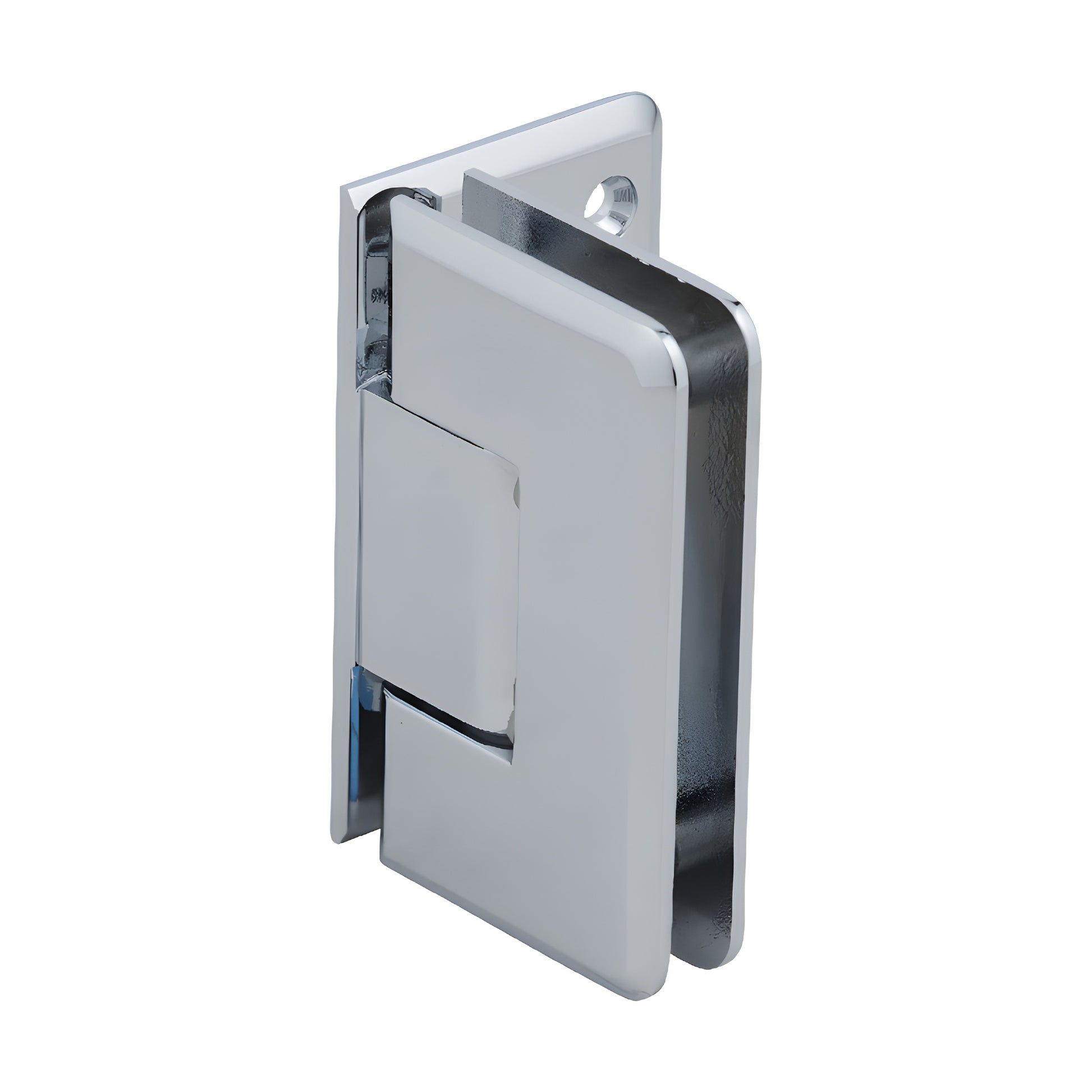

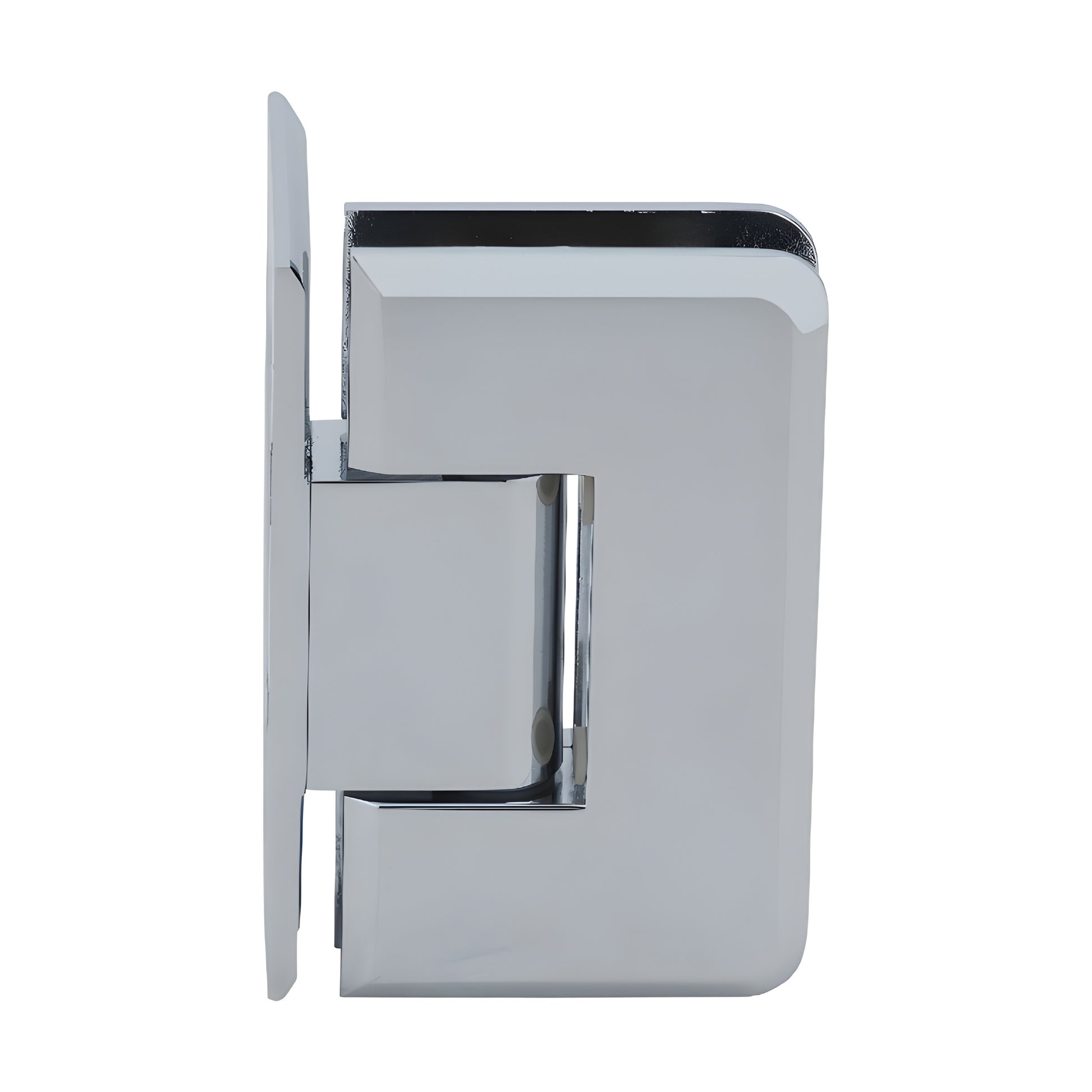

CRL Cologne 044 Polished Chrome Offset Wall-Mount Hinge for Glass Doors

• Accommodates 3/8" to 1/2" (10 to 12 mm) glass
• Available in several beautiful finishes (custom finishes on request)
• Wall-mount offset back plate — standard model
• Use monolithic tempered safety glass

CRL Cologne Hinges offer a sleek alternative to Vienna hinges with radius corners and beveled edges. Designed for wider, heavier shower doors, Cologne Hinges use two internal steel pins for mounting versatility: leave the pins in place to use CRL "mouse-ears" cut-outs for safety, or remove them for increased adjustability and compatibility with CRL rectangular (square-corner) cut-outs and some competitive cut-outs.

STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin marked 90º on one side and 85º on the other. Standard models ship with the 90º side active. Pre-set models ship with the pin set to 85º (provides a 5º tighter closure toward the shower interior). The pin can be rotated to select the desired angle.

CUSTOM PIVOT PIN: Available to accommodate off-angle installations—specify a custom angle (up to 45º) if the standard 5º offset does not achieve the desired door closing position.

Load & Door Width Capacity
Using two hinges with 3/8" (10 mm) glass: supports up to 100 lbs. (45 kg), max door width 34" (864 mm).

Using two hinges with 1/2" (12 mm) glass: supports up to 100 lbs. (45 kg), max door width 32" (813 mm).

Using three hinges with 3/8" (10 mm) glass: supports up to 130 lbs. (59 kg), max door width 34" (864 mm).

Using three hinges with 1/2" (12 mm) glass: supports up to 130 lbs. (59 kg), max door width 32" (813 mm).

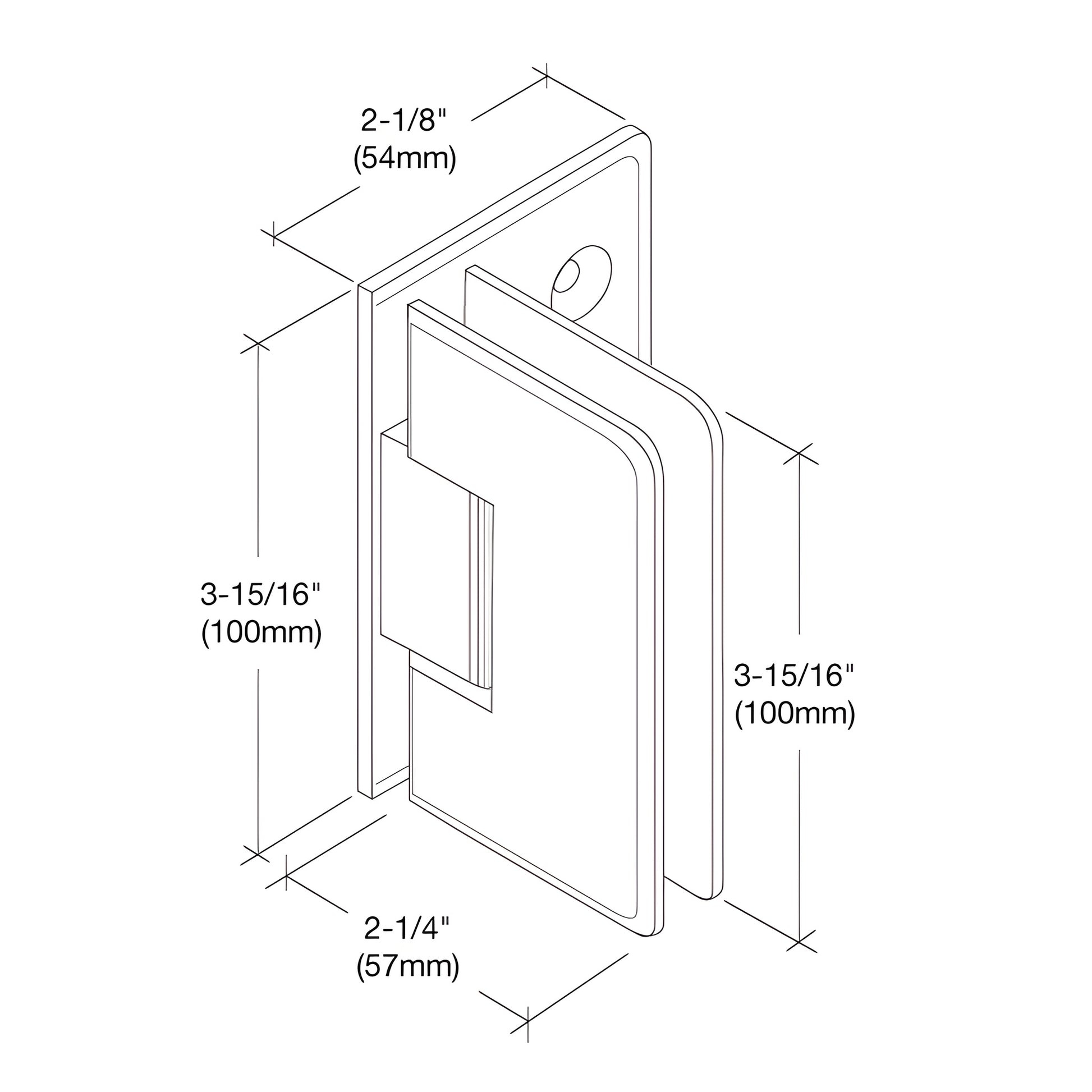

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90º in and 90º out
Closing Type: Self-centering when within 15º of closed position
Cut-Out Required: Cut-out
