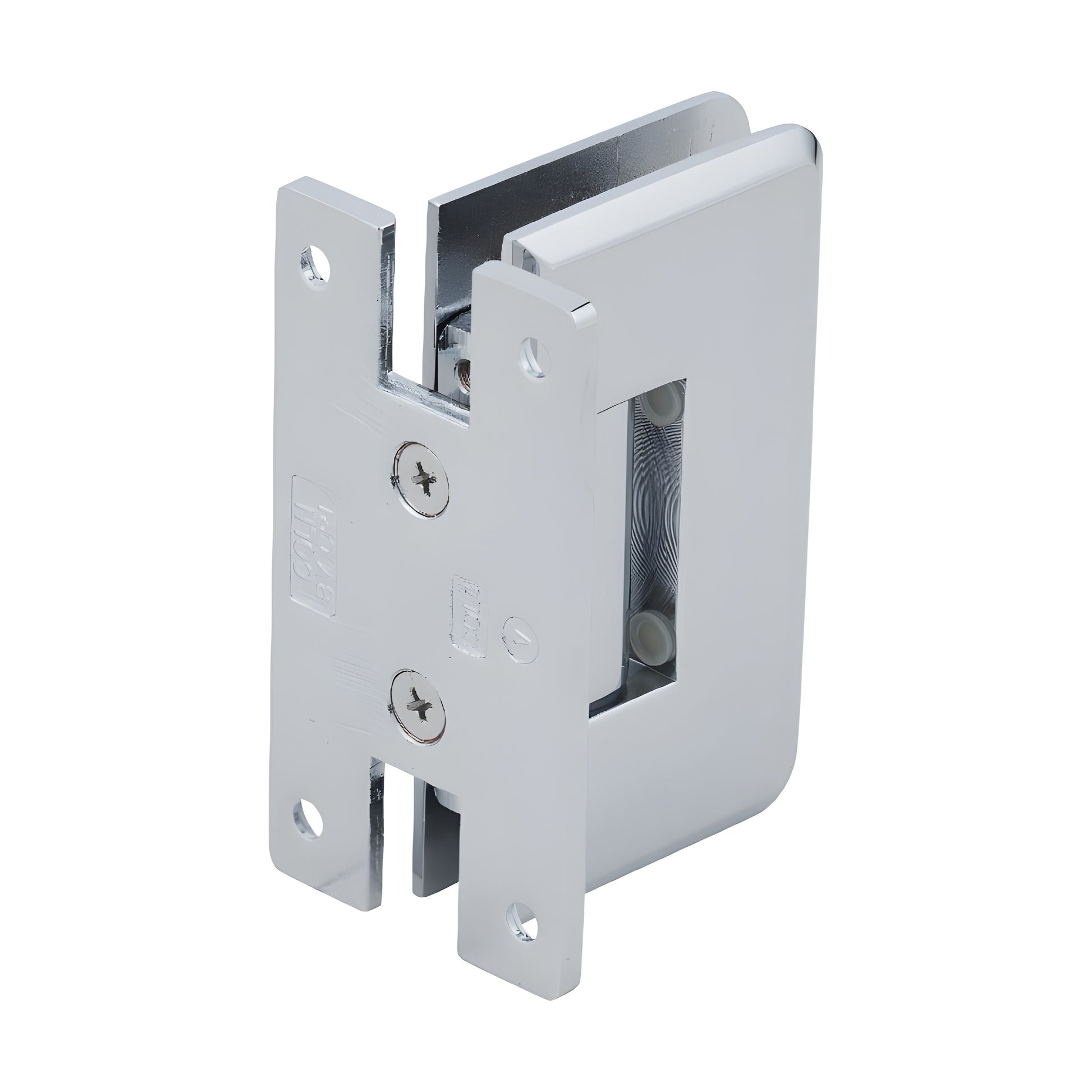

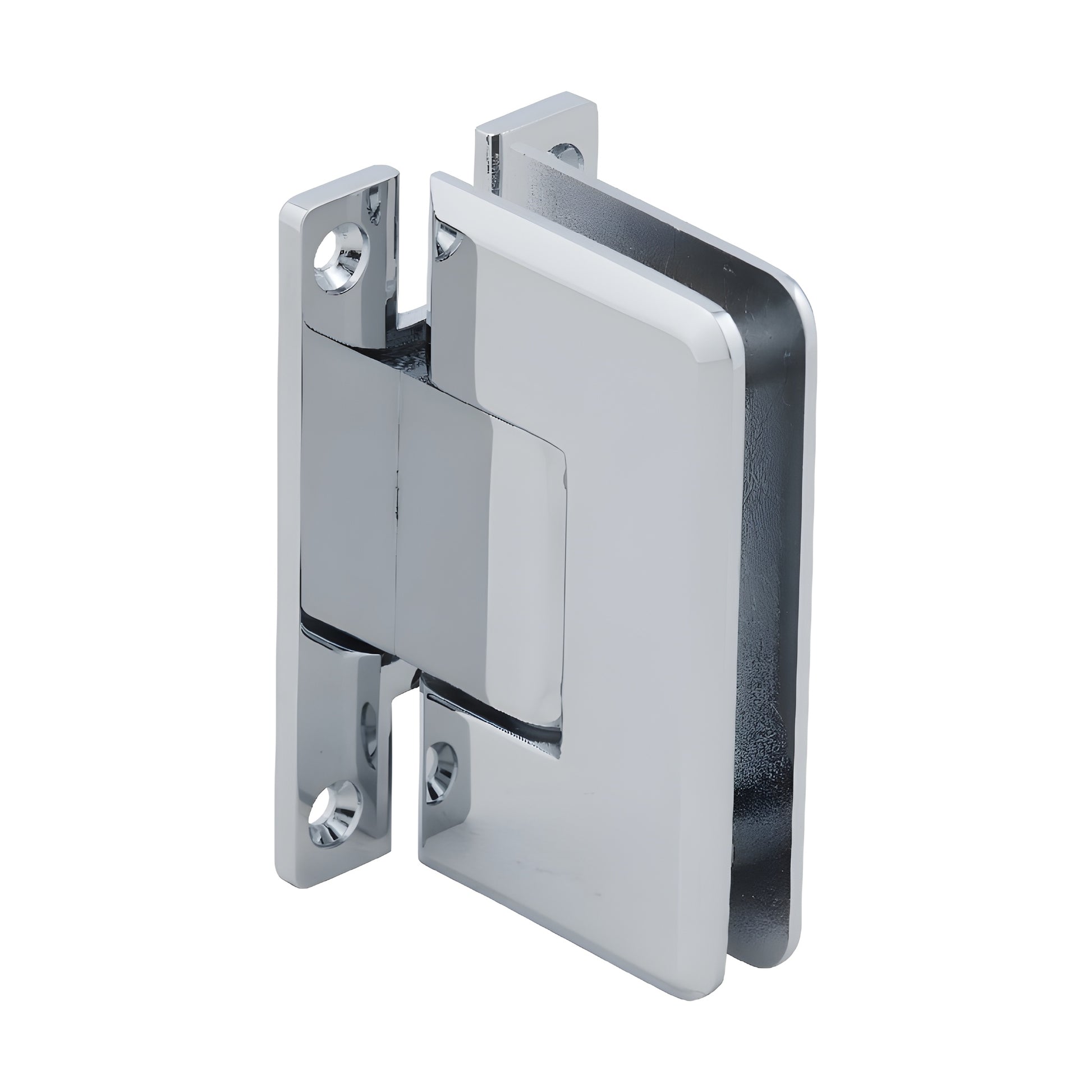

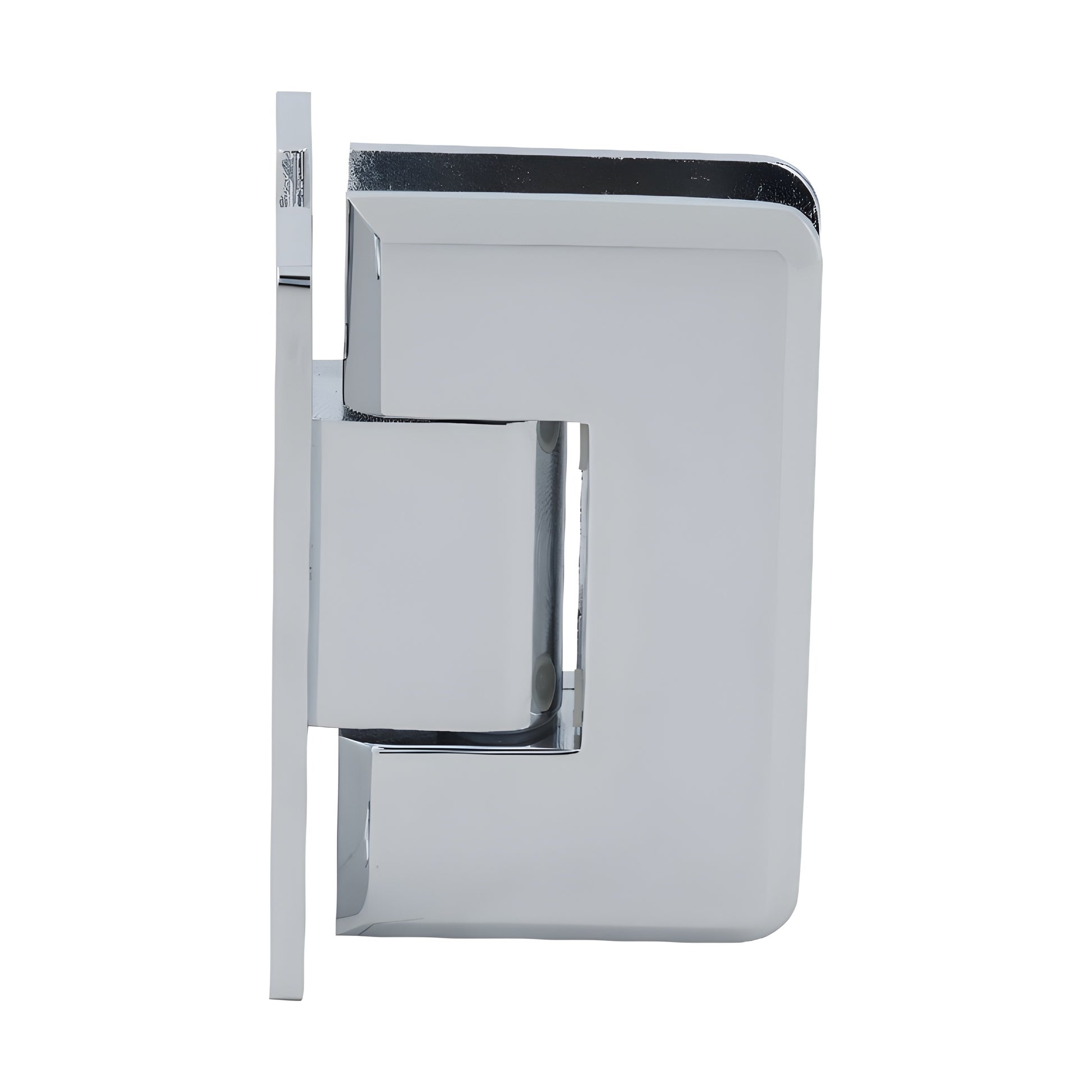

CRL 037 Cologne Polished Chrome Glass Wall Mount H Back Plate Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
• Self-Centering with Reversible 5 Degree Pivot Pin
• Available in Several Beautiful Finishes
• Wall Mount 'H' Back Plate Standard Model
• Use Monolithic Tempered Glass

CRL Cologne Hinges are a radius-corner, beveled-edge alternative to Vienna hinges, designed to give shower doors a sleek, modern look while supporting wider, heavier doors that standard hinges cannot. Ideal for tempered glass shower doors, Cologne Hinges include two internal steel pins that offer mounting flexibility: leave the pins in for CRL "mouse-ears" cut-outs for added safety, or remove them to increase adjustability and fit CRL rectangular (square-corner) cut-outs — and in some cases, competitive rectangular cut-outs.

STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin with 90º on one side and 85º (5º tighter into the shower) on the other. Standard models ship set to 90º; Pre-Set models ship at 85º. Rotate the pin (do not flip) to switch the active angle.

CUSTOM PIVOT PIN: Custom pivot pins are available up to 45º to accommodate off-angle walls when the standard 5º adjustment is insufficient.

Load Capacity: Using two hinges with 3/8"–1/2" glass (10–12 mm) supports up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm). Using three hinges supports up to 140 lbs. (63 kg) with the same maximum width.

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90° In and 90° Out
Closing Type: Self-Centering when within 15° of closed position
Cut-Out Required — except C0L092 which requires cut-out for door and two holes for fixed panel
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m)

Custom finishes are available on request through the CRL Technical Sales Department.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use only. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge; CRL cut-out dimensions may not match other brands.
