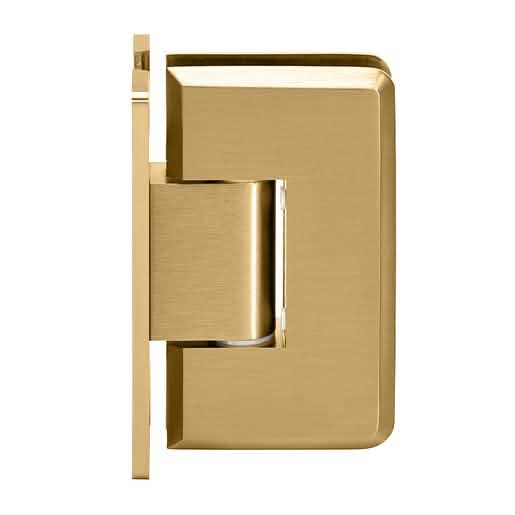

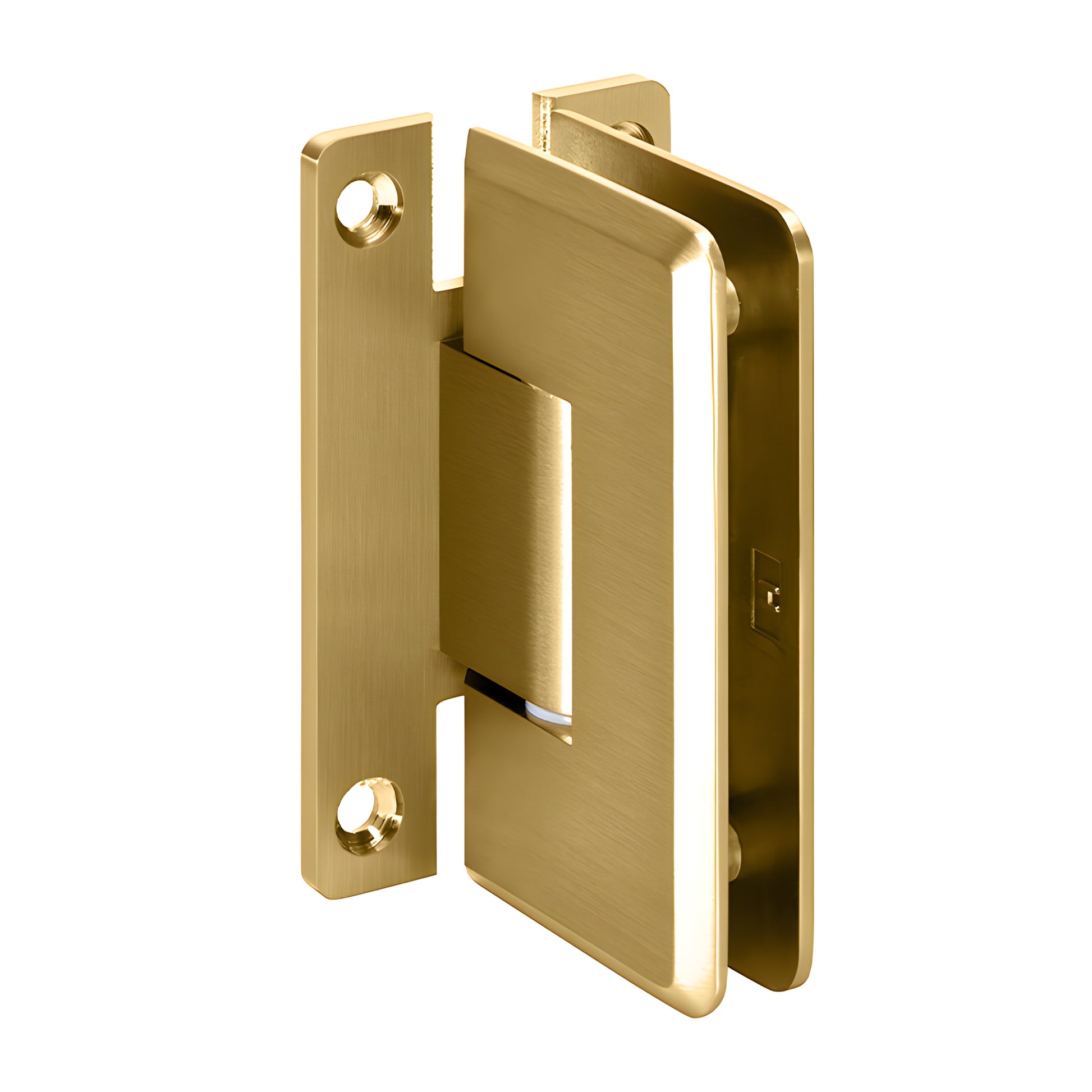

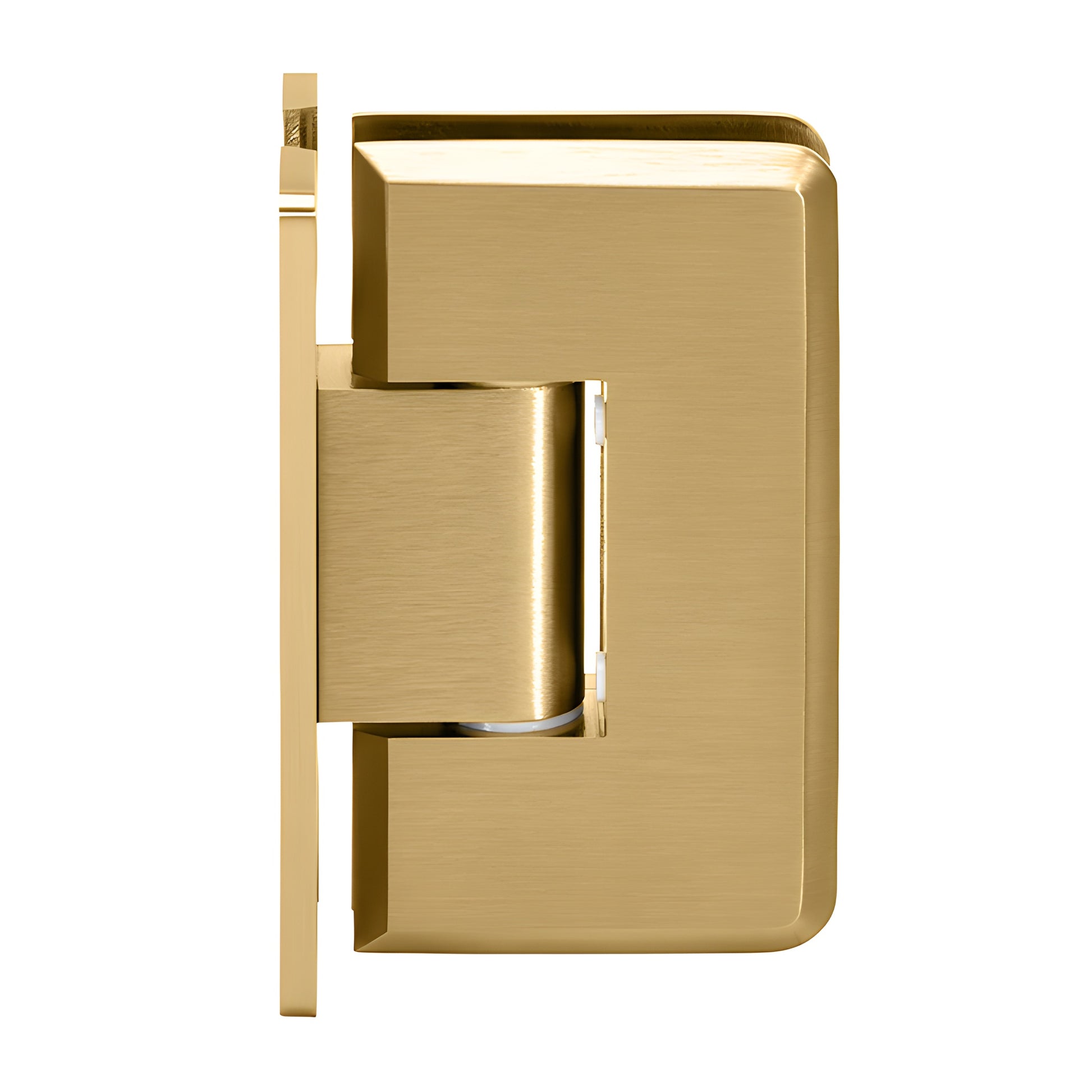

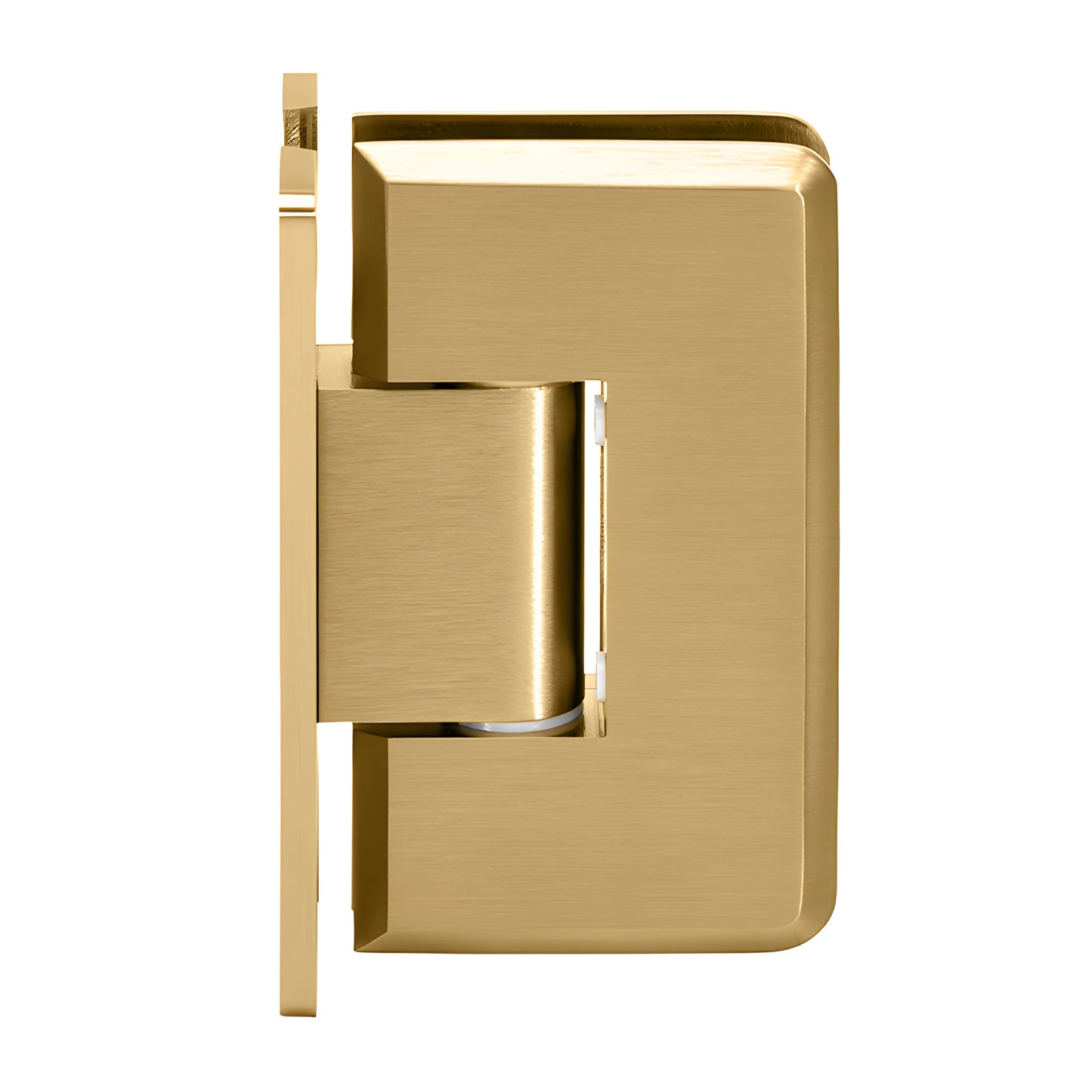

CRL Cologne 037 Satin Brass Wall-Mount H Back Plate Glass Door Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
• Self-Centering with Reversible 5 Degree Pivot Pin
• Available in Several Beautiful Finishes

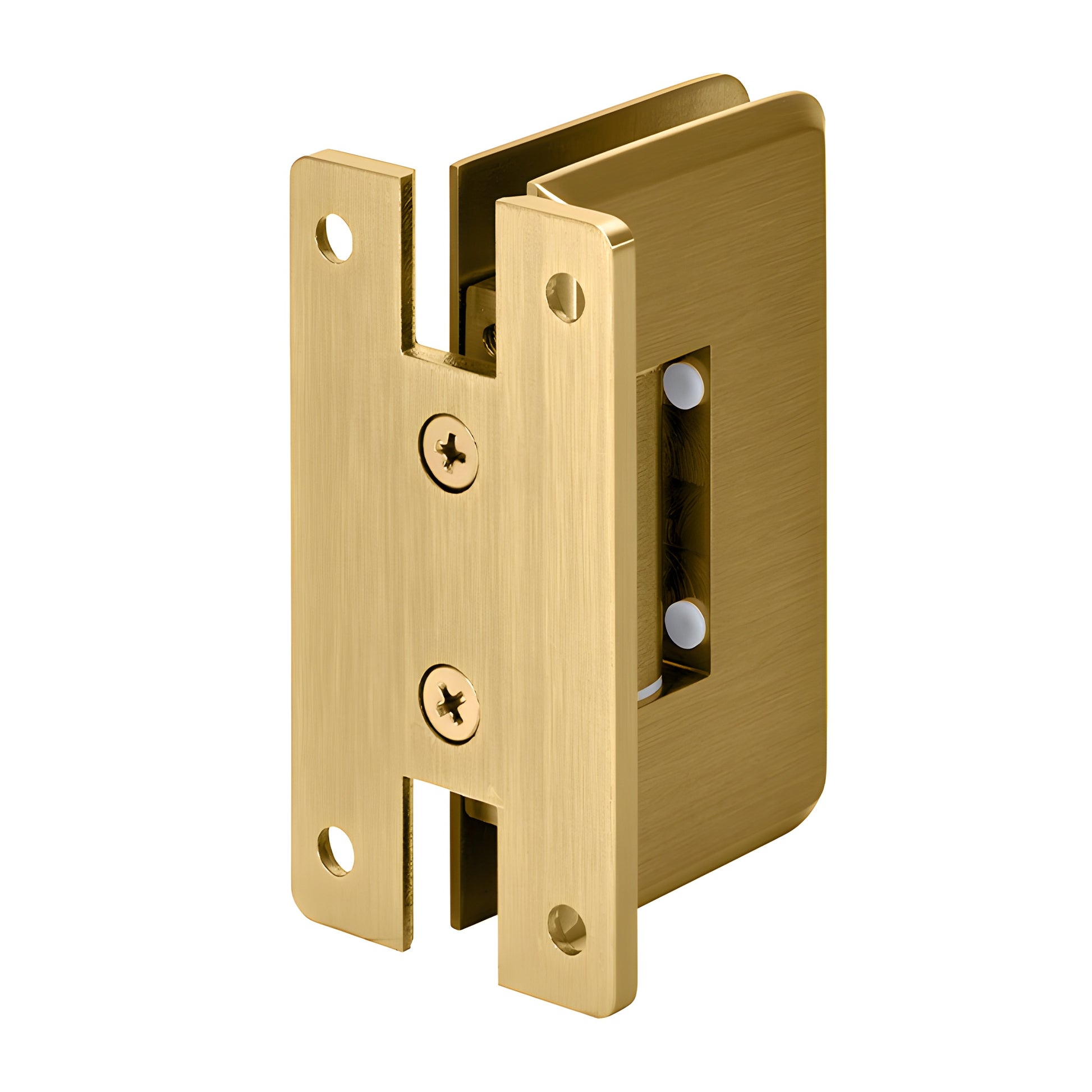

• Wall Mount "H" Back Plate Standard Model
• Use Monolithic Tempered Glass

CRL Cologne Hinges deliver a sleek alternative to Vienna hinges with radius corners and beveled edges. Engineered for wider, heavier glass shower doors, these solid brass shower door hinges provide reliable support where standard hinges fall short. Two internal steel pins give template flexibility: leave pins in for CRL "mouse-ears" cut-outs or remove them for rectangular/square corner cut-outs (may fit some competitive templates).

STANDARD REVERSIBLE PIVOT PIN: Each Cologne Hinge includes a reversible pivot pin marked 90º on one side and 85º on the other. Standard models ship set at 90º; Pre-Set models ship at 85º for a 5º tighter closure into the shower. Rotate the pin (do not flip) to change the angle.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (specify up to 45º) when the standard 5º adjustment is insufficient.

Load Capacity:
Using two hinges with 3/8" to 1/2" glass (10–12 mm): supports up to 110 lbs (50 kg), maximum door width 36" (914 mm).
Using three hinges with 3/8" to 1/2" glass (10–12 mm): supports up to 140 lbs (63 kg), maximum door width 36" (914 mm).

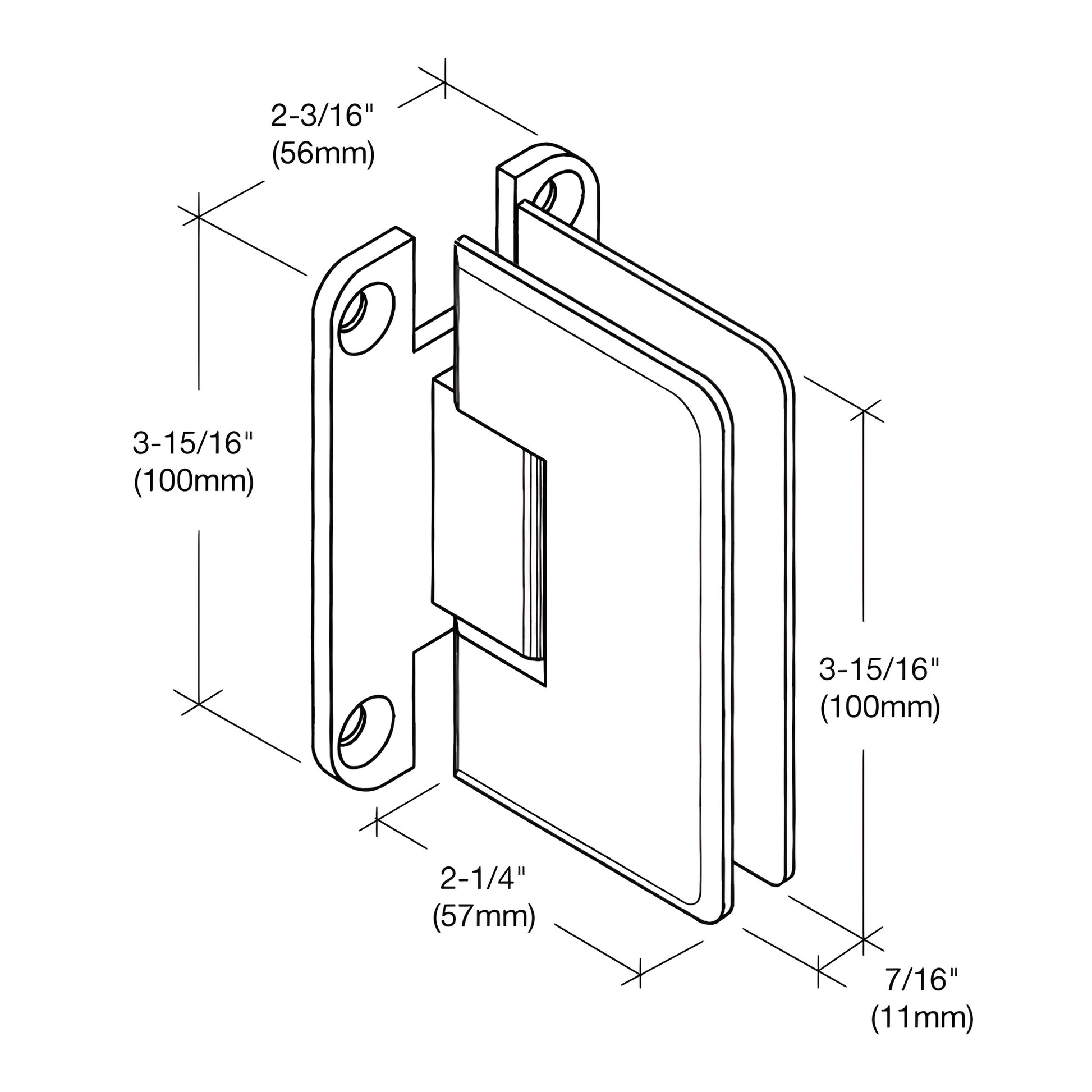

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass (durable shower hinge hardware)
Hinge Swings: 90° In and 90° Out
Closing Type: Self-Centering when within 15° of closed position
Cut-Out Required: Except C0L092 (requires cut-out for door and two holes for fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes available on request via CRL Technical Sales Department.

Product Warning:
CRL shower door hinges are designed for residential or hotel shower use only. For other applications, obtain
