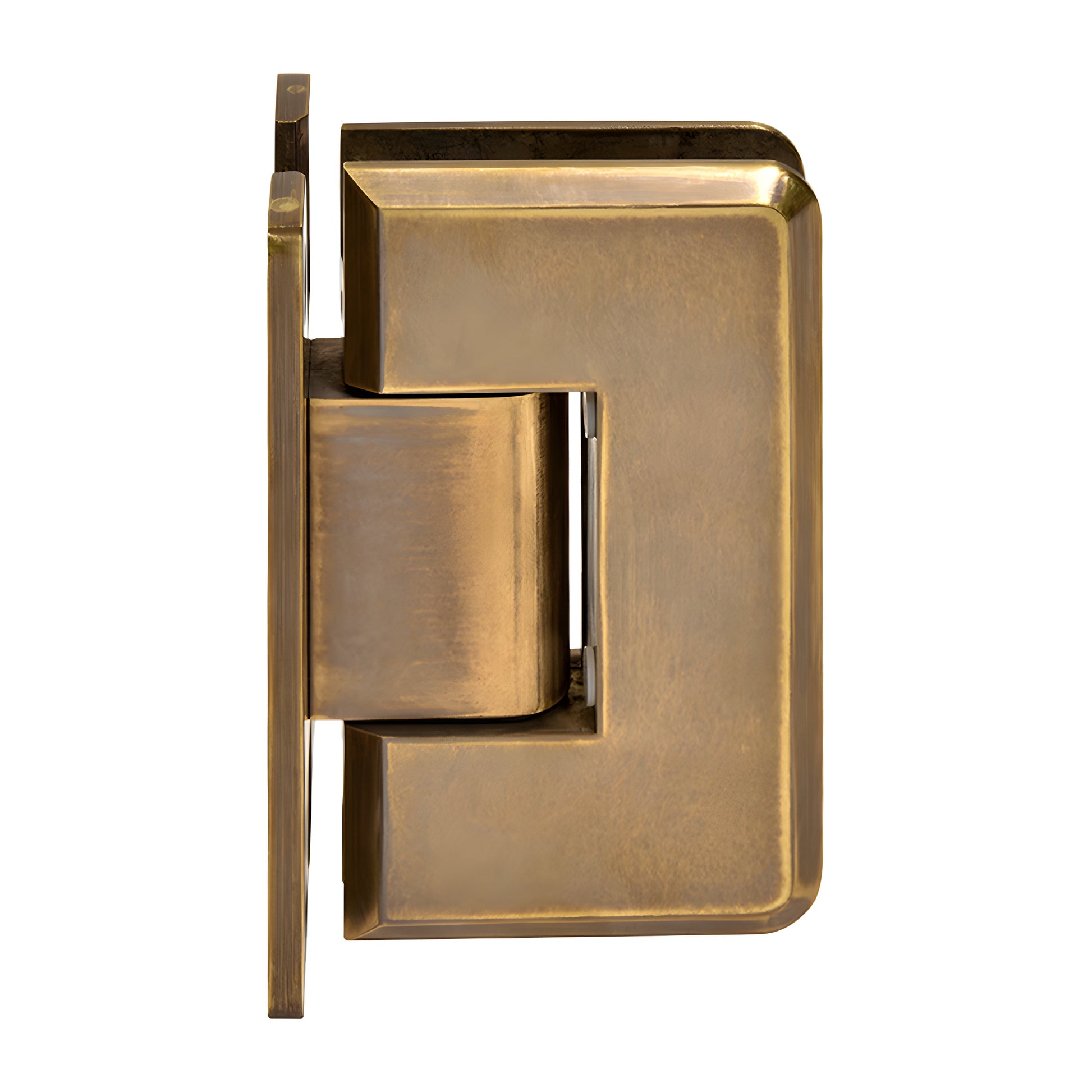

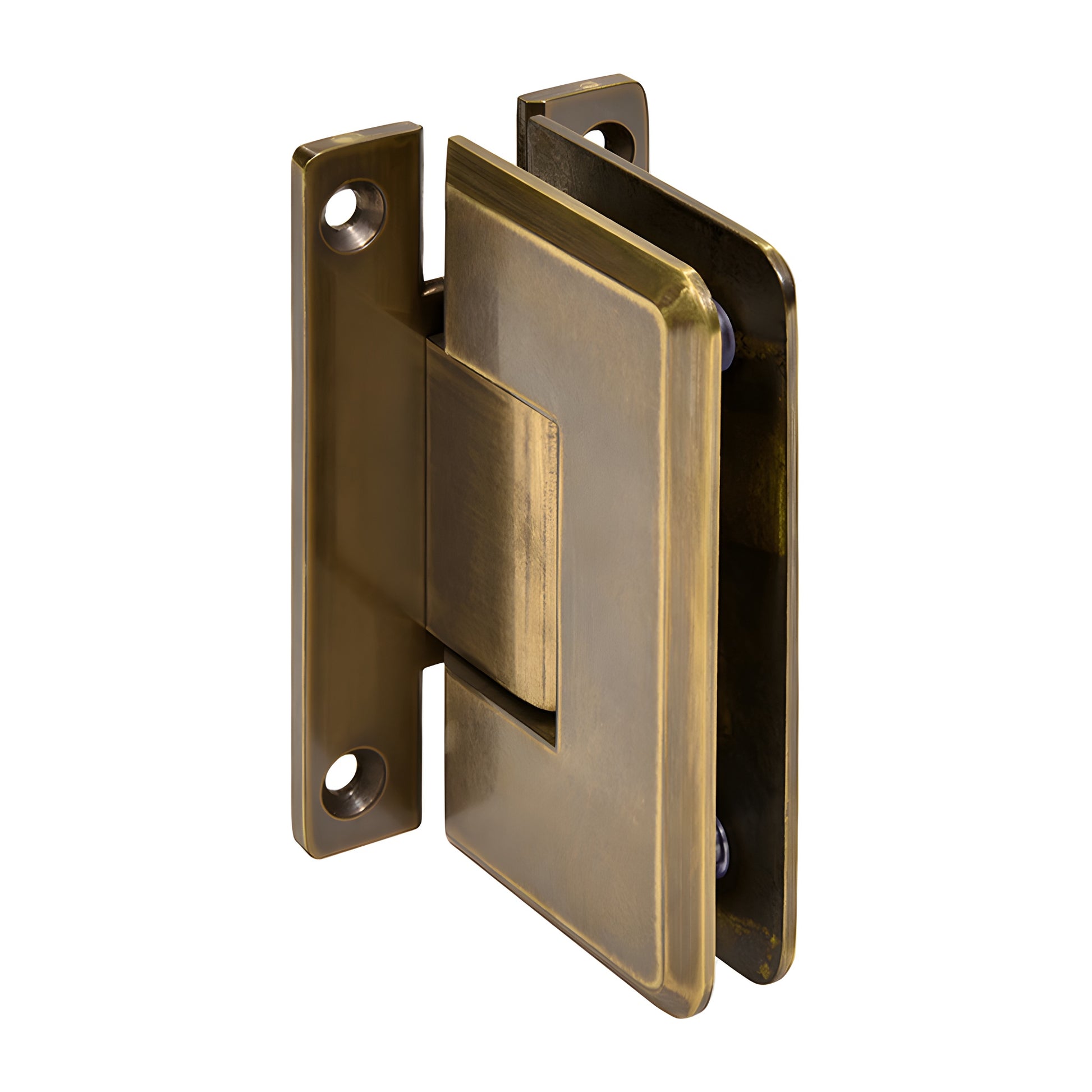

CRL Vintage Brass Cologne 037 Series Wall Mount 'H' Back Plate Hinge
CRL Vintage Brass Cologne 037 Series Wall Mount 'H' Back Plate Hinge
Regular price
$242.74 CAD
Regular price
Sale price
$242.74 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# C0L037VBR
Shipping Weight: 1.97 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 1.97 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| 5 Degree Pre-Set No | No |

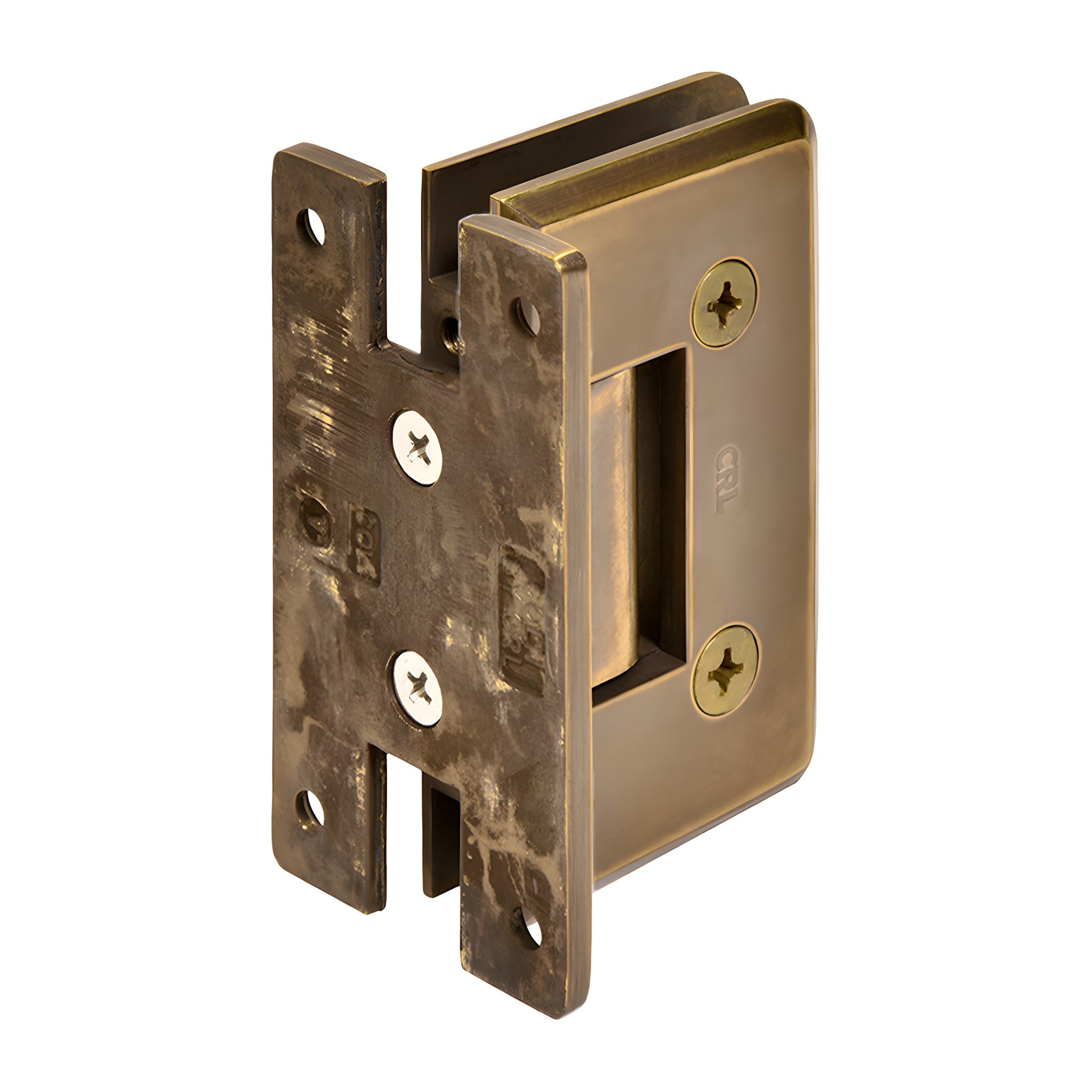

| Back | Plate 'H' |
| Edge | Profile Beveled |
| Finish/Color | Vintage Brass |
| Glazing Thickness | 3/8 in. To 1/2 in. (10 mm To 12 mm) |

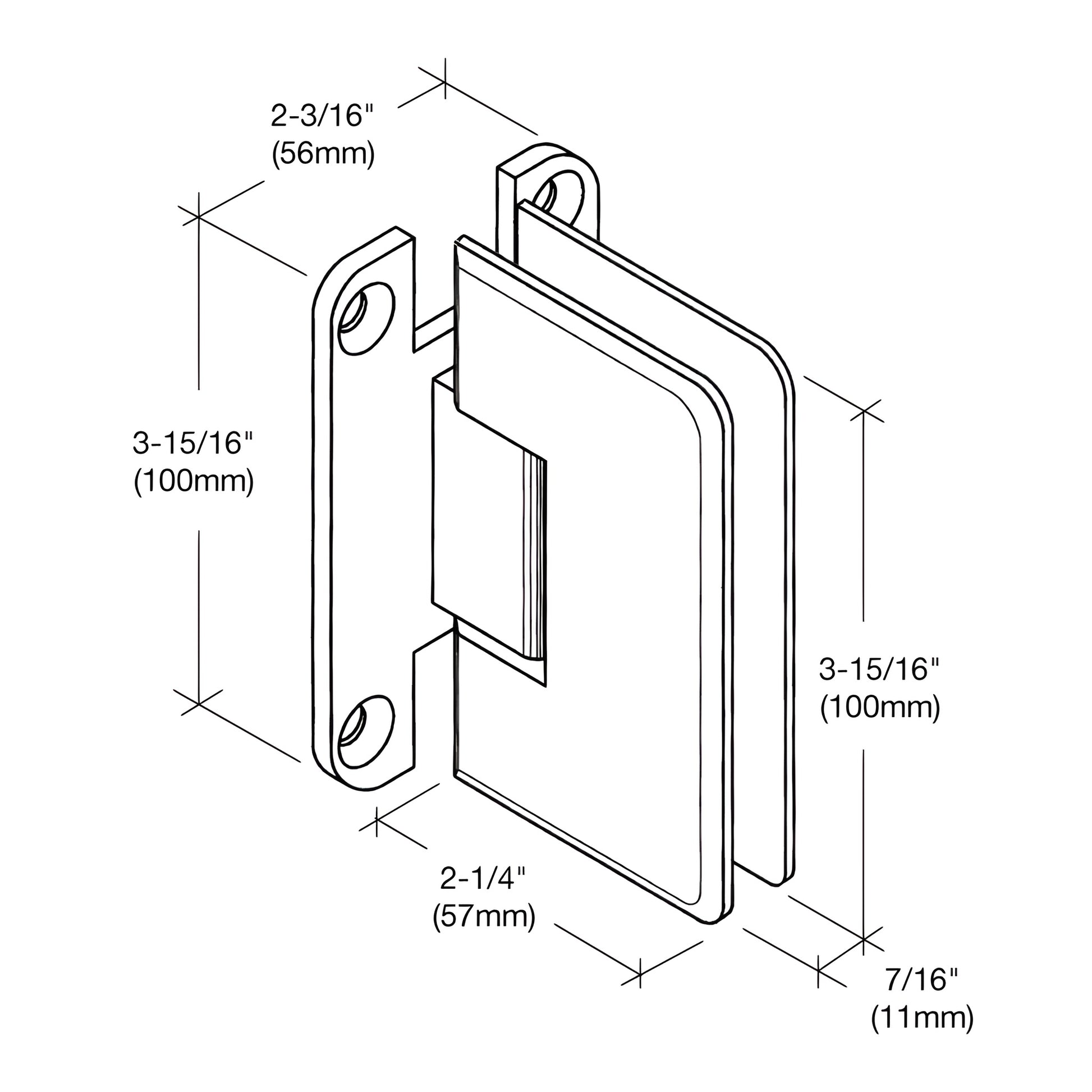

| Height 3-15/16 in. | (100 mm) |
| Material | Brass |
| Maximum Clamping Screw Torque 60 lbf.in | (677.9 cN.m) |
| Maximum Door Weight - 2 Hinges 110 lbs. | (49.9 kg) |
| Maximum Door Weight - 3 Hinges 140 lbs. | (63.5 kg) |
| Maximum Door Width 36 in. | (914 mm) |
| Mounting | Type Wall Mount |
| Positive | Close No |
| Self-Centering Yes | Cologne |
| Width 2-1/4 in. | (57 mm) |
Overview
CRL Cologne Hinges offer a sleek design with radius corners and beveled edges, making them ideal for supporting wider, heavier doors that traditional hinges cannot.
Accommodating 3/8" to 1/2" tempered glass, these hinges are self-centering with a reversible 5-degree pivot pin and are available in various stunning finishes.
The hinges include strategically placed steel pins for mounting versatility and can handle up to 110 lbs with two hinges or 140 lbs with three hinges, for doors up to 36" wide.
For custom finishes or specific installation needs, contact CRL Technical Sales Department, ensuring your shower door installation is both stylish and robust.
Accommodating 3/8" to 1/2" tempered glass, these hinges are self-centering with a reversible 5-degree pivot pin and are available in various stunning finishes.
The hinges include strategically placed steel pins for mounting versatility and can handle up to 110 lbs with two hinges or 140 lbs with three hinges, for doors up to 36" wide.
For custom finishes or specific installation needs, contact CRL Technical Sales Department, ensuring your shower door installation is both stylish and robust.
