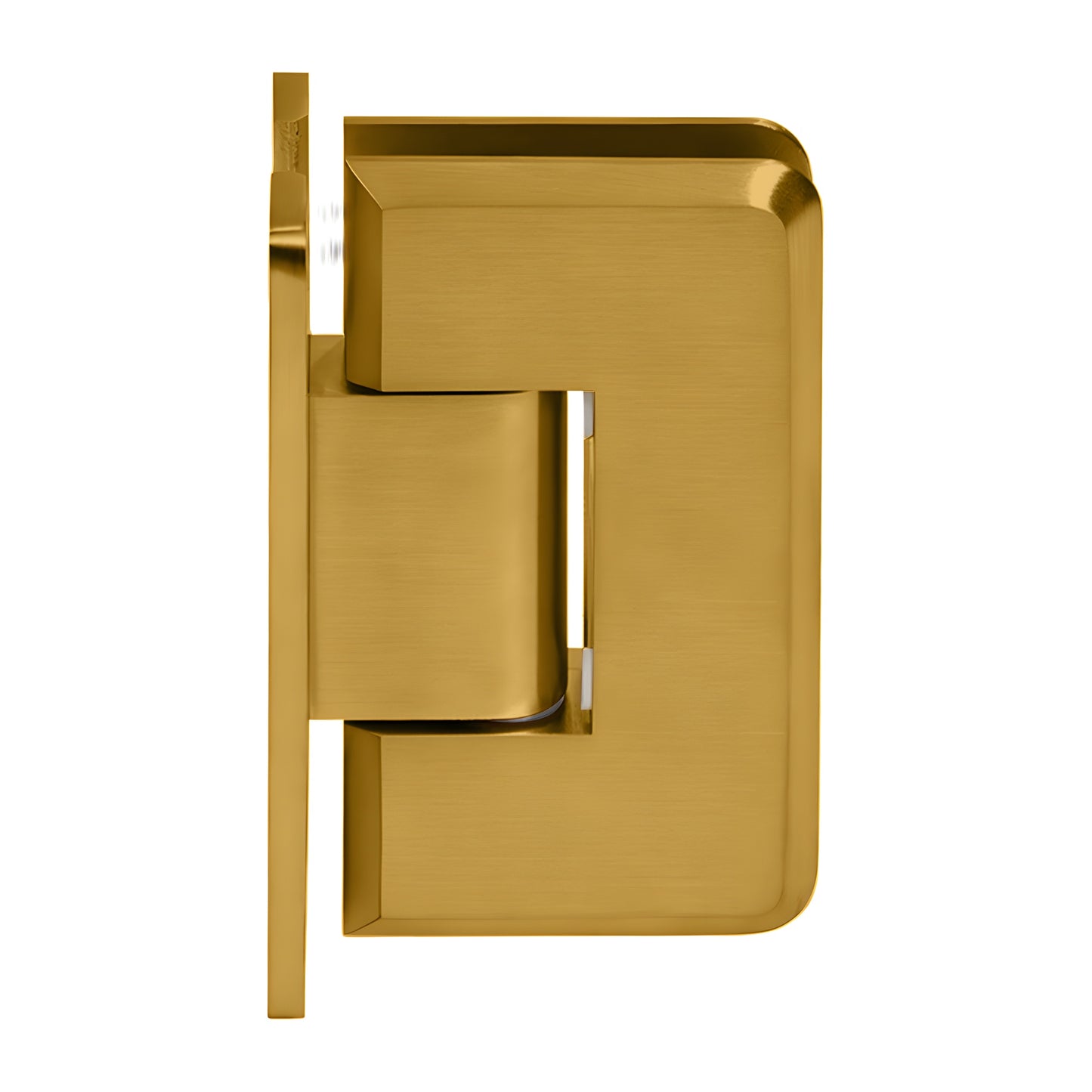

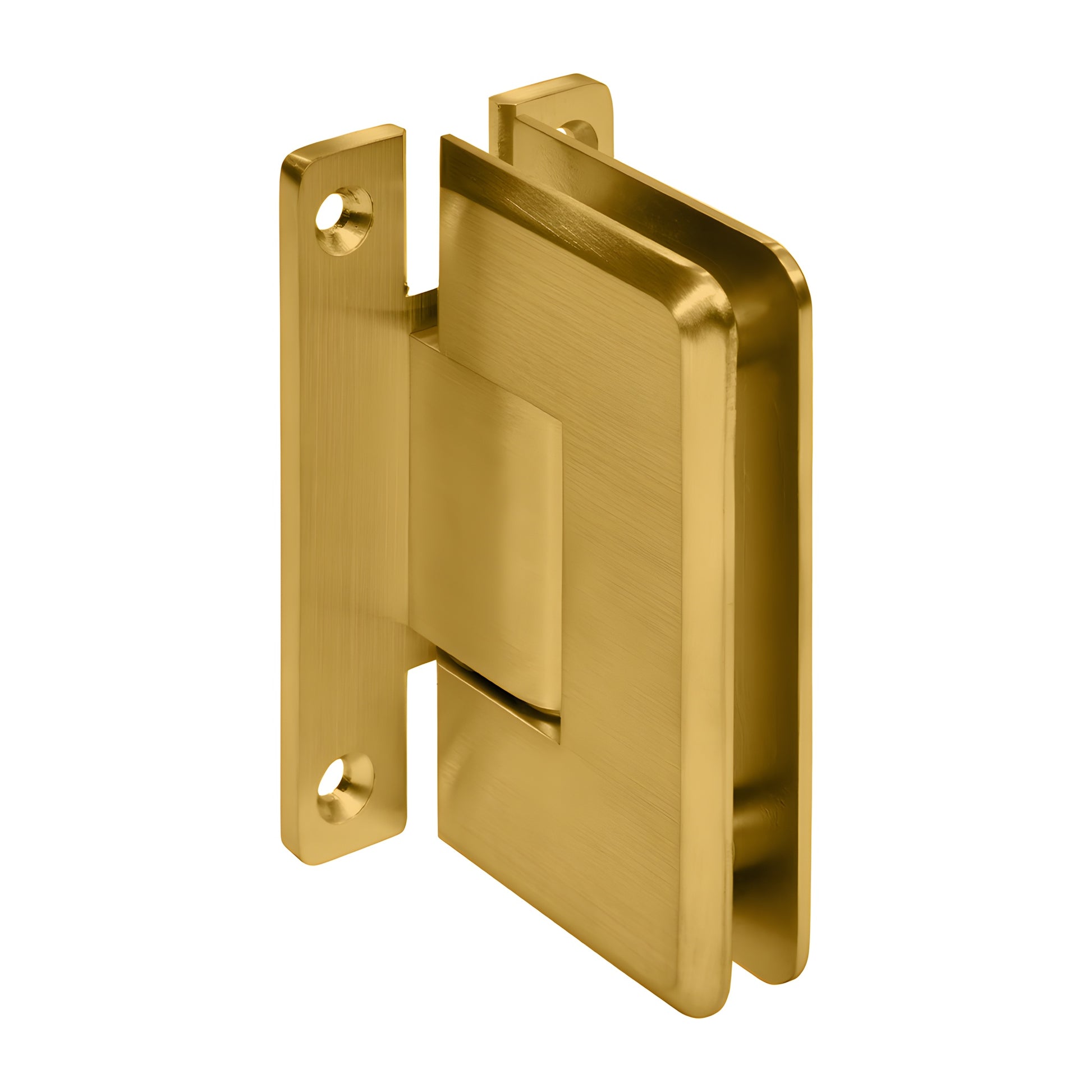

CRL Cologne 037 Modern Gold Wall-Mount Glass Hinge H Back Plate

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Self-centering hinge with reversible 5° pivot pin
• Available in several durable decorative finishes

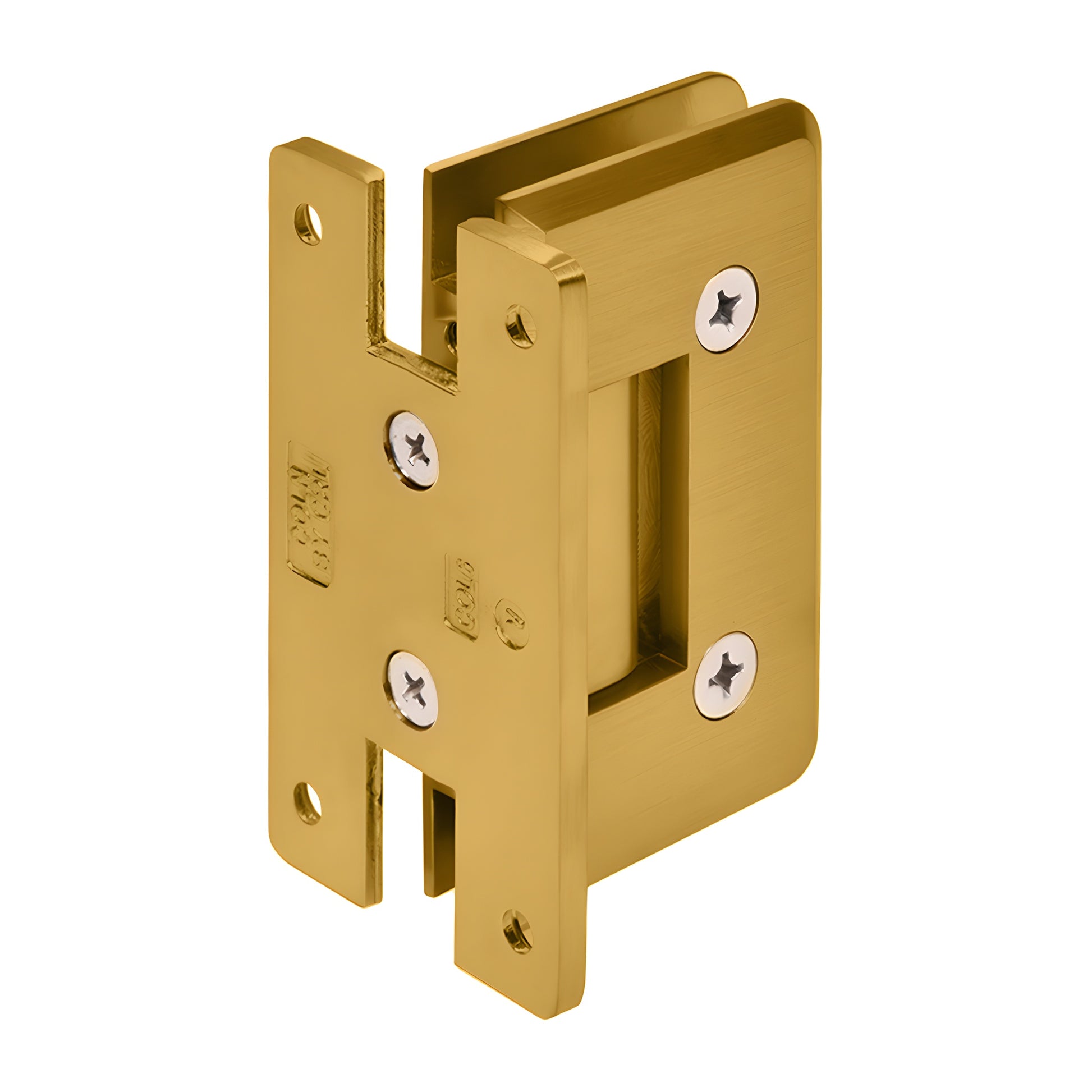

• Wall-mount "H" back plate on standard model
• Designed for use with monolithic tempered glass

CRL Cologne Hinges (SKU: C0L037MG) combine the strength required for wider, heavier shower doors with a refined appearance—radius corners and beveled edges create a sleek look compared to standard Vienna-style hinges. Two internal steel pins offer installation flexibility: leave both pins in place to use with CRL "mouse-ears" cut-outs for enhanced safety, or remove them for greater adjustability and compatibility with CRL rectangular (square-corner) cut-outs and some competitive cut-outs.

STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active; Pre-Set models ship pre-set to 85° for a 5° tighter closure into the shower interior. Rotate (do not flip) the pin to change settings.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (specify required angle up to 45°) when the standard 5° adjustment is insufficient.

LOAD CAPACITY:
Using two hinges with 3/8"–1/2" (10–12 mm) glass: holds up to 110 lbs (50 kg) with maximum door width 36" (914 mm).
Using three hinges with 3/8"–1/2" (10–12 mm) glass: holds up to 140 lbs (63 kg) with maximum door width 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Cut-out required except for C0L092 (which requires cut-out for door and two holes for fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes available—contact CRL Technical Sales Department for lead times and options.

Product Warning:
CRL shower door hinges are designed for residential and hotel shower use only. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge—CRL cut-out dimensions may not match other brands.
