CRL Cologne 037 Satin Nickel Glass Shower Door Wall-Mount Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) glass
• Self-centering with reversible 5° pivot pin
• Available in several beautiful finishes
• Wall-mount "H" back plate standard model
• Use monolithic tempered safety glass

CRL Cologne Hinges — premium shower door hinges designed for wider, heavier glass doors. Cologne Hinges share the reliable function of Vienna Hinges but add radius corners and beveled edges for a sleek, modern look. Ideal long-tail keywords: Cologne shower door hinge, glass shower door hinge for 3/8 to 1/2 inch tempered glass, solid brass shower hinge for heavy doors.

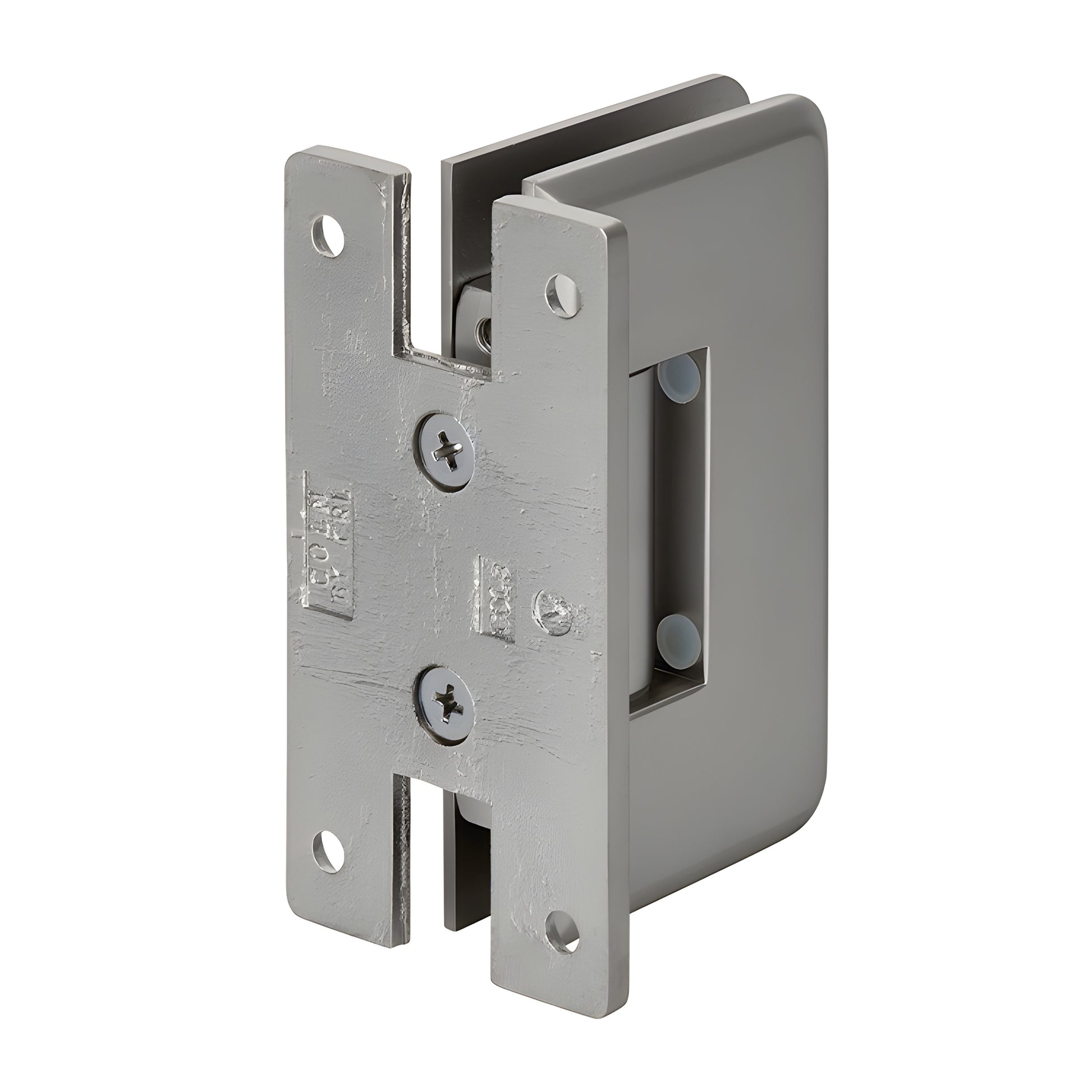

Cologne Hinges include two internal steel pins that offer mounting flexibility:

• Leave both pins in for compatibility with CRL "mouse-ears" radius cut-outs (enhanced safety).
• Remove pins for increased adjustability and fit with CRL rectangular or some competitive square-cornered cut-outs.

STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin with one side marked 90° (standard) and the other 85° (pre-set models). Rotate the pin to switch between a standard swing and a 5° tighter closure into the shower interior.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (specify the required angle up to 45°) when the standard 5° adjustment does not achieve the desired door position.

Load Capacity:

• Using two hinges with 3/8"–1/2" (10–12 mm) glass: holds up to 110 lb (50 kg); maximum door width 36" (914 mm).
• Using three hinges with 3/8"–1/2" (10–12 mm) glass: holds up to 140 lb (63 kg); maximum door width 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Except C0L092 (requires cut-out for door plus two holes for fixed panel)
Includes:
