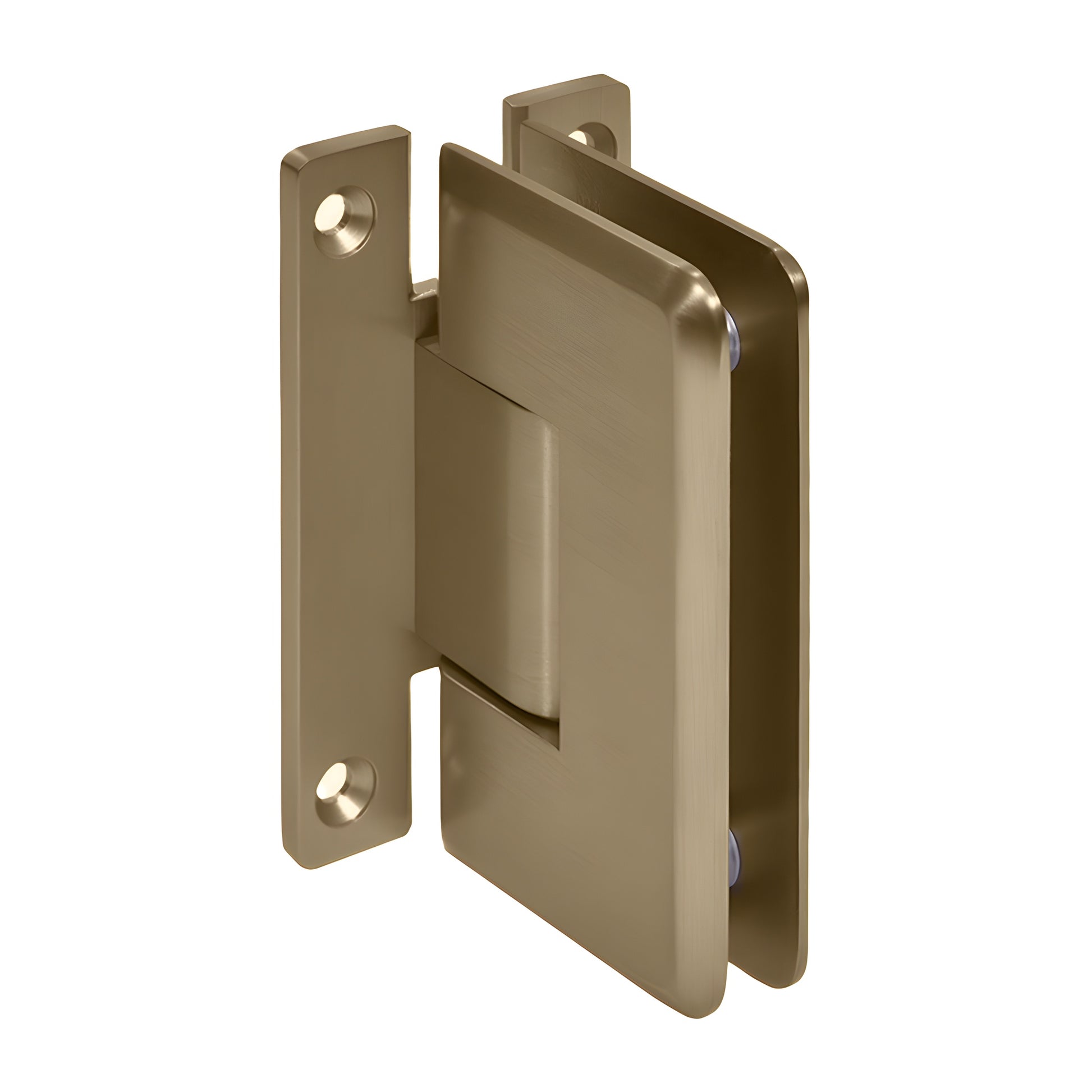

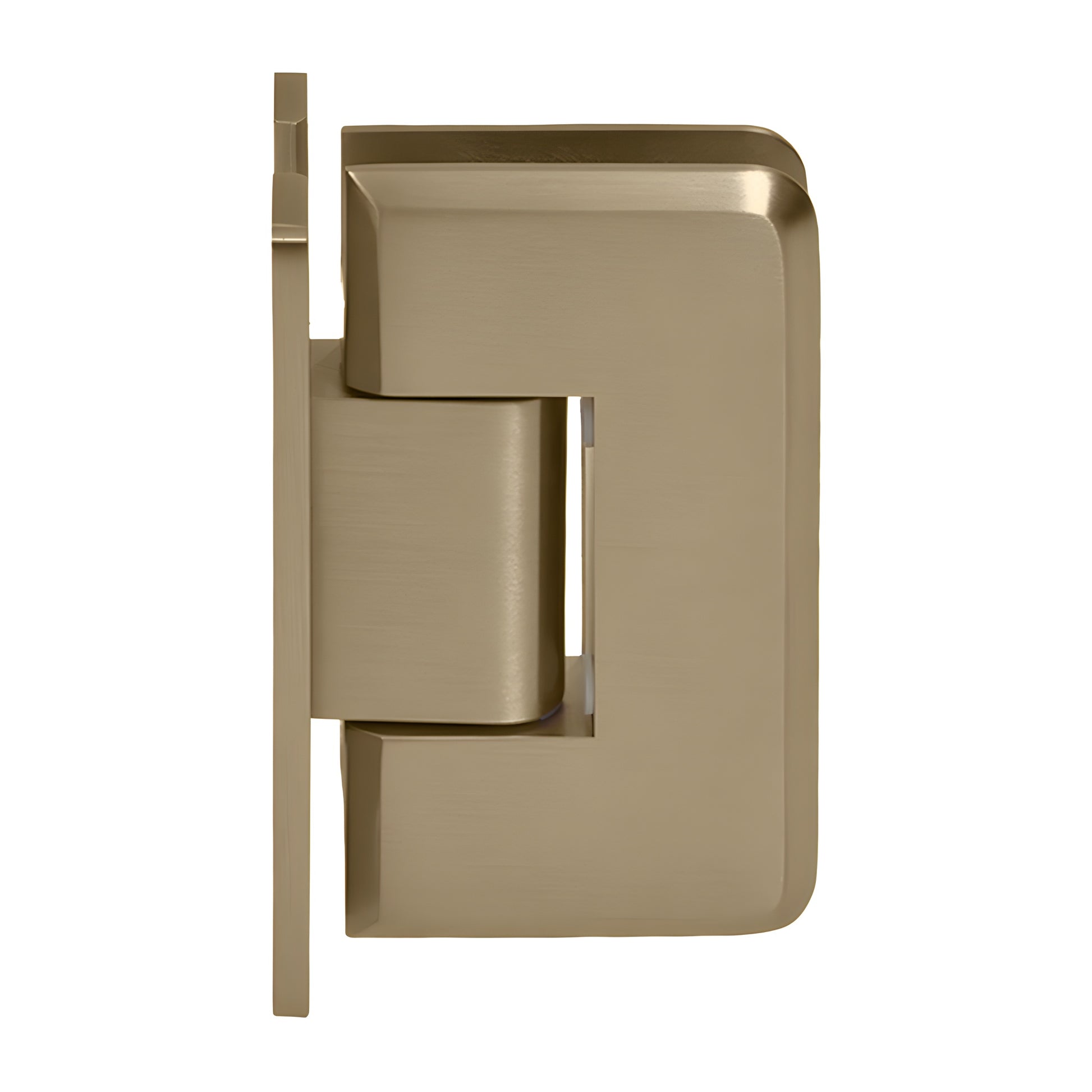

CRL Cologne 037 Dark Brushed Bronze Wall-Mount H-Back Plate Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) glass
• Self-centering with reversible 5° pivot pin
• Available in several beautiful finishes

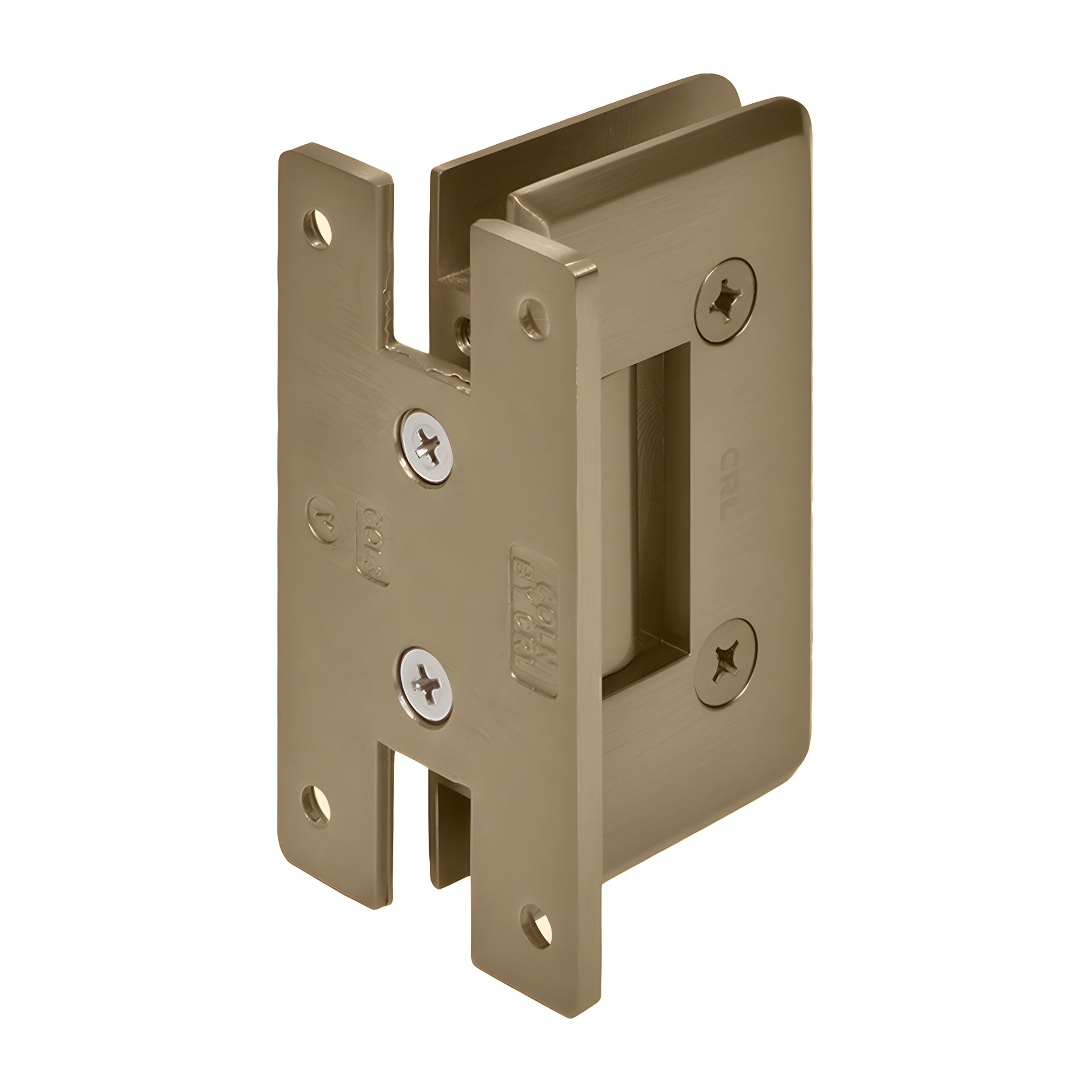

• Wall-mount "H" back plate standard model
• Use monolithic tempered safety glass

CRL Cologne Hinges are a solid-brass shower door hinge designed for wider, heavier tempered glass doors when traditional hinges fall short. Similar to Vienna hinges but with radius corners and beveled edges, Cologne Hinges deliver a sleek, premium appearance. Two internal steel pins provide mounting flexibility: leave both pins in place for CRL "mouse-ears" cut-outs, or remove them to increase adjustability for CRL rectangular or some competitive square-corner cut-outs.

STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin with 90° on one side and 85° on the other (5° tighter closure into the shower interior). Standard models ship set to 90°. Rotate the pin (do not flip) to activate the alternate setting.

CUSTOM PIVOT PIN: Custom pivot pins are available up to 45° for off-angle wall installations when the standard 5° offset is insufficient.

LOAD CAPACITY:
Using two hinges with 3/8"–1/2" (10–12 mm) glass: supports up to 110 lbs (50 kg), maximum door width 36" (914 mm).
Using three hinges with 3/8"–1/2" (10–12 mm) glass: supports up to 140 lbs (63 kg), maximum door width 36" (914 mm).

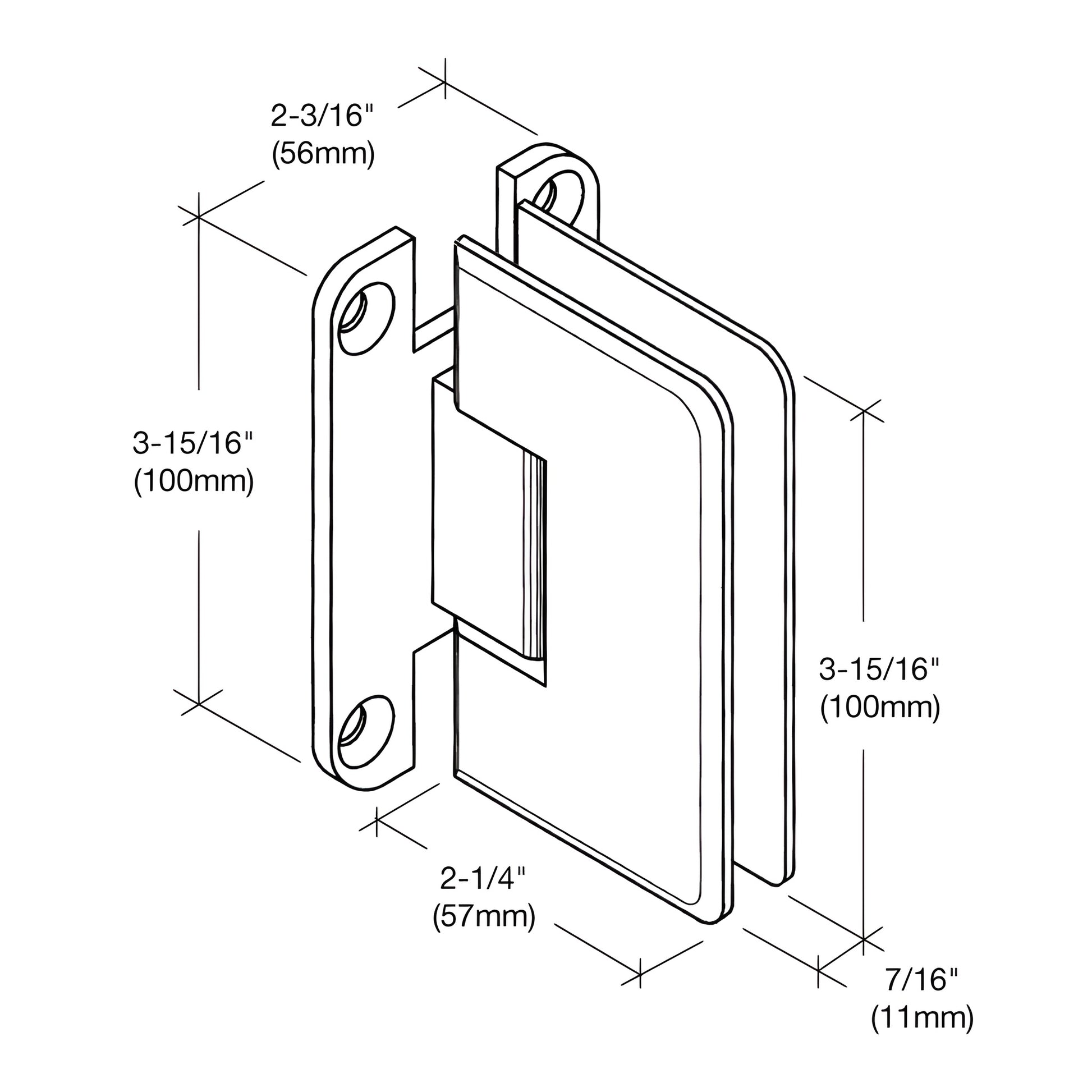

SPECIFICATIONS:
SKU: C0L037DBBZ
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering within 15° of closed position
Cut-Out Required: Standard—except C0L092 (requires cut-out for door plus two holes for fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes available on request—contact CRL Technical Sales for specialty solid-brass finishes.

Product Warning:
CRL shower door hinges are intended for residential and hotel shower use. For other
