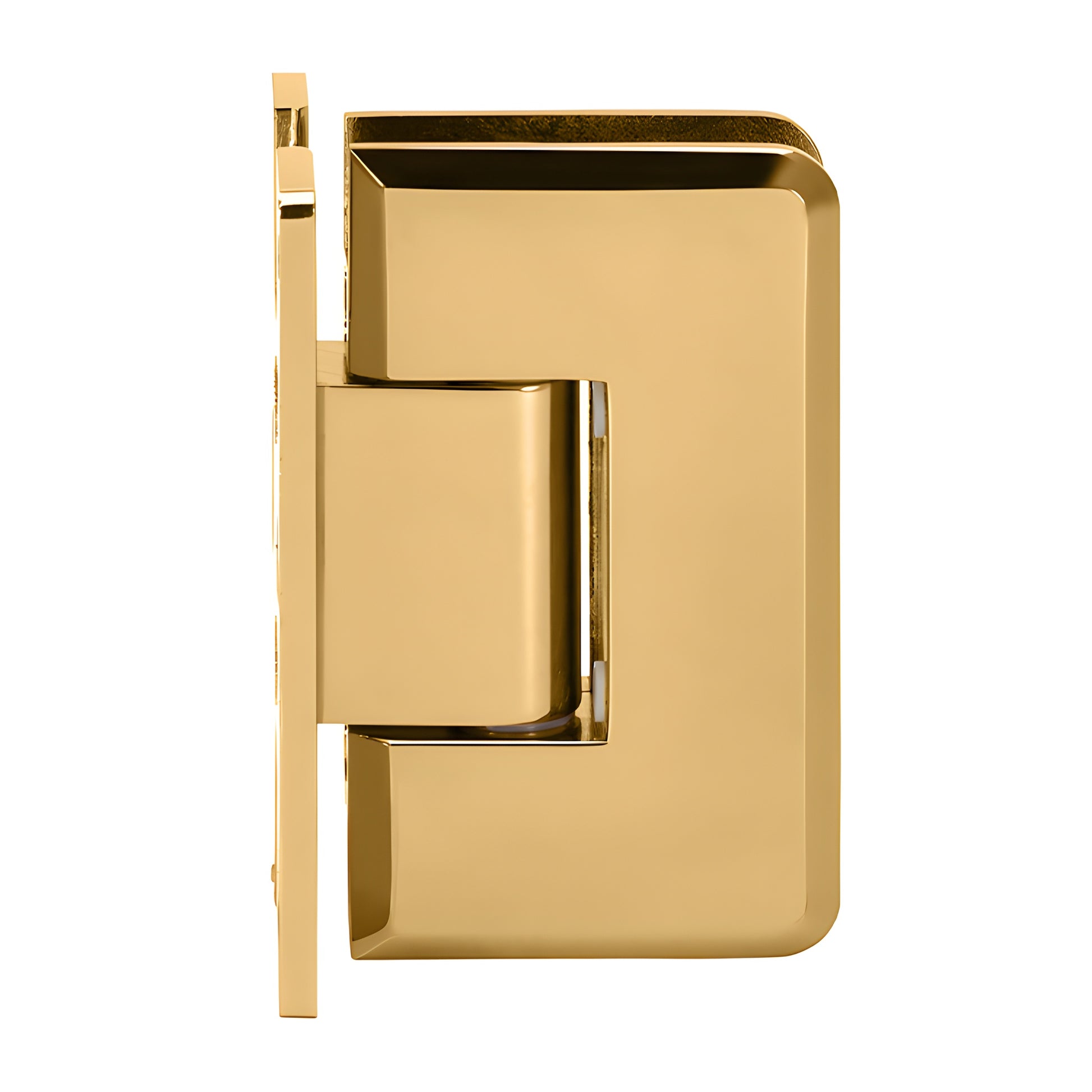

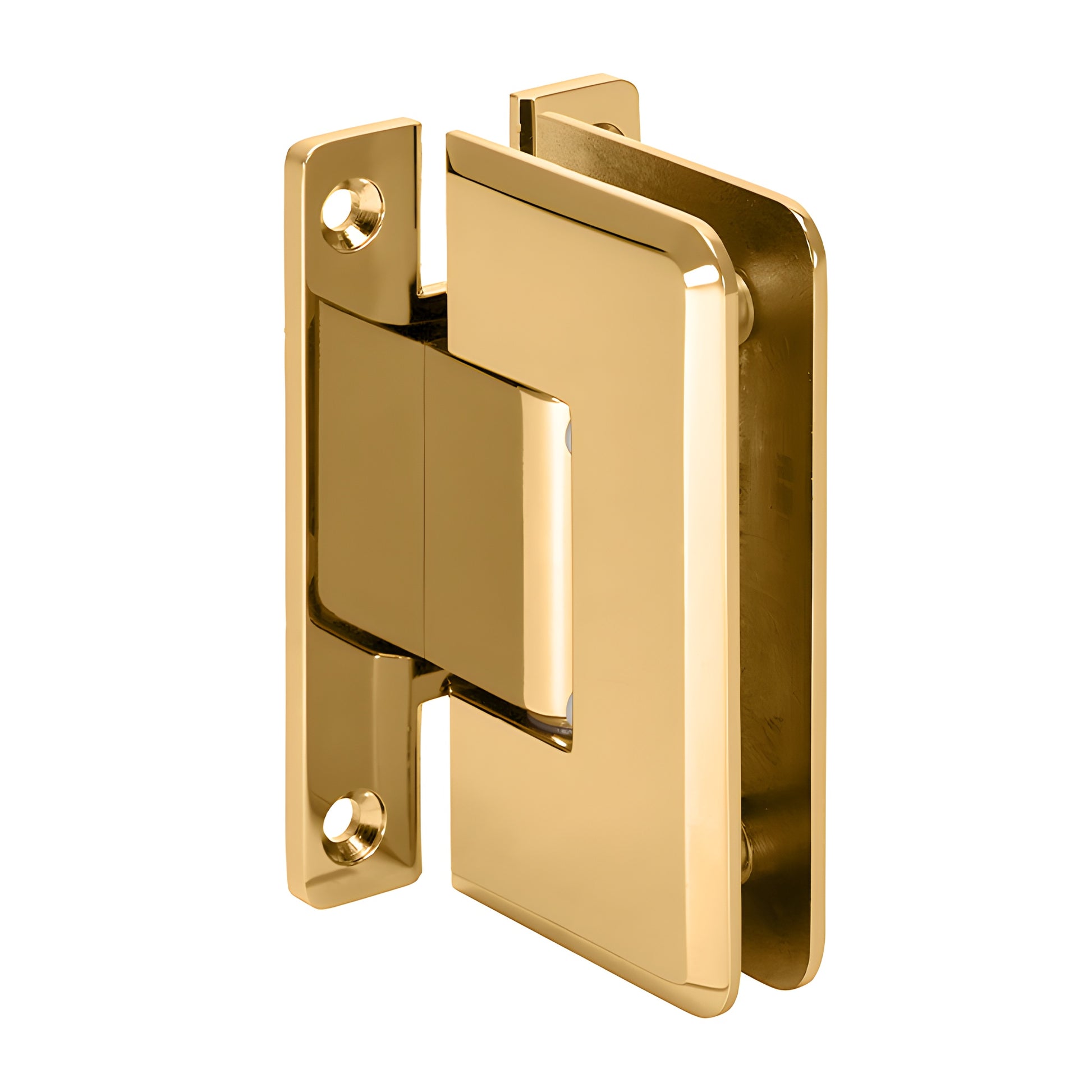

CRL 037 Series French Gold Cologne Wall-Mount H Back Plate Door Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) glass
• Self-centering with reversible 5° pivot pin
• Available in several durable finishes

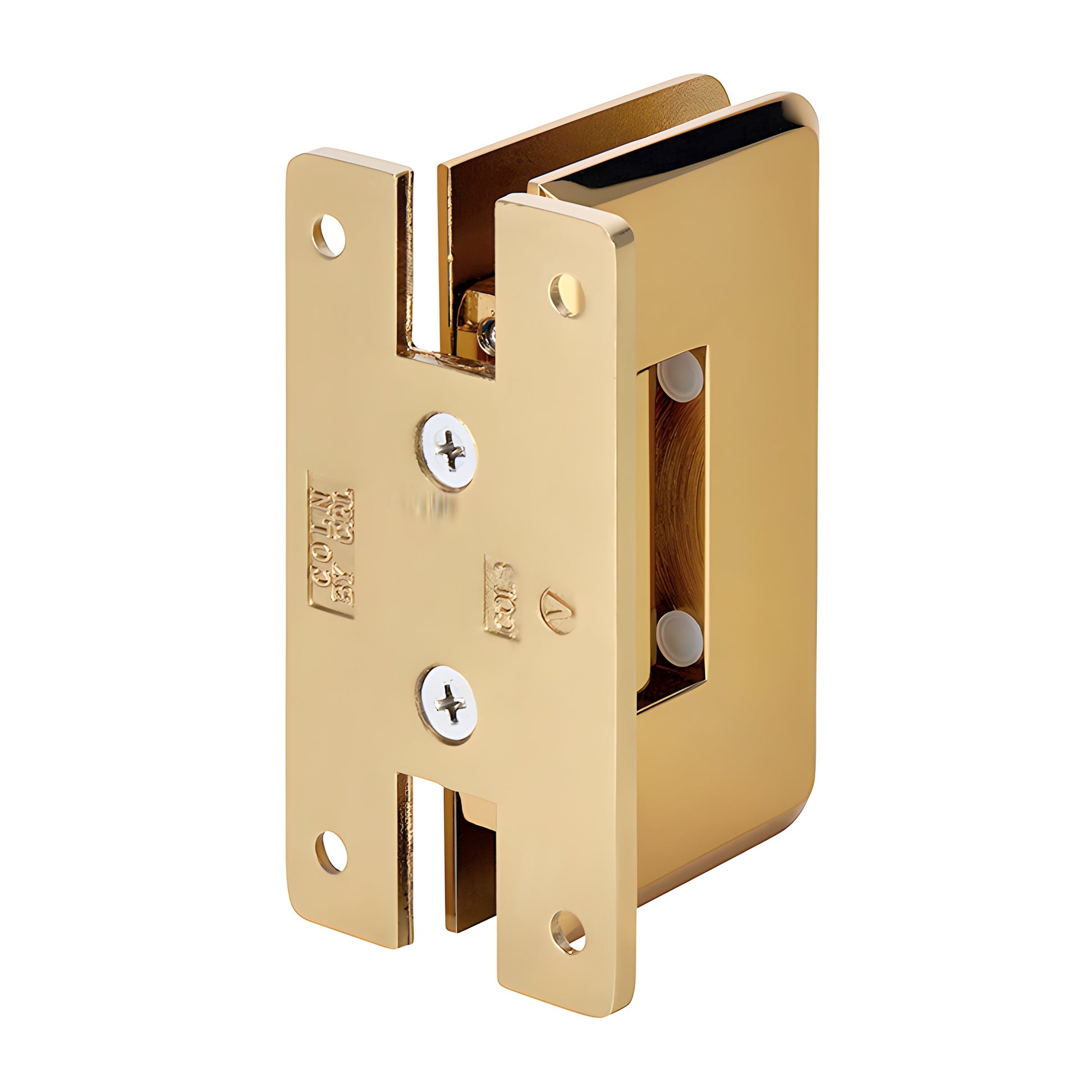

• Wall-mount "H" back plate standard model
• Use with monolithic tempered safety glass

CRL Cologne Hinges (SKU C0L037FG) — a heavy-duty shower door hinge designed for wider, heavier frameless glass doors. Similar to Vienna hinges but with radius corners and beveled edges, Cologne Hinges deliver a sleek, low-profile look while offering greater strength than standard hinges. Two internal steel pins provide mounting flexibility: leave pins installed for compatibility with CRL "mouse‑ears" cut-outs, or remove them for rectangular/square cut-out templates (may fit some competitive cut-outs).

Standard reversible pivot pin: Each hinge includes a pivot pin with 90° on one side and 85° on the other. Standard models ship with the 90° side active; pre-set models ship at 85° for a 5° tighter closure into the shower interior. Rotate (do not flip) the pin to change the active angle.

Custom pivot pins: Available up to 45° for off-angle installations where wall and door do not meet at 90°.

Load capacity: Using two hinges with 3/8"–1/2" glass (10–12 mm) supports up to 110 lb (50 kg) with a maximum door width of 36" (914 mm). Using three hinges supports up to 140 lb (63 kg) for the same maximum width.

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass for corrosion resistance and long life
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering within 15° of closed position
Cut-Out Required: Cut-out required except for C0L092 (which requires door cut-out plus two holes for fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes are available—contact CRL Technical Sales for specialty finish requests.

Product warning:
CRL shower door hinges are designed for residential and hotel shower doors. For other uses, obtain approval from CRL Shower Door Technical Sales. Use only the template provided with this hinge—CRL cut-out dimensions may not match other brands.
