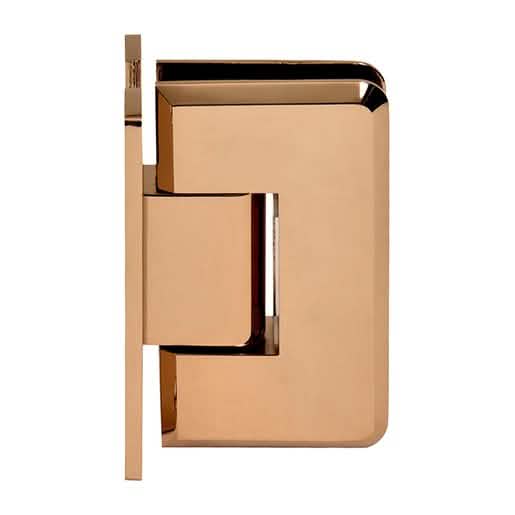

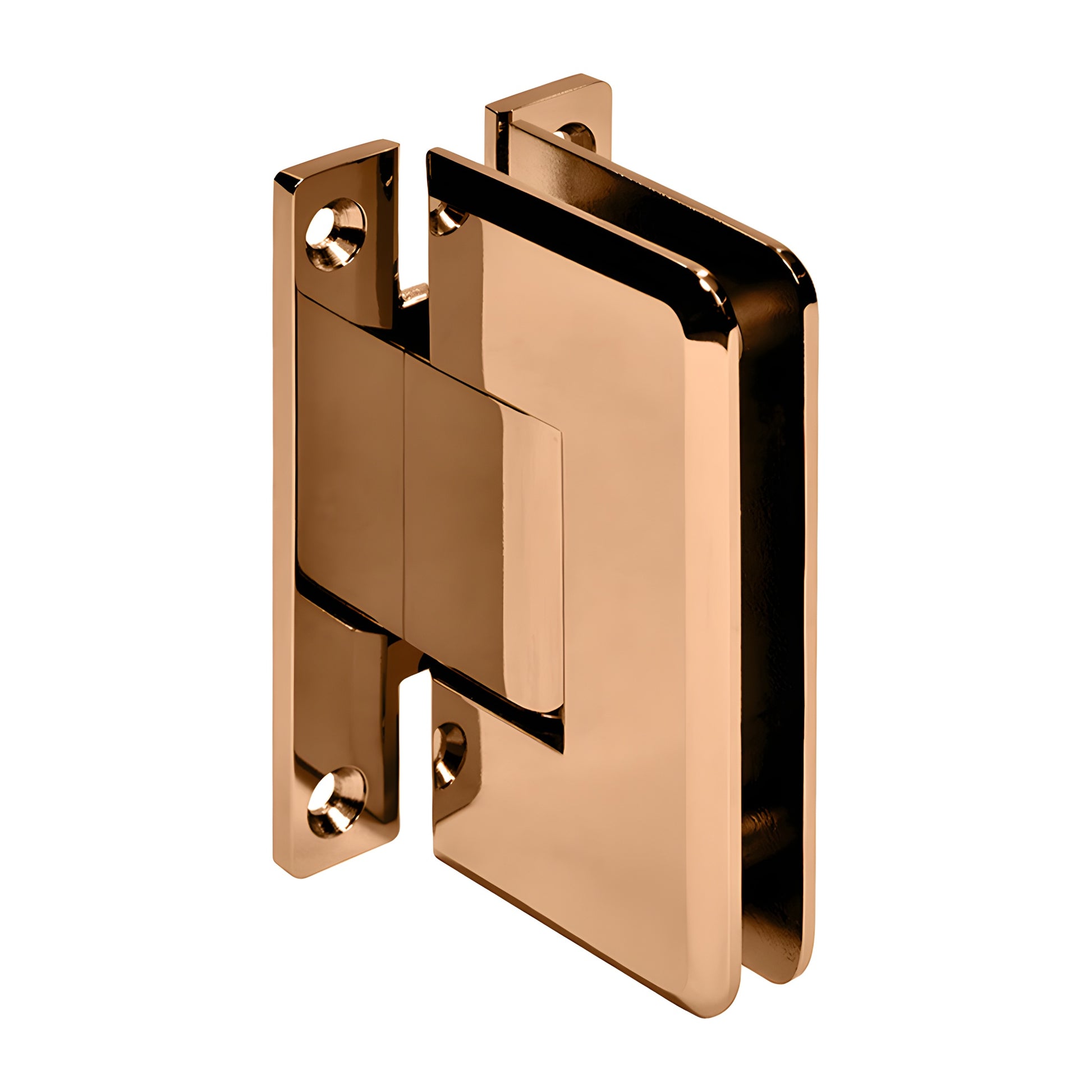

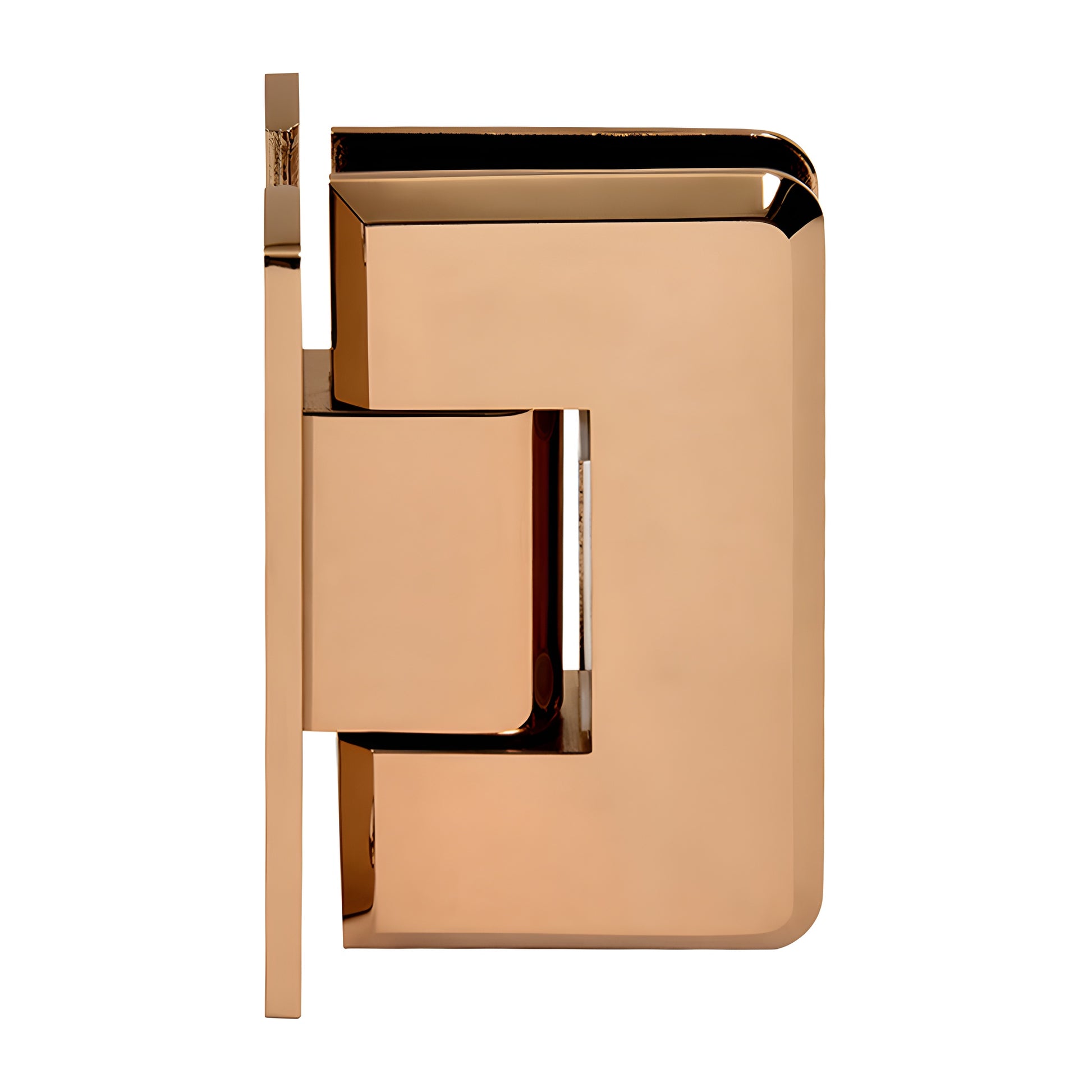

CRL 037 Rose Gold Cologne Wall-Mount H Back-Plate Hinge - Shower Door

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Self-centering with reversible 5° pivot pin (90° or 85°)
• Available in several durable decorative finishes; custom finishes on request

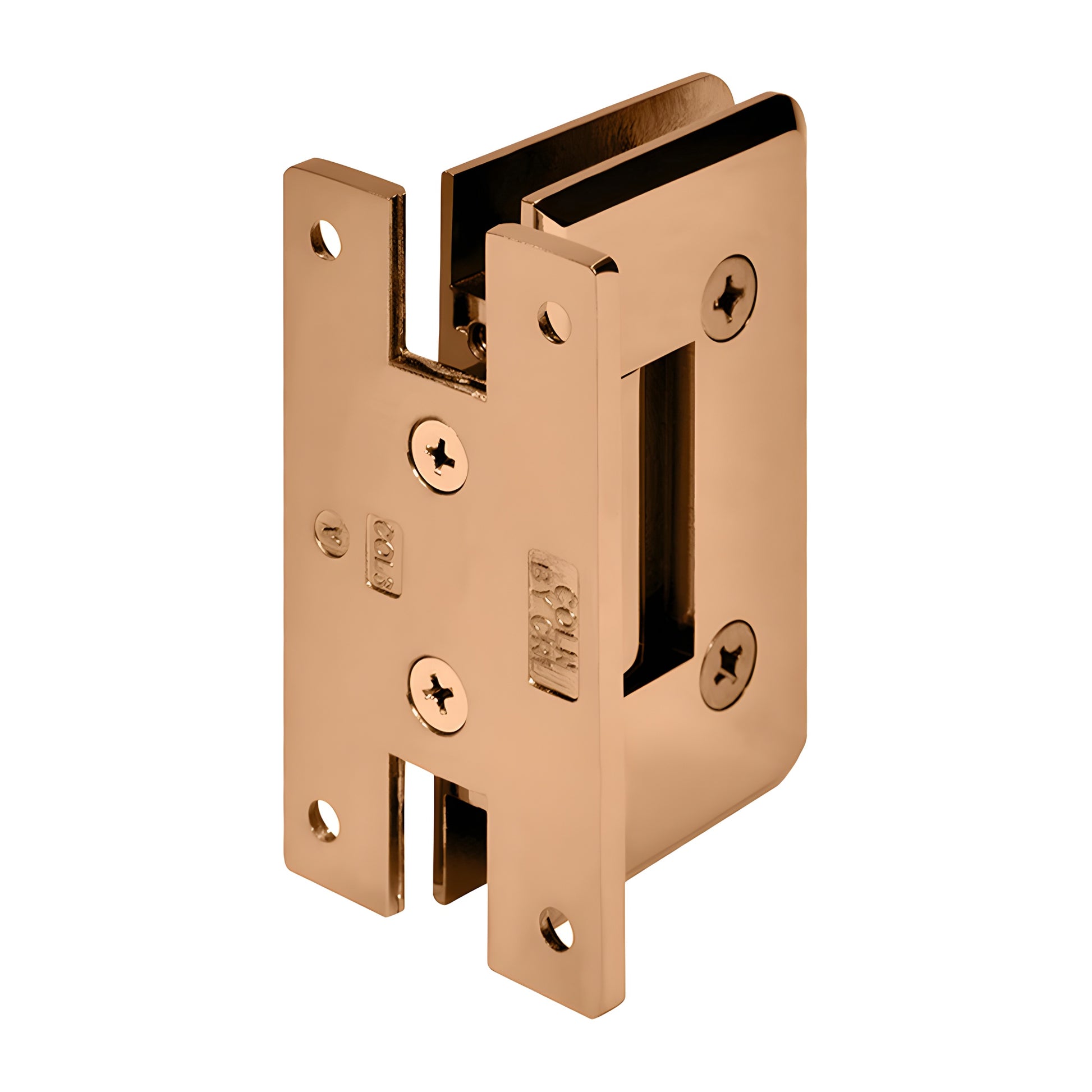

• Standard wall mount "H" back plate
• Use with monolithic tempered glass

CRL Cologne Hinges (SKU: C0L037RG) — heavy-duty brass shower door hinges designed for wider, heavier doors that standard hinges can’t support. Cologne Hinges offer radius corners and beveled edges for a sleek, finished look. Two internal steel pins provide mounting flexibility: leave both pins in place for CRL "mouse-ears" cut-outs, or remove them for increased adjustability and compatibility with CRL rectangular or some competitive square-corner cut-outs.

STANDARD REVERSIBLE PIVOT PIN: Each hinge contains a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship set to 90°; Pre-Set models ship at 85° for a 5° tighter closure into the shower interior. Rotate the pin (do not flip) to switch sides.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (specify up to 45°) when the standard 5° offset does not achieve the desired door position.

LOAD CAPACITY:
Using two hinges: Supports up to 110 lbs (50 kg) with 3/8"–1/2" (10–12 mm) glass; maximum door width 36" (914 mm).

Using three hinges: Supports up to 140 lbs (63 kg) with 3/8"–1/2" (10–12 mm) glass; maximum door width 36" (914 mm).

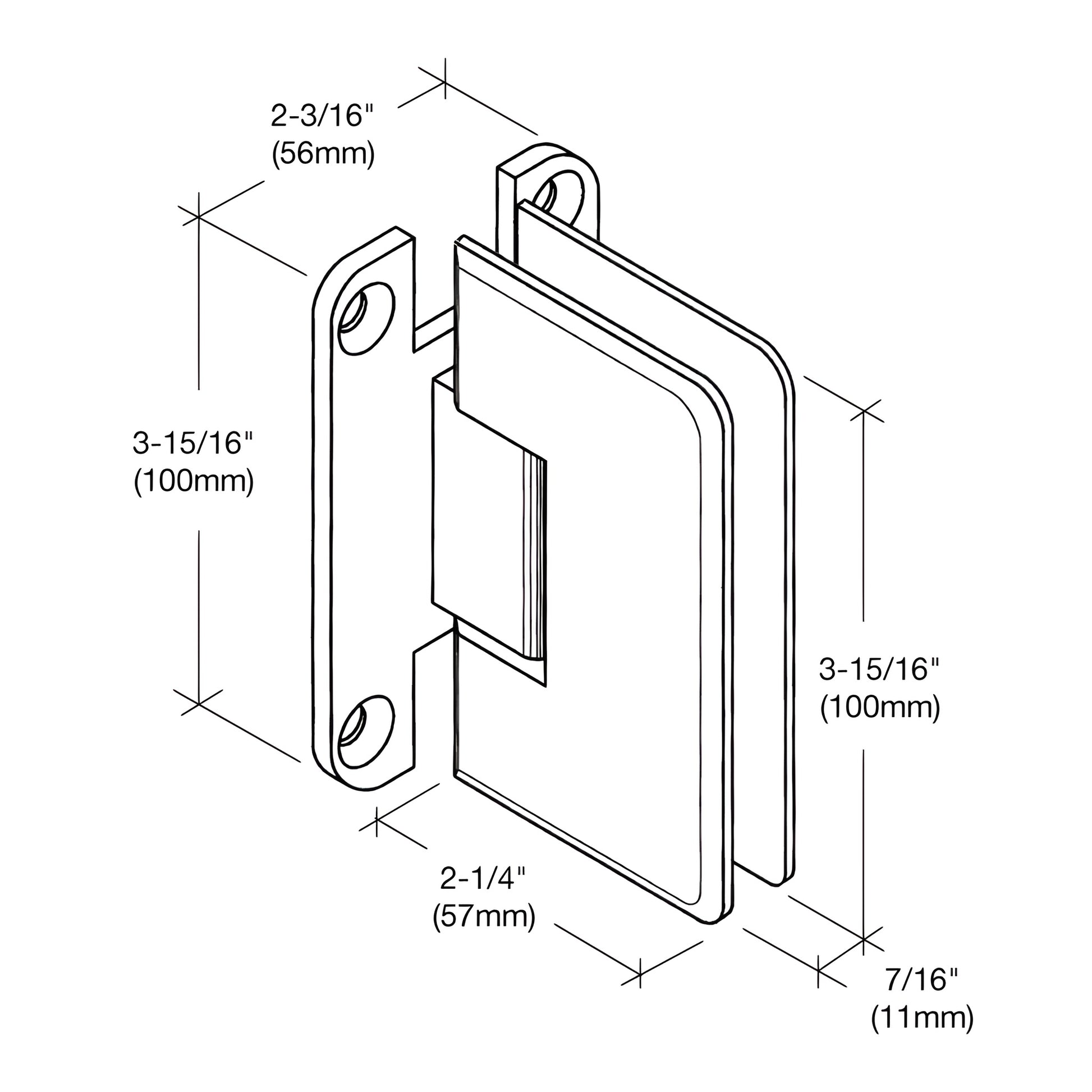

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Cut-out required except C0L092 (which requires door cut-out plus two holes for fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes are available — contact CRL Technical Sales Department for options.

Product Warning:

CRL shower door hinges are designed for residential and hotel shower use only. For other applications, obtain approval from the CRL Shower Door Technical Sales
