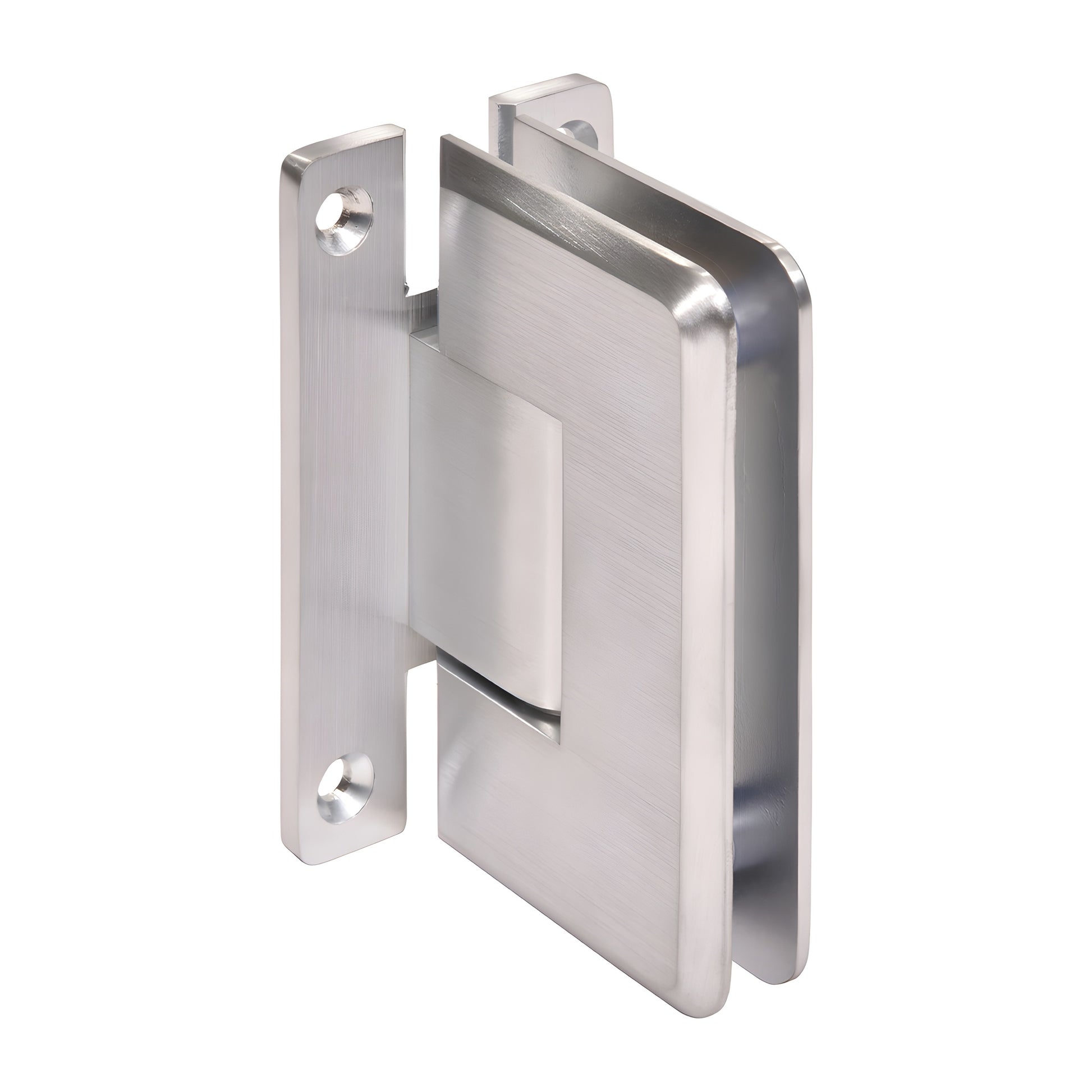

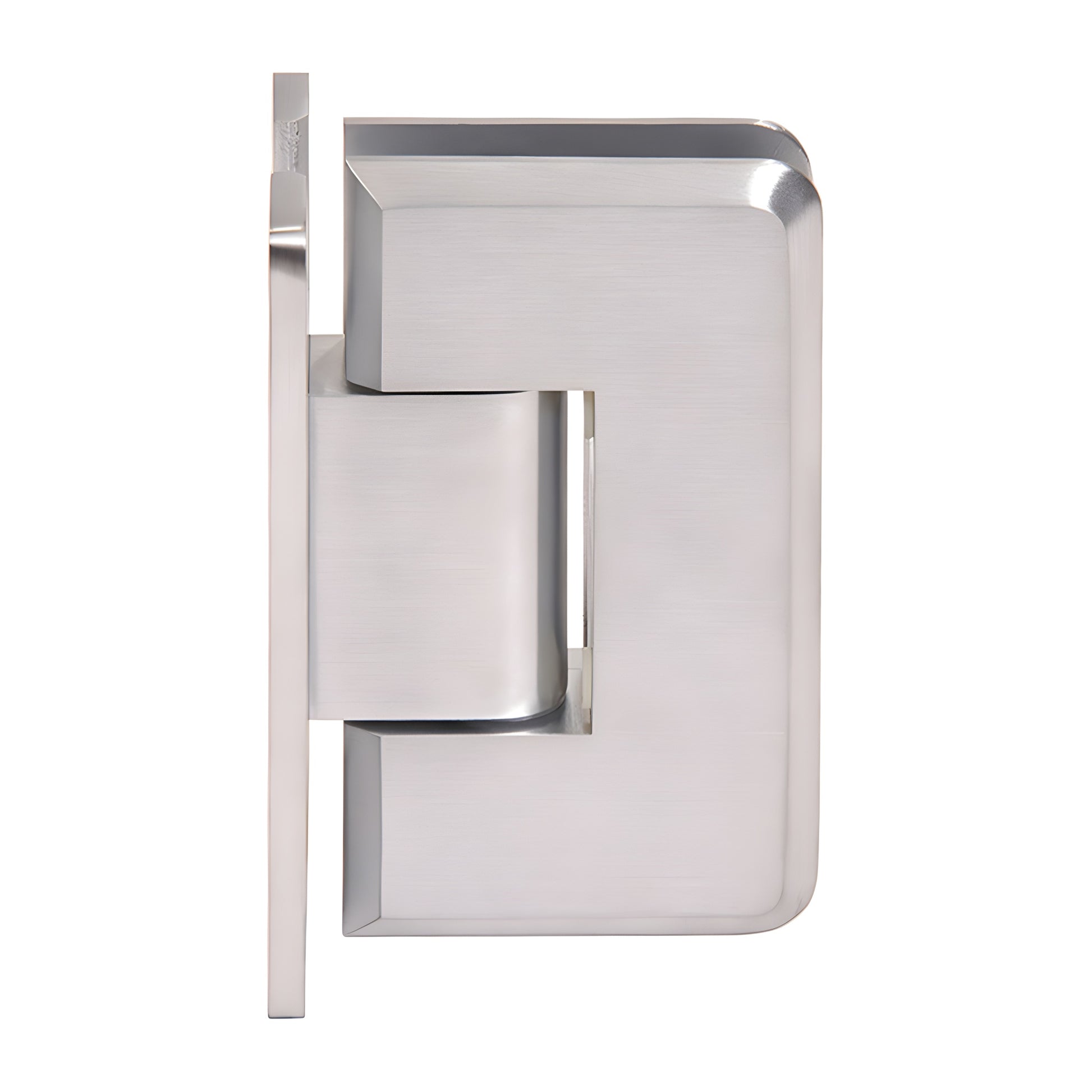

CRL Brushed Chrome 037 H-Back Wall Hinge for Shower Door

• Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
• Self-Centering with Reversible 5° Pivot Pin
• Available in Several Beautiful Finishes

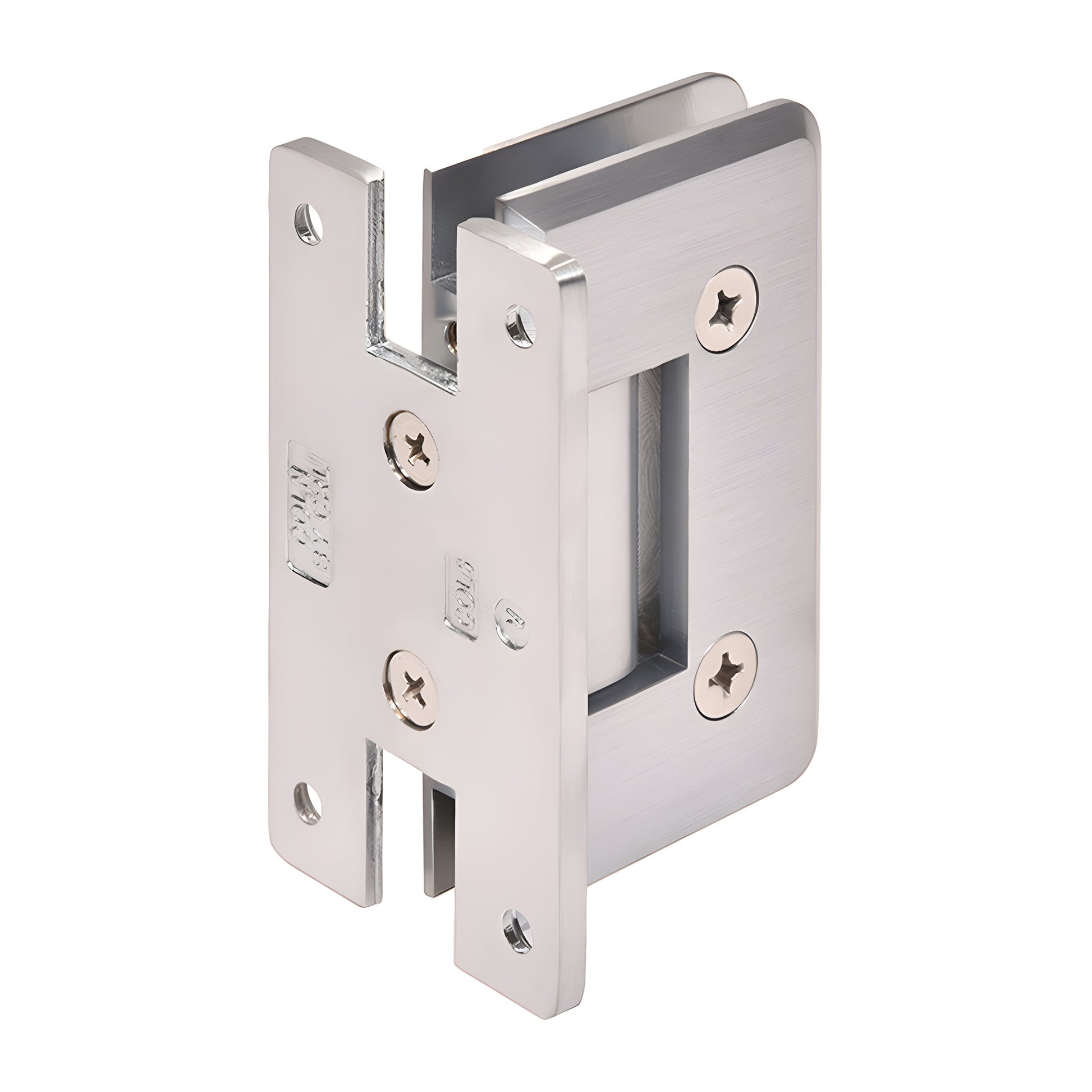

• Wall Mount "H" Back Plate Standard Model
• Use Monolithic Tempered Glass

CRL Cologne Hinges (SKU C0L037BCH) are heavy-duty brass shower door hinges designed for wider, heavier frameless shower doors where traditional hinges struggle. Similar to Vienna Hinges but with radius corners and beveled edges, Cologne Hinges deliver a sleek aesthetic for modern glass showers. Two internal steel pins provide flexible template options: leave both pins in place to use CRL "mouse-ears" cut-outs, or remove the pins for greater adjustability and compatibility with rectangular, square-corner cut-outs (including some competitive templates).

STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin with a 90° side and an 85° side (5° tighter closure into the shower interior). Standard models ship set to 90°. Rotate the pin (do not flip) to switch to 85°.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle walls—specify an angle up to 45° when standard adjustment does not achieve the desired closing position.

CAPACITY: Using two hinges with 3/8"–1/2" glass (10–12 mm) supports up to 110 lbs (50 kg) per door, max width 36" (914 mm). Using three hinges supports up to 140 lbs (63 kg), max width 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass (durable brass shower hinge for corrosion resistance)
Hinge Swings: 90° In and 90° Out
Closing Type: Self-Centering when within 15° of closed position
Cut-Out Required: Except C0L092 which requires cut-out for door and two holes for fixed panel
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes are available on request—contact the CRL Technical Sales Department for specialty finishes.

Product Warning:

CRL shower door hinges are intended for residential or hotel shower use. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—CRL cut-out dimensions may not match other brands.
