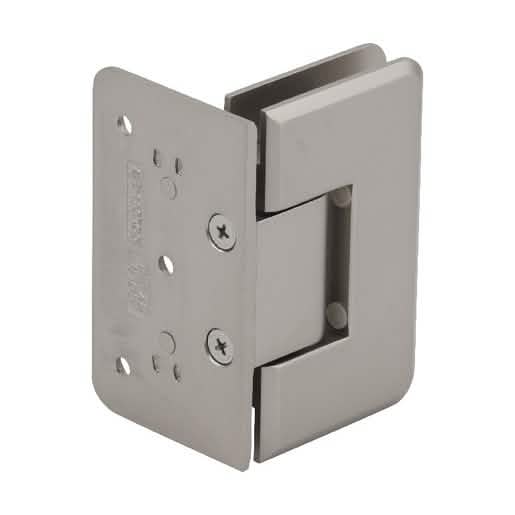

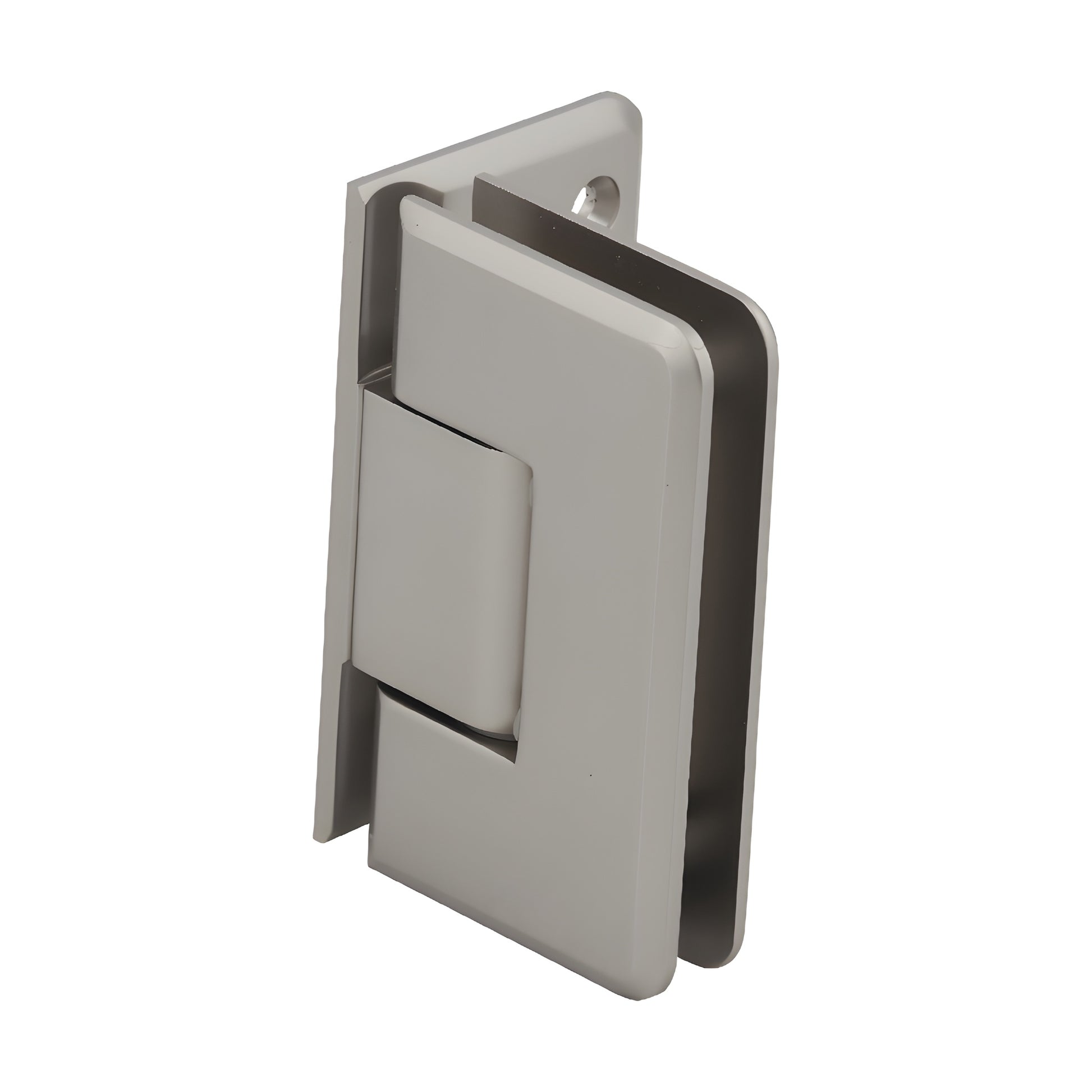

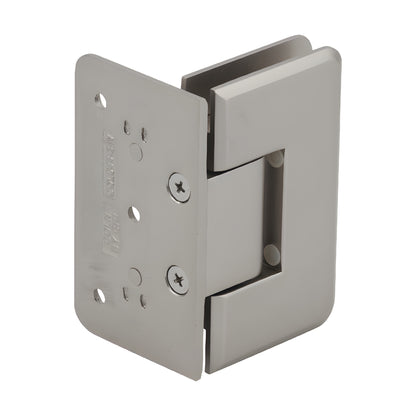

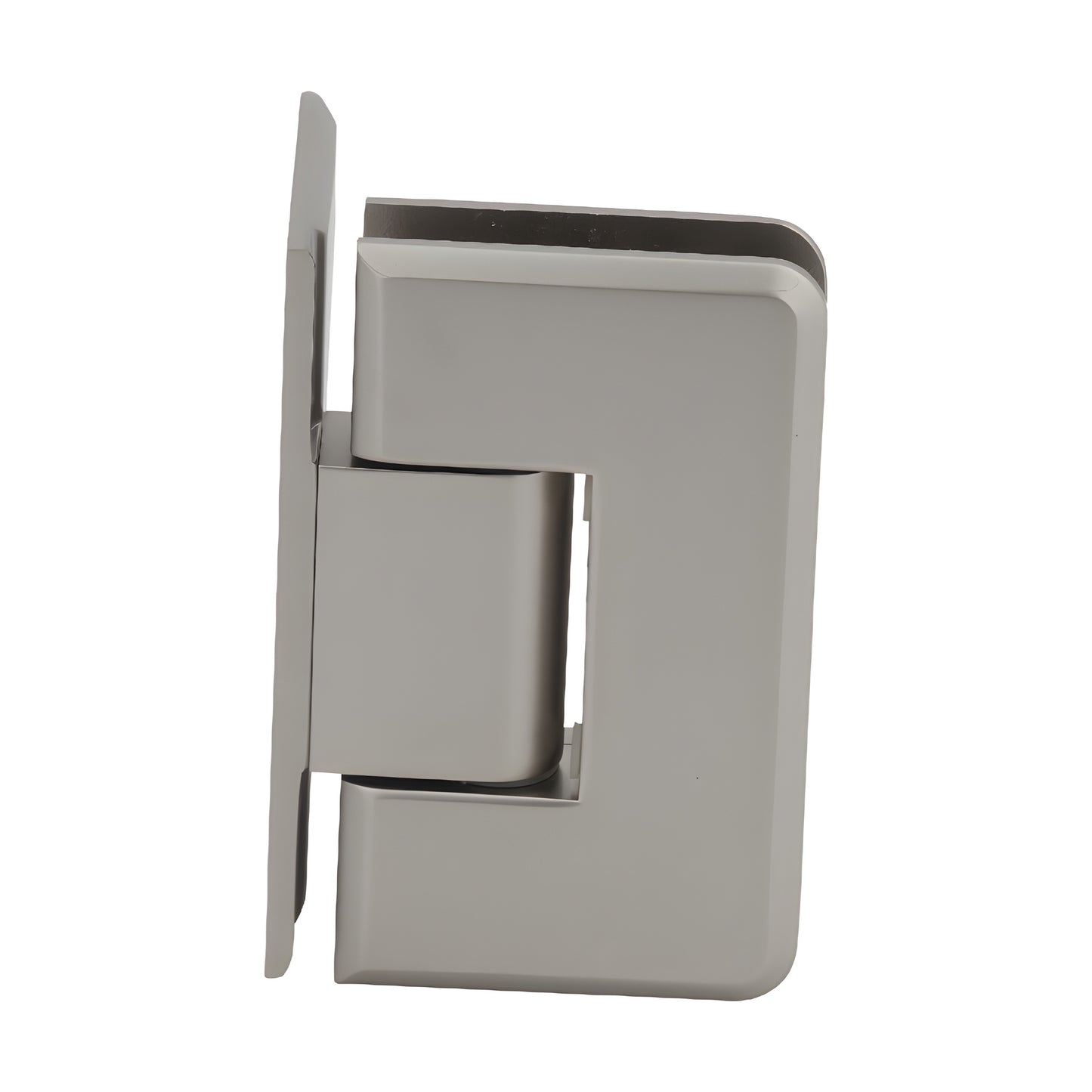

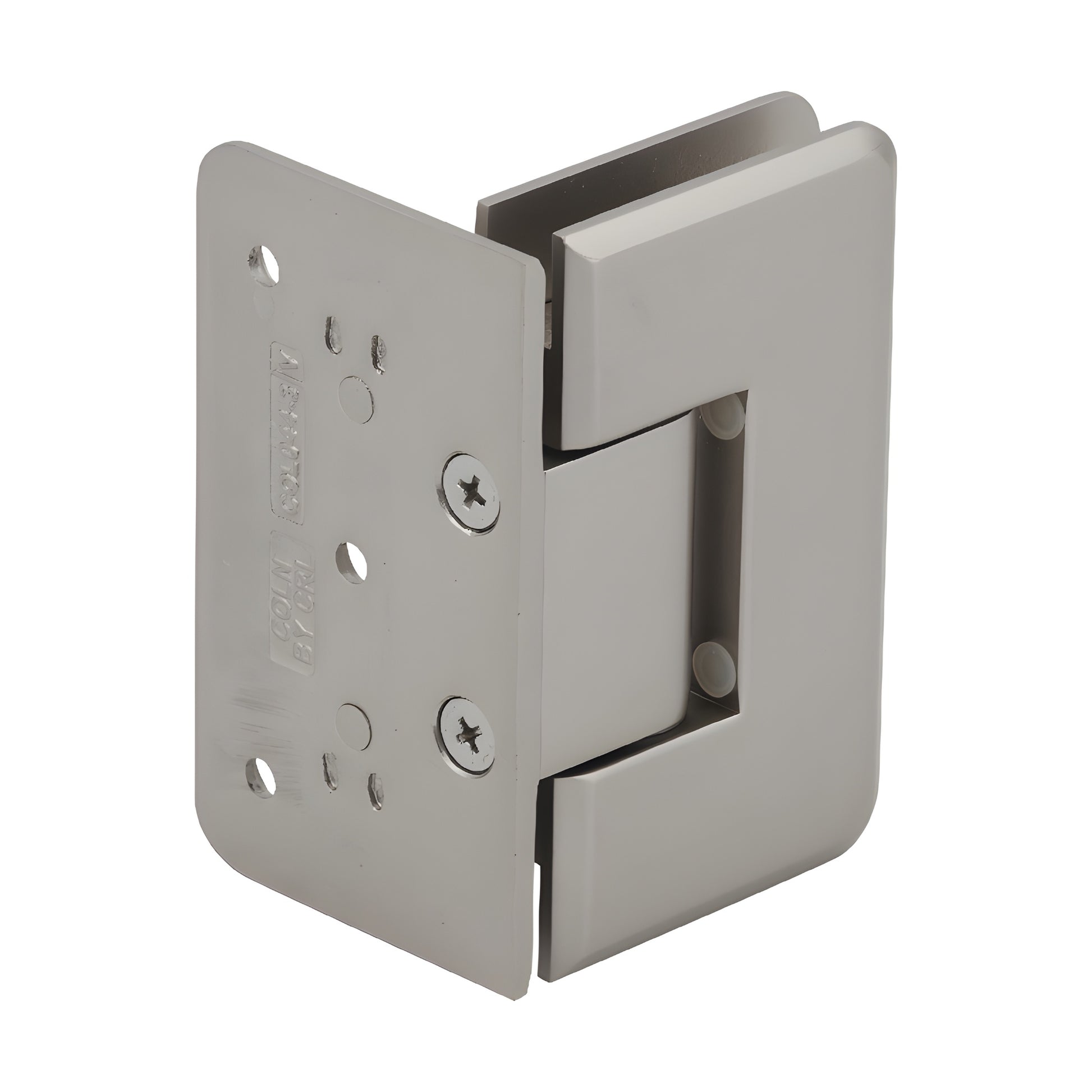

CRL 044 Series Satin Nickel Wall-Mount Offset Backplate Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered glass
• Available in several beautiful finishes; custom finishes available on request
• Wall mount offset back plate — standard model
• Use with monolithic tempered glass shower doors

CRL Cologne Hinges combine the look of Vienna Hinges with radius corners and beveled edges for a sleek, modern appearance. Engineered as heavy-duty shower door hinges, Cologne Hinges support wider, heavier doors that traditional hinges cannot. Two internal steel pins provide mounting flexibility: leave both pins in place to use CRL "mouse-ears" cut-outs for added safety, or remove the pins for increased adjustability and compatibility with CRL rectangular (square-corner) cut-outs and some competitive cut-outs. SKU: C0L044SN.

STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin with one side marked 90º (standard) and the other 85º (pre-set option). Rotate the pin (do not flip) to change which angle is active. The 85º side provides a 5º tighter closure into the shower interior.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (specify required angle up to 45º) when the standard 5º adjustment does not solve closing alignment issues.

Load Capacity & Door Width:
Using two hinges with 3/8" (10 mm) glass: holds up to 100 lbs. (45 kg), max door width 34" (864 mm).
Using two hinges with 1/2" (12 mm) glass: holds up to 100 lbs. (45 kg), max door width 32" (813 mm).
Using three hinges with 3/8" (10 mm) glass: holds up to 130 lbs. (59 kg), max door width 34" (864 mm).
Using three hinges with 1/2" (12 mm) glass: holds up to 130 lbs. (59 kg), max door width 32" (813 mm).

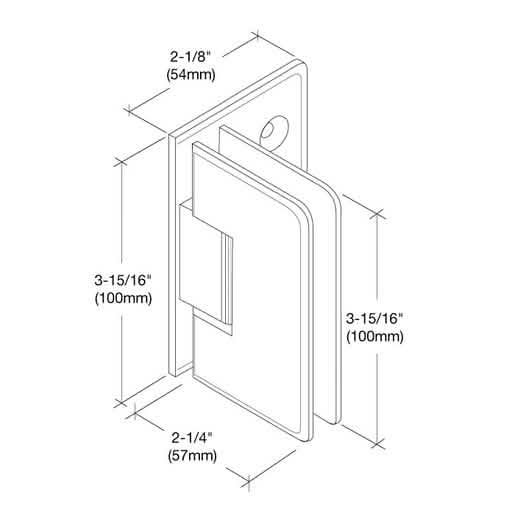

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90º in and 90º out
Closing Type: Self-centering when within 15º of closed position
Cut-Out Required: Cut-out required except C0L092 (which requires cut-out for door and two holes for fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes and technical support are available through the CRL Technical Sales Department.
<
