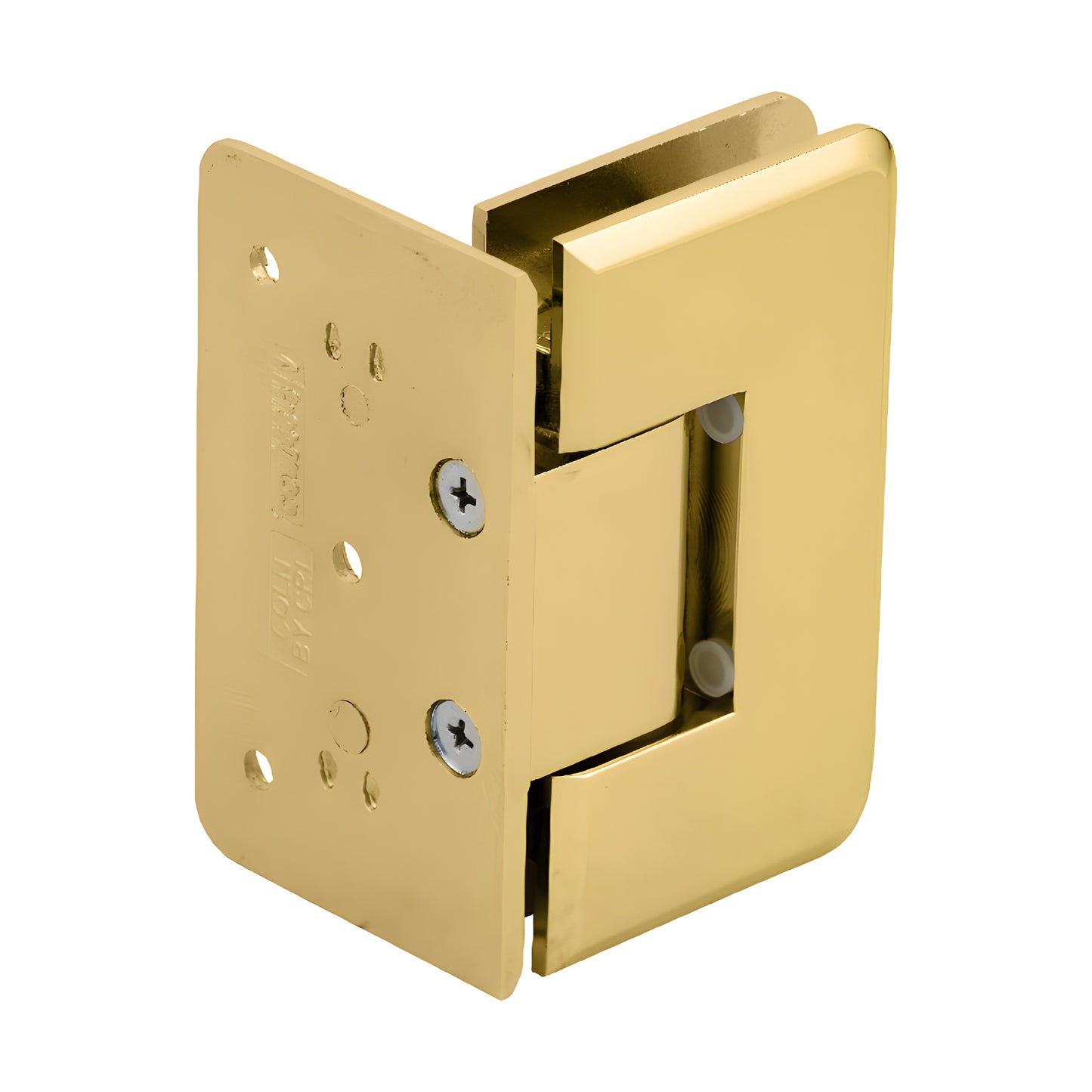

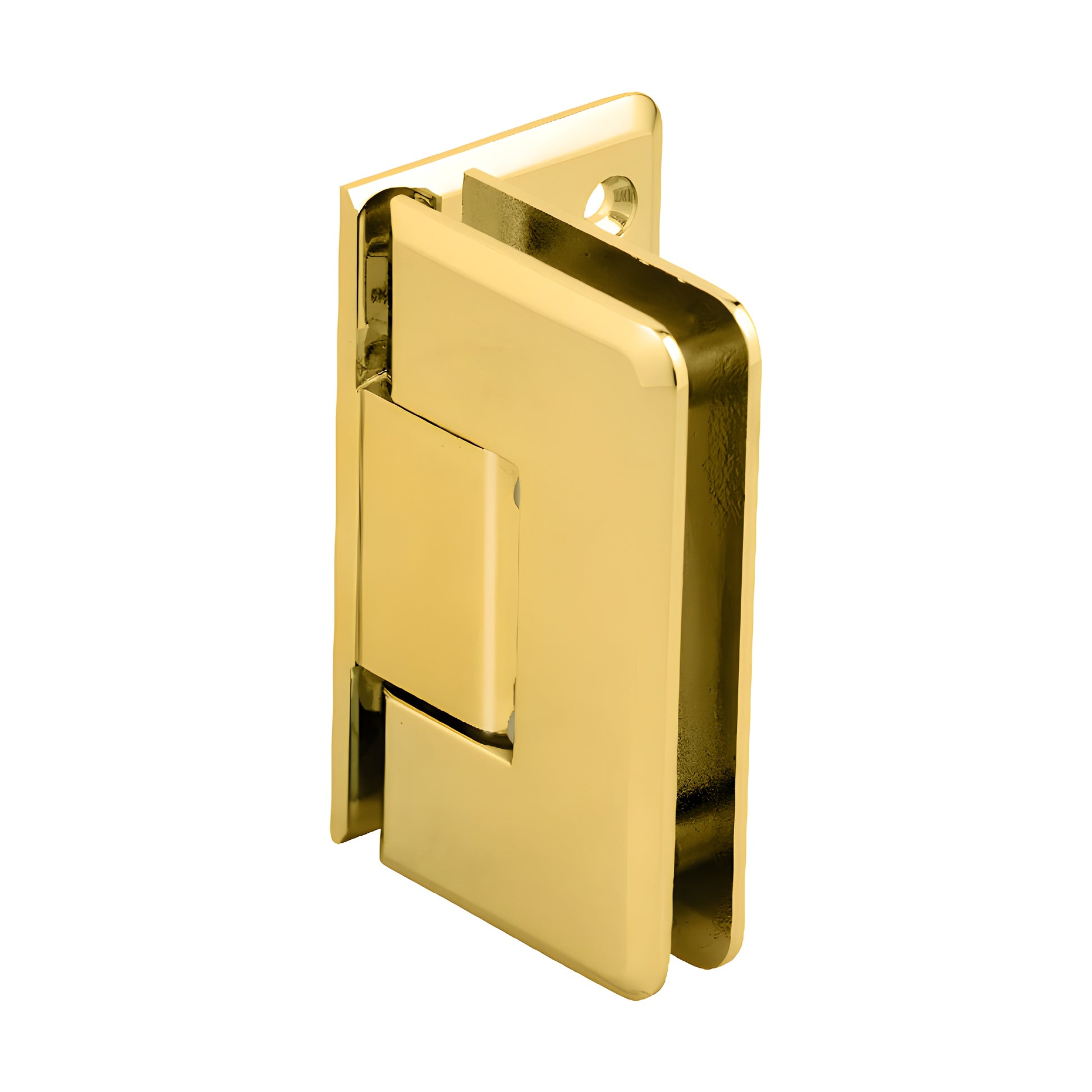

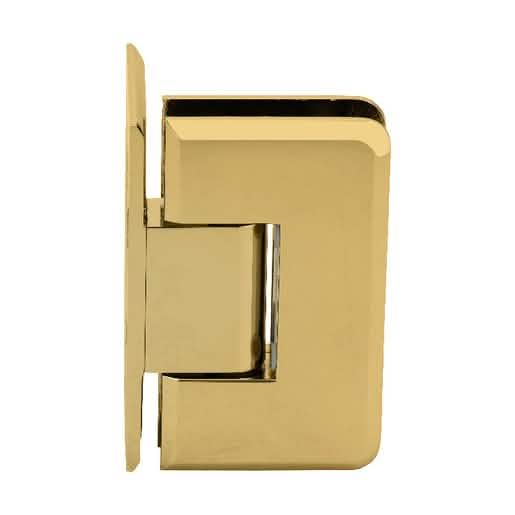

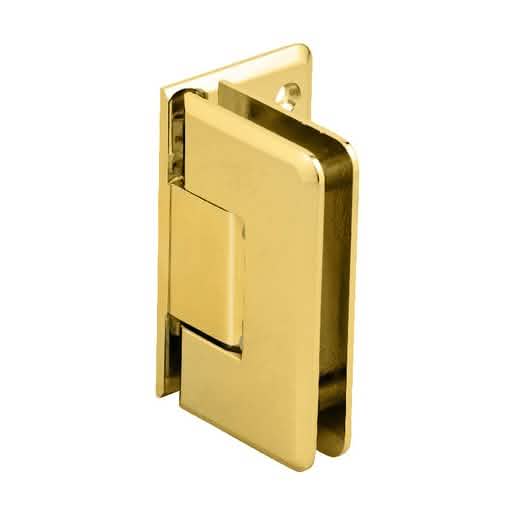

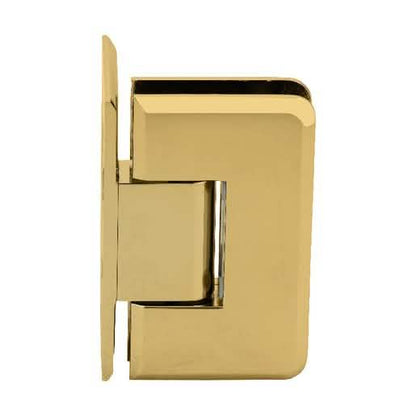

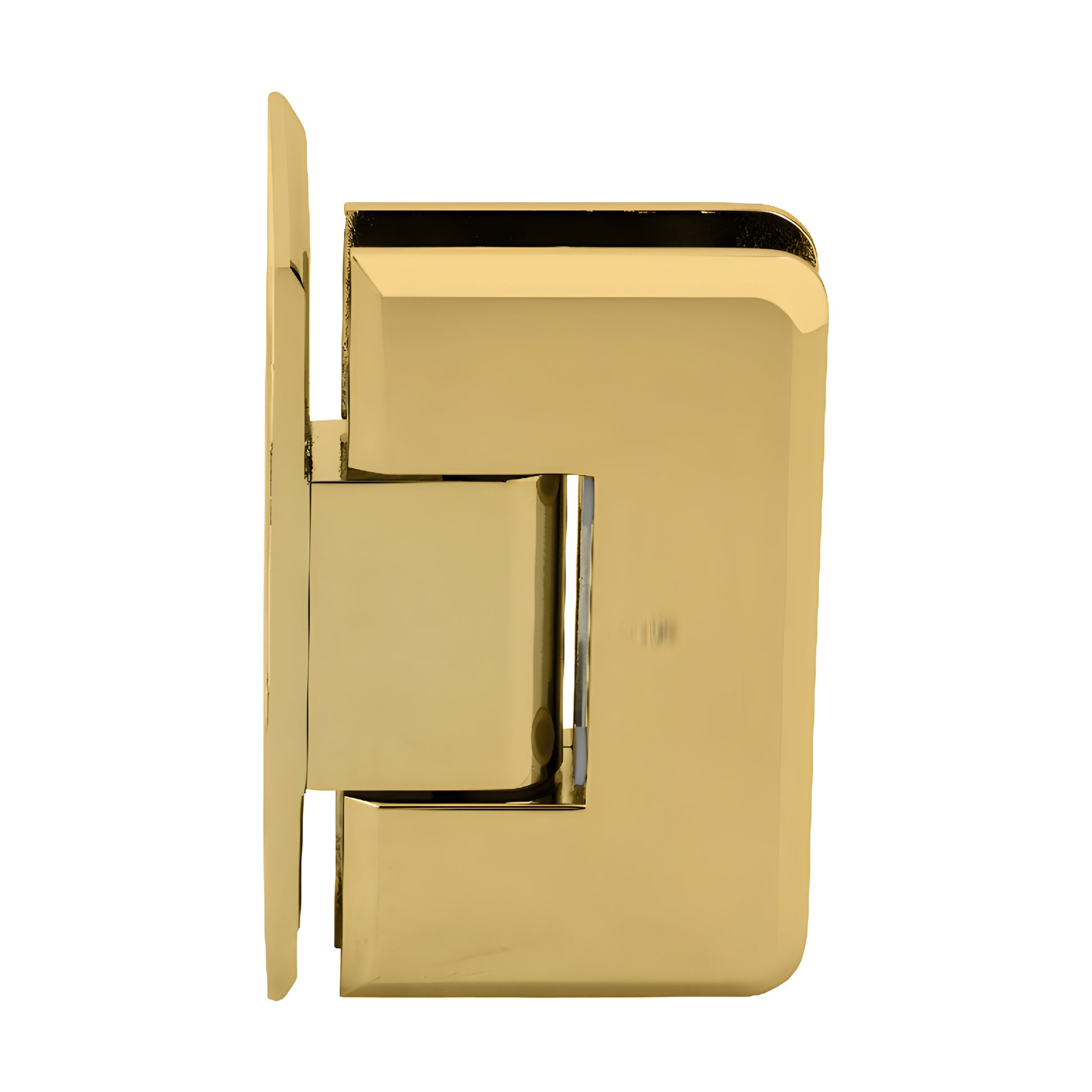

CRL Cologne 044 Unlacquered Brass Wall-Mount Offset Glass Door Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered glass
• Available in several beautiful finishes
• Wall mount offset back plate — standard model
• Designed for monolithic tempered glass

CRL Cologne Hinges — precision brass shower door hinges with radius corners and beveled edges for a sleek, modern look. Cologne Hinges are built for wider, heavier glass doors where standard hinges fall short. SKU: C0L044ULBR.

Key differentiators:

• Solid brass construction for durability on residential and hotel shower doors
• Reversible Pivot Pin (standard 90º side activated; rotate to 85º for a 5º tighter closure)
• Optional custom pivot pins up to 45º for off-angle or non‑plumb installations
• Two internal steel pins for compatibility with CRL "mouse-ears" or removable for rectangular/square cut-outs

Performance / Load Capacity:

• Two hinges with 3/8" (10 mm) glass: supports up to 100 lbs (45 kg); max door width 34" (864 mm)
• Two hinges with 1/2" (12 mm) glass: supports up to 100 lbs (45 kg); max door width 32" (813 mm)
• Three hinges with 3/8" (10 mm) glass: supports up to 130 lbs (59 kg); max door width 34" (864 mm)
• Three hinges with 1/2" (12 mm) glass: supports up to 130 lbs (59 kg); max door width 32" (813 mm)

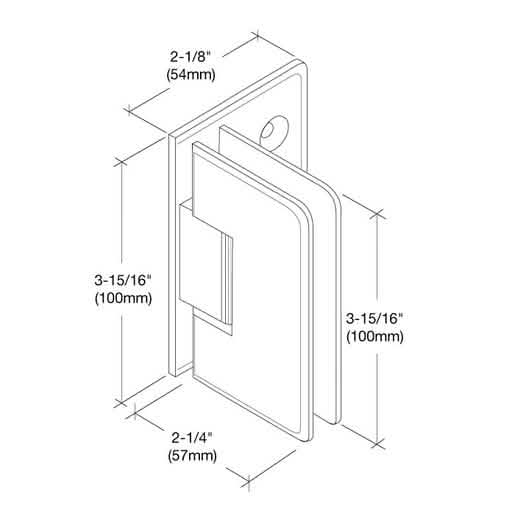

Specifications:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90º in and 90º out
Closing Type: Self-centering within 15º of closed position
Cut-out Required: Except C0L092 (requires cut-out for door plus two holes for fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes available on request — contact CRL Technical Sales Department.

Product Warning:
CRL shower door hinges are intended for residential or hotel shower use. For alternative applications, obtain approval from CRL Shower Door Technical Sales. Use only
