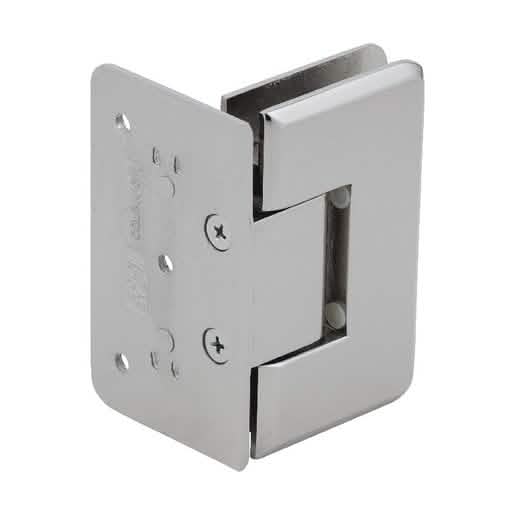

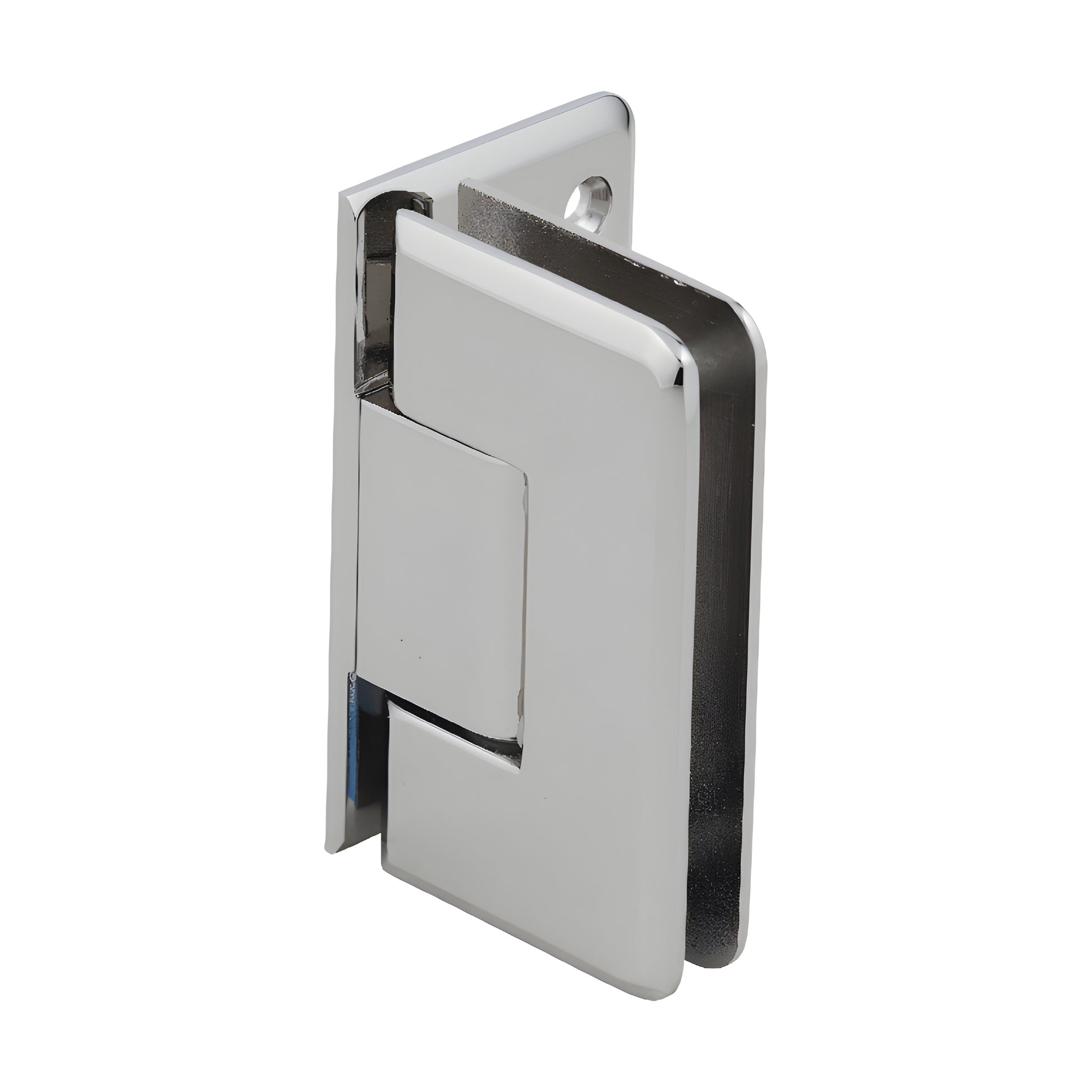

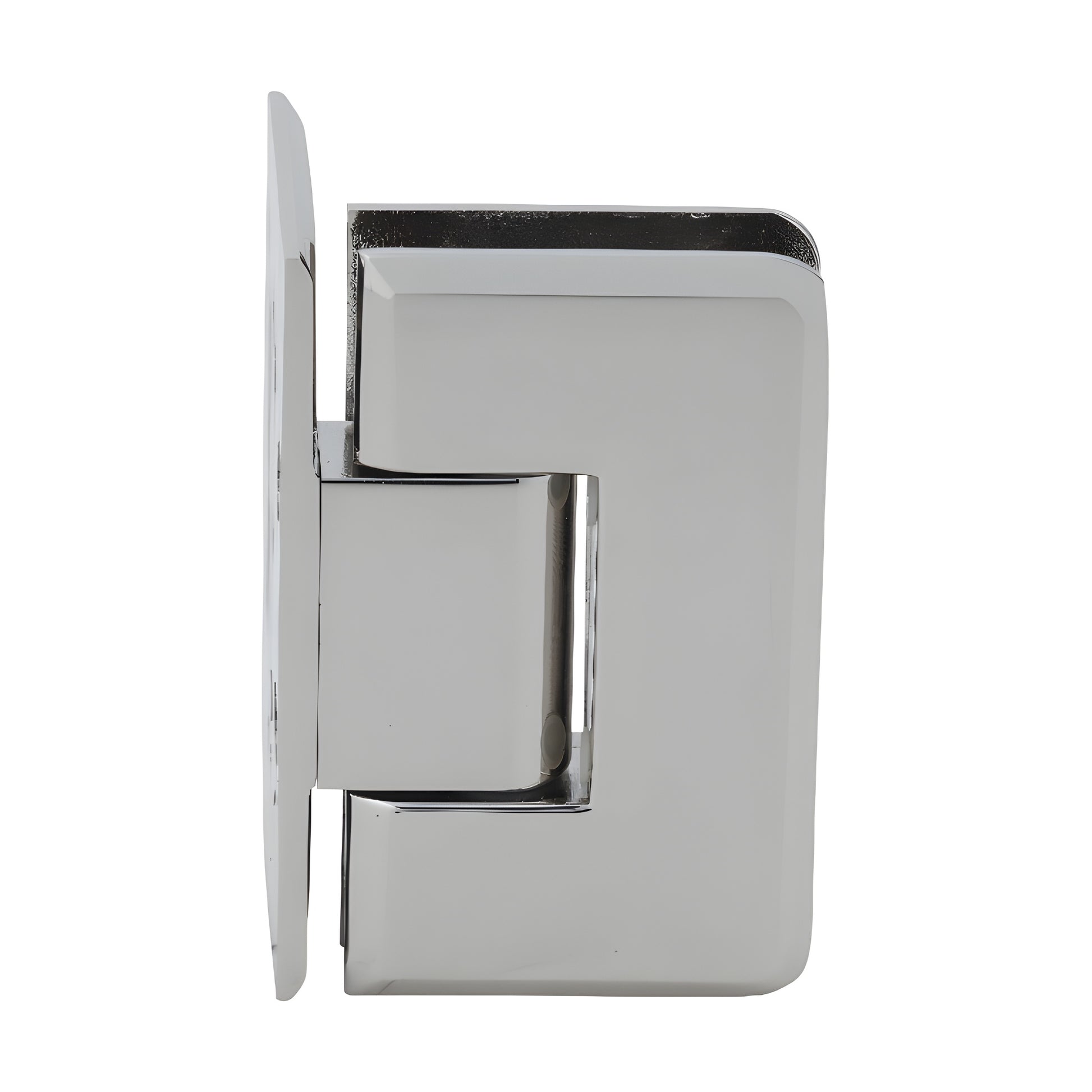

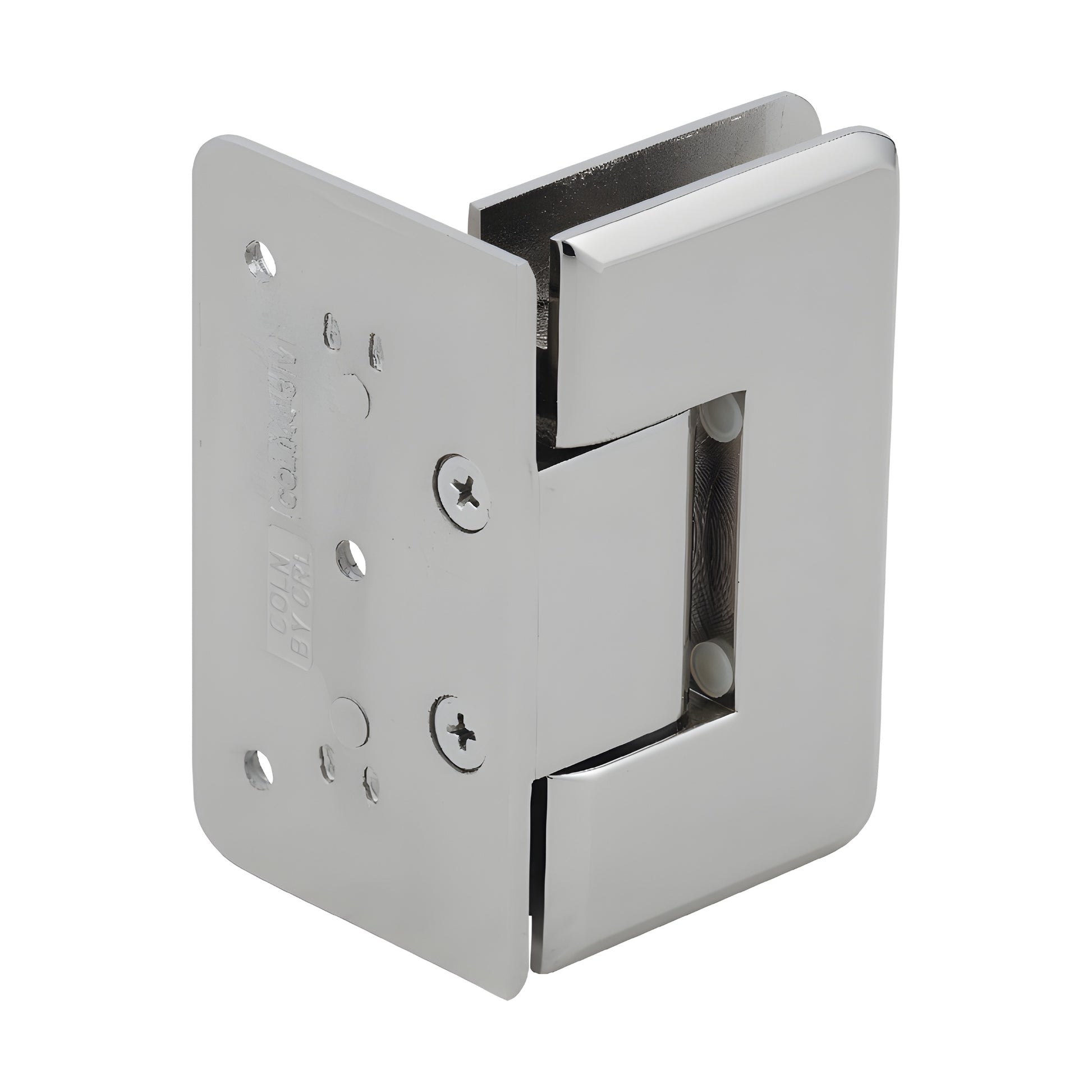

CRL Cologne 044 Polished Nickel Wall Mount Offset Back Plate Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
• Available in Several Beautiful Finishes
• Wall Mount Offset Back Plate Standard Model
• Use Monolithic Tempered Glass

CRL Cologne Hinges (SKU: C0L044PN) deliver a sleek, modern look with radius corners and beveled edges—an ideal heavy-duty shower door hinge for wider, heavier tempered glass doors. Designed as a stronger alternative to traditional Vienna-style hinges, Cologne Hinges use two internal steel pins for installation flexibility: leave the pins in for CRL "mouse-ears" cut-outs or remove them to fit CRL rectangular square-corner cut-outs and in some cases compatible competitive cut-outs.

STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin marked 90º on one side and 85º on the other. Standard models ship with the 90º side active; Pre-Set models are set to 85º for a 5º tighter closure into the shower interior. The pin can be rotated (not flipped) to change the angle.

CUSTOM PIVOT PIN: Custom pivot pins are available up to 45º to accommodate off-angle walls or non-90º installations—specify required angle when standard adjustment is insufficient.

Load & Door Width Capacities
Two hinges with 3/8" (10 mm) glass: hold up to 100 lbs (45 kg), max door width 34" (864 mm).
Two hinges with 1/2" (12 mm) glass: hold up to 100 lbs (45 kg), max door width 32" (813 mm).
Three hinges with 3/8" (10 mm) glass: hold up to 130 lbs (59 kg), max door width 34" (864 mm).
Three hinges with 1/2" (12 mm) glass: hold up to 130 lbs (59 kg), max door width 32" (813 mm).

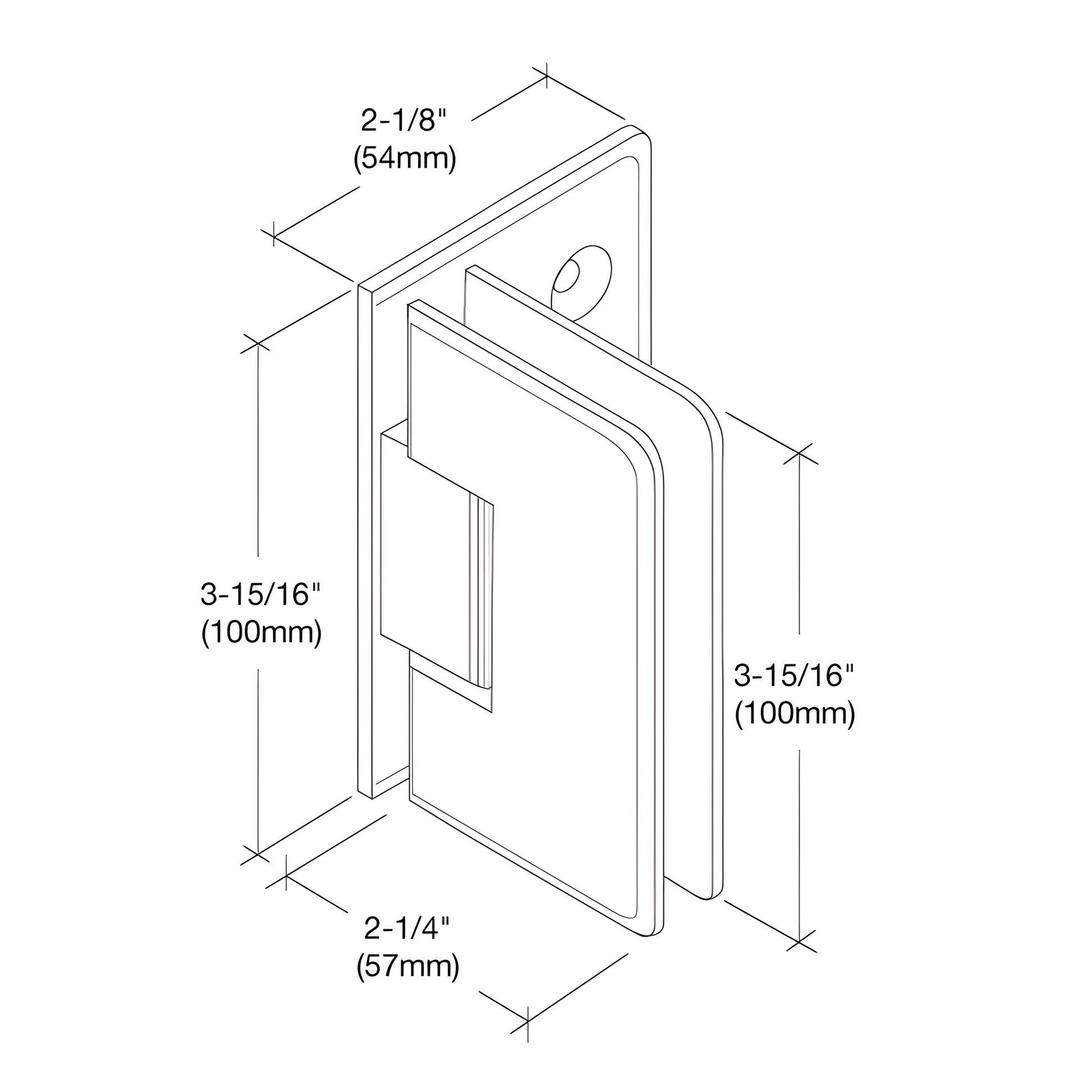

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass (heavy-duty shower door hinge construction)
Hinge Swings: 90º In and 90º Out
Closing Type: Self-Centering when within 15º of closed position
Cut-Out Required: Except C0L092 which requires cut-out for door and two holes for fixed panel
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m
