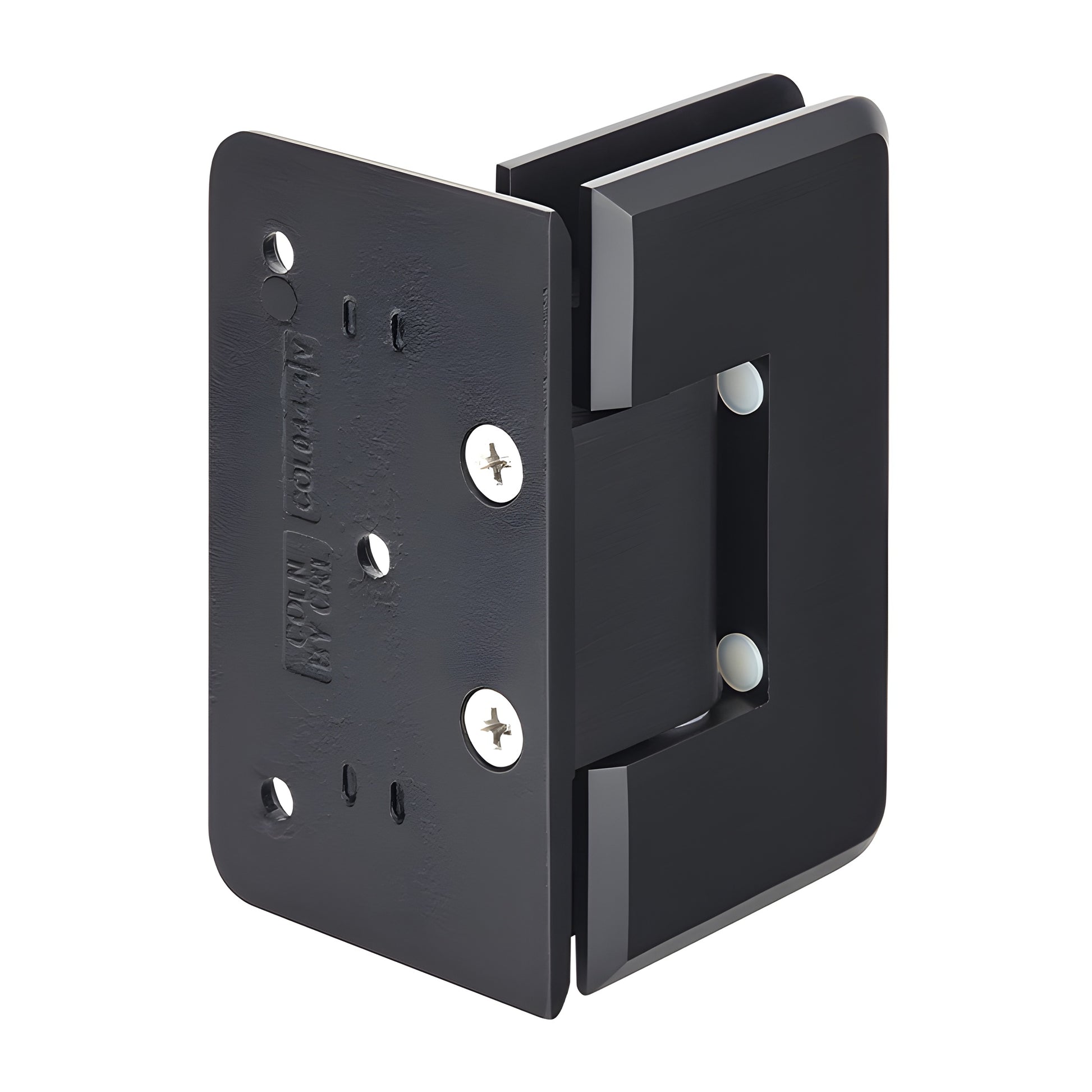

• C0L0440RB Cologne oil rubbed bronze beveled shower door hinge, wall mount offset for 3/8-1/2 tempered glass.
  • C0L0440RB Cologne oil rubbed bronze beveled shower door hinge, wall mount offset for 3/8-1/2 tempered glass.
  • C0L0440RB Cologne oil rubbed bronze beveled shower door hinge, wall mount offset for 3/8-1/2 tempered glass.

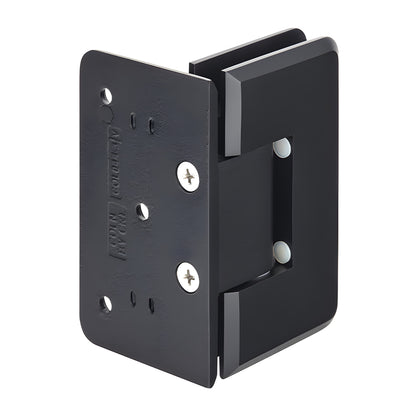

  • C0L0440RB Cologne oil rubbed bronze beveled shower door hinge, wall mount offset for 3/8-1/2 tempered glass.
1 4

CRL

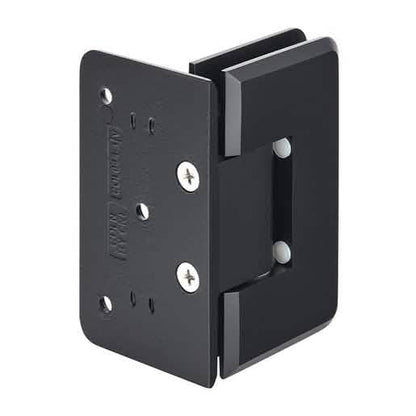

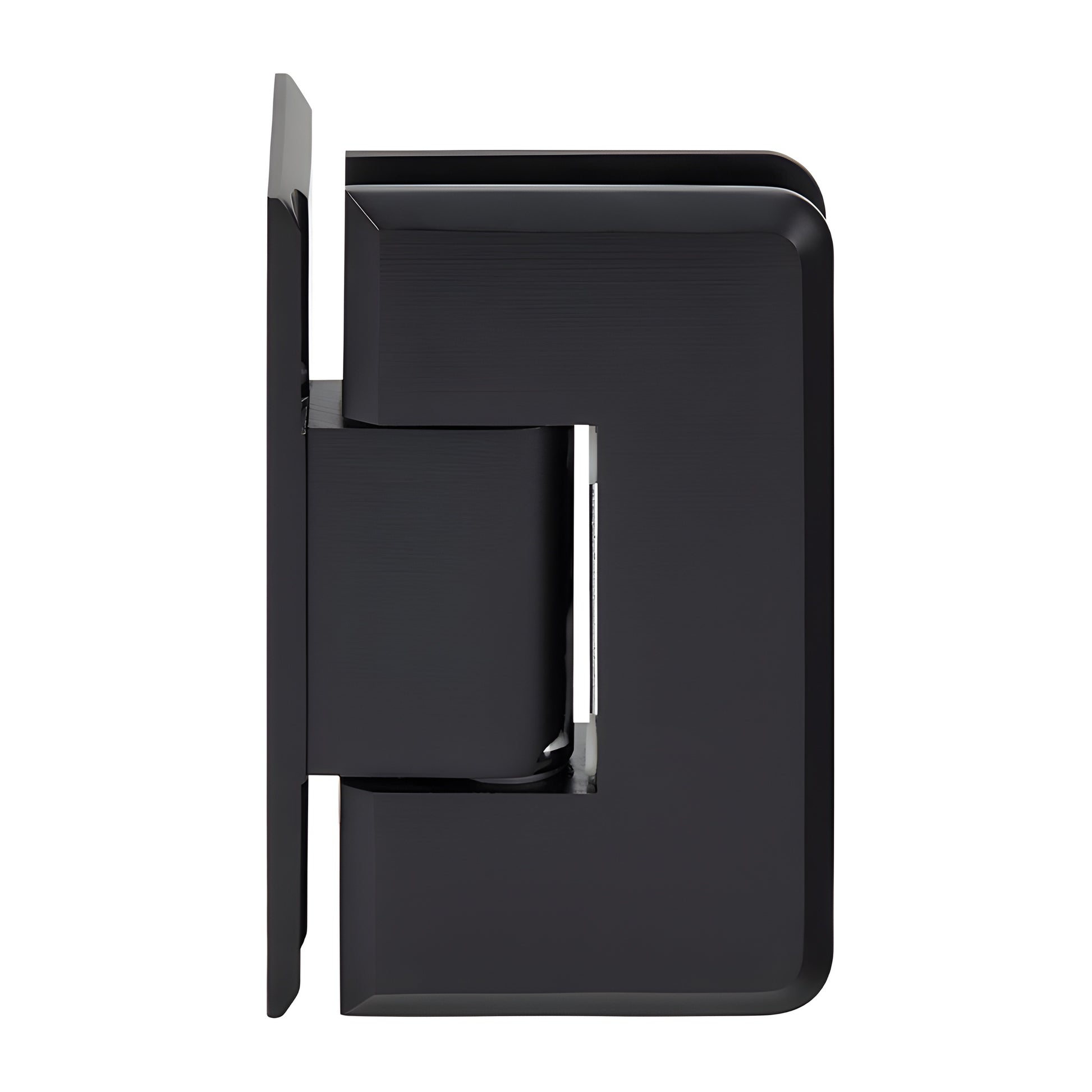

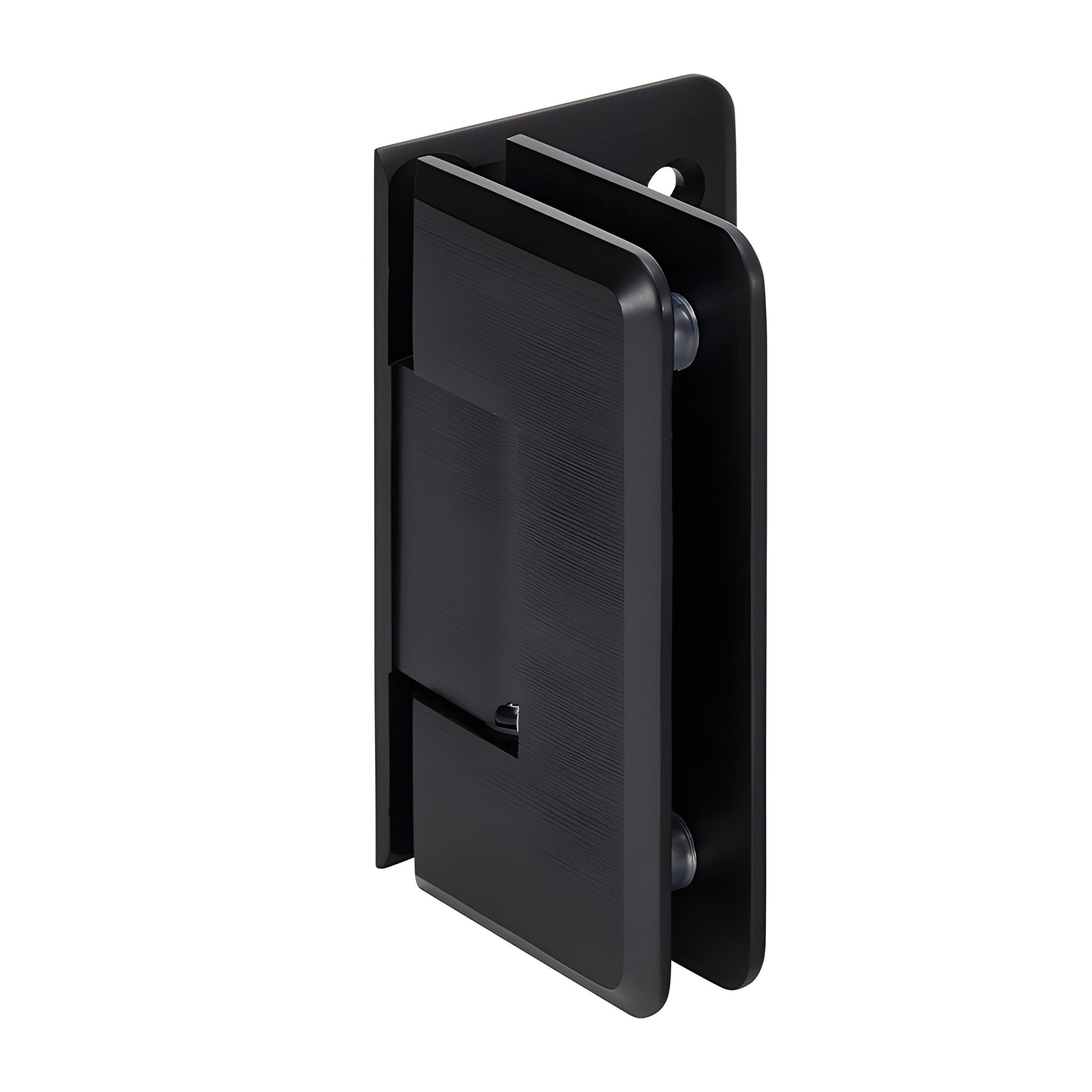

CRL Cologne 044 Oil-Rubbed Bronze Offset Wall-Mount Glass Door Hinge

CRL Cologne 044 Oil-Rubbed Bronze Offset Wall-Mount Glass Door Hinge

$139.26 CAD
$139.26 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# C0L0440RB
Shipping Weight: 2.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

5 Degree Pre-Set
No
Adjustable
No
Back Plate
Offset
Design Style
Beveled
Edge Profile
Beveled
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Oil Rubbed Bronze
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)

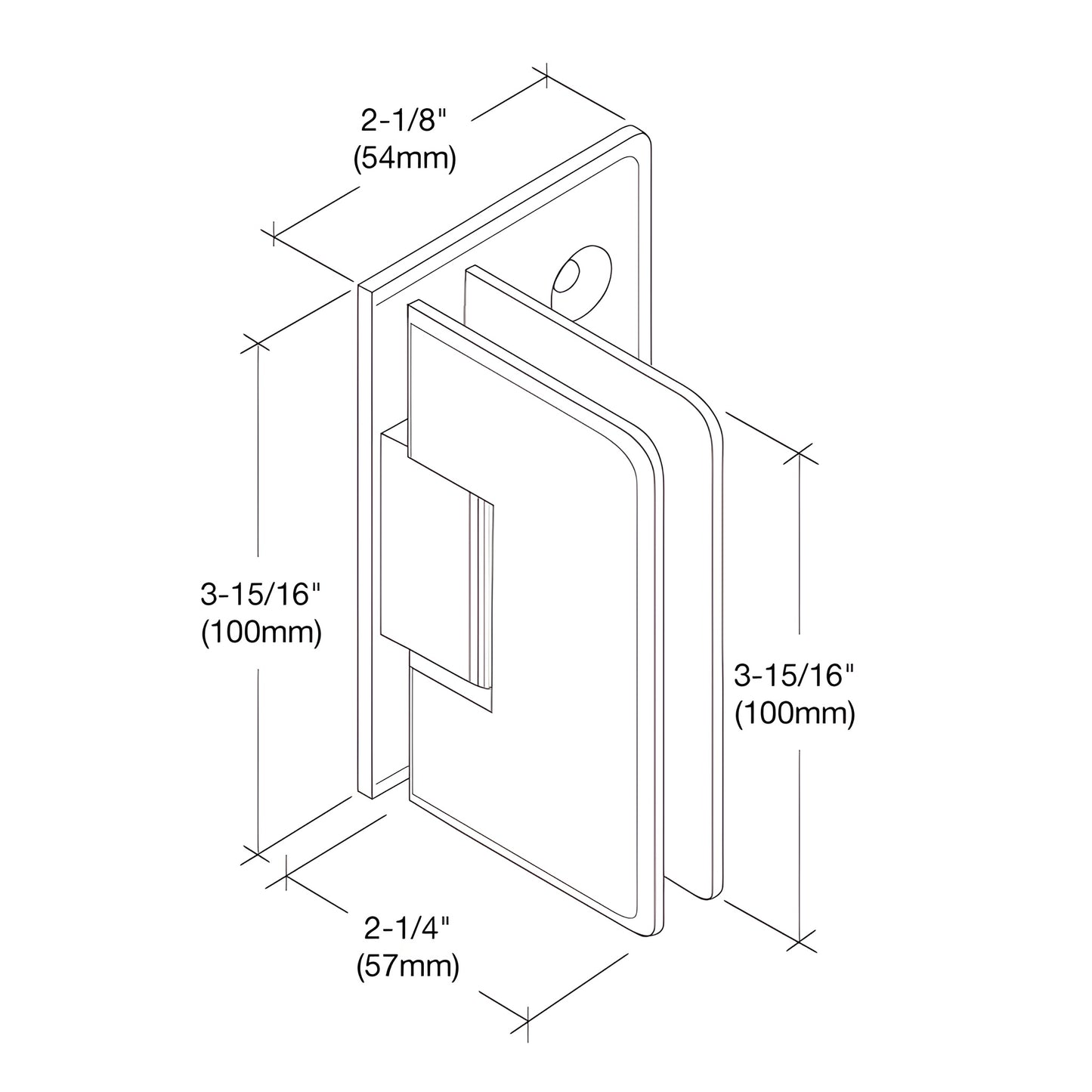

Height
3-15/16 in. (100 mm)
Material
Brass
Maximum Clamping Screw Torque
60 lbf.in (677.9 cN.m)
Maximum Door Weight - 2 Hinges
100 lbs. (45.4 kg)
Maximum Door Weight - 3 Hinges
130 lbs. (59 kg)
Maximum Door Width - 1/2 Glass
32 in. (813 mm)
Maximum Door Width - 3/8 Glass
34 in. (864 mm)
Mounting Type
Wall Mount
Opening Style
Swing(side)
Self-Centering
Yes
Series
Cologne
Width
2-1/4 in. (57 mm)

Overview

  • Accommodates 3/8" to 1/2" (10 to 12 mm) tempered glass
  • Available in several beautiful finishes (custom finishes available on request)
  • Wall-mount offset back plate — standard model
  • Designed for monolithic tempered glass shower doors

CRL Cologne Hinges (SKU: C0L0440RB) are radius‑corner, beveled‑edge shower door hinges engineered for wider, heavier frameless glass doors. Similar to Vienna Hinges but with a sleeker profile, Cologne Hinges are solid brass pivots built to support residential and hotel shower doors using tempered safety glass. They offer options for both CRL "mouse‑ears" cut-outs and rectangular square‑corner cut-outs by leaving or removing two internal steel template pins, improving compatibility with competitive glass templates.

Reversible Pivot Pin: Each hinge includes a reversible pivot pin marked 90º and 85º. Standard models ship with the 90º side active; Pre-Set models are set to 85º for a 5º tighter closure into the shower interior. Rotate (do not flip) the pin to change the angle.

Custom Pivot Pins: Available to accommodate off‑angle installations (specify required angle up to 45º) for doors that do not meet the wall at 90º.

Load Ratings:
  • Two hinges with 3/8" (10 mm) glass: up to 100 lbs (45 kg), max door width 34" (864 mm)
  • Two hinges with 1/2" (12 mm) glass: up to 100 lbs (45 kg), max door width 32" (813 mm)
  • Three hinges with 3/8" (10 mm) glass: up to 130 lbs (59 kg), max door width 34" (864 mm)
  • Three hinges with 1/2" (12 mm) glass: up to 130 lbs (59 kg), max door width 32" (813 mm)

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90º in and 90º out
Closing Type: Self‑centering when within 15º of closed position
Cut‑Out Required: Except C0L092, which requires cut‑out for door and two holes for fixed panel
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes available — contact

Specifications

Templates
C0L044 Template
