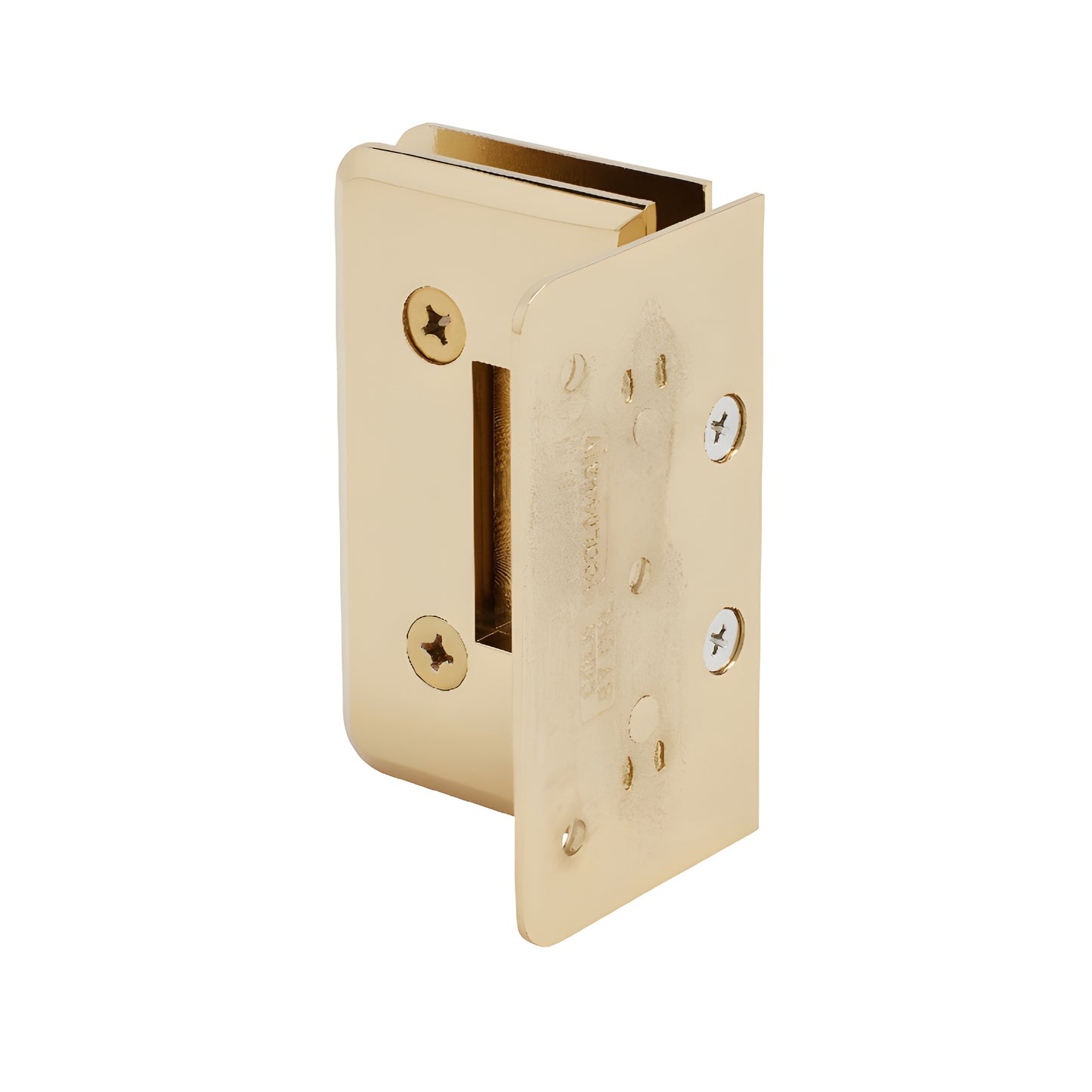

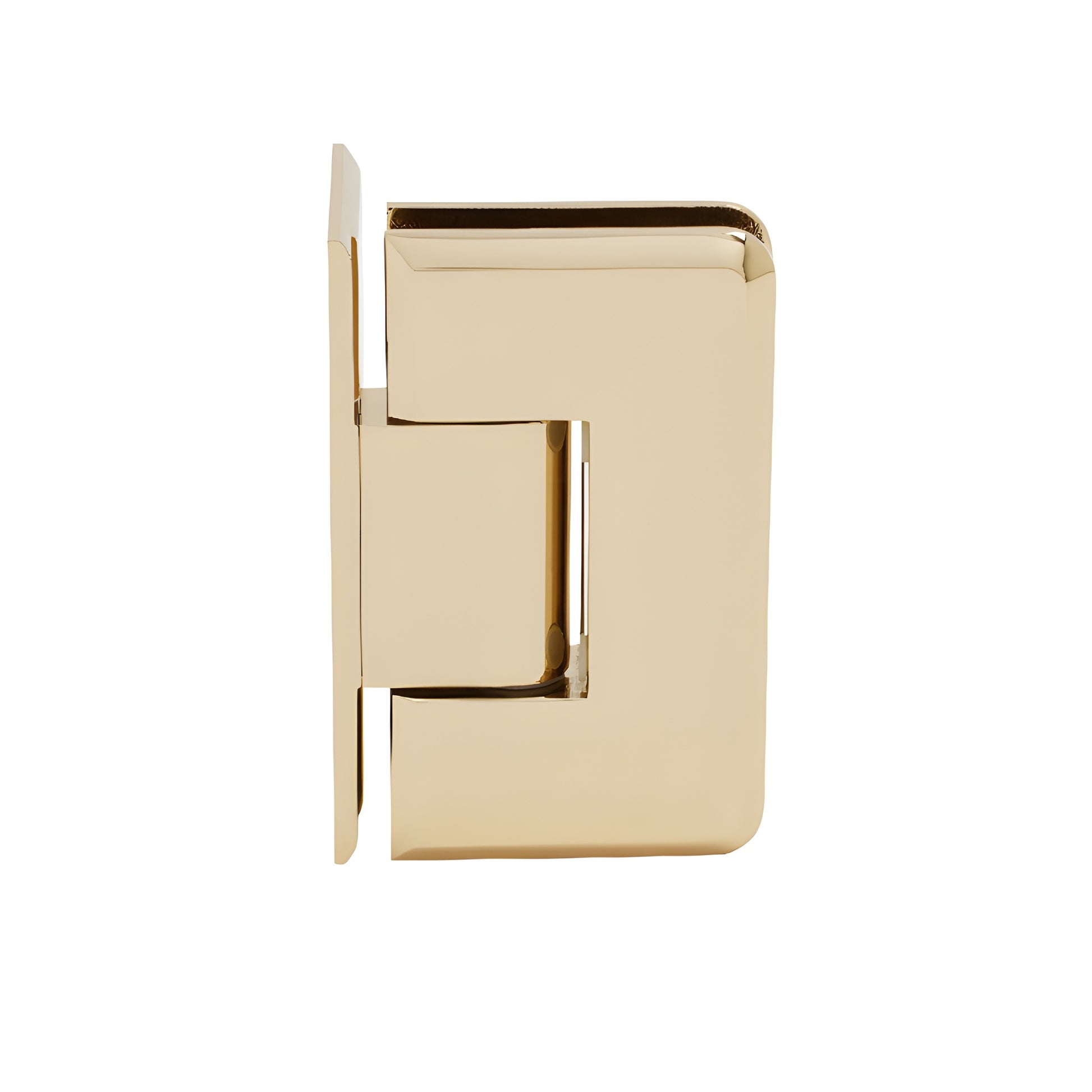

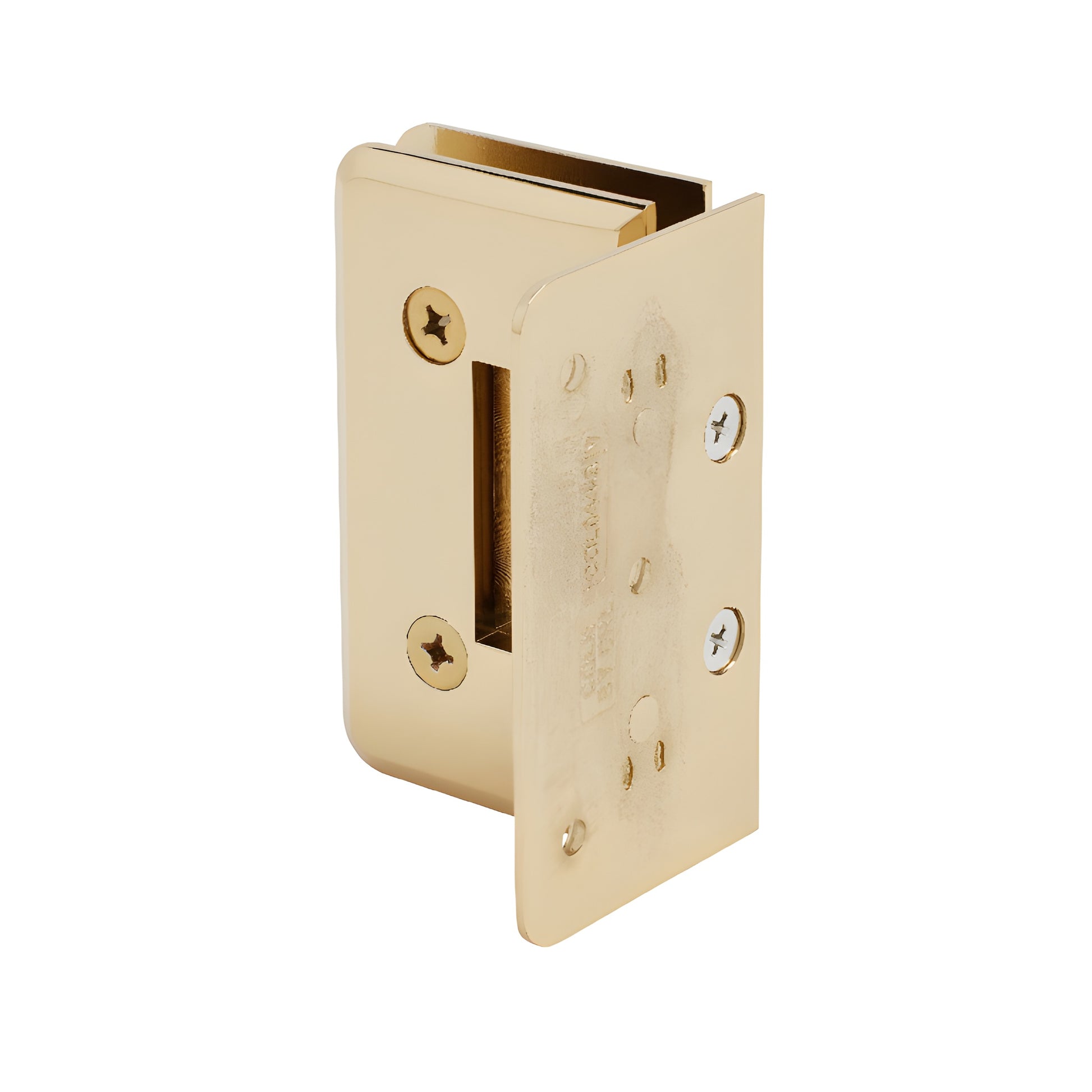

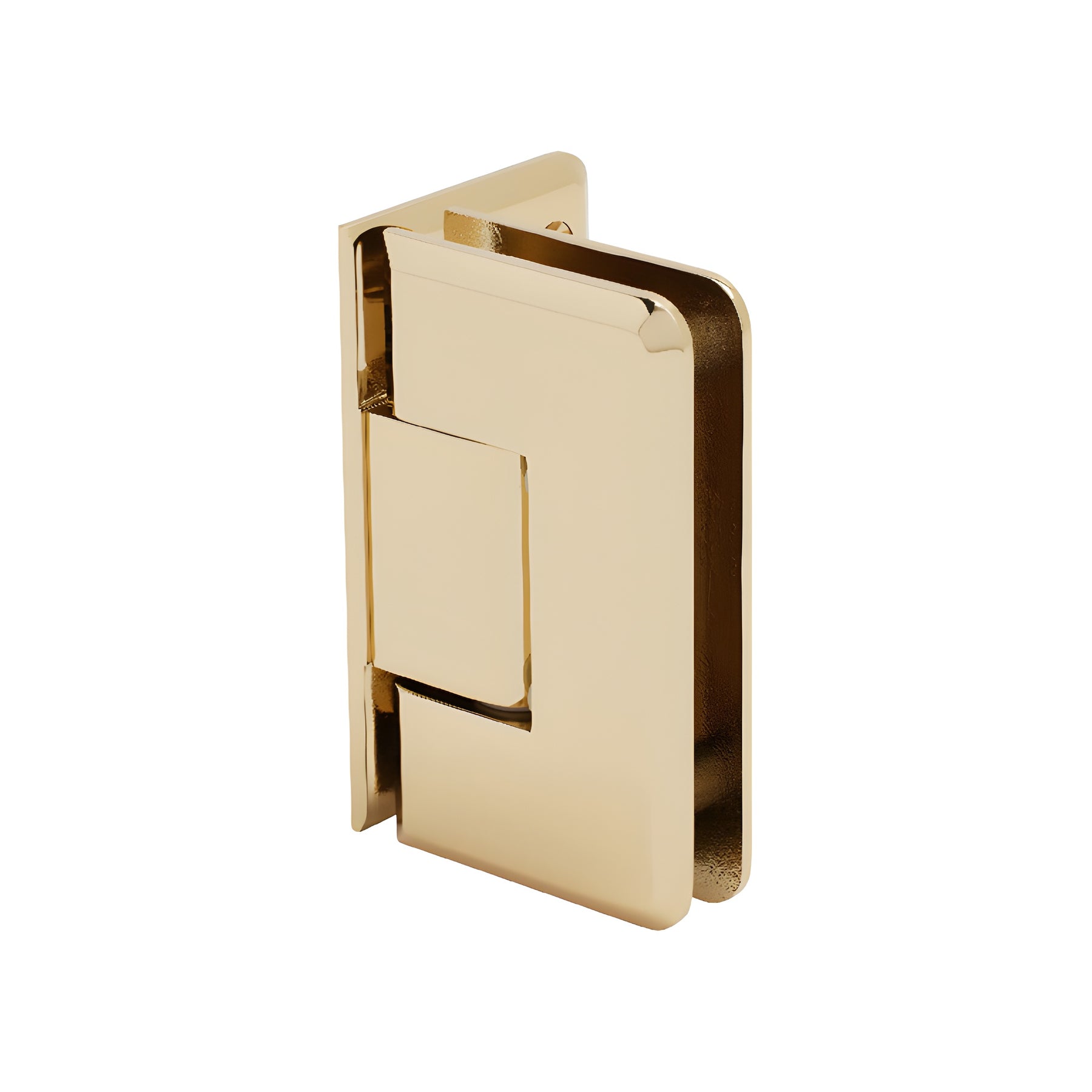

CRL Cologne 044 Gold-Plated Wall Mount Offset Hinge for Glass Doors

• Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
• Available in Several Beautiful Finishes
• Wall Mount Offset Back Plate Standard Model
• Use Monolithic Tempered Glass

CRL Cologne Hinges (SKU: C0L044GP) combine radius corners and beveled edges for a sleek, modern appearance similar to Vienna Hinges. Designed specifically for wider, heavier shower doors, these solid brass hinges provide durable support where traditional hinges may fail. Ideal long-tail keywords: Cologne shower door hinge, solid brass shower hinge, tempered glass shower hinge.

Cologne Hinges include two internal steel pins that offer mounting flexibility: leave both pins in place for compatibility with CRL "mouse-ears" cut-outs and enhanced safety around cut-out areas, or remove the pins for increased adjustability and compatibility with CRL rectangular (square-corner) cut-outs — and in some cases, competitive rectangular cut-outs.

STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin marked 90º on one side and 85º on the other. Standard models ship set to 90º; Pre-Set models ship at 85º for a 5º tighter closure into the shower interior. Rotate the pin (do not flip) to switch sides.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (specify the needed angle up to 45º) when the standard 5º adjustment is insufficient.

Load Capacity & Door Widths:
Using two hinges with 3/8" (10 mm) glass: holds up to 100 lbs (45 kg), max door width 34" (864 mm).
Using two hinges with 1/2" (12 mm) glass: holds up to 100 lbs (45 kg), max door width 32" (813 mm).
Using three hinges with 3/8" (10 mm) glass: holds up to 130 lbs (59 kg), max door width 34" (864 mm).
Using three hinges with 1/2" (12 mm) glass: holds up to 130 lbs (59 kg), max door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90º In and 90º Out
Closing Type: Self-centering when within 15º of closed position
Cut-Out Required: Except C0L092 (requires cut-out for door plus two holes for fixed
