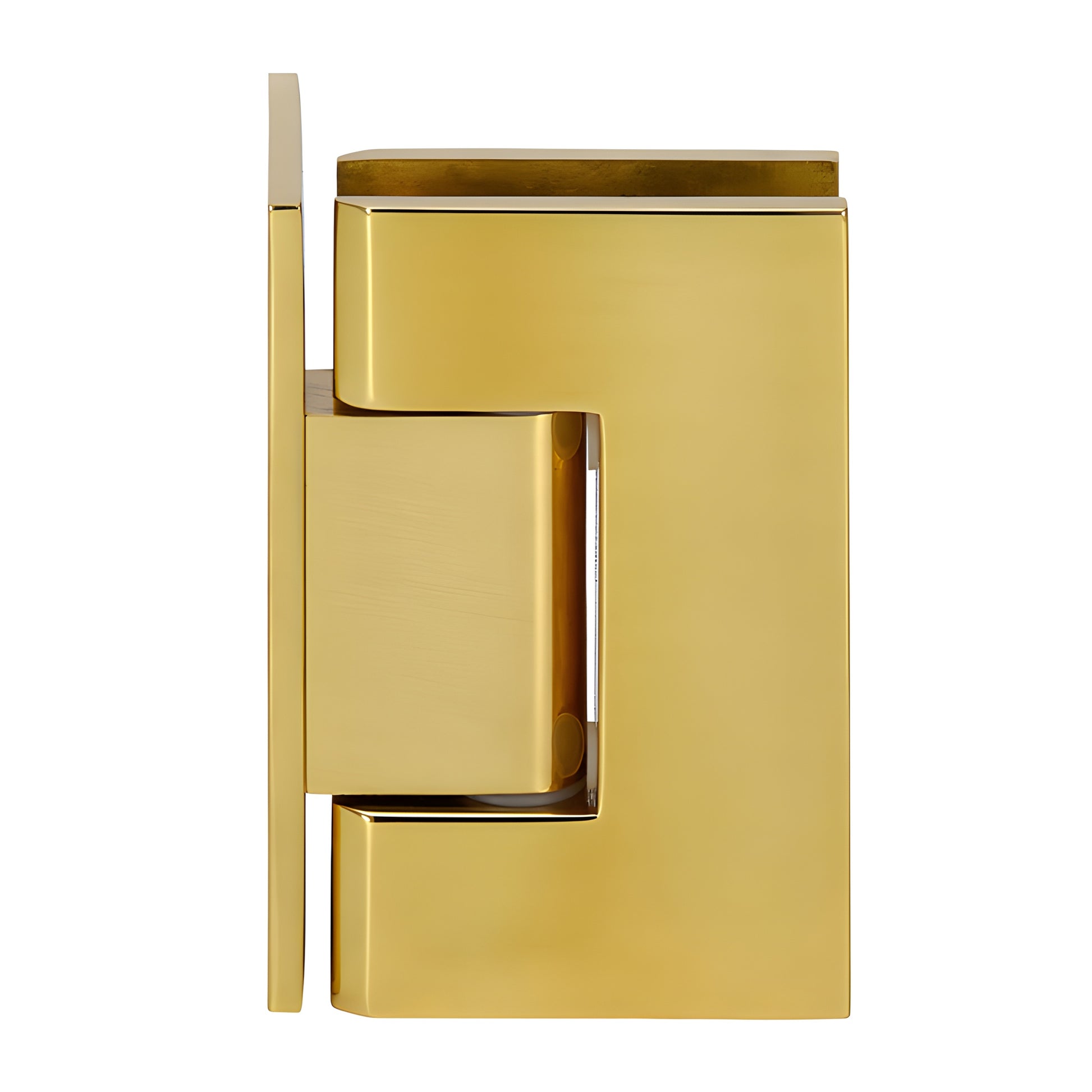

• Unlacquered brass squared Vienna shower door hinge for 3/8 to 1/2 in glass, SKU V1E044ULBR.
  • Unlacquered brass squared Vienna shower door hinge for 3/8 to 1/2 in glass, SKU V1E044ULBR.
  • Unlacquered brass squared Vienna shower door hinge for 3/8 to 1/2 in glass, SKU V1E044ULBR.
  • Unlacquered brass squared Vienna shower door hinge for 3/8 to 1/2 in glass, SKU V1E044ULBR.
  • Unlacquered brass squared Vienna shower door hinge for 3/8 to 1/2 in glass, SKU V1E044ULBR.
1 5

CRL

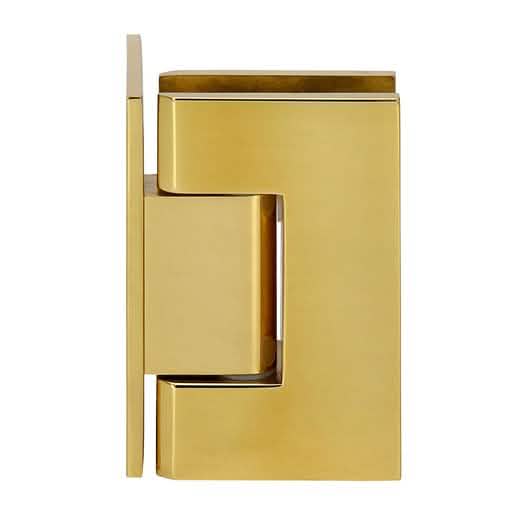

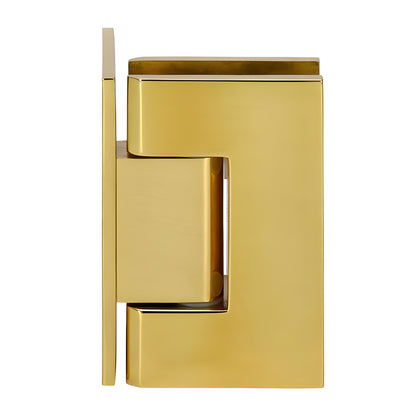

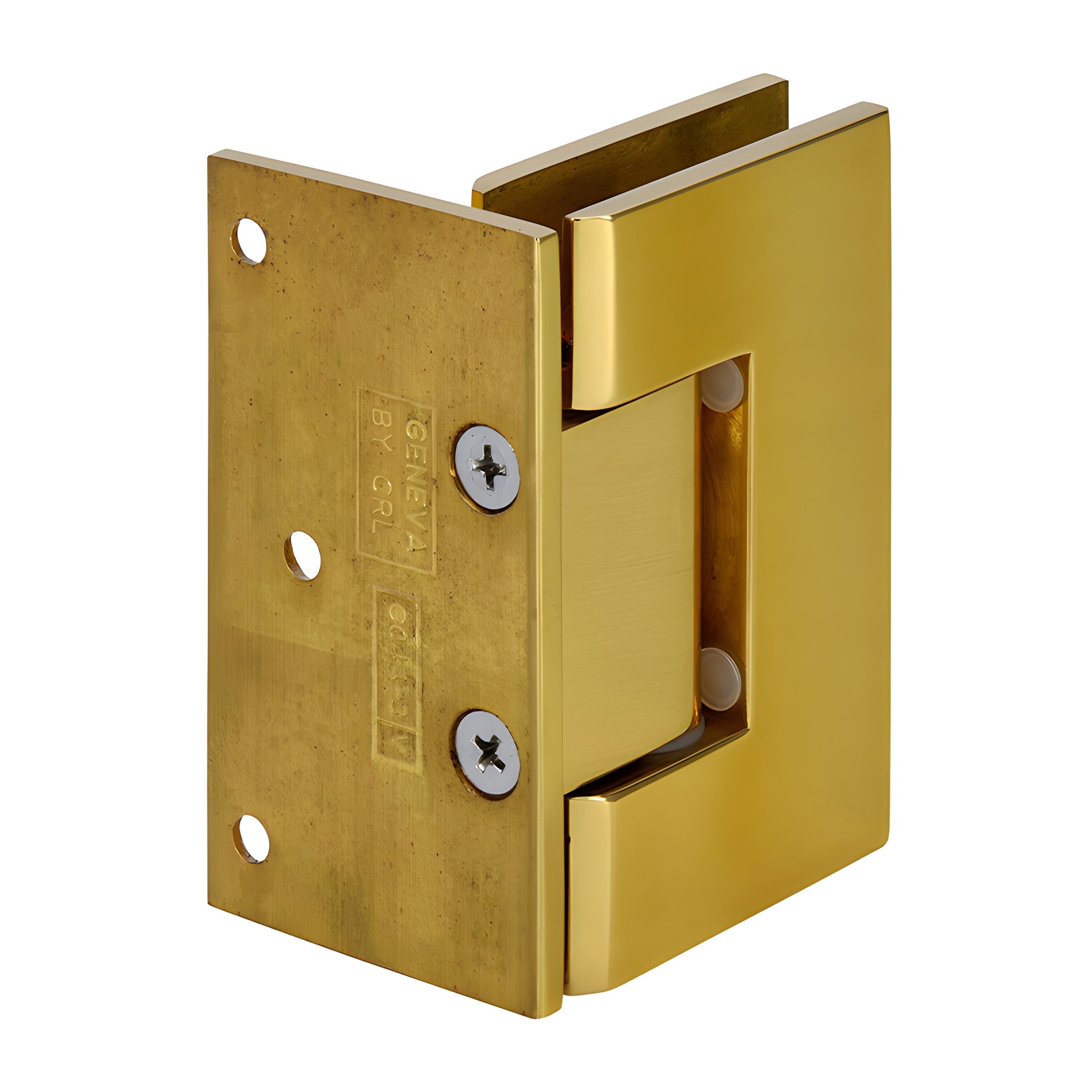

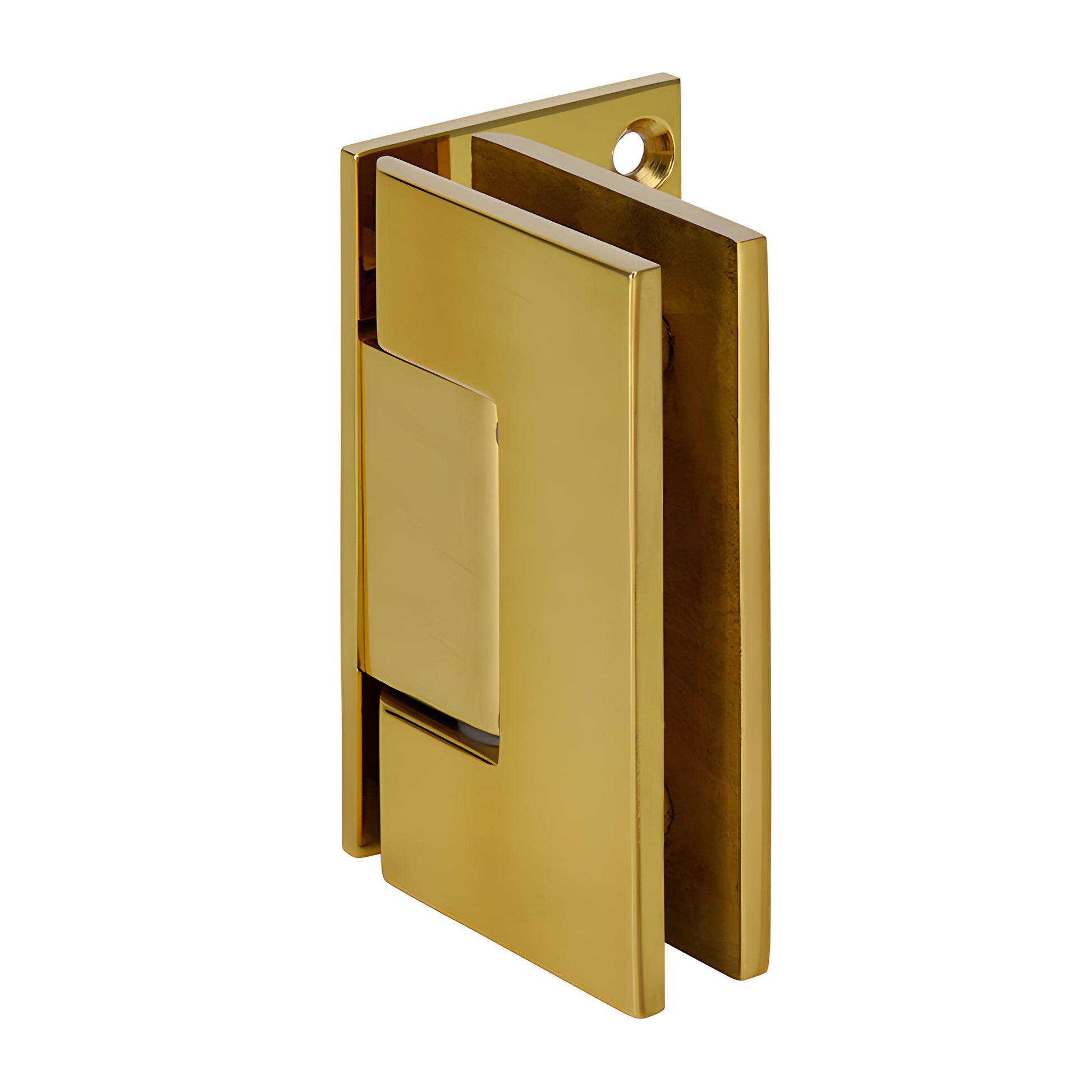

CRL Vienna 044 Unlacquered Brass Offset Back-Plate Door Hinge

CRL Vienna 044 Unlacquered Brass Offset Back-Plate Door Hinge

$87.19 CAD
$87.19 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# V1E044ULBR
Shipping Weight: 2.03 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

5 Degree Pre-Set
No
Adjustable
No
Design Style
Squared
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Unlacquered Brass
Glazing Thickness
3/8 in. to 1/2 in. (10 mm to 12 mm)

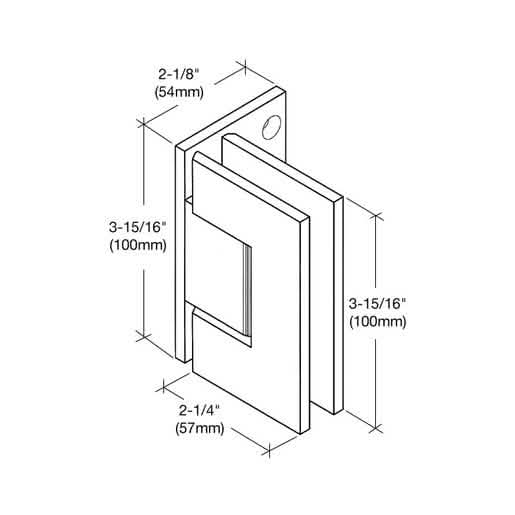

Height
3-15/16 in. (100 mm)
Material
Brass
Maximum Clamping Screw Torque
60 lbf.in (677.9 cN.m)
Maximum Door Weight - 2 Hinges
100 lbs. (45.4 kg)
Maximum Door Weight - 3 Hinges
130 lbs. (59 kg)
Maximum Door Width - 1/2 Glass
32 in. (813 mm)
Maximum Door Width - 1/2 Glass - 2 Hinges
32
Maximum Door Width - 1/2 Glass - 3 Hinges
32
Maximum Door Width - 3/8 Glass
34 in. (864 mm)
Maximum Door Width - 3/8 Glass - 2 Hinges
34
Maximum Door Width - 3/8 Glass - 3 Hinges
34
Mounting Type
Wall Mount
Opening Style
Swing(side)
Series
Vienna
Width
2-1/4 in. (57 mm)

Overview

  • Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
  • Available in several beautiful finishes (custom finishes available on request)
  • 3 Year Warranty
  • Wall-mount offset back plate standard model
  • Designed for monolithic tempered glass

CRL Vienna Hinges provide a heavy-duty solution for wider, heavier frameless shower doors that standard hinges cannot support. SKU: V1E044ULBR. Two internal steel pins offer mounting flexibility: leave the pins in for CRL "mouse-ears" cut-outs, or remove them for increased adjustability and compatibility with CRL rectangular (square-corner) cut-outs and, in some cases, competitive rectangular cut-outs.

STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin with 90° on one side and 85° on the other. Standard models ship with 90° activated; Pre-Set models ship at 85° for a 5° tighter closure into the shower. Rotate (do not flip) the pin to change the angle.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (specify needed angle up to 45°) when the standard adjustment does not achieve the desired door closing position.

Load Capacity & Door Widths
Two hinges with 3/8" (10 mm) glass: holds up to 100 lbs (45 kg), max door width 34" (864 mm).
Two hinges with 1/2" (12 mm) glass: holds up to 100 lbs (45 kg), max door width 32" (813 mm).
Three hinges with 3/8" (10 mm) glass: holds up to 130 lbs (59 kg), max door width 34" (864 mm).
Three hinges with 1/2" (12 mm) glass: holds up to 130 lbs (59 kg), max door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass heavy-duty hinge for frameless shower doors
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Cut-out required except V1E092 (V1E092 requires cut-out for door and two holes for fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes available — contact CRL Technical Sales, Shower Door Department for specification and lead times.

Product Warning:

Specifications

Templates
V1E044 Template
