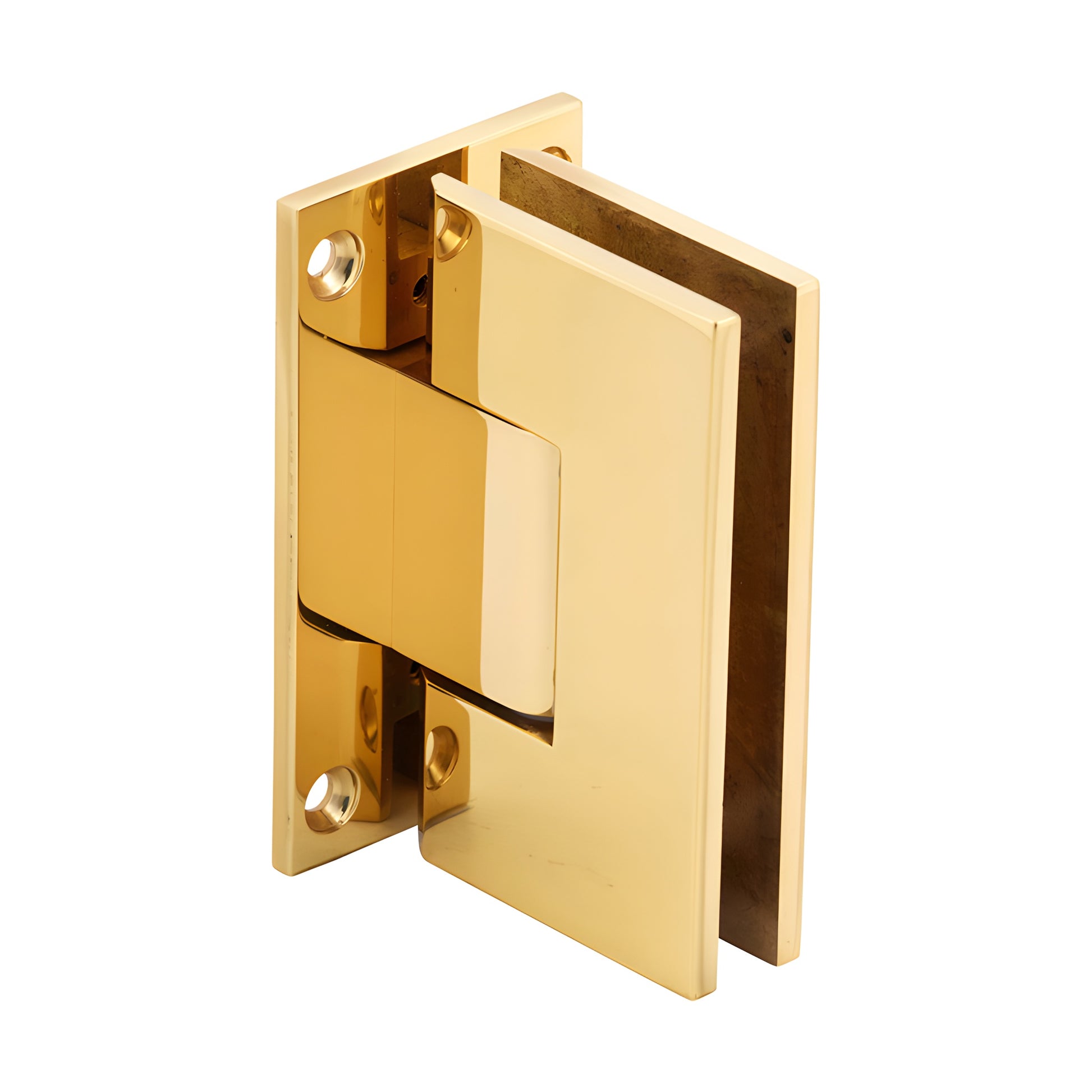

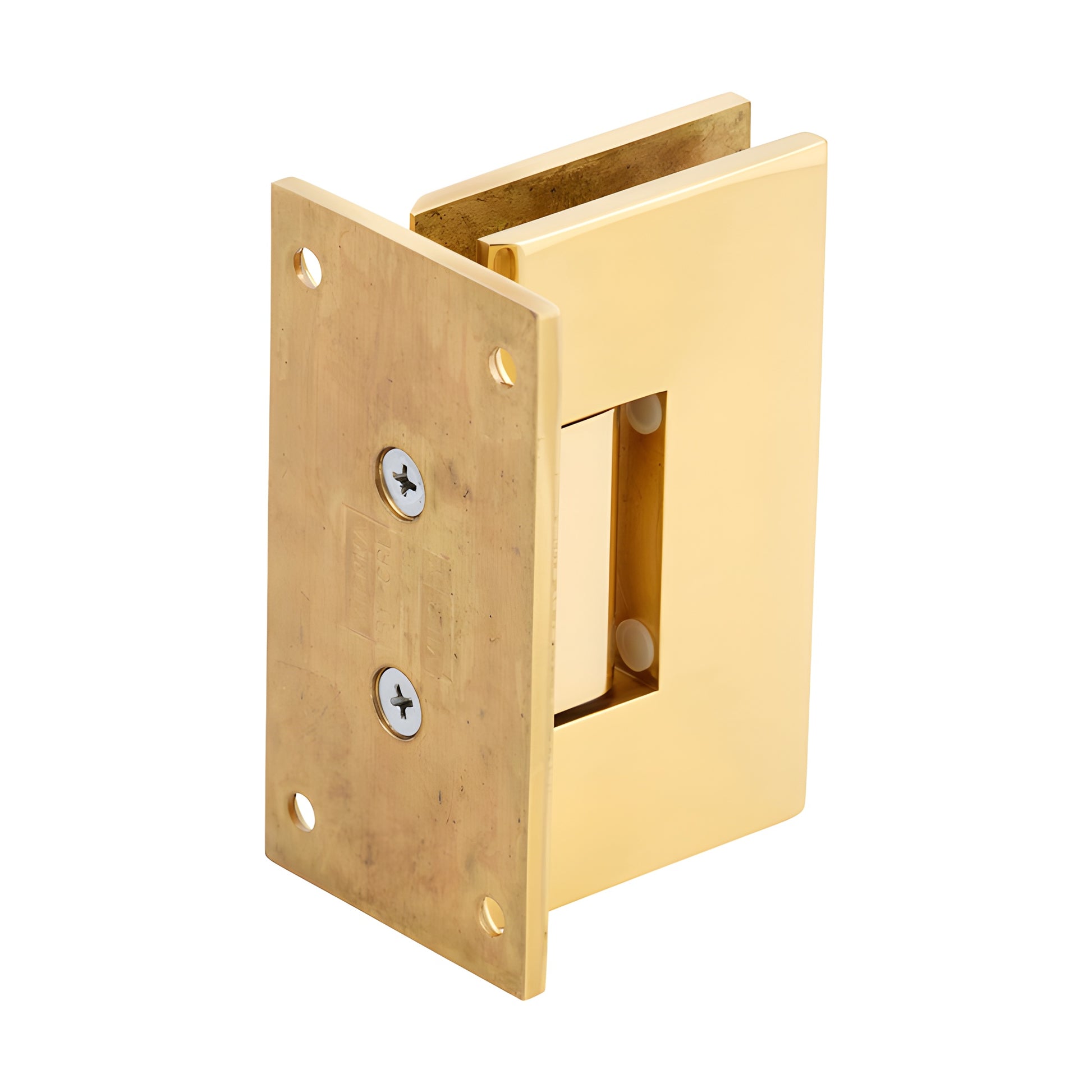

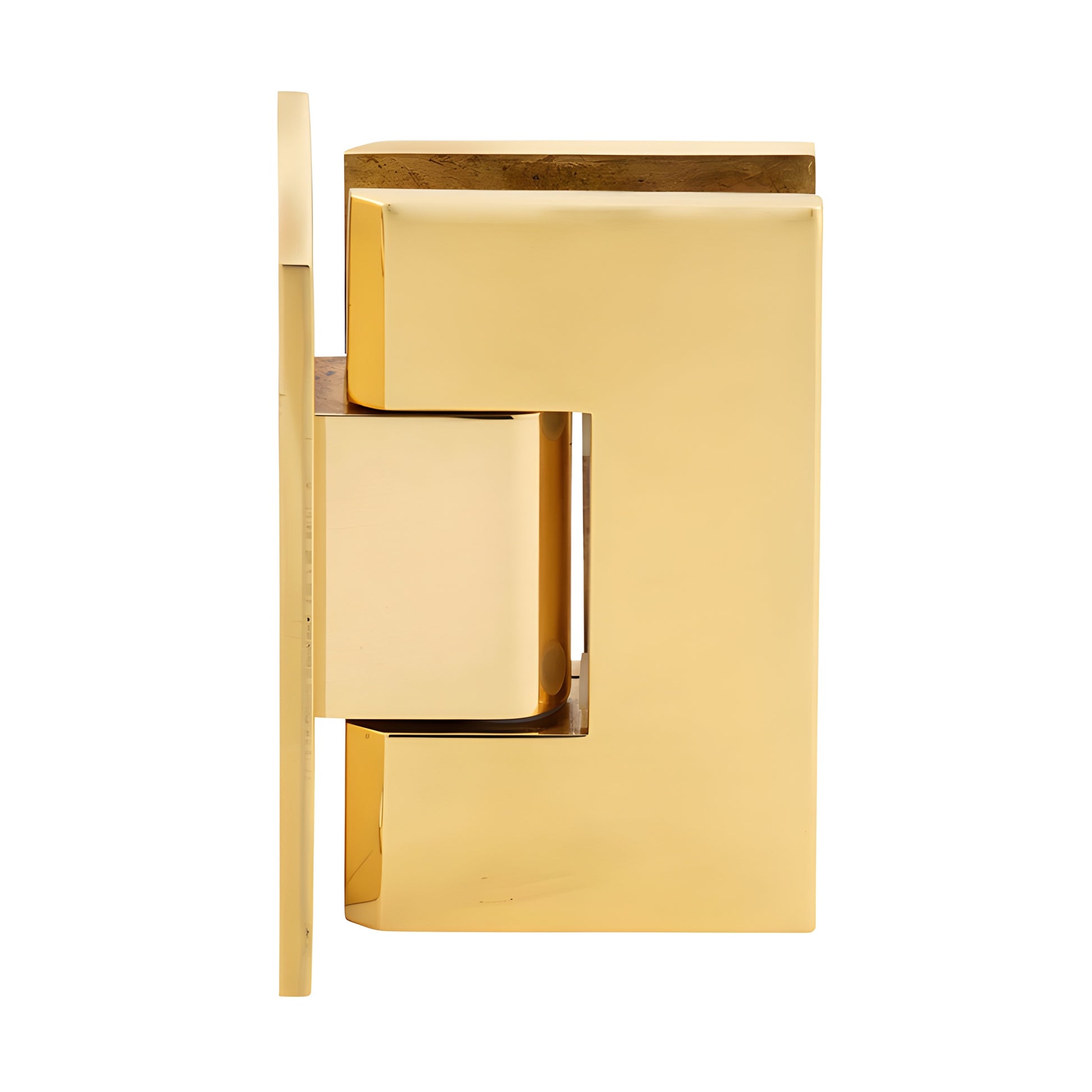

CRL Vienna 037 Wall Mount Hinge Unlacquered Brass Full Back Plate

• Accommodates 3/8" to 1/2" (10 to 12 mm) glass
• Self-centering with reversible 5° pivot pin
• Available in several durable finishes (including brass)
• 3 year warranty
• Wall-mount full back plate standard model (factory set for standard closing position)
• Use monolithic tempered safety glass

CRL Vienna Hinges (SKU: V1E037ULBR) are heavy-duty brass shower door hinges designed for wider, heavier frameless shower doors that standard hinges cannot support. Two internal steel pins provide mounting template options: leave both pins in place for compatibility with CRL "mouse-ears" cut-outs, or remove them for greater adjustability and to fit CRL and some competitive rectangular square-corner cut-outs.

STANDARD REVERSIBLE PIVOT PIN: Each Vienna Hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active; pre-set models ship at 85° (5° tighter closure into the shower interior). Rotate the pin (do not flip) to change the active angle.

CUSTOM PIVOT PIN: Custom pivot pins are available up to 45° for off-angle walls or non‑90° installations when the standard 5° adjustment is insufficient.

Capacity:

• Two hinges (3/8"–1/2" glass): supports up to 110 lbs (50 kg); maximum door width 36" (914 mm).
• Three hinges (3/8"–1/2" glass): supports up to 140 lbs (63 kg); maximum door width 36" (914 mm).

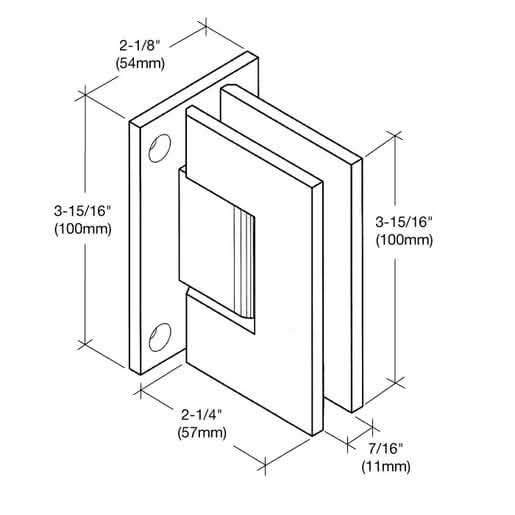

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass (heavy-duty shower door hinge)
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Except V1E092 which requires cut-out for door and two holes for fixed panel
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes available on request—contact CRL Technical Sales, Shower Door Department.

Product Warning:

CRL Shower Door Hinges are intended for residential or hotel shower use. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge—CRL cut-out dimensions may not match other brands.
