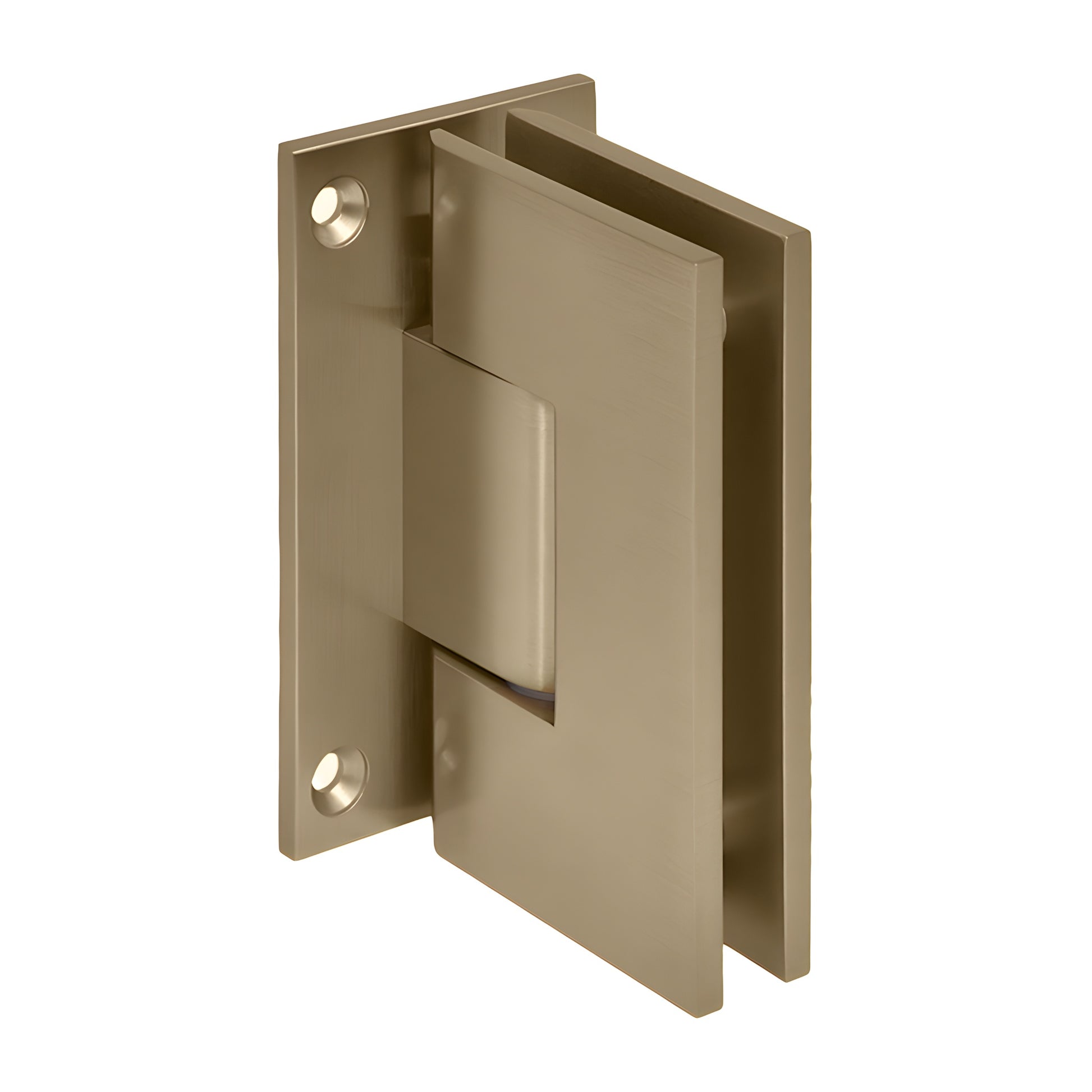

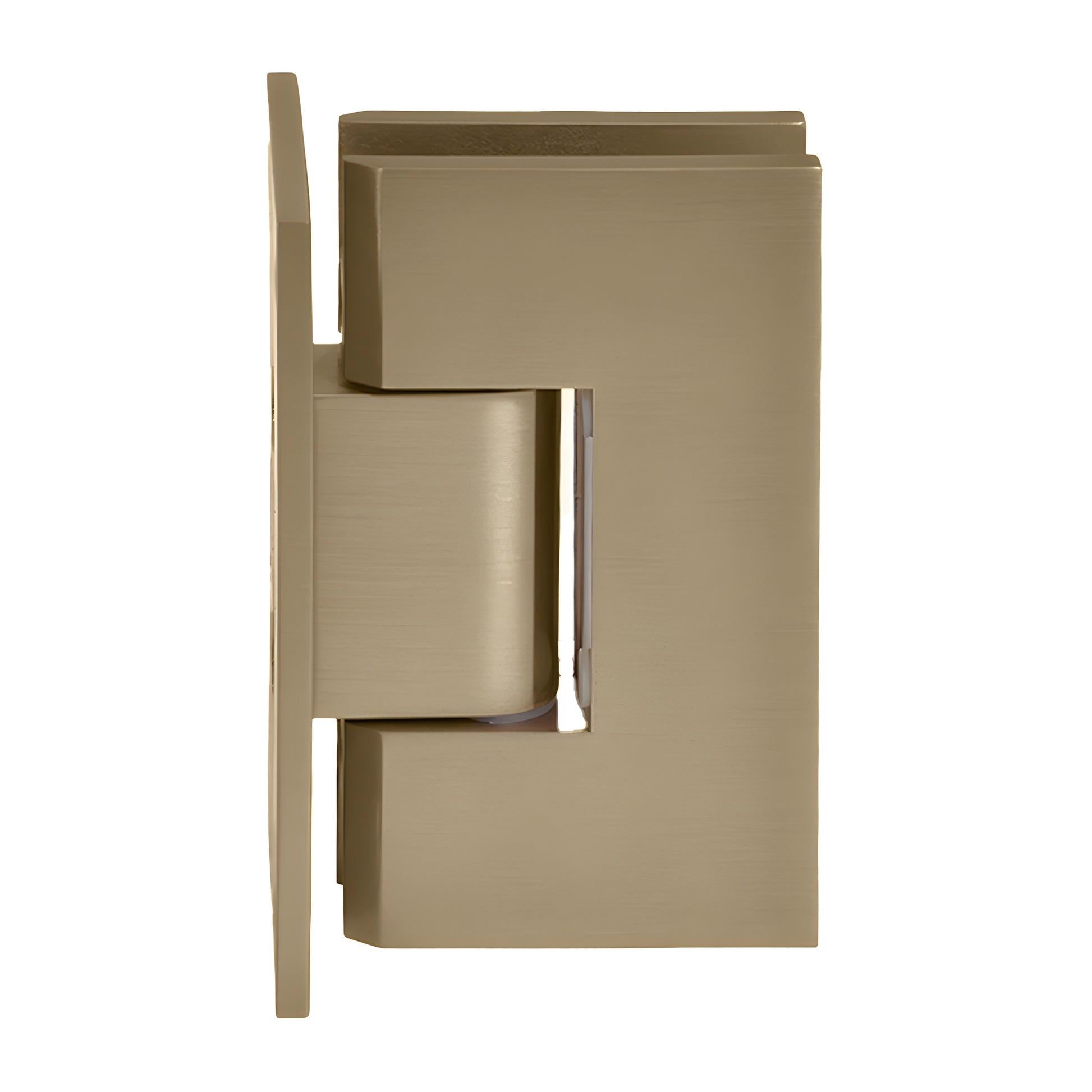

CRL Vienna 037 Dark Brushed Bronze Wall-Mount Full Back Plate Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Self-centering with reversible 5° pivot pin (standard or pre-set options)
• Available in several beautiful finishes; custom finishes available on request
• 3 year warranty
• Wall mount full back plate standard model (factory set for standard closing position)
• Use monolithic tempered glass

CRL Vienna Hinges (SKU: V1E037DBBZ) are engineered for wider, heavier shower doors when standard hinges are insufficient. Built with solid brass construction and two internal steel template pins, the Vienna Hinge supports both "mouse-ears" cut-outs and rectangular/square cornered cut-outs (removable pins enable the rectangular option). This versatility makes the hinge compatible with CRL cut-outs and, in some cases, competitive rectangular cut-outs.

Standard reversible pivot pin: Each hinge contains a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active; pre-set models ship with 85° engaged for a 5° tighter closure into the shower. Rotate the pin (do not flip) to activate the alternate angle.

Custom pivot pin: Custom pivot pins are available to accommodate off-angle installations (specify required angle up to 45° when needed).

Load capacity:
Using two hinges with 3/8"–1/2" (10–12 mm) glass: holds up to 110 lbs (50 kg), maximum door width 36" (914 mm).
Using three hinges with 3/8"–1/2" (10–12 mm) glass: holds up to 140 lbs (63 kg), maximum door width 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Except V1E092 which requires cut-out for door plus two holes for fixed panel
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes are available on request. Contact CRL Technical Sales, Shower Door Department.

Product Warning:
CRL shower door hinges are designed for residential and hotel shower use only. For any other application, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge—CRL cut-out dimensions may not match other brands.
