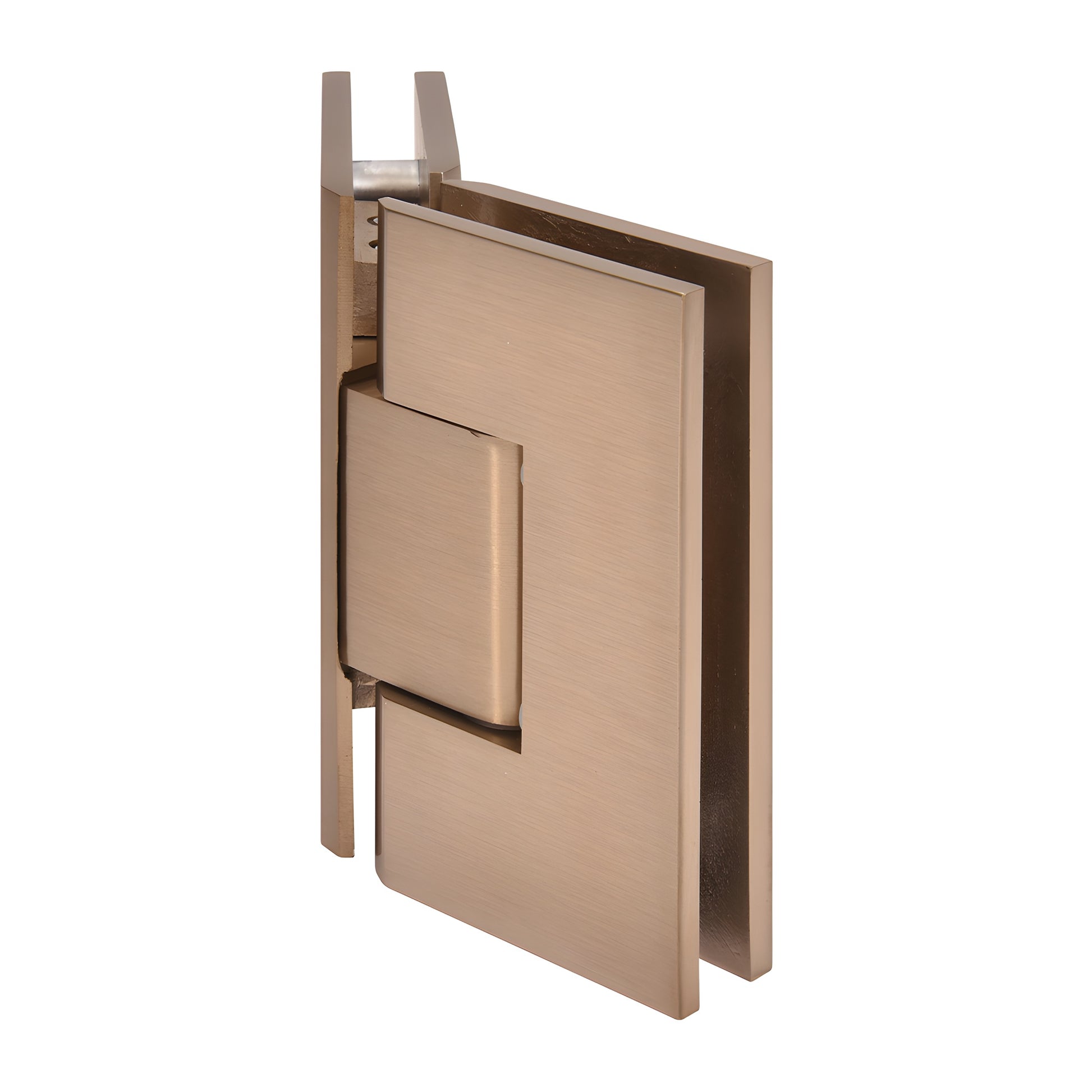

CRL Vienna 045 135° Brushed Bronze Glass Shower Door Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Available in several beautiful finishes
• 3 Year Warranty
• 135° glass-to-glass hinge — ideal for frameless shower doors
• Designed for monolithic tempered glass

CRL Vienna Hinges (SKU: V1E045DBBZ) are engineered for wider, heavier frameless shower doors where standard hinges are insufficient. Internal dual steel pins provide mounting template options: leave the pins in for CRL "mouse-ears" cut-outs for added safety, or remove them for increased adjustability and compatibility with CRL or competitive rectangular square-corner cut-outs. These hinges are a premium choice for shower door hinges for heavy glass doors and custom shower installations.

STANDARD REVERSIBLE PIVOT PIN: Each Vienna Hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with 90° activated; Pre-Set models ship with 85° activated for a 5° tighter closure into the shower interior. Rotate the pin (do not flip) to change the active angle.

CUSTOM PIVOT PIN: Custom pivot pins are available to accommodate off-angle walls. Specify the needed angle (up to 45°) when a standard adjustment does not achieve the desired door closure.

Load Capacity:
Using two hinges: Supports up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).
Using three hinges: Supports up to 140 lbs. (63 kg) with a maximum door width of 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass — durable corrosion resistance for shower environments
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Cut-out required (except V1E092 which requires cut-out for door and two holes for fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes are available on request. Contact CRL Technical Sales — Shower Door Department for custom finish options and pricing.

Product Warning:

CRL Shower Door Hinges are intended for residential or hotel shower use. For other applications, obtain approval from CRL
