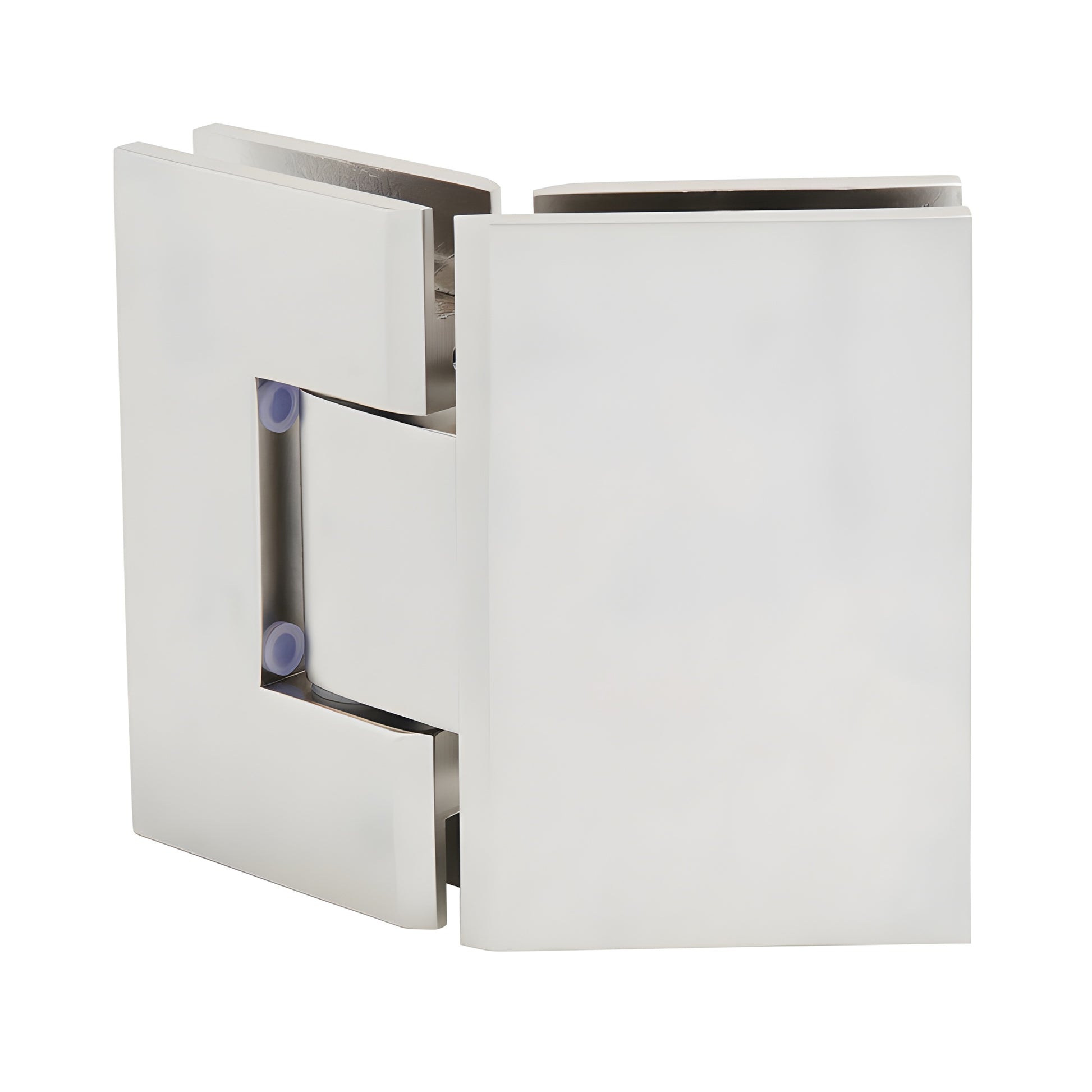

CRL Vienna 045 135° Satin Nickel Frameless Shower Door Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Available in several beautiful finishes — custom finishes available on request
• 3 Year Warranty
• 135° glass-to-glass hinge for frameless shower doors
• Designed for monolithic tempered glass

CRL Vienna Hinges — Model V1E045SN

Solid-brass Vienna hinges engineered for wider, heavier frameless shower doors where standard hinges fail. Two internal steel pins provide dual template options: leave pins in for CRL "mouse-ears" cut-outs (recommended for safety), or remove pins for increased adjustability and compatibility with rectangular, square-corner cut-outs — including some competitive templates.

STANDARD REVERSIBLE PIVOT PIN:

Each hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active; Pre-Set models ship at 85° for a 5° tighter closure toward the shower interior. Rotate (do not flip) the pin to switch sides.

CUSTOM PIVOT PIN:

Custom pivot pins are available up to 45° to accommodate off-angle installations (e.g., walls not meeting the door at 90°).

Load Capacity & Hinge Count:

• Using two hinges (3/8"–1/2" glass): supports up to 110 lbs (50 kg), maximum door width 36" (914 mm)
• Using three hinges (3/8"–1/2" glass): supports up to 140 lbs (63 kg), maximum door width 36" (914 mm)

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass (durable brass shower door hinge for frameless glass)
Hinge Swings: 90° in and 90° out (self-centering within 15° of closed position)
Cut-Out Required: Cut-out required — except V1E092 which requires door cut-out plus two holes for fixed panel
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes and technical assistance are available. Contact CRL Technical Sales — Shower Door Department for finish options or custom pivot pins.

Product Warning:

CRL shower door hinges are designed for residential and hotel shower use only. For alternate uses, obtain approval
