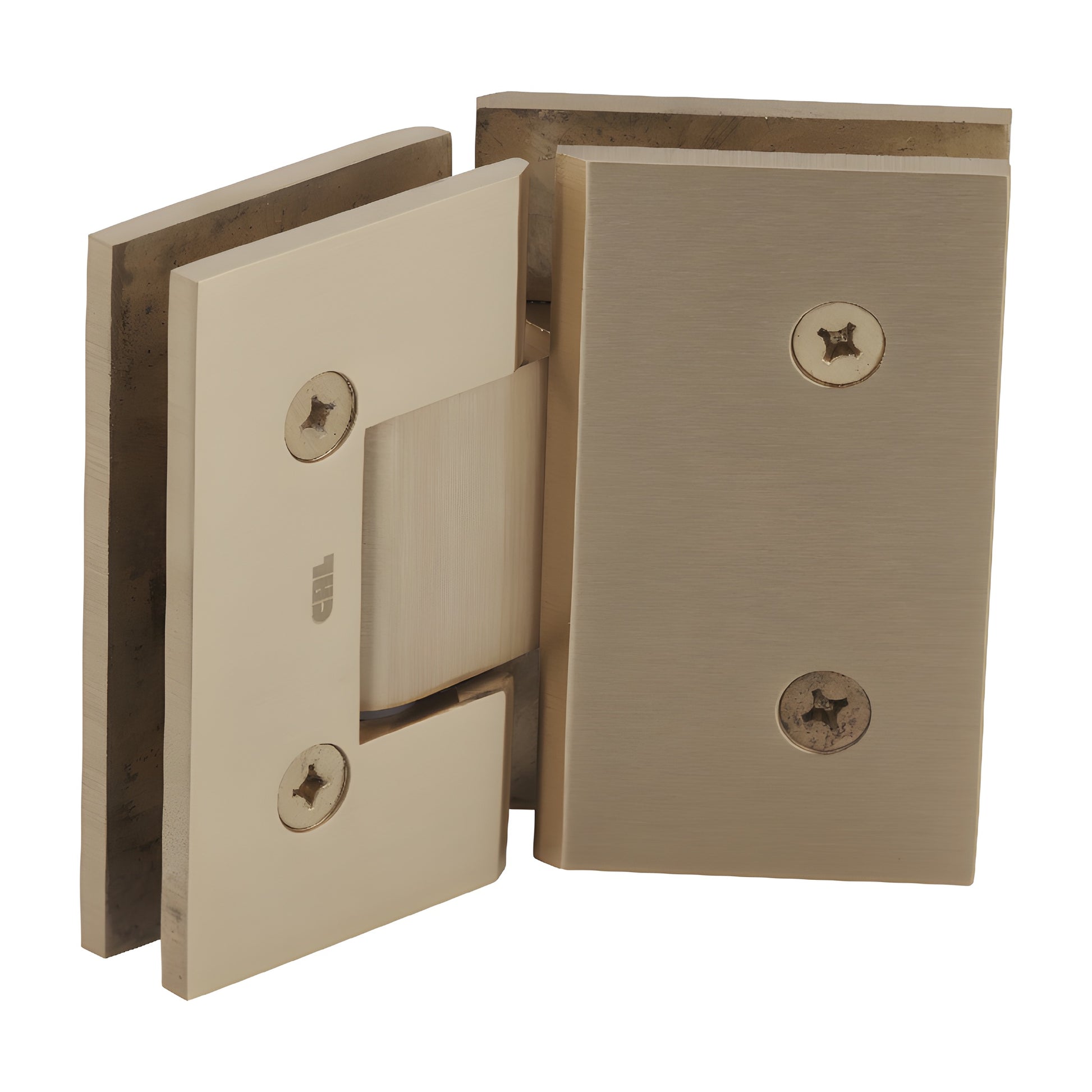

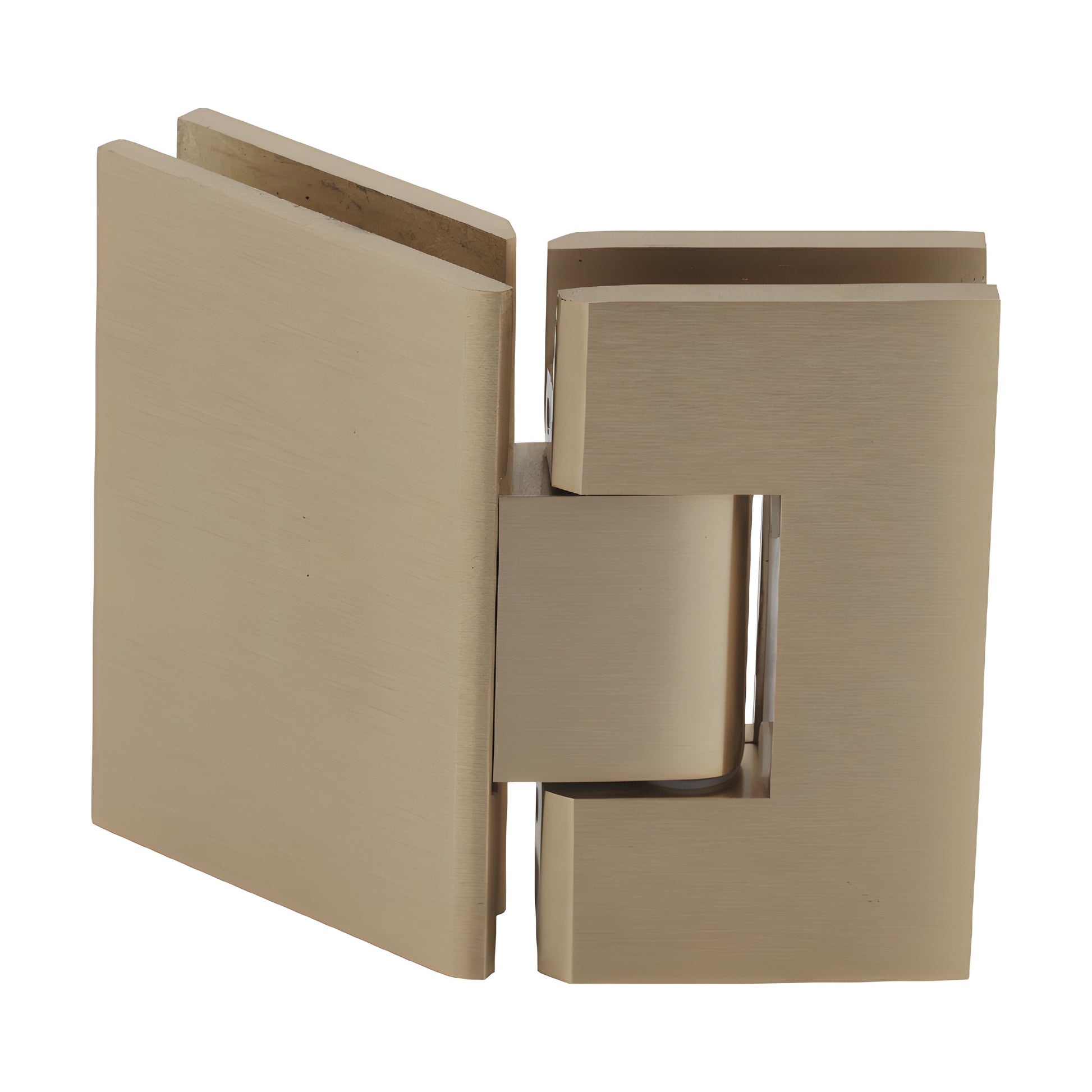

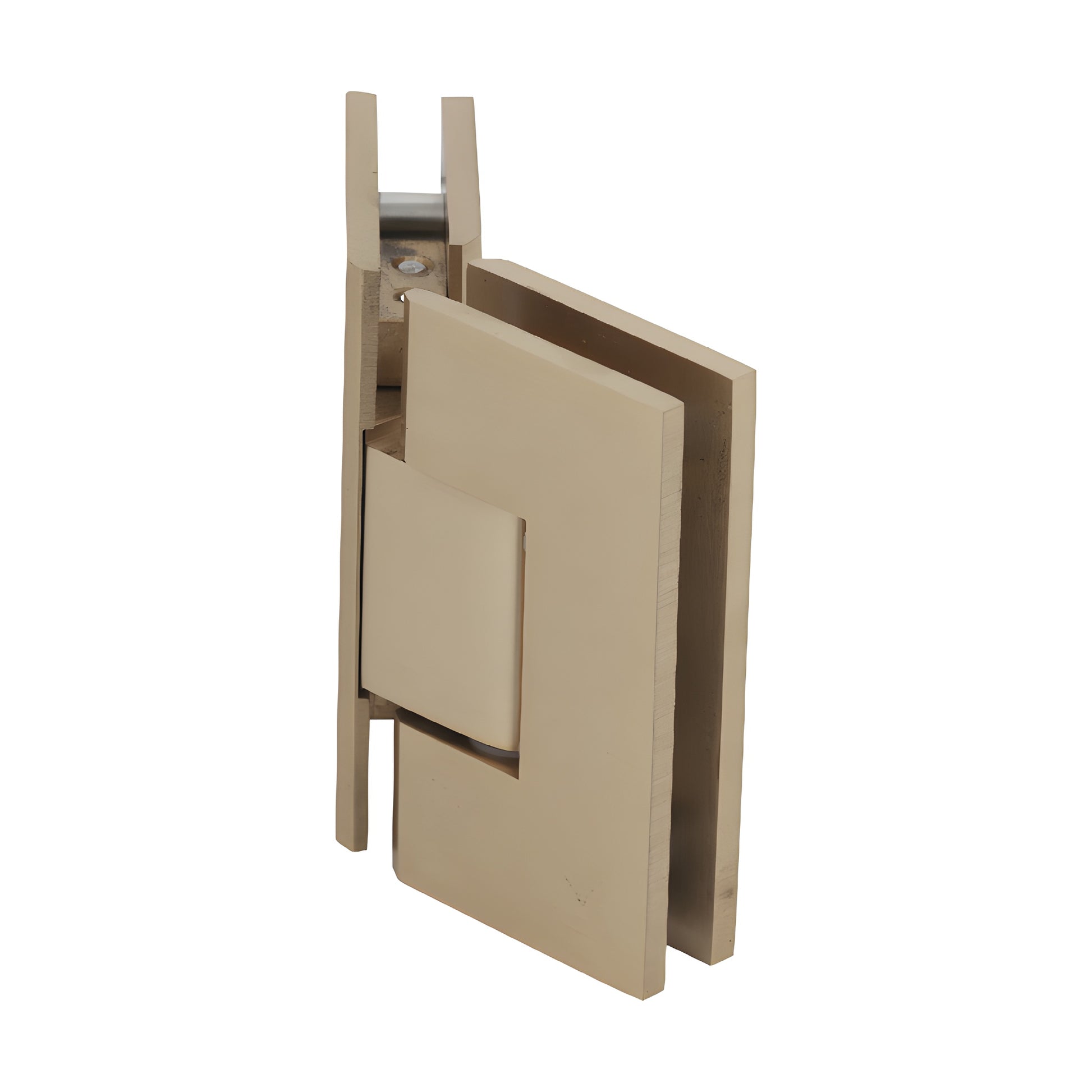

CRL Vienna 045 Satin Brass 135° Glass-to-Glass Frameless Shower Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Available in several durable finishes (custom finishes on request)
• 3 Year Warranty
• 135° glass-to-glass configuration for frameless shower doors
• Designed for monolithic tempered glass shower doors

CRL Vienna Hinges provide heavy-duty support for wider, heavier frameless shower doors where standard hinges fail. Constructed from solid brass with internal dual steel pins, these hinges offer two template options: leave the pins in place for safe "mouse-ears" cut-outs, or remove them for increased adjustability and compatibility with rectangular, square-corner cut-outs (may fit some competitive cut-outs).

STANDARD REVERSIBLE PIVOT PIN: Each hinge contains a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side activated; Pre-Set models ship at 85° for a 5° tighter closure into the shower interior. Rotate the pin (do not flip) to switch sides.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (specify up to 45°) when the standard adjustment does not achieve the desired door closing position.

LOAD CAPACITY:
Using two hinges with 3/8"–1/2" (10–12 mm) glass: supports up to 110 lbs (50 kg), maximum door width 36" (914 mm).
Using three hinges with 3/8"–1/2" (10–12 mm) glass: supports up to 140 lbs (63 kg), maximum door width 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass (heavy-duty shower door hinge, corrosion-resistant finish options available)
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of the closed position
Cut-Out Required: Cut-out required except V1E092 (requires cut-out for door plus two holes for fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes and pivot angles are available—contact CRL Technical Sales Shower Door Department for custom solid brass shower hinge options.
