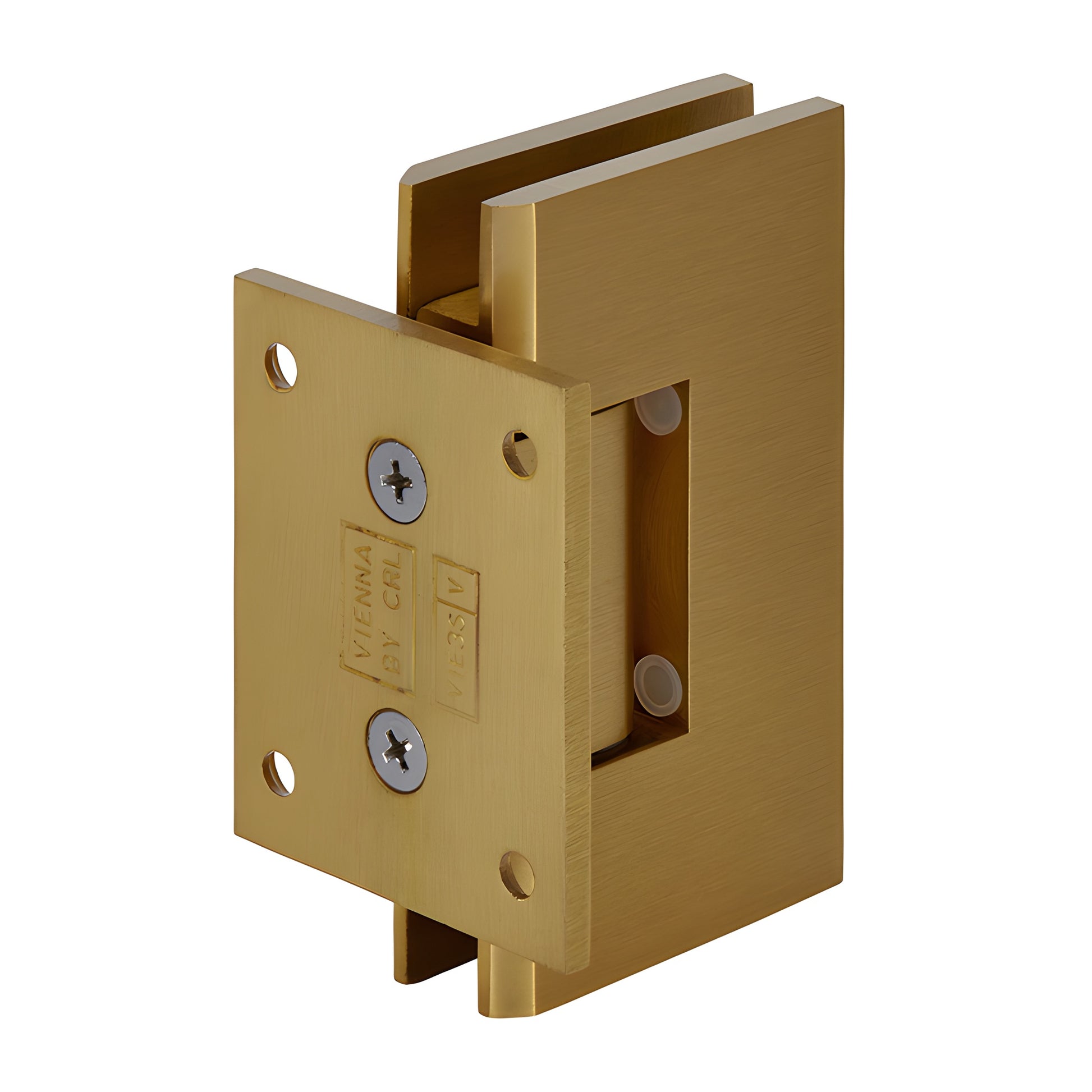

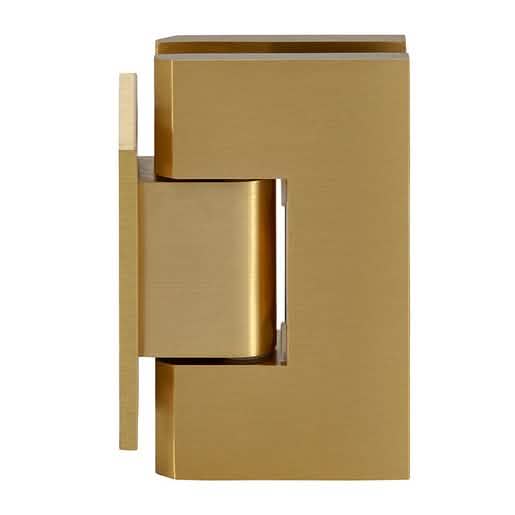

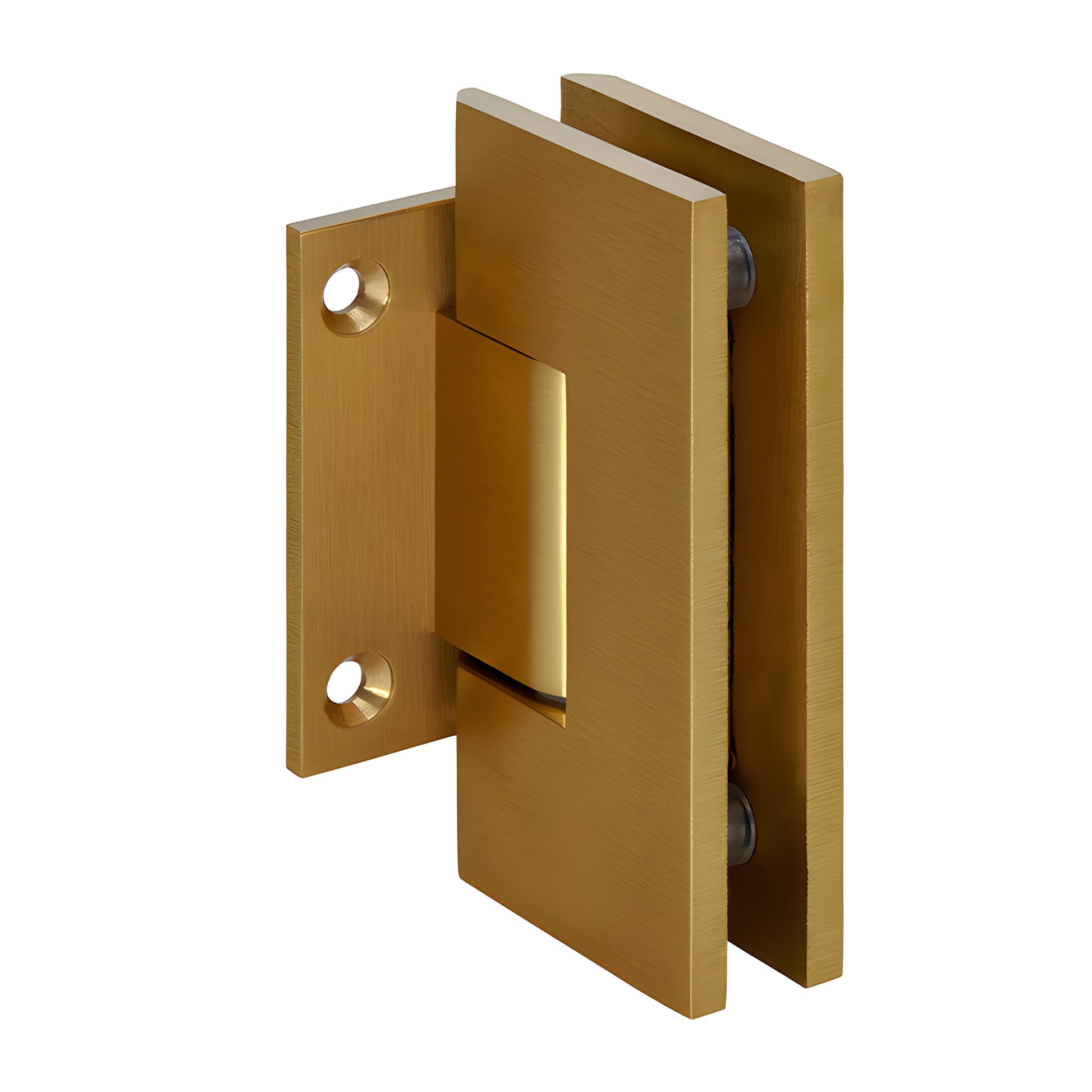

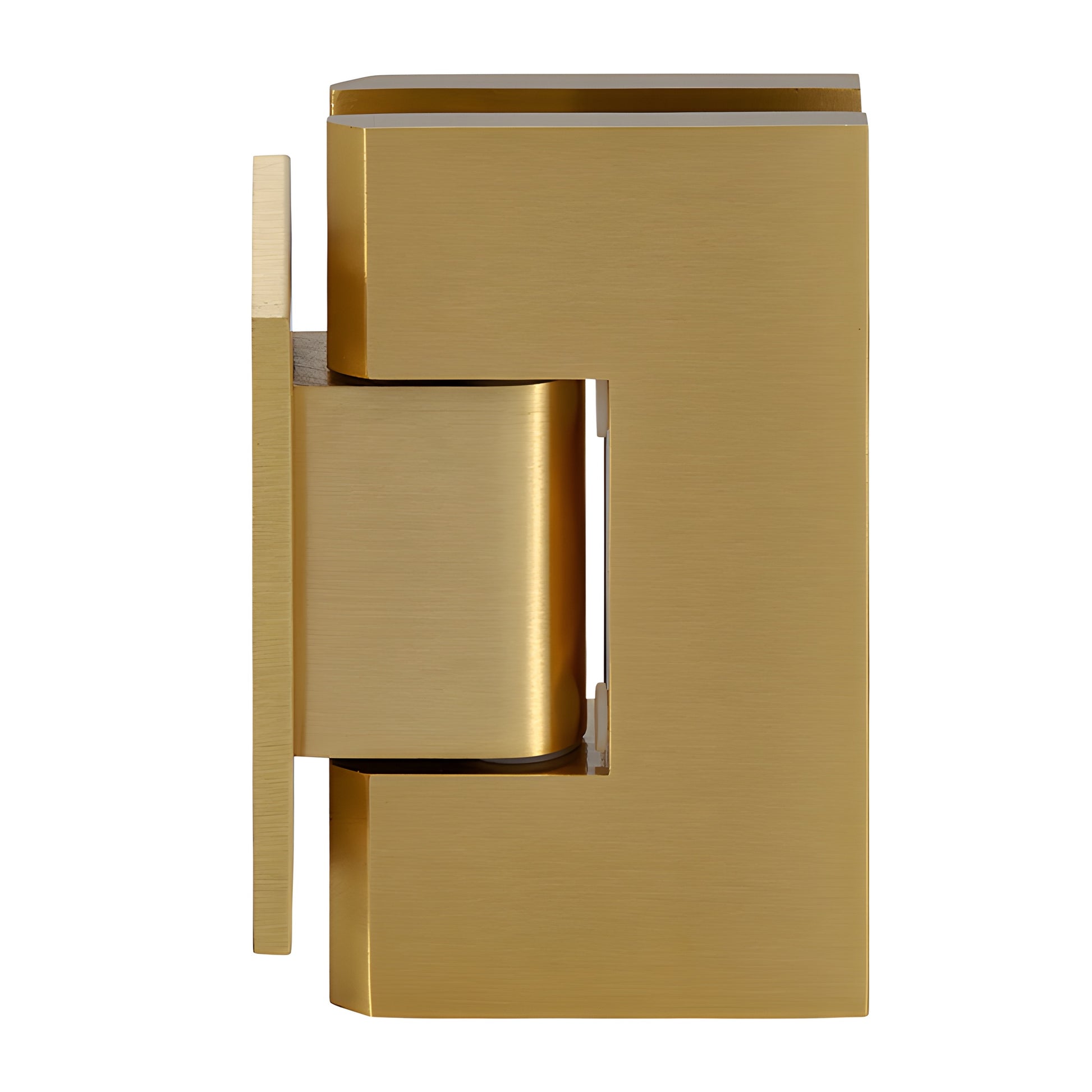

CRL Vienna 074 Satin Brass Wall-Mount Short Back Plate Door Hinge

• SKU: V1E074SB
• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Wall mount short back plate
• Available in several beautiful finishes; custom finishes on request
• 3 Year Warranty
• Designed for monolithic tempered glass shower doors

CRL Vienna Hinges are heavy-duty brass shower door hinges engineered for wider, heavier tempered glass doors that exceed the capacity of standard hinges. Dual internal steel pins provide two template options: leave pins installed for compatibility with CRL "mouse-ears" cut-outs, or remove the pins for increased adjustability and to fit CRL or some competitive rectangular, square-corner cut-outs. These features make Vienna Hinges ideal as a brass shower door hinge for custom or retrofit installations.

STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin with a 90° side (standard) and an 85° side (pre-set option). Rotate the pin (do not flip) to switch between the 90° and 85° settings; the 85° setting provides a 5° tighter closure into the shower interior.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle wall conditions (specify required angle up to 45°) to ensure proper door closing when walls are not square.

Capacity & Door Size:

• Two hinges with 3/8" (10 mm) glass: up to 100 lb (45 kg), max door width 34" (864 mm)
• Two hinges with 1/2" (12 mm) glass: up to 100 lb (45 kg), max door width 32" (813 mm)
• Three hinges with 3/8" (10 mm) glass: up to 130 lb (59 kg), max door width 34" (864 mm)
• Three hinges with 1/2" (12 mm) glass: up to 130 lb (59 kg), max door width 32" (813 mm)

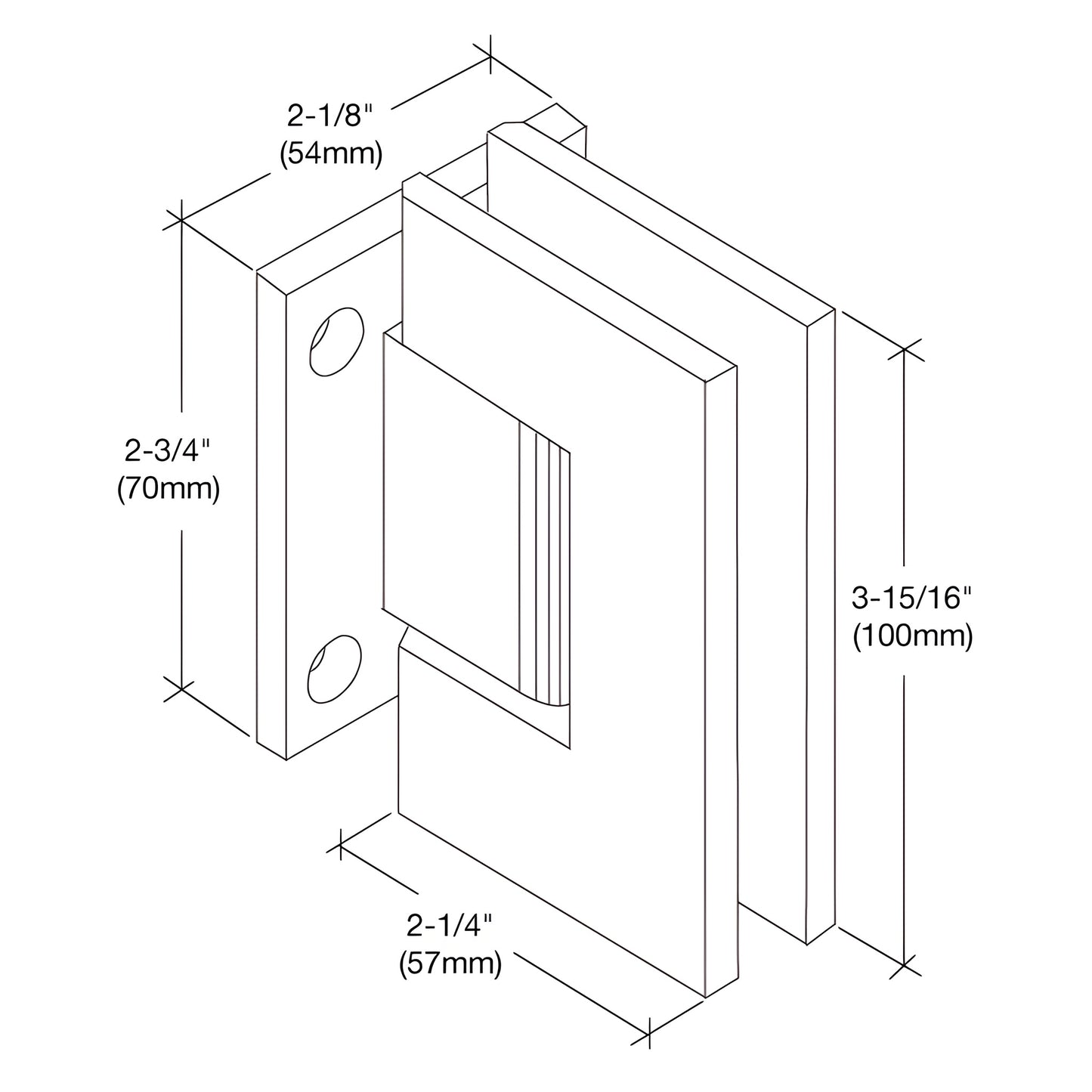

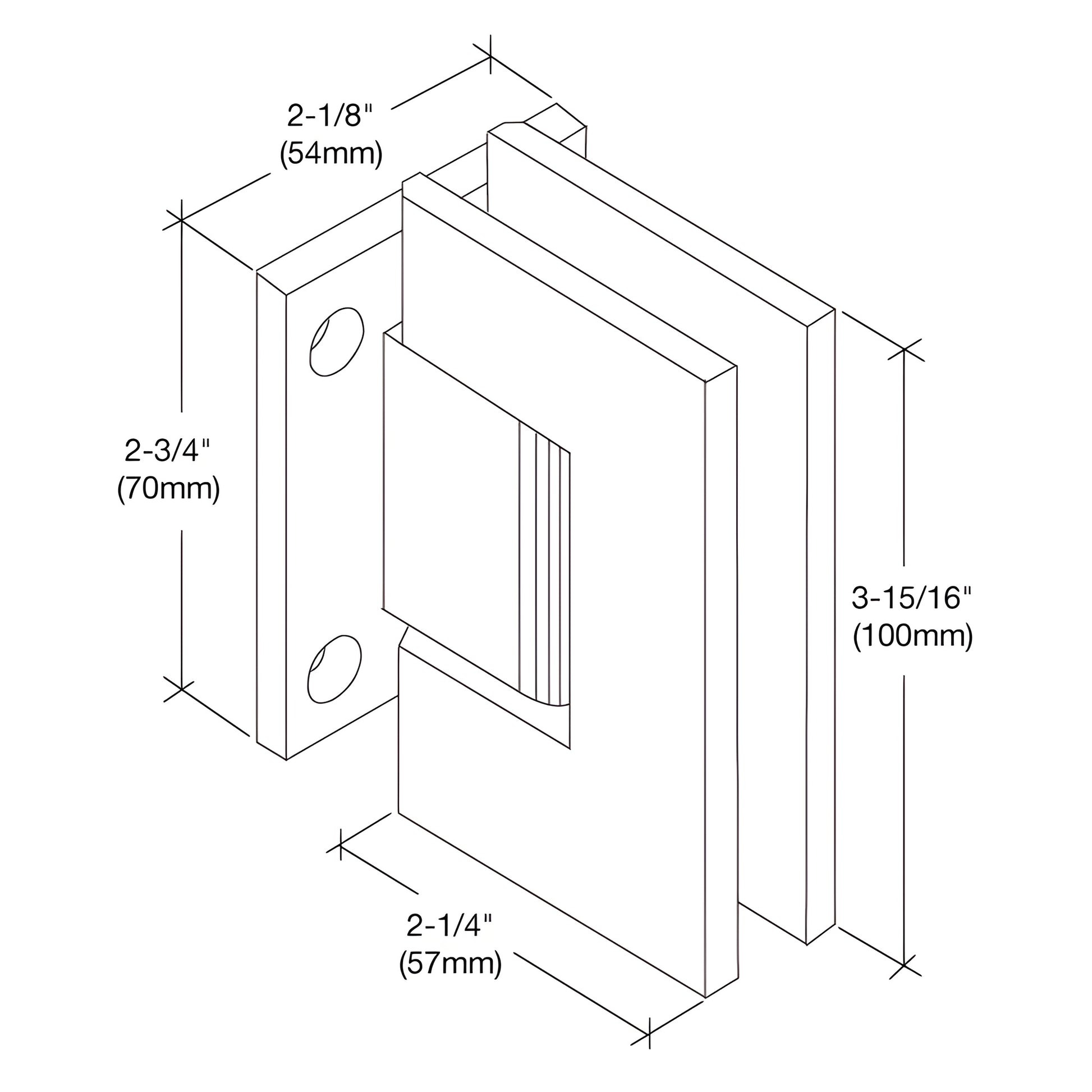

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass (durable brass shower door hinge)
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Cut-out required (except V1E092, which requires cut-out for door plus two holes for fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9
