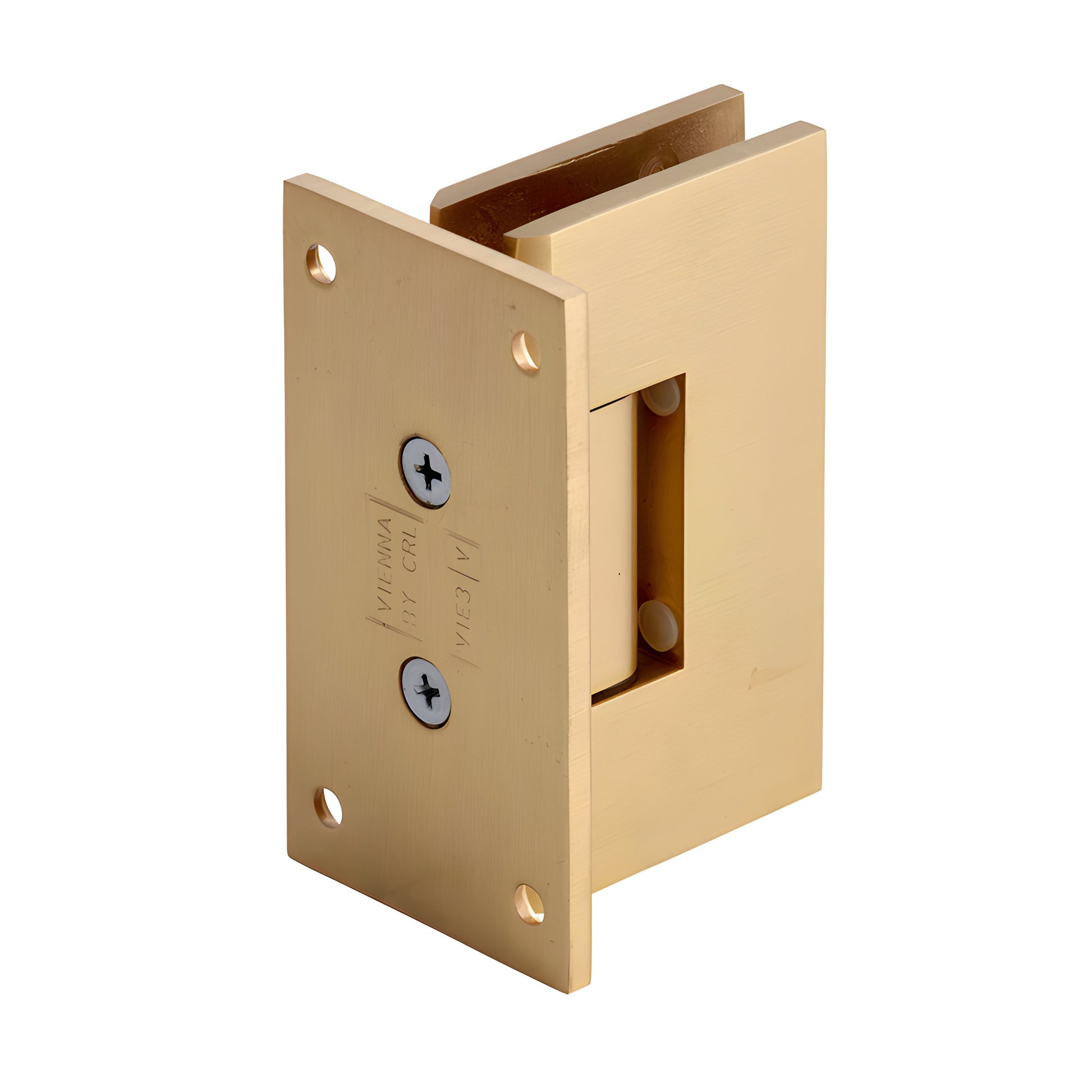

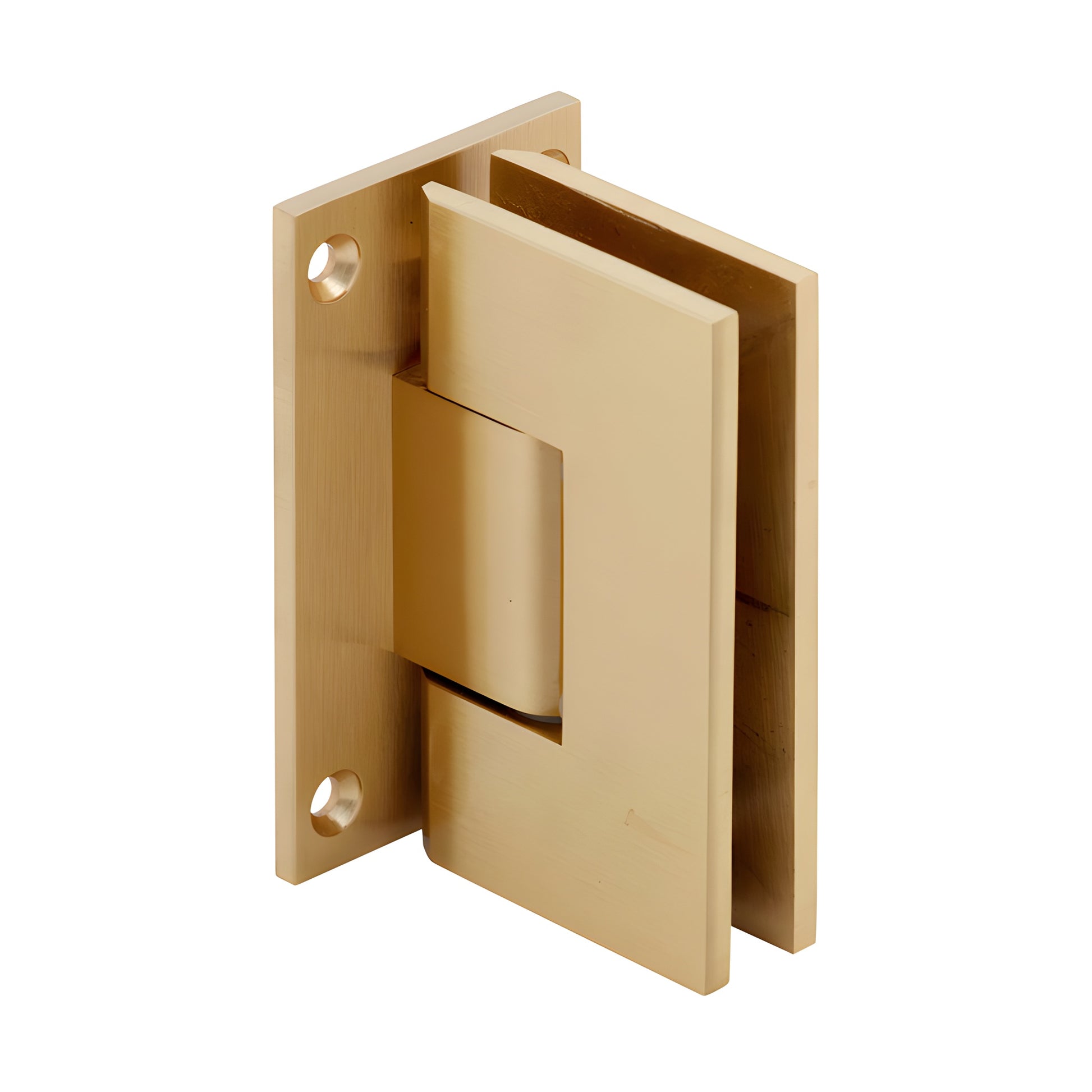

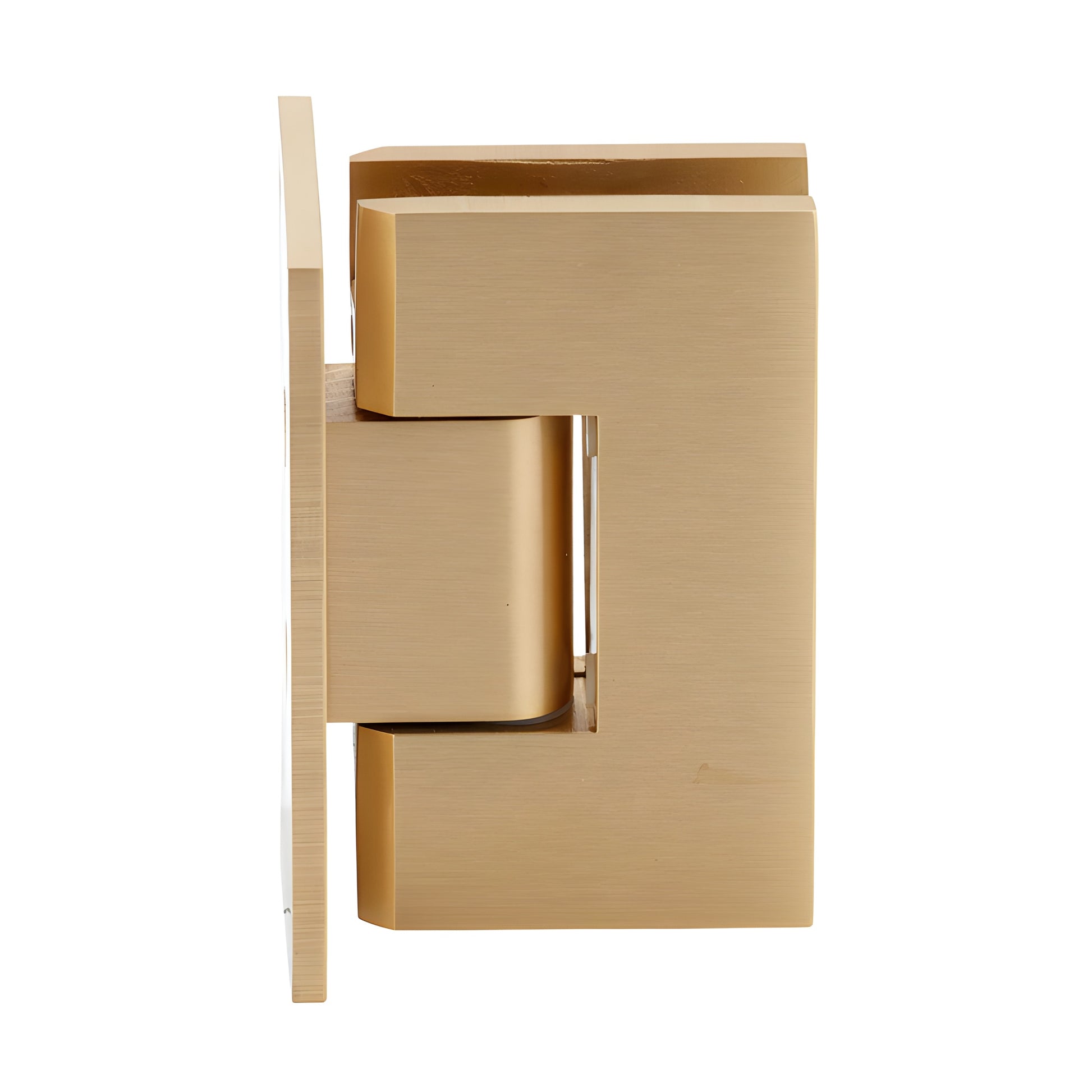

CRL Vienna 037 Satin Brass Wall Mount Full Back Plate Door Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Self-centering with reversible 5 degree pivot pin
• Available in several durable finishes
• 3-year warranty
• Wall-mount full back plate standard model (factory set for standard closing position)
• For monolithic tempered glass installations

CRL Vienna Hinges (SKU: V1E037SB) are engineered for wider, heavier shower doors where conventional hinges fall short. Internal dual steel pins provide two template options: leave pins in place for compatibility with CRL "mouse-ears" cut-outs and added safety, or remove them for increased adjustability and to fit CRL rectangular (square-corner) cut-outs — in some cases fitting competitive rectangular cut-outs as well.

STANDARD REVERSIBLE PIVOT PIN: Each Vienna Hinge includes a reversible pivot pin with a 90° side (standard) and an 85° side (5° tighter closure into the shower interior). Pins are rotated (not flipped) to change the active angle.

CUSTOM PIVOT PIN: Custom pivot pins are available to accommodate off-angle walls—specify up to 45° when the standard 5° offset does not achieve the desired closing position.

Load Capacity:
Using two hinges with 3/8"–1/2" (10–12 mm) glass: holds up to 110 lb (50 kg); maximum door width 36" (914 mm).
Using three hinges with 3/8"–1/2" (10–12 mm) glass: holds up to 140 lb (63 kg); maximum door width 36" (914 mm).

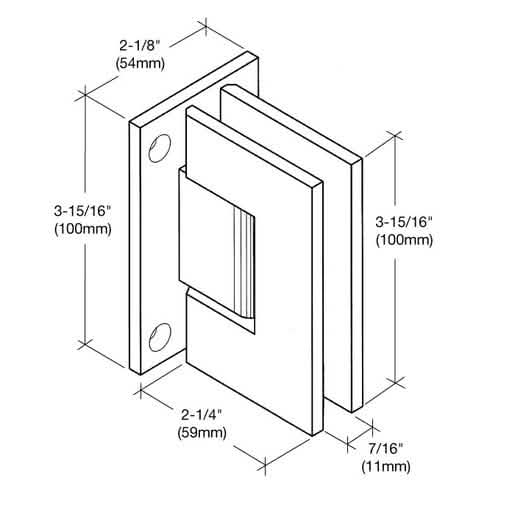

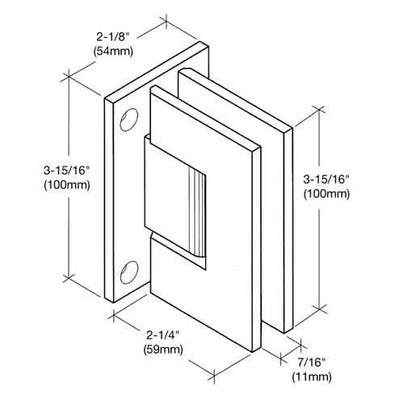

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Standard models require cut-out (except V1E092 which requires cut-out for door and two holes for fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m)

Custom finishes available on request. Contact CRL Technical Sales — Shower Door Department for custom colors or pivot angles.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use only. For other applications, obtain approval from CRL
