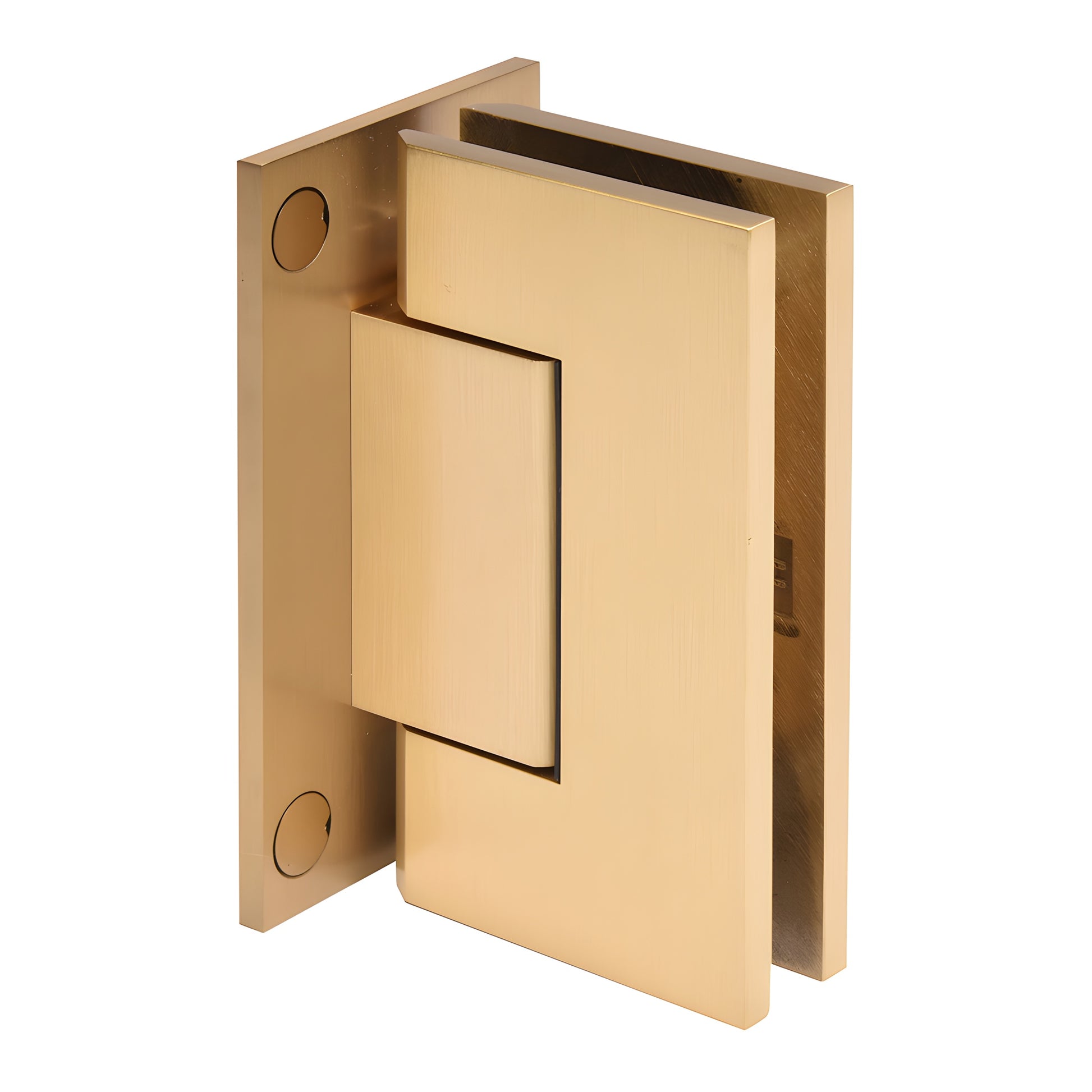

CRL Trento Satin Brass Full-Back Door Hinge

• Supports heavier frameless glass shower doors (up to 140 lb with two hinges, 175 lb with three)
• Concealed mounting screws for a clean, modern appearance
• Wall-mount full back plate — standard model
• Single NAF gasket compatible with both 3/8" (10 mm) and 1/2" (12 mm) monolithic tempered glass
• Designed for monolithic tempered glass shower doors

CRL Trento Hinge (SKU: TNT037SB) is a heavy-duty hinge engineered for modern frameless shower doors. Its sleek rectangular body and narrow gap deliver a refined, minimal look while fully concealed screws maintain clean sightlines.

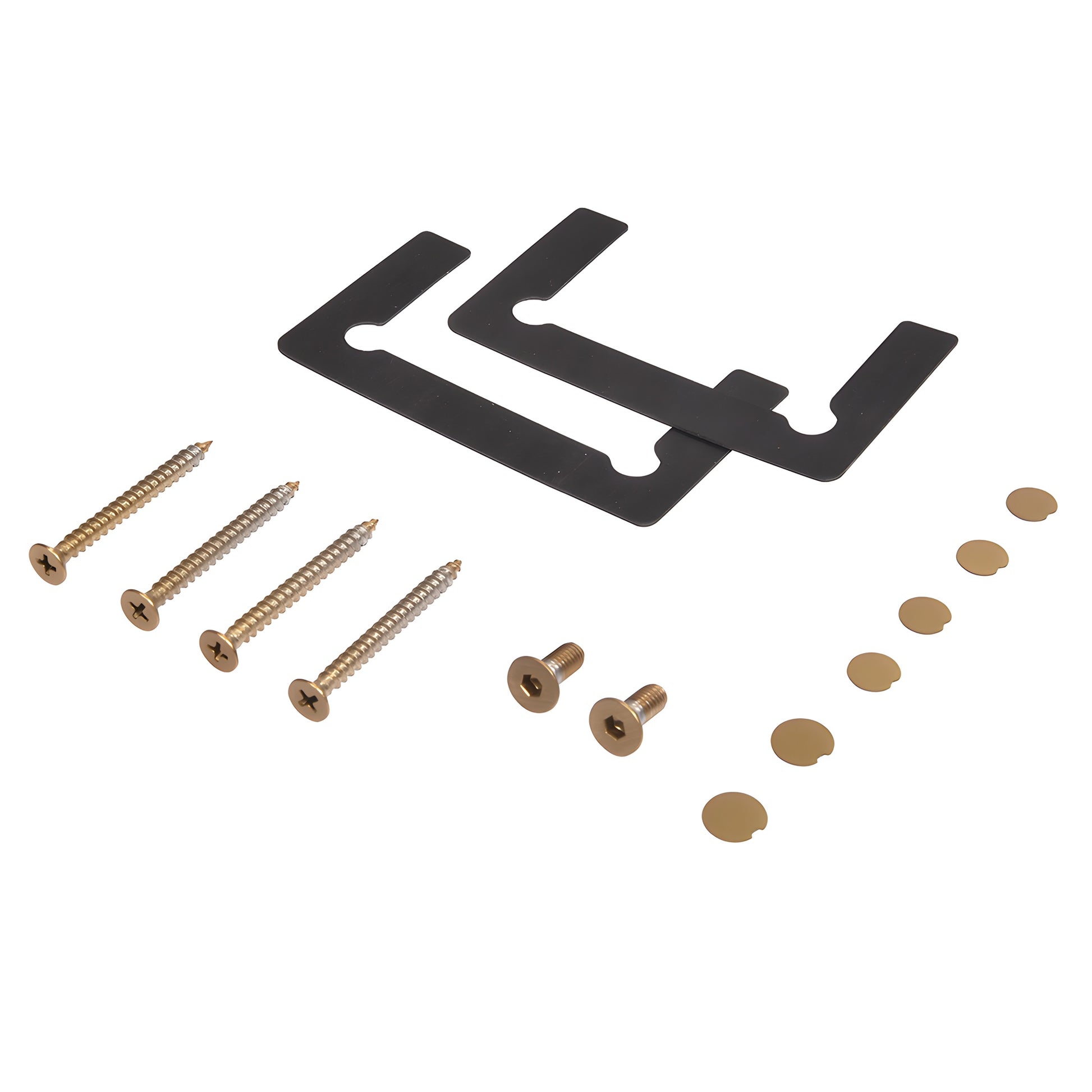

The Trento hinge uses durable NAF gaskets that compress to maintain a consistent grip on varying glass surfaces. Gaskets are compatible with both 3/8" and 1/2" (10 and 12 mm) monolithic tempered glass commonly used in frameless shower door installations.

Standard reversible pivot pin: Each hinge includes a reversible pivot pin that adjusts the door’s closed position by ±5° (choose 95° or 85°) without flipping the pin. This field adjustment helps align doors, maintain a tight seal, and ensure smooth operation — a key differentiator for precise frameless shower door alignment.

Load capacity & sizing:

• Two-hinge installation: supports doors up to 140 lb (63 kg) and up to 40" (1016 mm) wide
• Three-hinge installation: supports doors up to 175 lb (79 kg) and up to 40" (1016 mm) wide

Product warning: CRL shower door hinges are intended for residential or hotel shower use only. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the included template — cut-out dimensions for CRL hinges may differ from other brands.

Brass Finish Advisory:

Choose the CRL Trento Hinge (TNT037SB) for a high-load, low-profile frameless shower door hinge with concealed screws, reversible pivot adjustment, and
