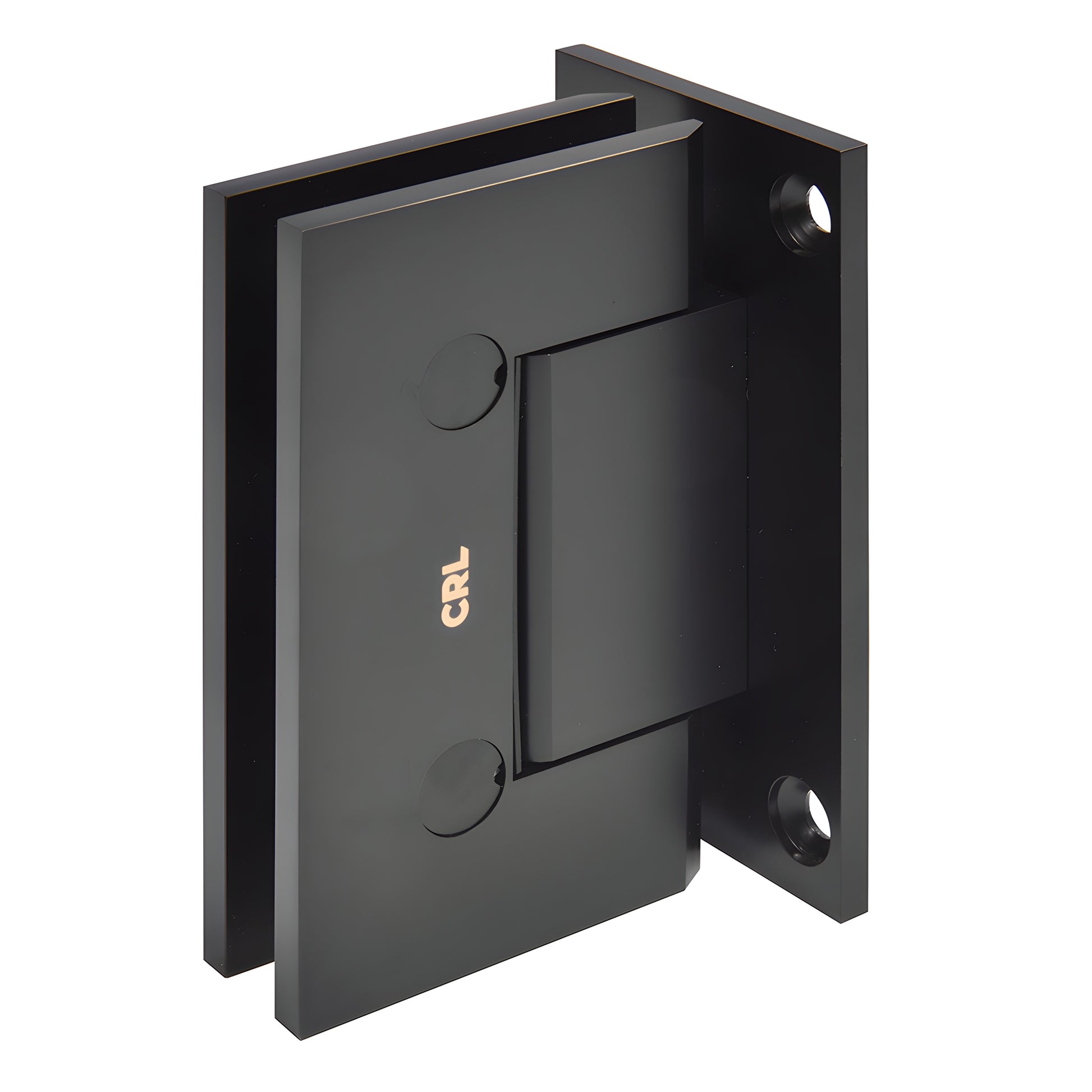

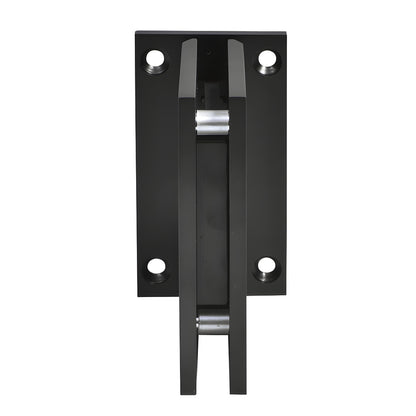

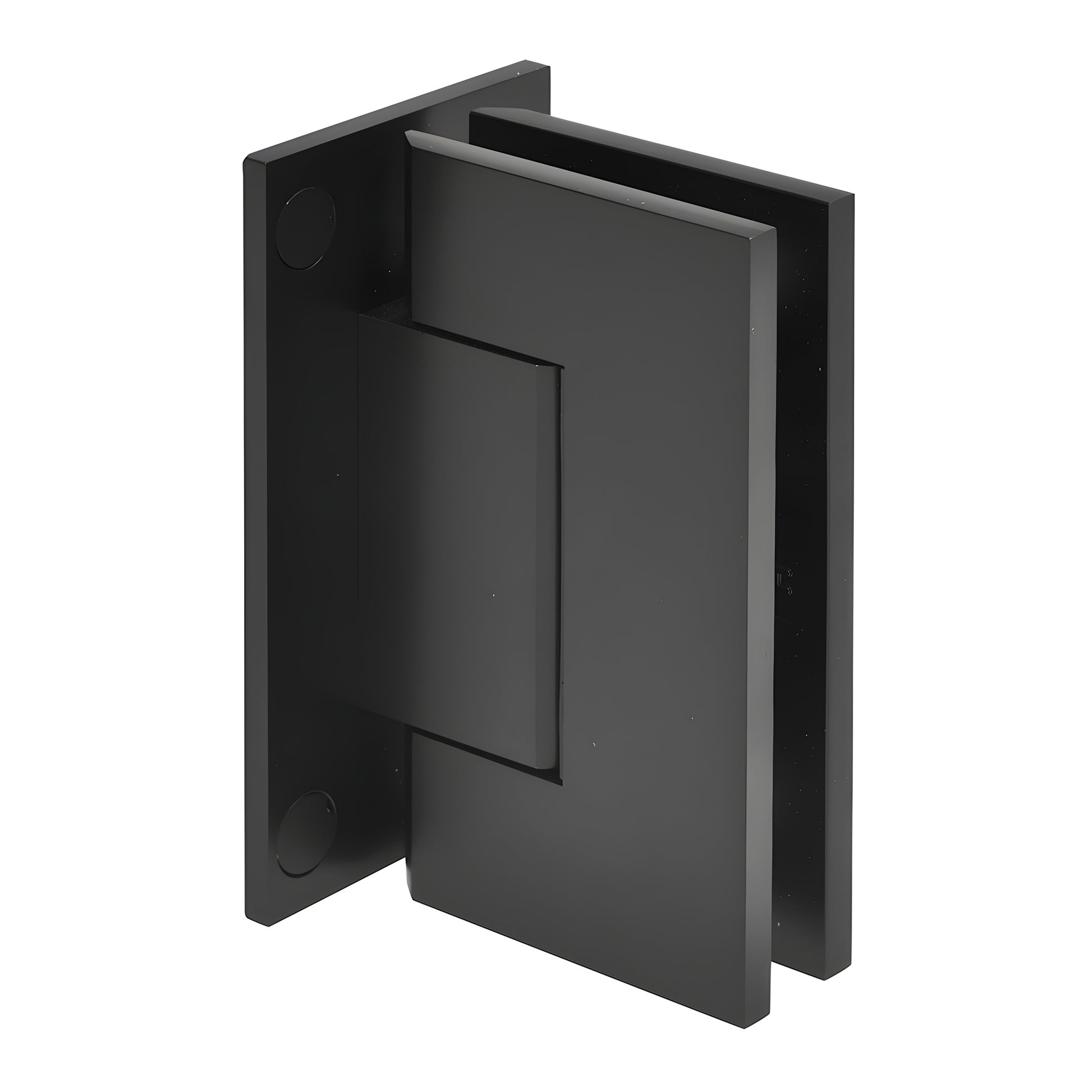

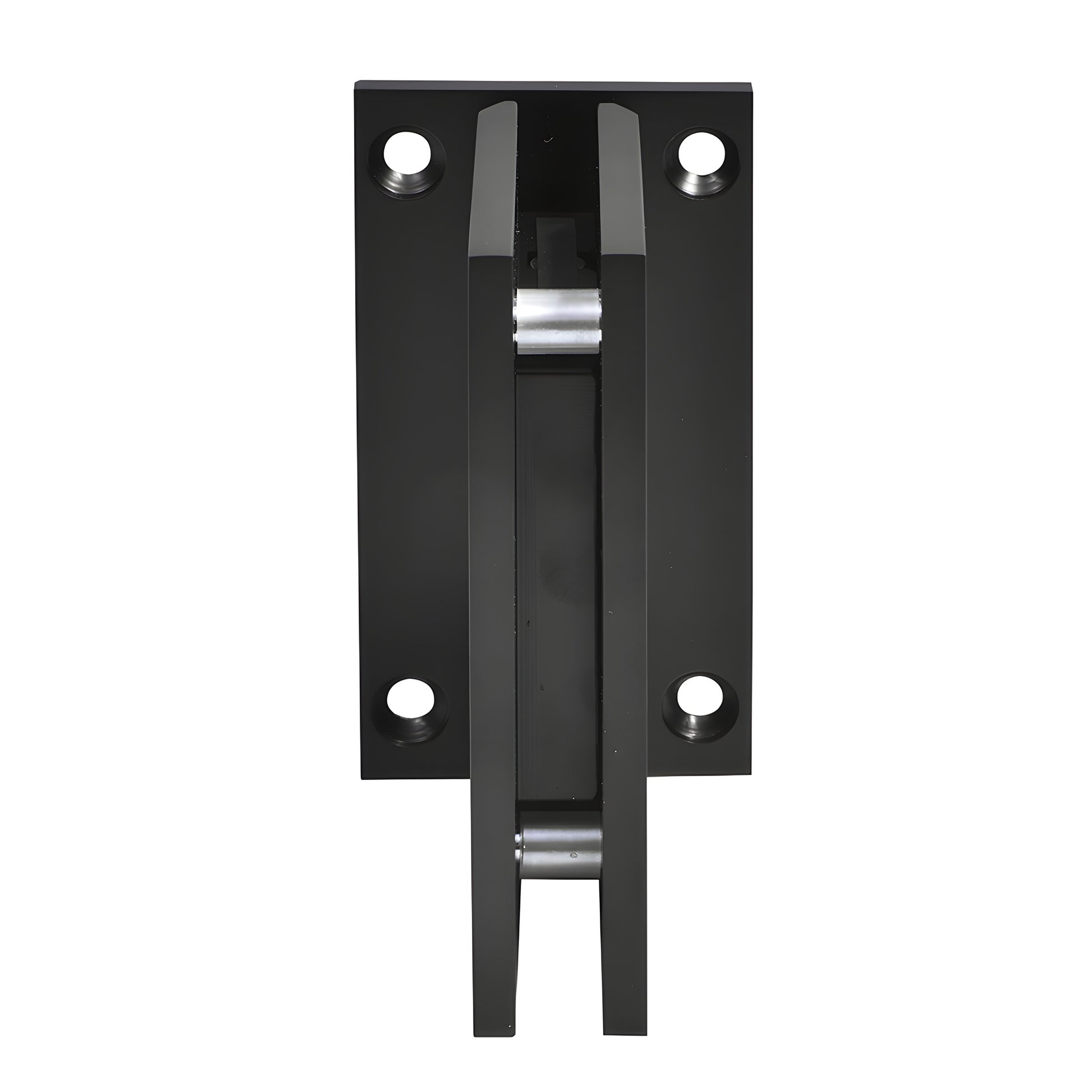

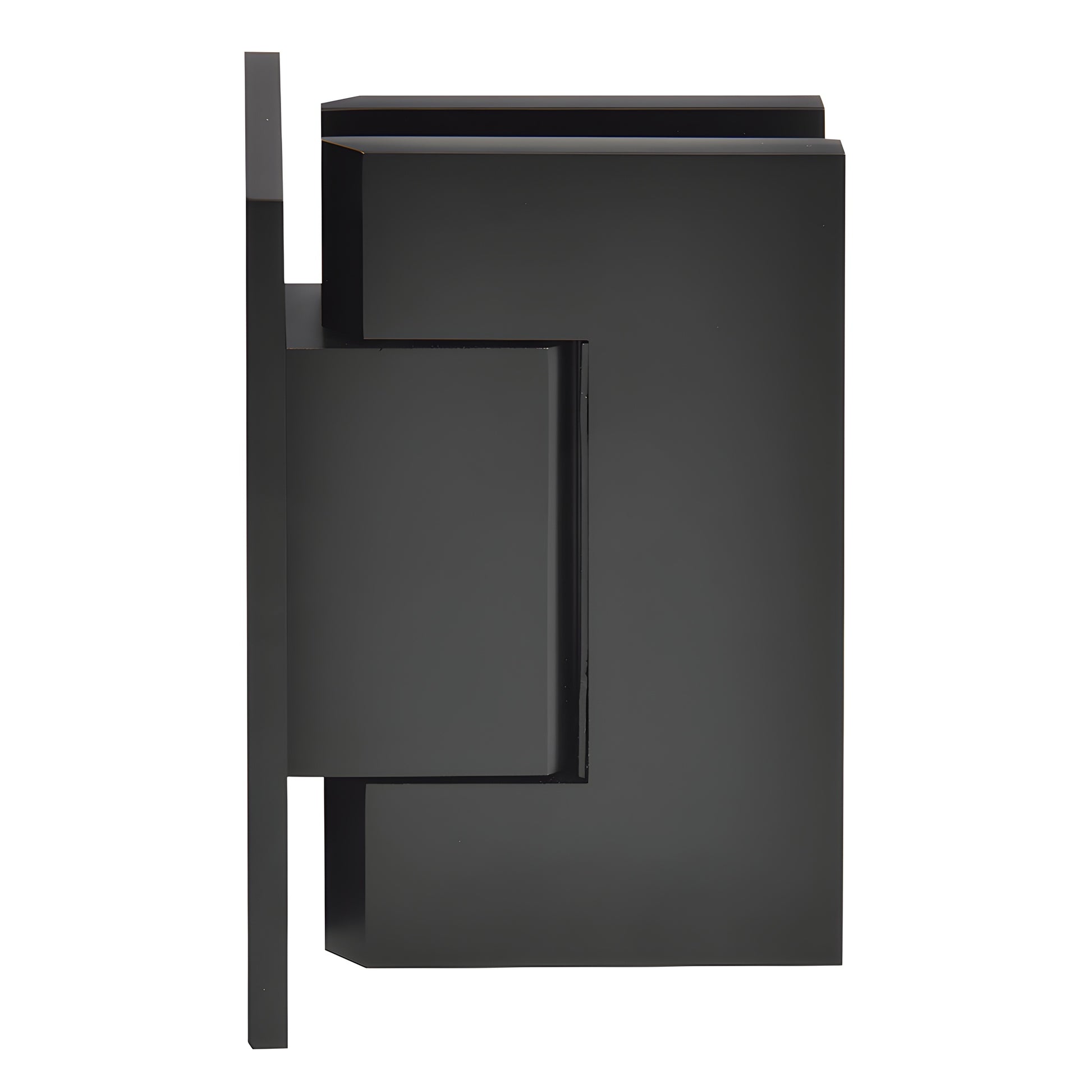

CRL Trento Matte Black Full-Back Hinge for Glass Shower Doors
CRL Trento Matte Black Full-Back Hinge for Glass Shower Doors
Regular price
$127.07 CAD
Regular price
Sale price
$127.07 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# TNT037MBL
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
5 Degree Pre-Set
No
Adjustable
No
Back Plate
Full
Finish/Color
Matte Black

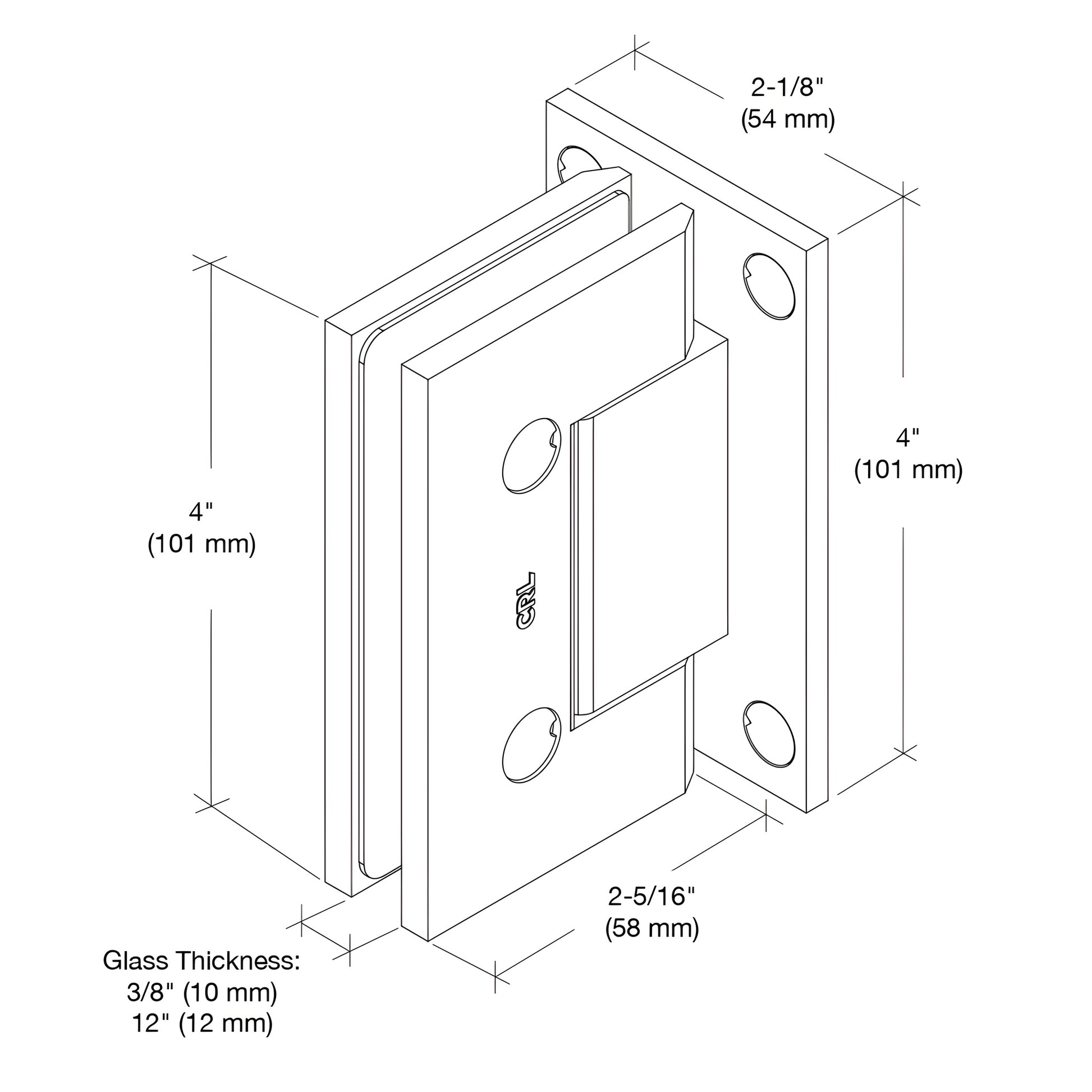

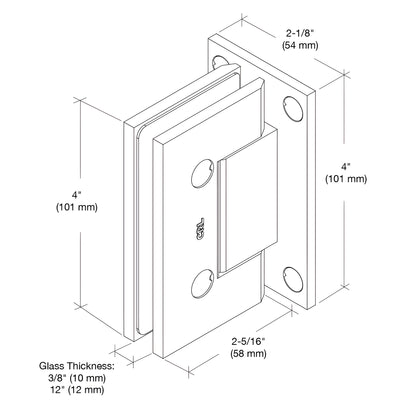

Glazing Thickness
3/8 in. to 1/2 in. (10 mm to 12 mm)
Height
4 in. (101 mm)
Material
Brass
Maximum Door Weight - 2 Hinges
140 lbs. (63 kg)
Maximum Door Weight - 3 Hinges
175 lbs. (79 kg)
Maximum Door Width
40 in. (1016 mm)
Mounting Type
Wall Mount
Positive Close
No
Self-Centering
Yes
Series
Trento
Width
2-5/16 in. (58 mm)
Overview
- Supports heavier glass shower doors
- Concealed mounting screws for a clean look
- Wall-mount full back plate — standard model

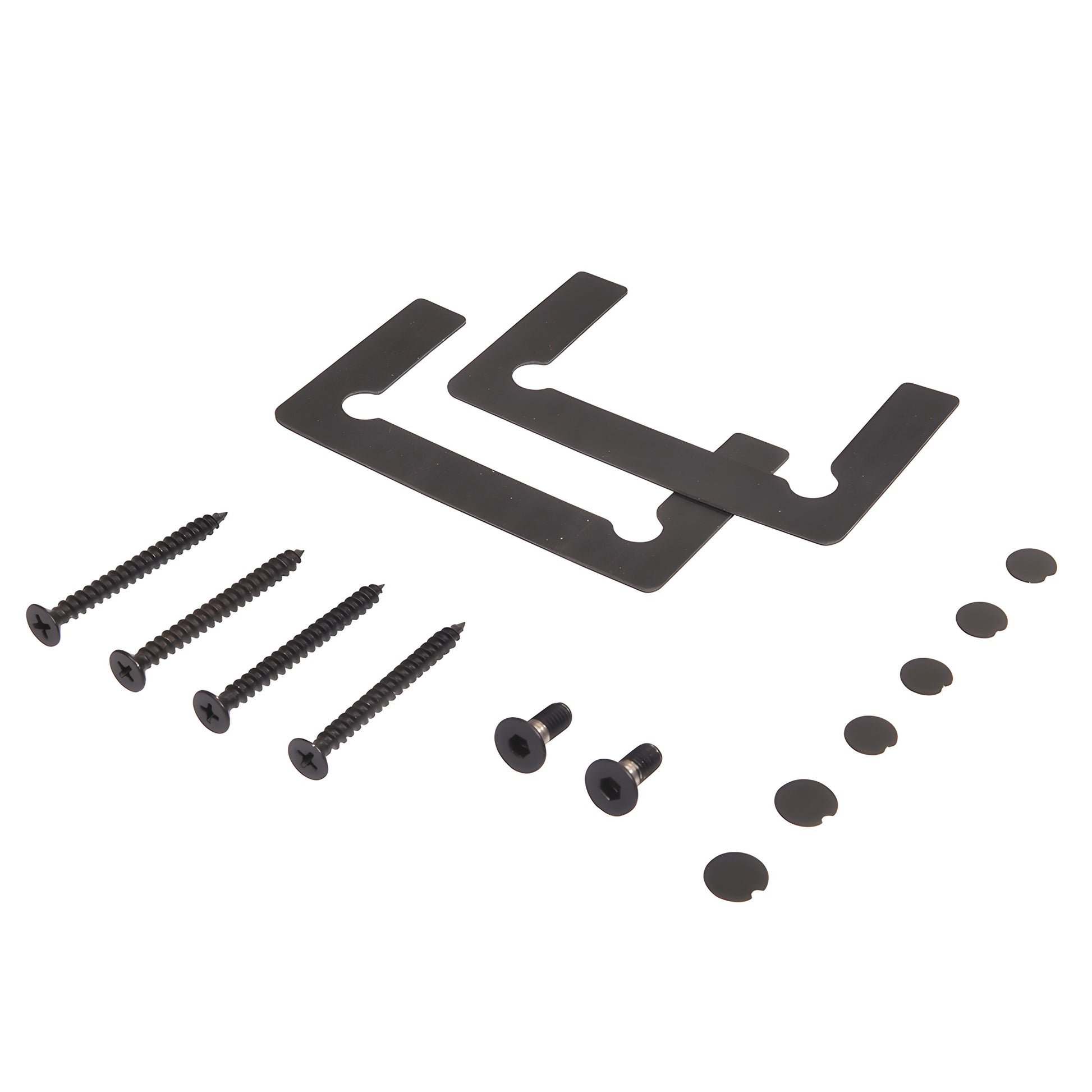

- Single NAF gasket compatible with both 3/8" (10 mm) and 1/2" (12 mm) glass
- For use with monolithic tempered glass
CRL Trento Hinge (SKU: TNT037MBL) — a heavy-duty, low-profile hinge engineered for frameless shower doors and glass shower enclosures. Designed to support high-weight panels while maintaining a narrow gap and fully concealed screws for a premium, modern appearance.
The reversible pivot pin provides a built-in 5° self-centering return and is adjustable by rotation to set the closed position at either 95° or 85°. Durable, compressible NAF gaskets adapt to surface variations to maintain consistent grip and a reliable seal between hinge and glass.
Load capacities:
- Two-hinge installation: supports up to 140 lb (63 kg) for doors up to 40" (1016 mm) wide (3/8" or 1/2" glass).
- Three-hinge installation: supports up to 175 lb (79 kg) for doors up to 40" (1016 mm) wide (3/8" or 1/2" glass).
Product warning: CRL shower door hinges are intended for residential or hotel shower use only. For alternative applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—CRL cut-out dimensions may differ from other brands.
Choose the CRL Trento hinge for a durable, low-profile solution for frameless glass shower doors—order TNT037MBL today.
