CRL Trento Polished Chrome Full-Back Frameless Shower Door Hinge

• Supports heavier glass shower doors — up to 140 lb with two hinges, 175 lb with three hinges
• Concealed screws for a clean, modern look
• Wall-mount full back plate — standard model

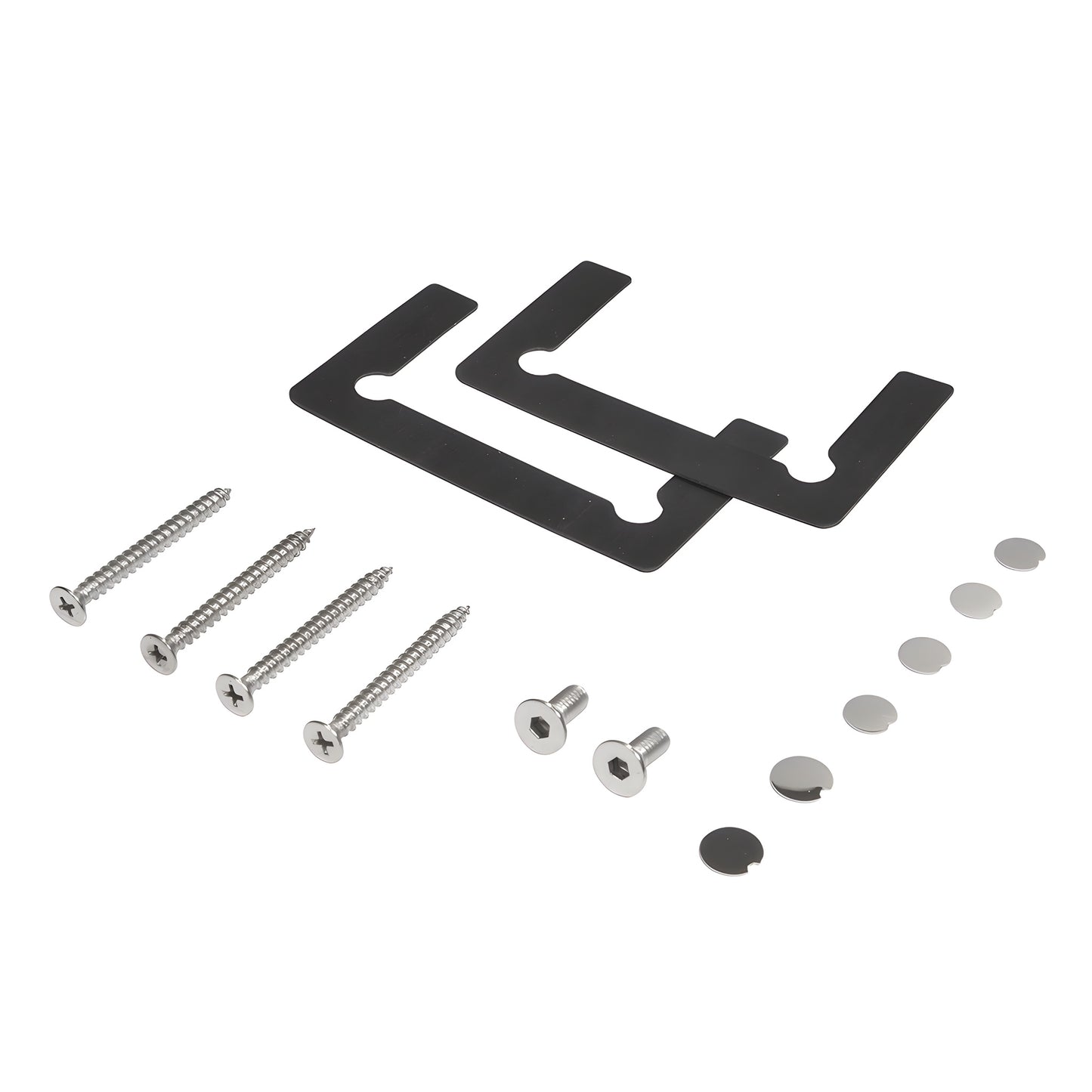

• Single NAF gasket compatible with both 3/8" and 1/2" (10 mm & 12 mm) monolithic tempered glass
• Designed for monolithic tempered glass frameless shower doors

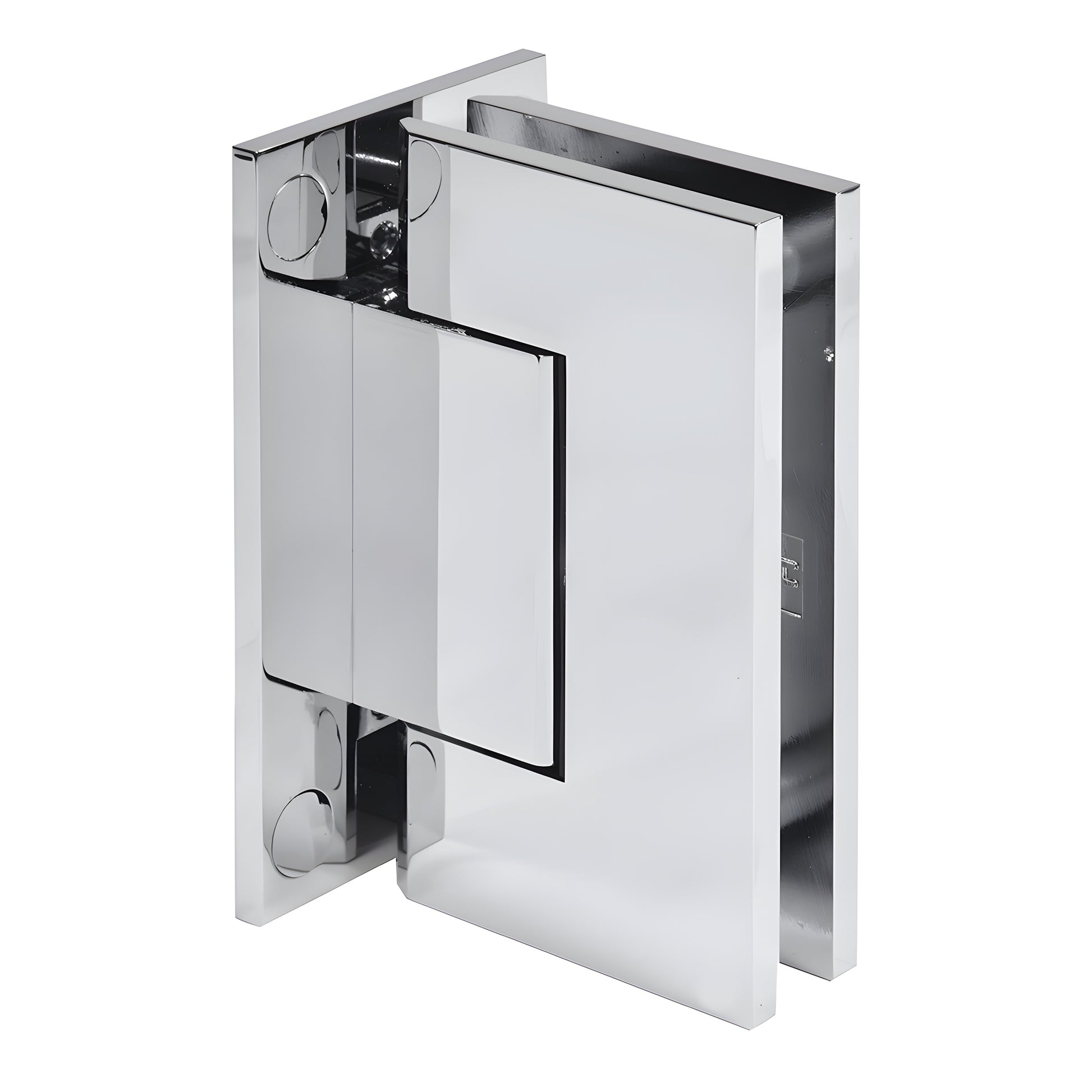

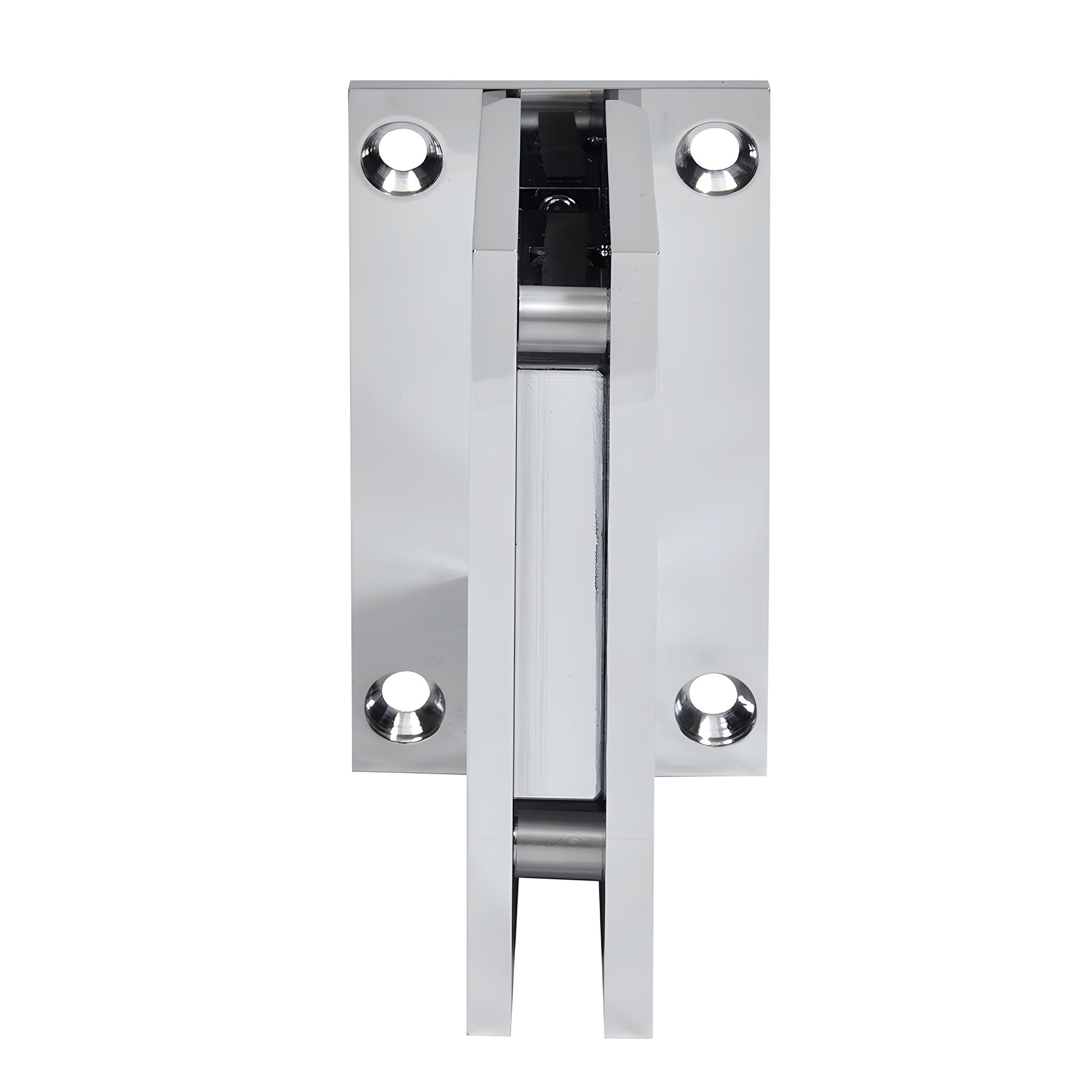

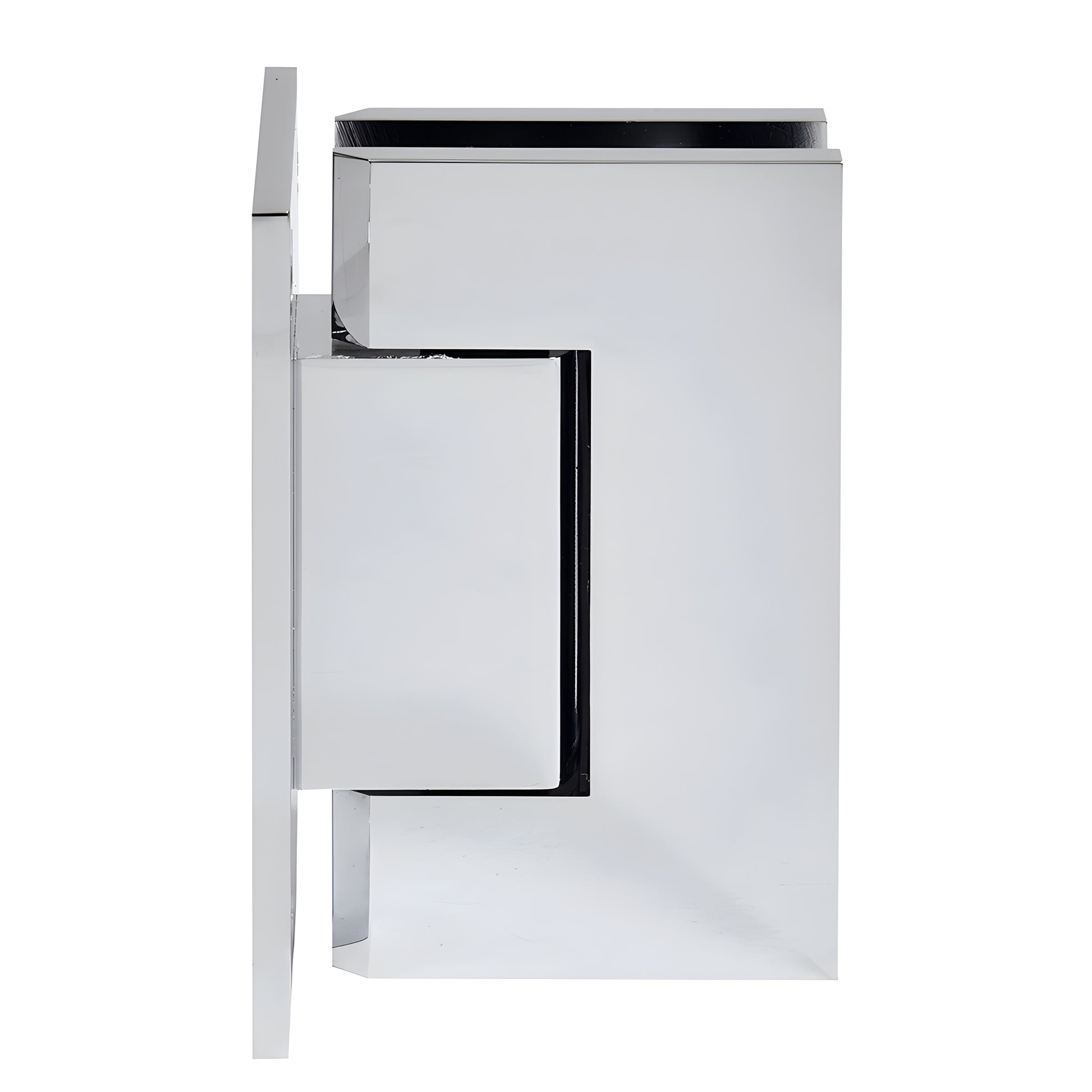

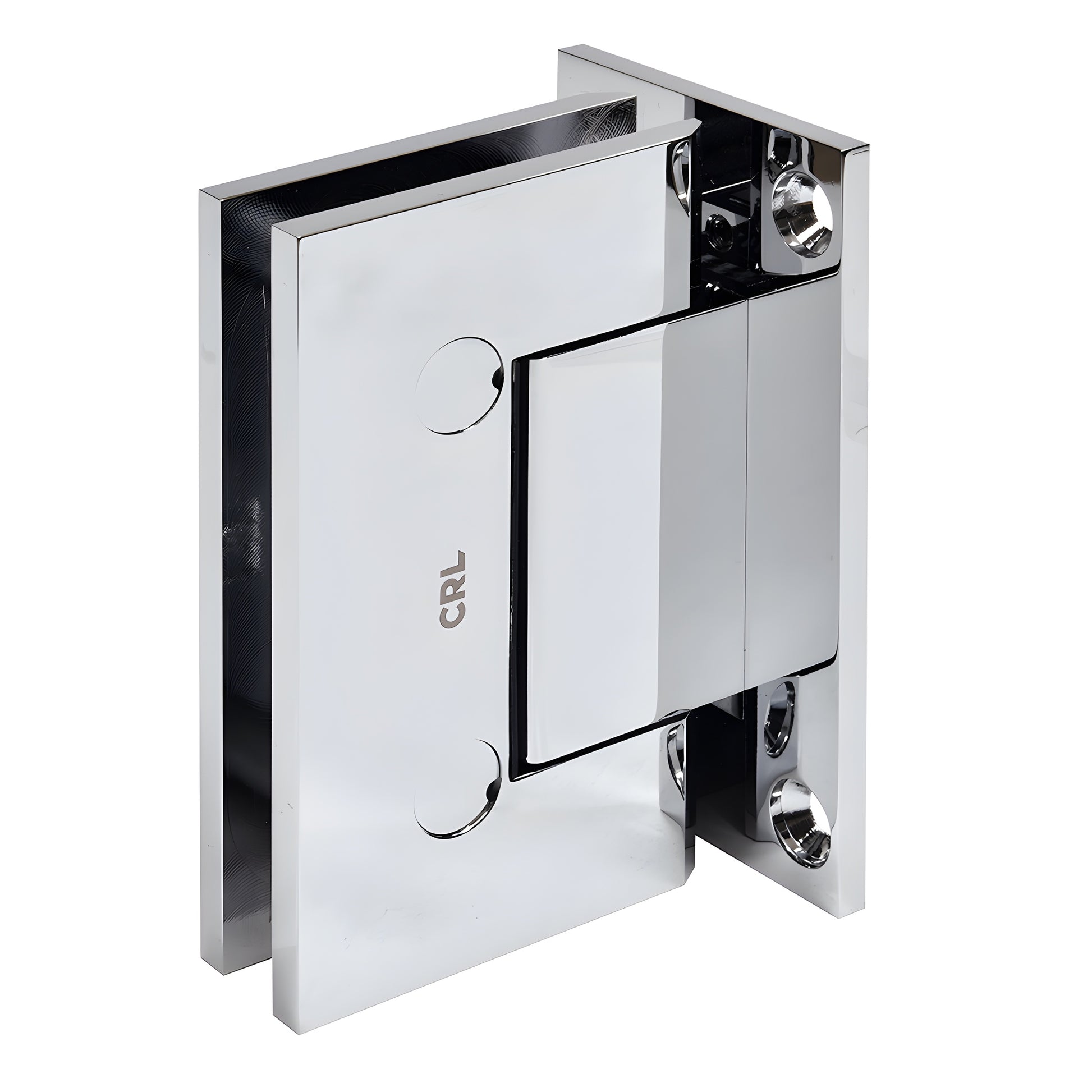

The CRL Trento Hinge (SKU: TNT037CH) is a heavy-duty, rectangular-profile hinge engineered for frameless shower door installations. Its narrow gap and fully concealed mounting screws deliver a refined aesthetic while providing robust support for glass panels.

The Trento uses compressible NAF gaskets that adapt to surface variations and securely grip 3/8" and 1/2" monolithic tempered glass. This hinge is optimized for residential and hotel frameless shower doors and is a reliable choice when you need a heavy-duty glass shower door hinge with concealed hardware.

Standard reversible pivot pin: Each hinge includes a reversible pivot pin that adjusts the door’s closed position by 5° (set to 95° or 85° by rotating the pin). This feature helps maintain a tight seal and smooth operation without additional parts.

Load capacity & sizing:

• Two-hinge installation: supports doors up to 140 lb (63 kg) and 40" (1016 mm) wide
• Three-hinge installation: supports doors up to 175 lb (79 kg) and 40" (1016 mm) wide

Product warning: CRL shower door hinges are intended for residential and hotel shower use only. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template provided with this hinge—cut-out dimensions may differ from other brands.

Order the CRL Trento Hinge (TNT037CH) for a sleek, heavy-duty solution for frameless glass shower doors — add to cart or contact us for technical assistance.
