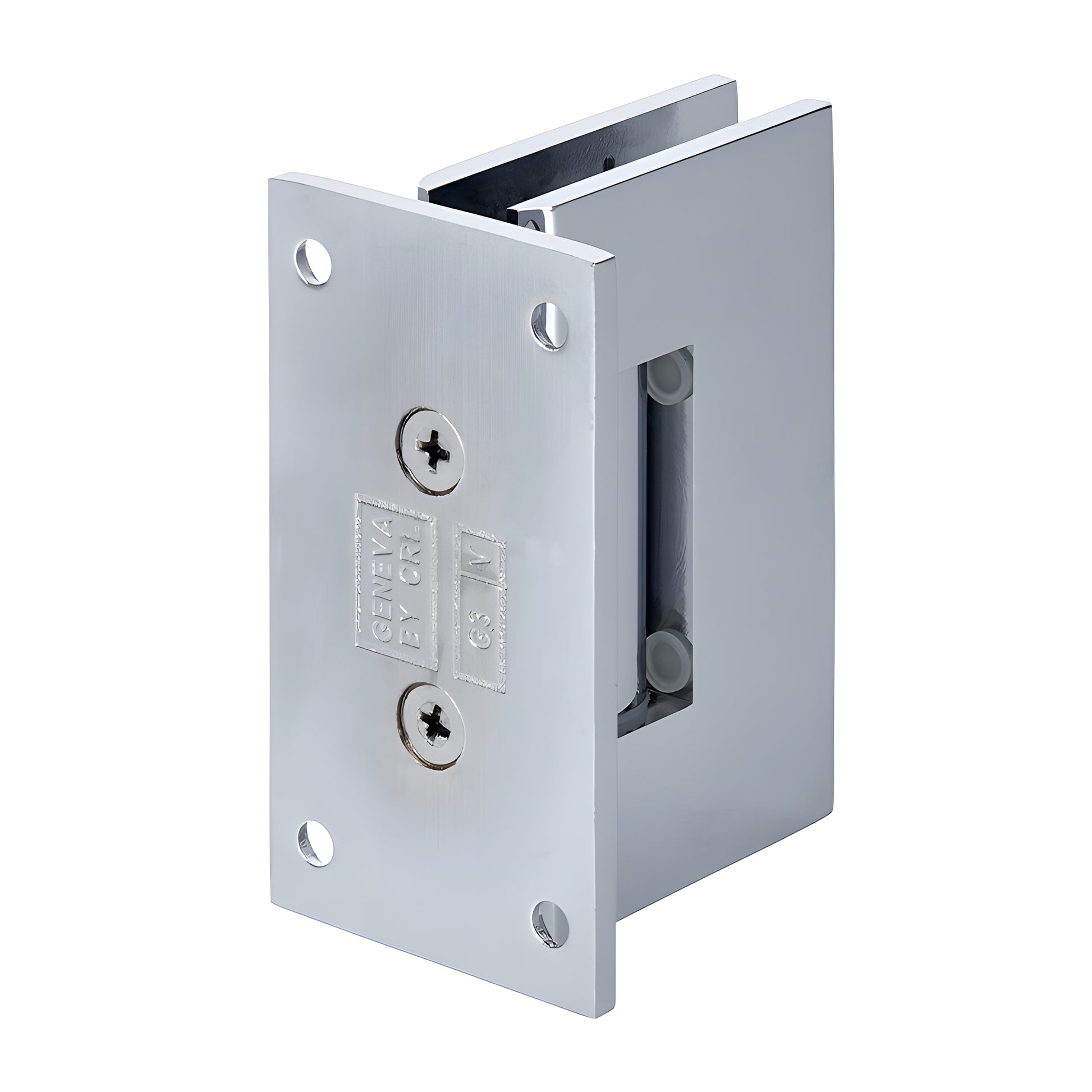

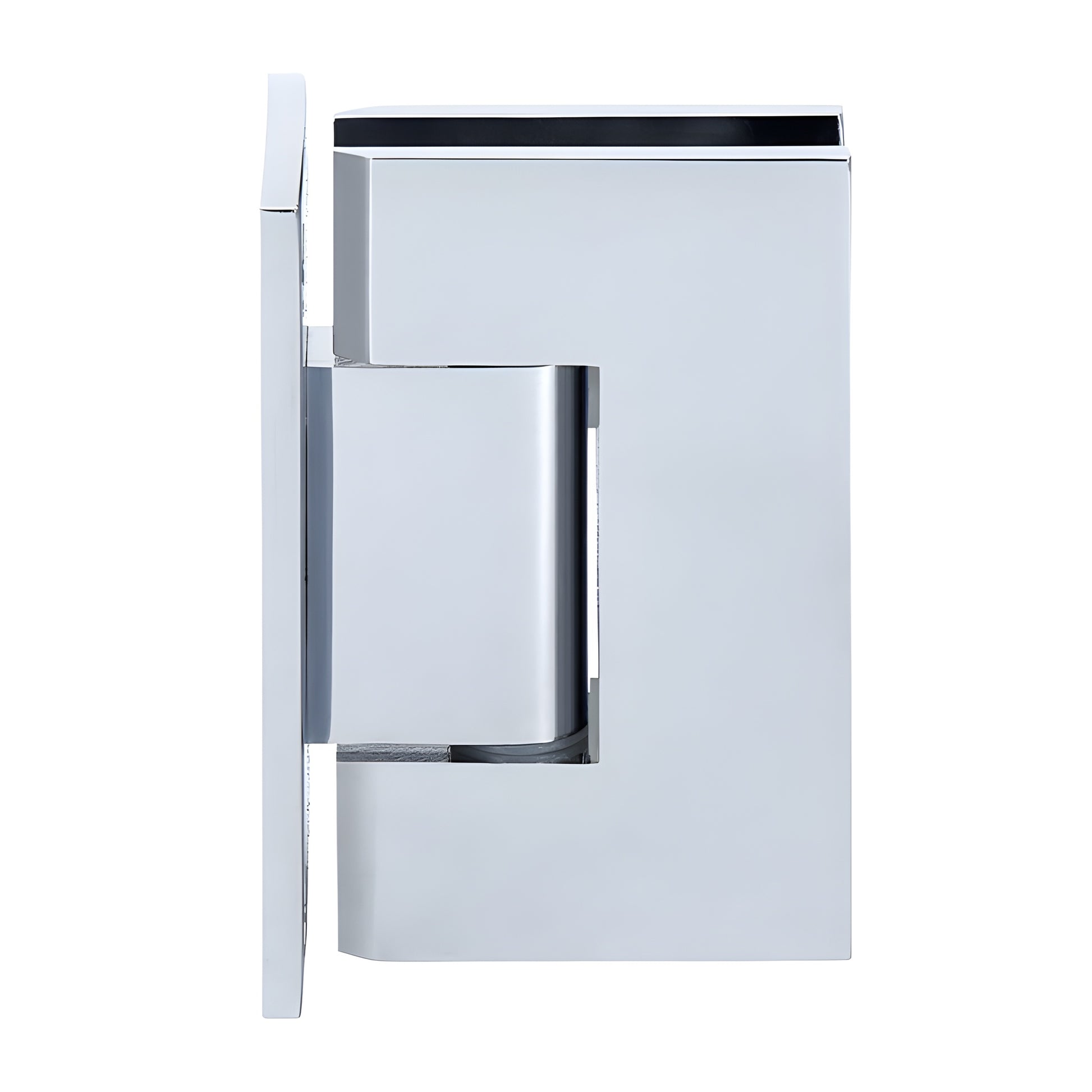

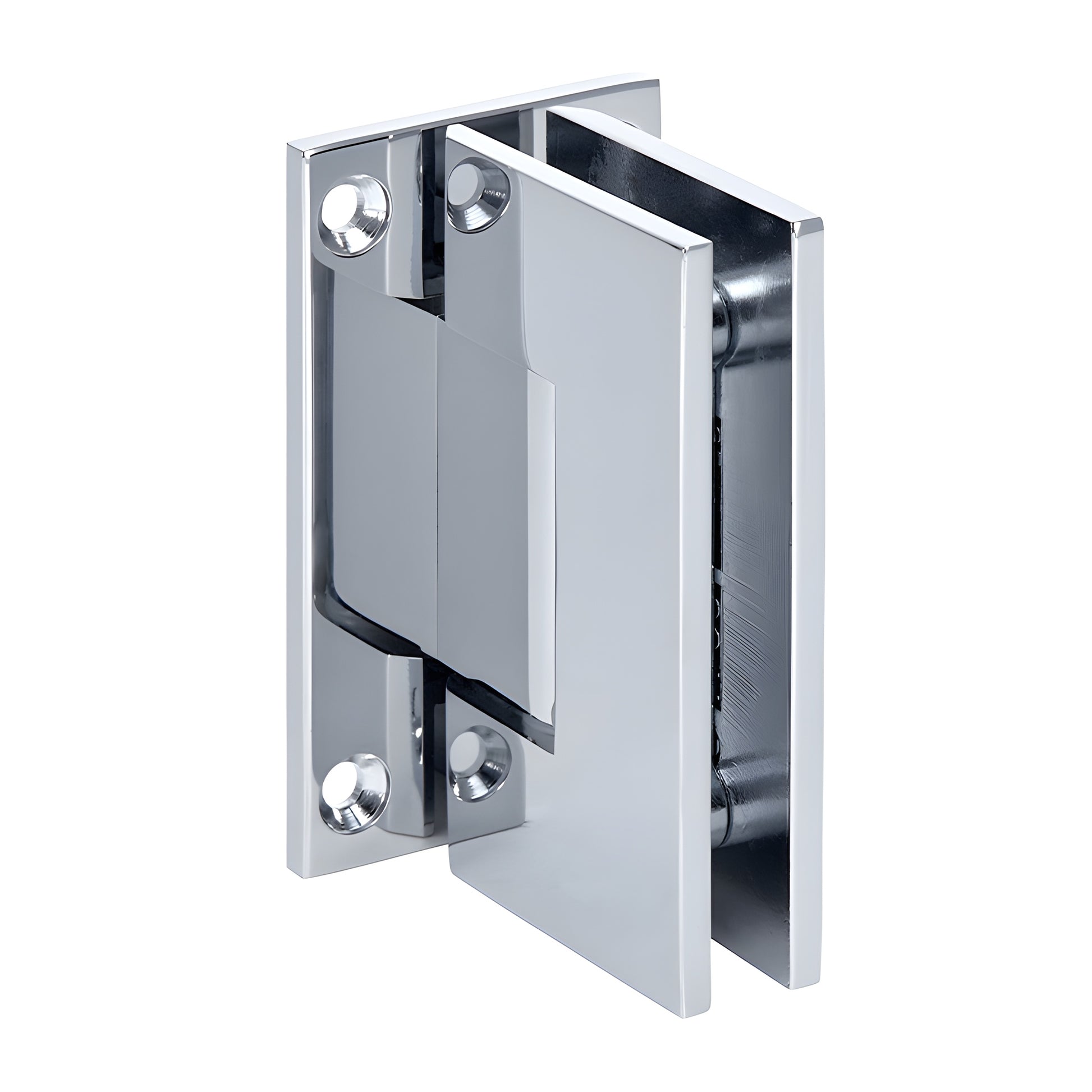

CRL Geneva 037 Polished Chrome Wall-Mount Shower Door Hinge

• Self-Centering with Reversible 5 Degree Pivot Pin
• Uses Monolithic Tempered Glass
• Available in Several Finishes
• Three Year Warranty
• Wall Mount Full Back Plate Standard Model (Factory Set for Standard Closing Position)

The CRL Geneva Series professional hinge (SKU: GEN037CH) is engineered for glass shower doors and accommodates 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass. Choose from six styles—three Wall Mount and three Glass-to-Glass—for flexible bathroom and commercial shower designs. Geneva Hinges are self-centering and include a Reversible 5 Degree Pivot Pin; custom pivot pins are available for off-angle installations. Constructed of solid brass with stainless steel pins and springs for long-lasting corrosion resistance and smooth operation.

Standard Reversible Pivot Pin: Each hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active; Offset models ship pre-set to 85° (tighter 5° closure toward the shower interior). The pin can be rotated to change the active angle.

Custom Pivot Pin: Custom pivot pins (Cat. No. GENP1N) are available up to 45° for off-angle installations. If the 5° reversible pin doesn’t achieve the desired closure, specify the required angle and contact our Technical Sales Shower Door Department. Note: custom pins may affect glass sizes and enclosure aesthetics.

Performance:

• Two hinges: supports up to 80 lbs. (36 kg), max door width 28" (711 mm)
• Three hinges: supports up to 120 lbs. (54 kg), max door width 32" (813 mm)

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Option of Standard Model factory set at 0° closing position or 5° Pre-Set Model for tighter closure into shower interior.
Construction: Solid Brass with stainless steel pins and springs
Hinge Swings: 90° in and 90° out
Closing Type: Self-Centering when within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 Gasket Pack required separately for use with 5/16" (8 mm) tempered glass.

Custom finishes available on request—contact Technical Sales Shower Door Division.

Product Warning:
CRL shower door hinges are designed for residential
