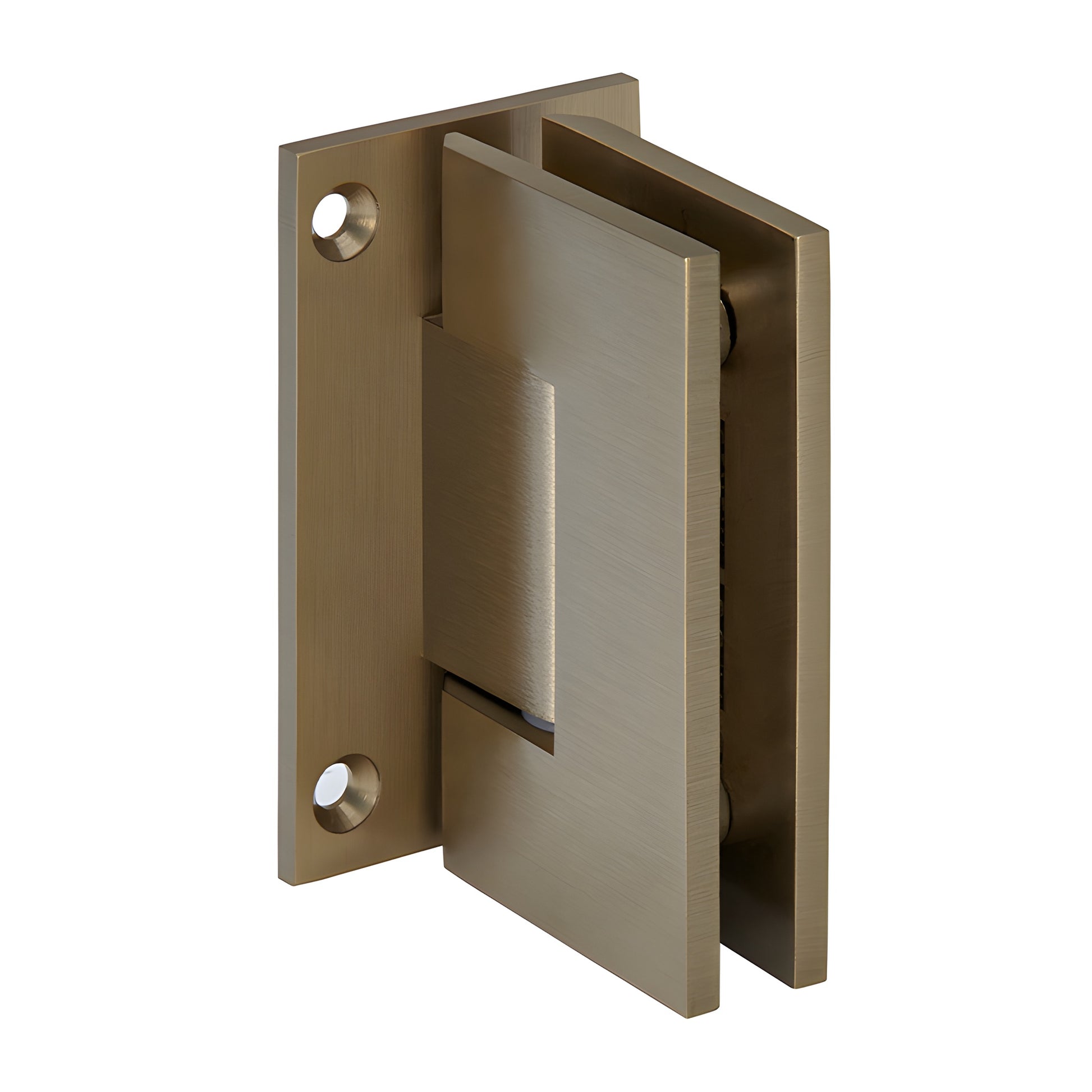

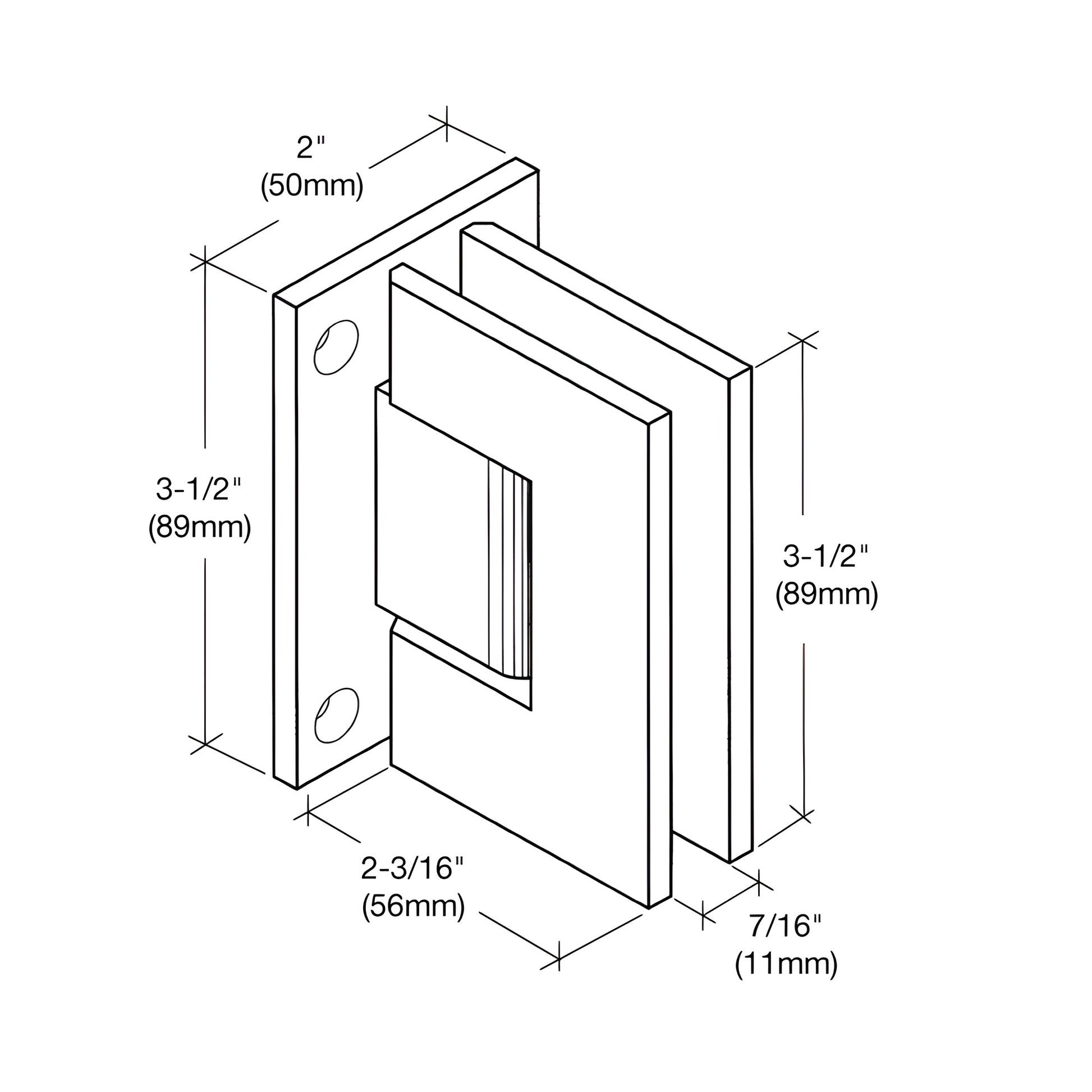

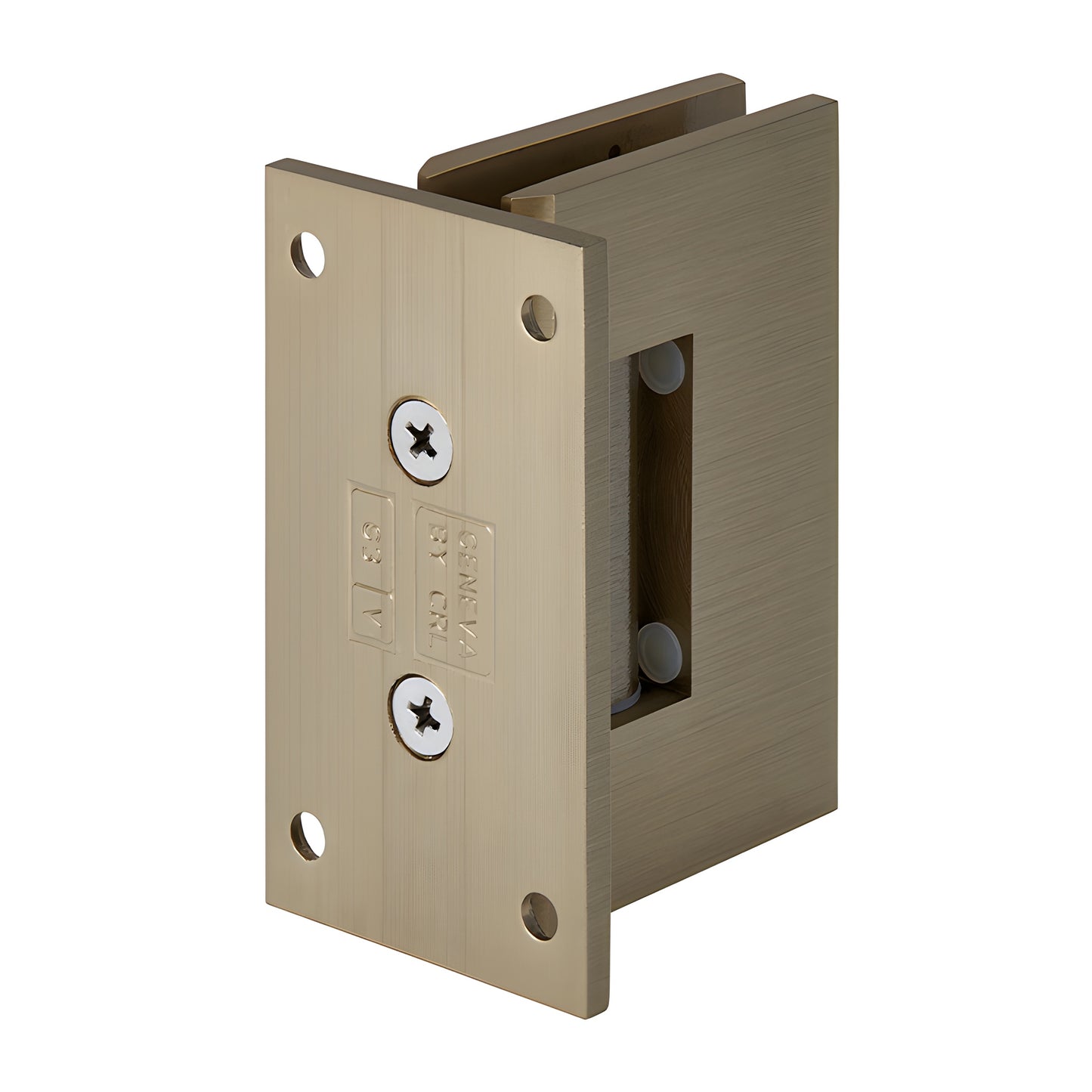

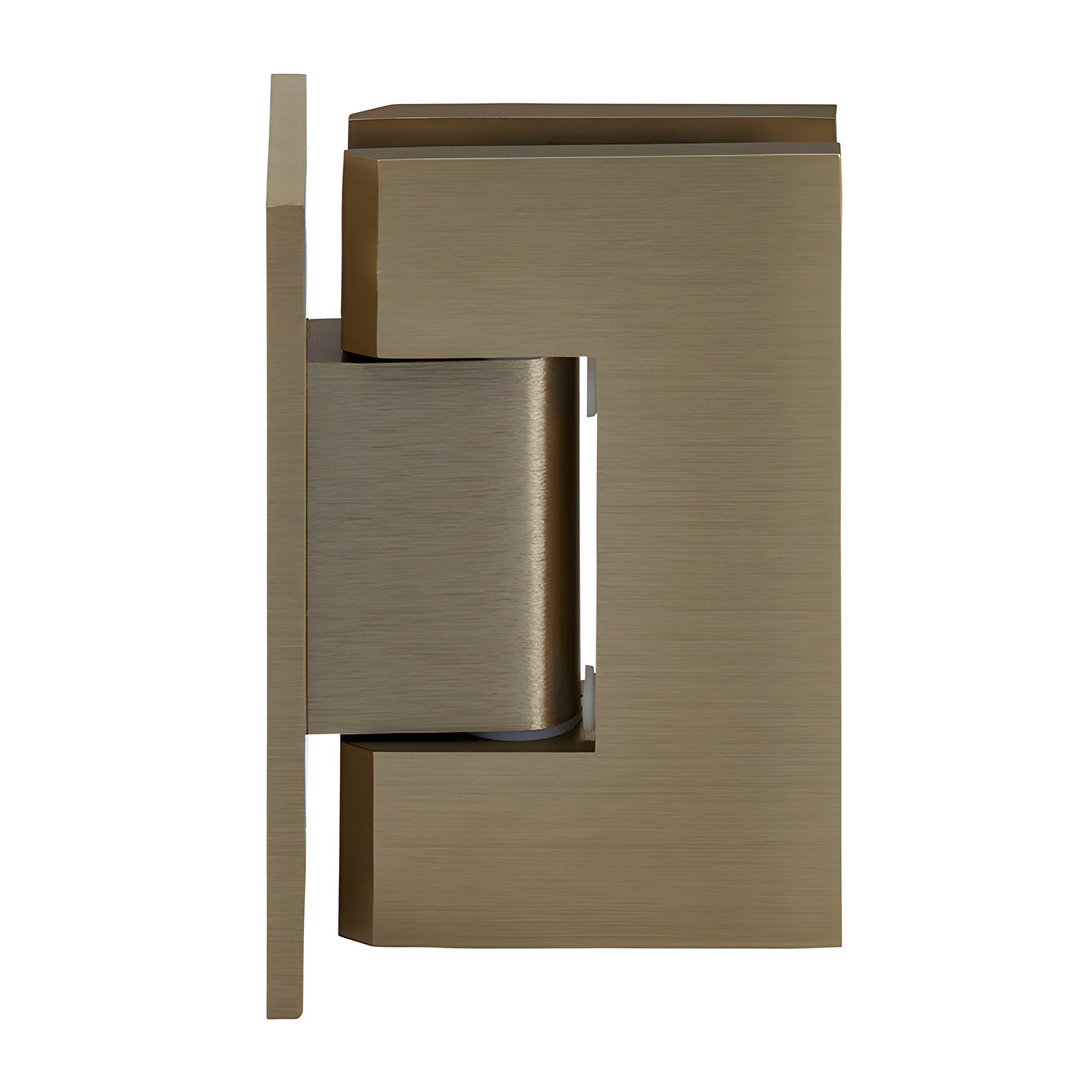

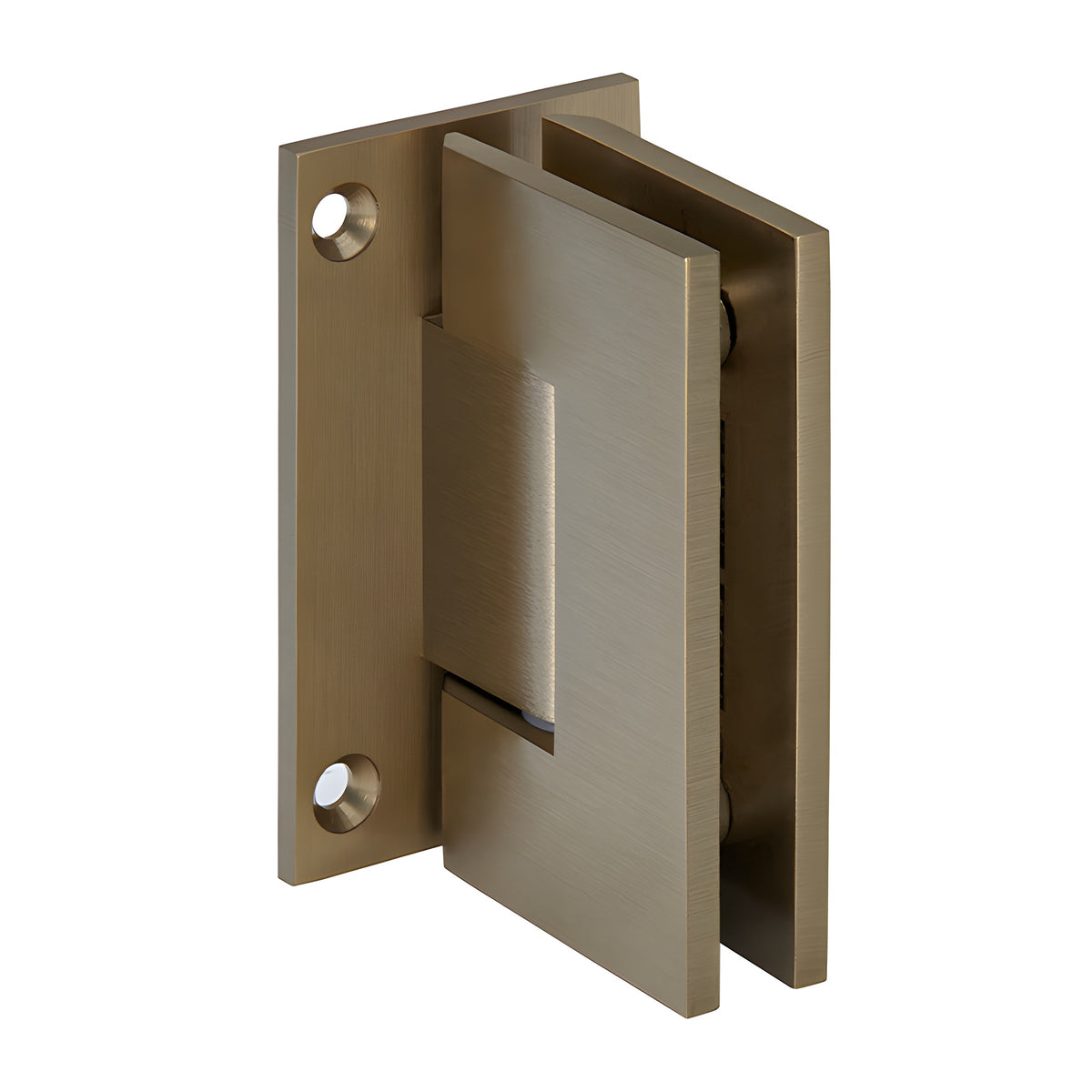

CRL Geneva 037 Brushed Bronze Wall-Mount Full Back Plate Hinge

• Self-Centering with Reversible 5 Degree Pivot Pin
• Use Monolithic Tempered Glass
• Available in Several Beautiful Finishes
• Three Year Warranty
• Wall Mount Full Back Plate Standard Model (Factory Set for Standard Closing Position)

The CRL Geneva Series professional hinges (SKU: GEN037BBRZ) fit 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass. Six styles provide design flexibility—three Wall Mount and three Glass-to-Glass types. These solid brass shower door hinges feature stainless steel pins and springs, a reversible 5 degree pivot pin for self-centering action, and optional custom pivot pins for off-angle installations. Ideal long-tail keywords: brass shower door hinge, tempered glass shower hinge, self-centering reversible 5 degree pivot pin.

Standard Reversible Pivot Pin: Each hinge includes a reversible pivot pin with one side marked 90° (standard factory setting) and the opposite side marked 85° (5° tighter closure). Rotate the pin (do not flip) to change the active side. Offset models are pre-set to 85°.

Custom Pivot Pin: Custom pivot pins (Cat. No. GENP1N) can be ordered for off-angle installations up to 45°. Contact Technical Sales Shower Door Department for assistance—using a custom pin can affect glass dimensions and enclosure aesthetics.

Performance: using two hinges with 5/16"–1/2" (8–12 mm) glass supports up to 80 lbs (36 kg) with a maximum door width of 28" (711 mm). Using three hinges supports up to 120 lbs (54 kg) with a maximum door width of 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Standard model factory set at 0° closing or 5° pre-set model for tighter closure into shower interior
Construction: Solid Brass with stainless steel moving parts
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 Gasket Pack is required separately for 5/16" (8 mm) glass.

Custom finishes available on request—contact Technical Sales Shower Door Division for lead times and options.

Product Warning:
CRL shower door hinges are designed for residential or hotel shower use only. For other uses, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions may differ from
