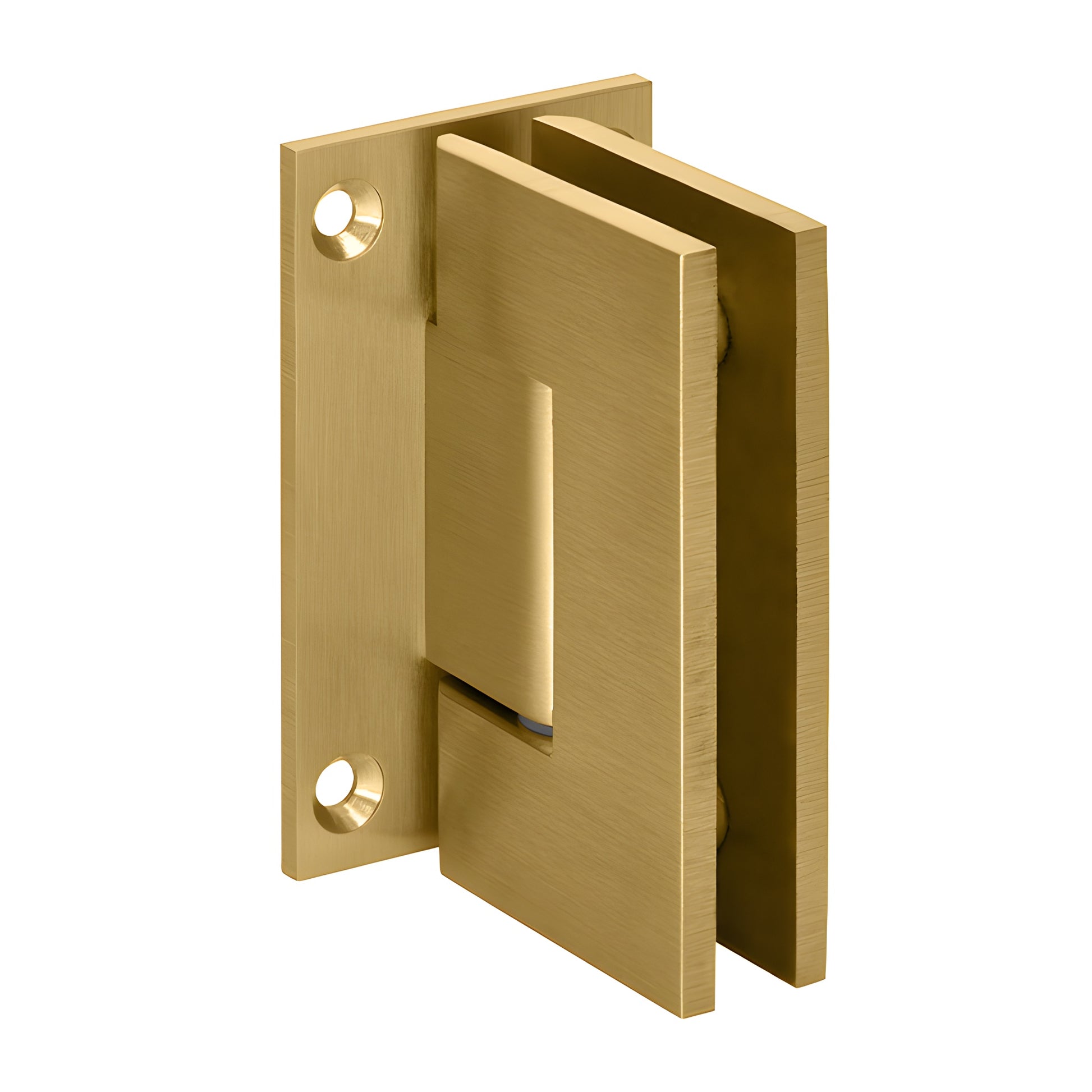

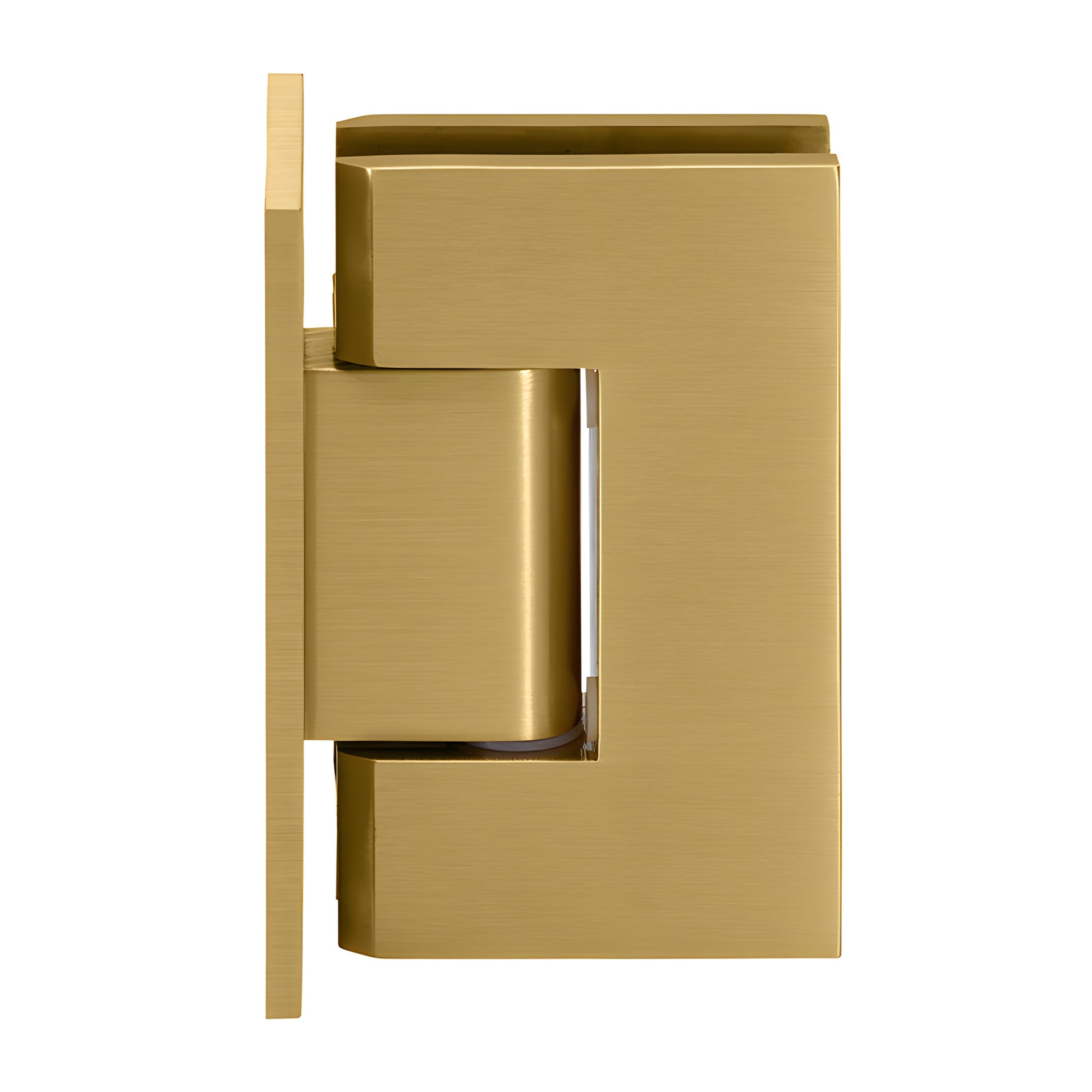

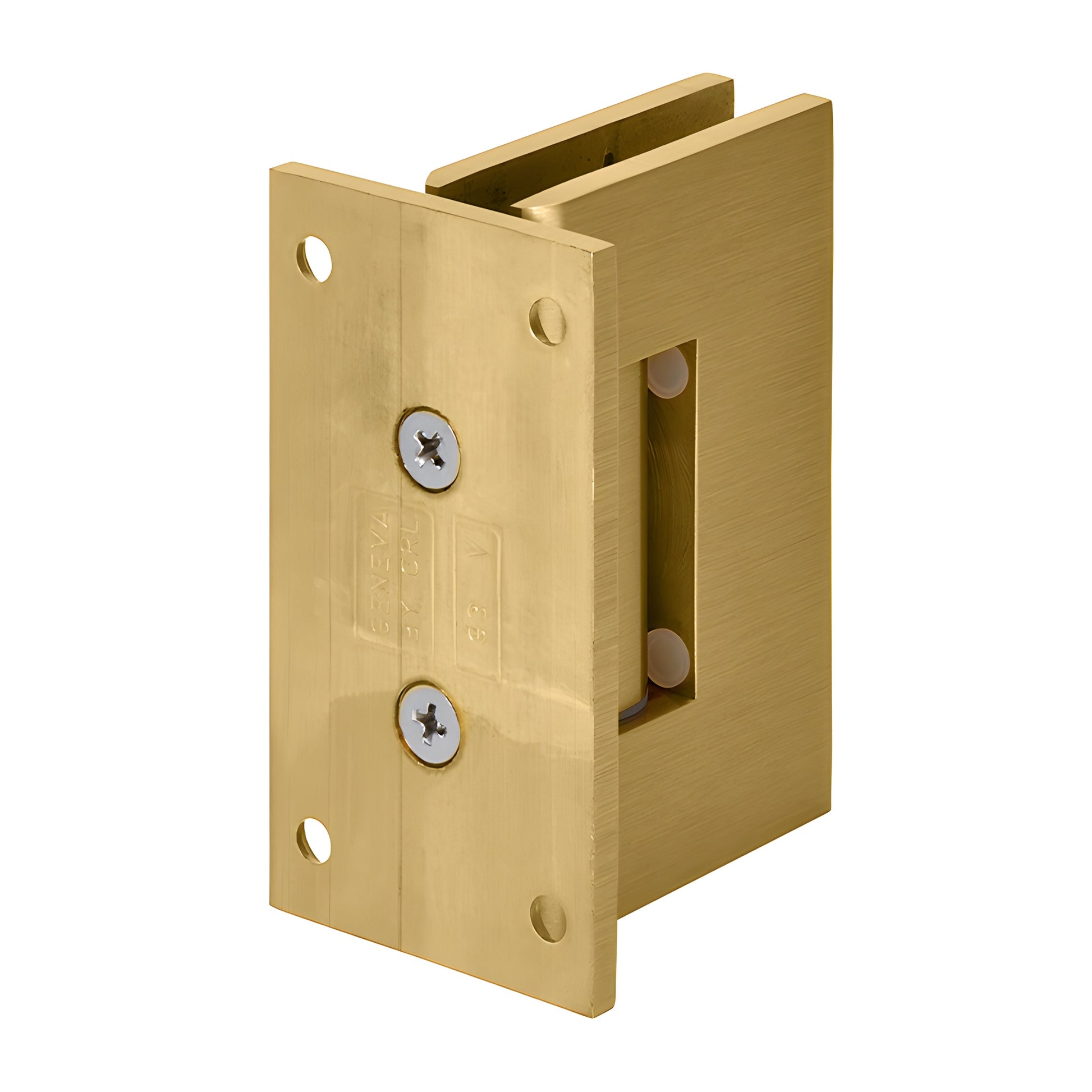

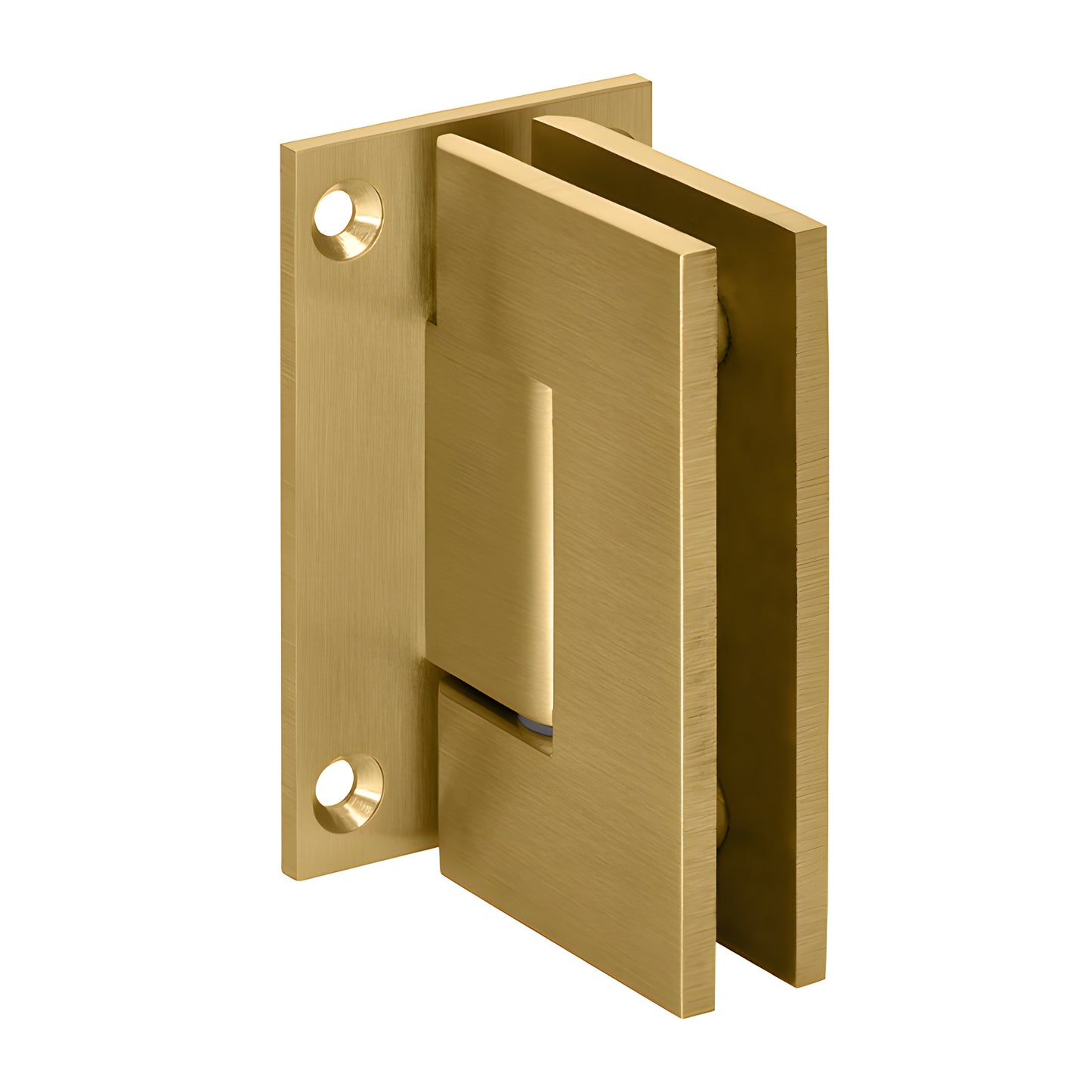

CRL Geneva 037 Satin Brass Wall-Mount Full Back Plate Door Hinge

• Self-Centering with Reversible 5 Degree Pivot Pin
• Use Monolithic Tempered Glass
• Available in Several Beautiful Finishes
• Three Year Warranty
• Wall Mount Full Back Plate Standard Model (Factory Set for Standard Closing Position)

The CRL Geneva Series professional hinges (SKU: GEN037SB) fit 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass and are engineered for shower door applications. Six design styles—three Wall Mount and three Glass-to-Glass—offer flexible aesthetics for frameless and semi-framed enclosures. Geneva Hinges are solid brass with stainless-steel pins and springs, self-centering, and include a reversible 5 degree pivot pin. Custom pivot pins are available for off-angle installations.

Standard Reversible Pivot Pin: Each hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active; offset models ship pre-set to 85° for a 5° tighter closure into the shower interior. The pin can be rotated to change the active angle.

Custom Pivot Pin: Cat. No. GENP1N custom pivot pins are available up to 45° for off-angle installations. Specifying a custom pin may affect glass sizes and enclosure aesthetics; contact Technical Sales Shower Door Department for assistance.

Using two hinges with 8–12 mm glass: holds up to 80 lbs (36 kg), max door width 28" (711 mm).

Using three hinges with 8–12 mm glass: holds up to 120 lbs (54 kg), max door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Choice of Standard model (0° factory-close) or 5° Pre-Set model for tighter interior closure
Construction: Solid Brass with stainless-steel moving parts
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack required separately for 5/16" (8 mm) glass.

Custom finishes available on request—contact Technical Sales Shower Door Division.

Product Warning:

CRL shower door hinges are designed for residential and hotel shower use only. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the included template; cut-out dimensions may differ from other brands.
