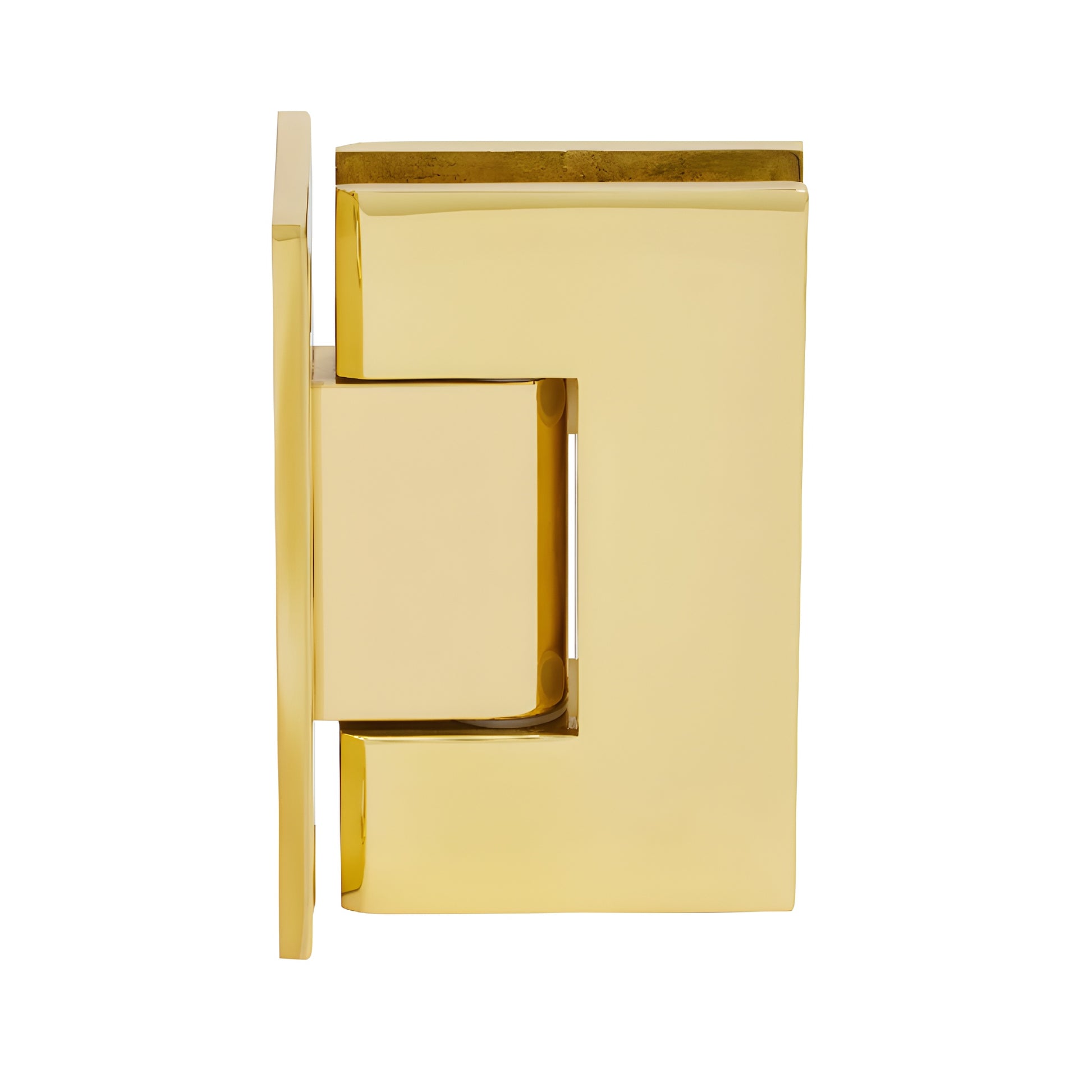

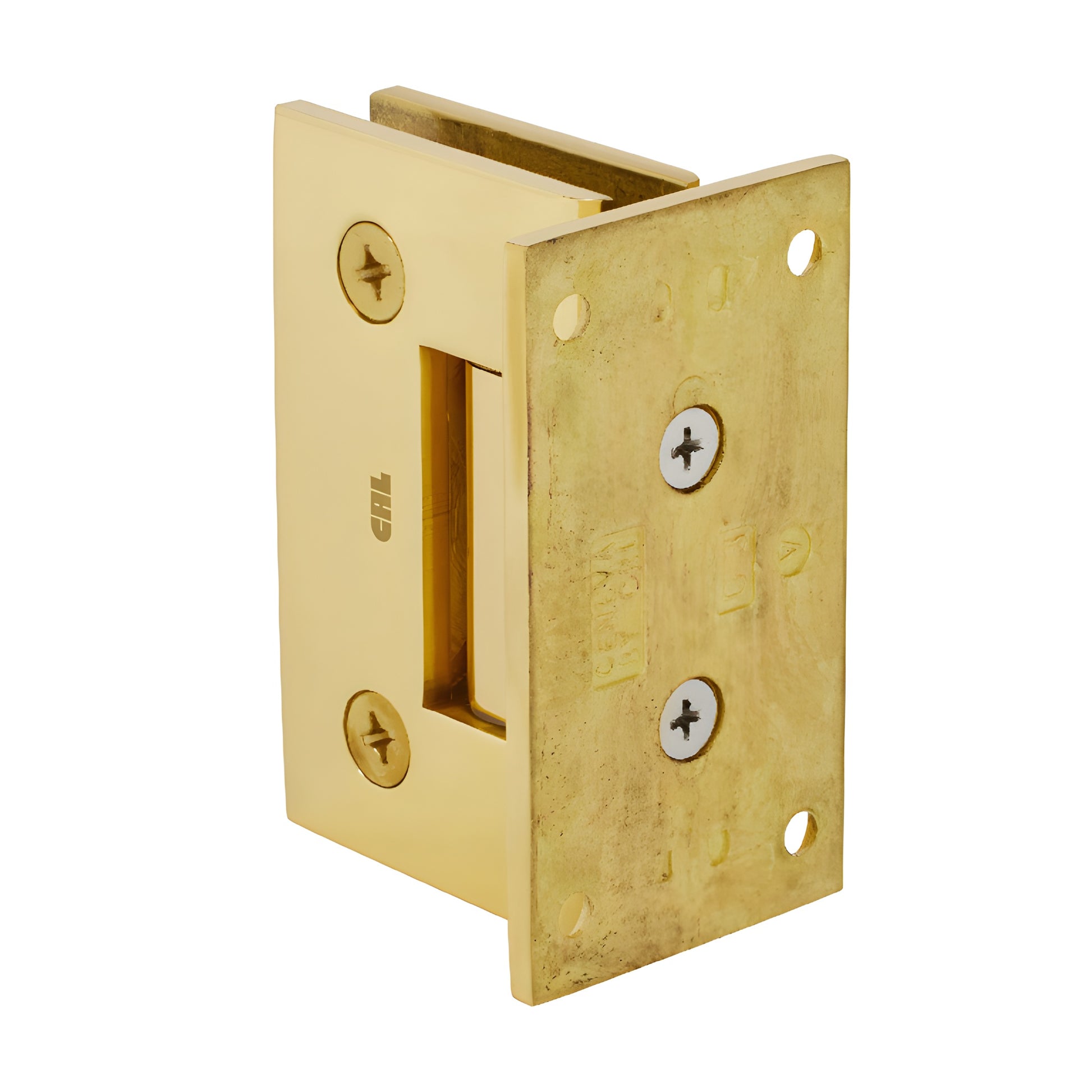

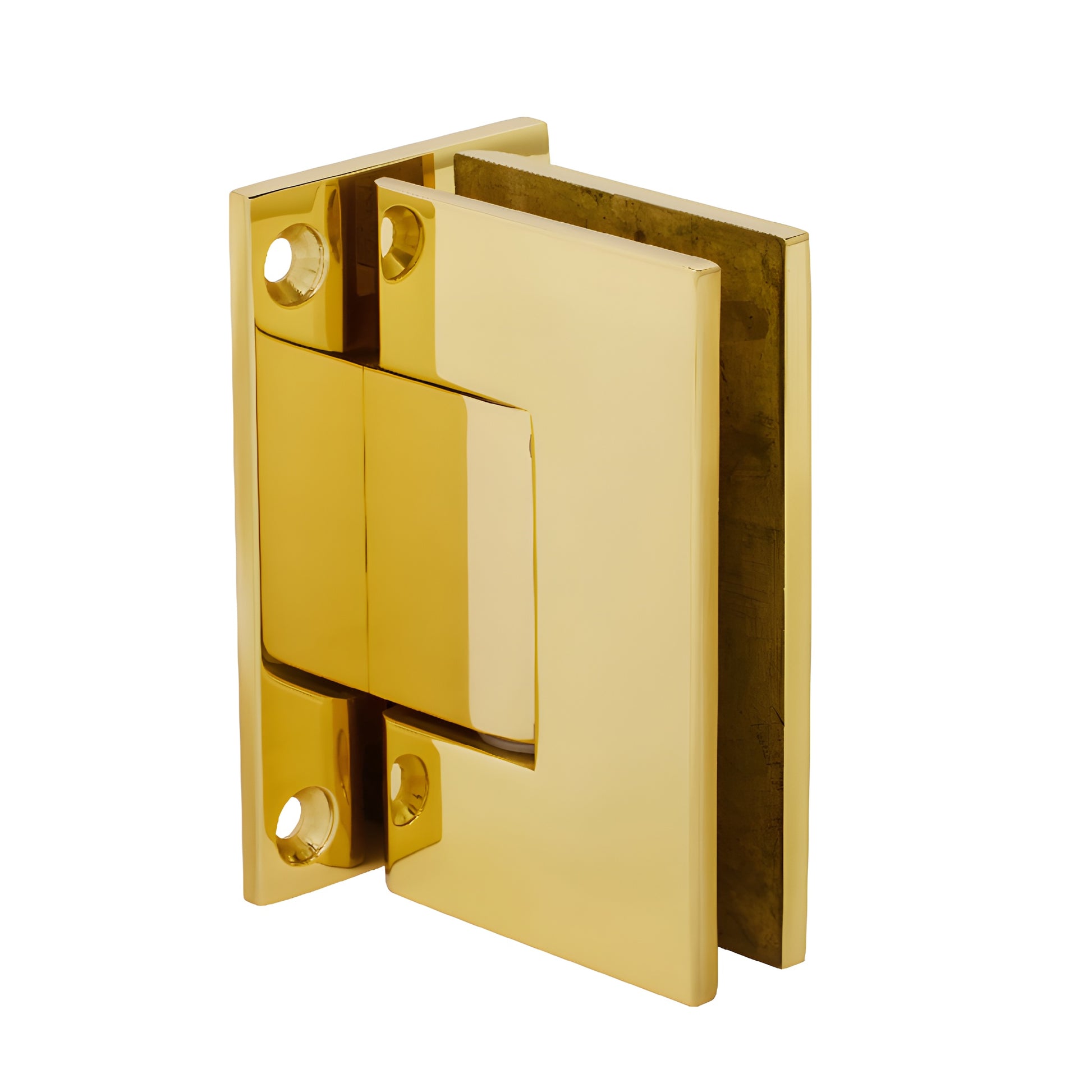

CRL Geneva 037 Polished Brass Wall-Mount Full Back Plate Door Hinge

• Self-Centering with Reversible 5 Degree Pivot Pin
• Use Monolithic Tempered Glass
• Available in Several Beautiful Finishes
• Three Year Warranty
• Wall Mount Full Back Plate Standard Model (Factory Set for Standard Closing Position)

The CRL Geneva Series professional hinges (SKU: GEN037BR) fit 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass and are ideal for frameless and semi-frameless shower doors. Six styles — three Wall Mount and three Glass-to-Glass — provide design flexibility for residential and hotel shower door applications. Geneva Hinges are self-centering and include a Reversible 5 Degree Pivot Pin for tighter closure; custom pivot pins are available for off-angle installations. Constructed of solid brass with stainless steel pins and springs for reliable, corrosion-resistant performance in bathroom environments.

Standard Reversible Pivot Pin: Each hinge includes a Reversible Pivot Pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side activated. Offset models are preset to 85° for a 5° tighter closure into the shower interior. The pin can be rotated to switch sides (do not flip upside down).

Custom Pivot Pin: Custom Pivot Pins (Cat. No. GENP1N) are available up to 45° to accommodate non-standard door angles. Specifying a custom pin can change glass sizes and enclosure aesthetics; consult our Technical Sales Shower Door Department before ordering.

Load capacity:

• Two hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 80 lbs (36 kg), max door width 28" (711 mm).
• Three hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 120 lbs (54 kg), max door width 32" (813 mm).

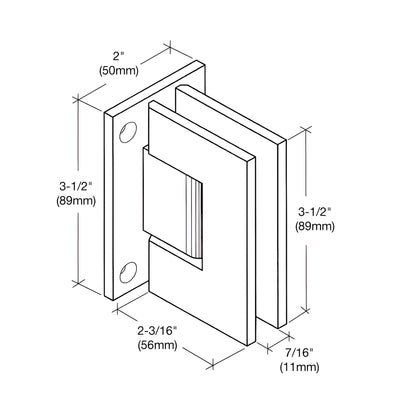

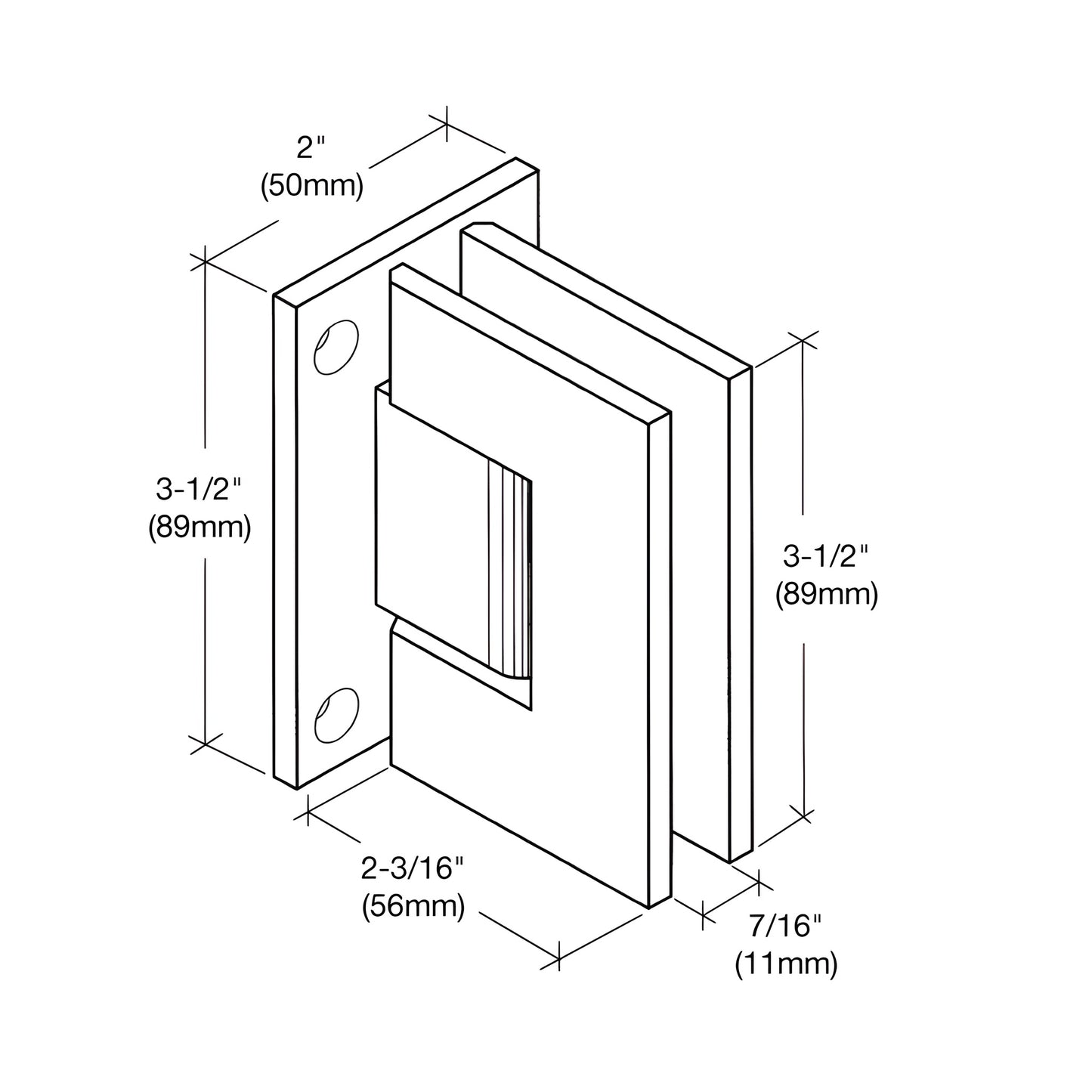

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass
Special Feature: Choice of Standard Model factory set at 0° closing position or 5° Pre-Set Model for tighter closure into the shower interior.
Construction: Solid Brass with stainless steel pins and springs
Hinge Swings: 90° in and 90° out
Closing Type: Self-Centering when within 15
