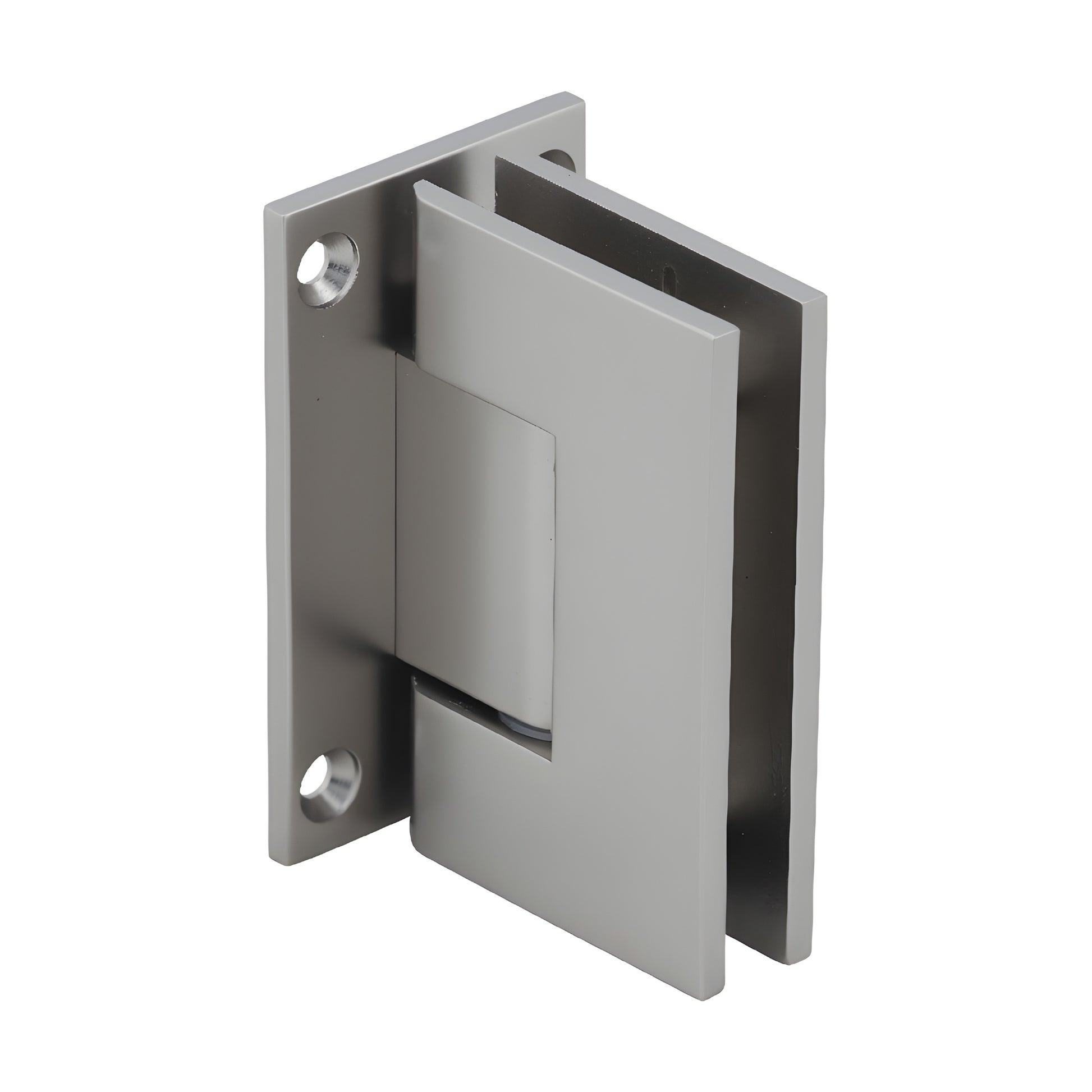

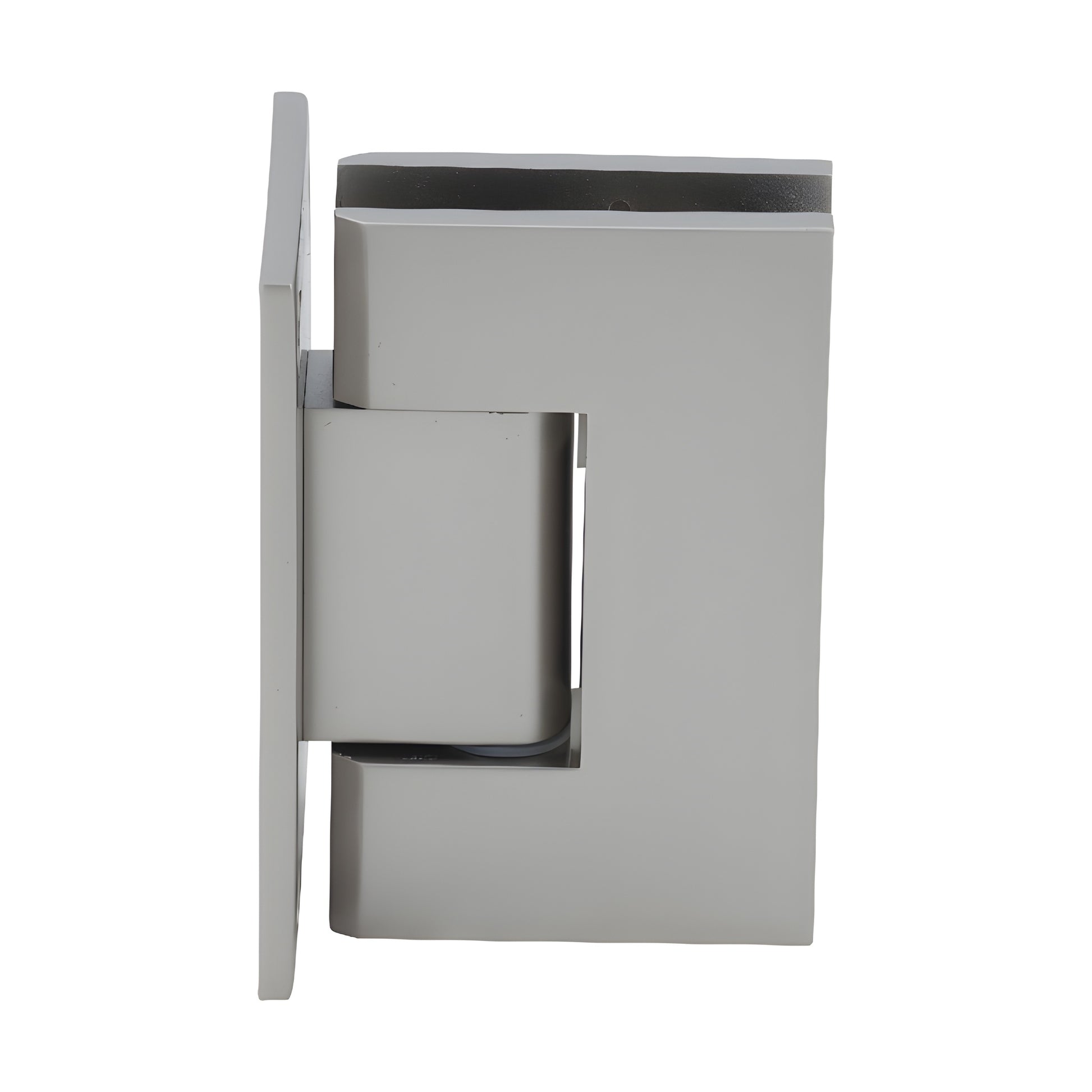

CRL Geneva 037 Satin Nickel Wall-Mount Door Hinge Full Back Plate

• Self-centering hinge with reversible 5° pivot pin
• Use with monolithic tempered safety glass (8 mm to 12 mm)
• Available in several beautiful finishes; custom finishes on request
• Three-year warranty
• Wall-mount full back plate standard model (factory set for standard closing position)

The CRL Geneva Series professional hinges (SKU: GEN037SN) fit 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass and offer six styles—three wall-mount and three glass-to-glass—providing design flexibility for frameless shower enclosures. Geneva Hinges are self-centering and include a reversible 5° pivot pin; custom pivot pins are available for off-angle installations. Constructed of solid brass with stainless steel pins and springs for durable, corrosion-resistant performance.

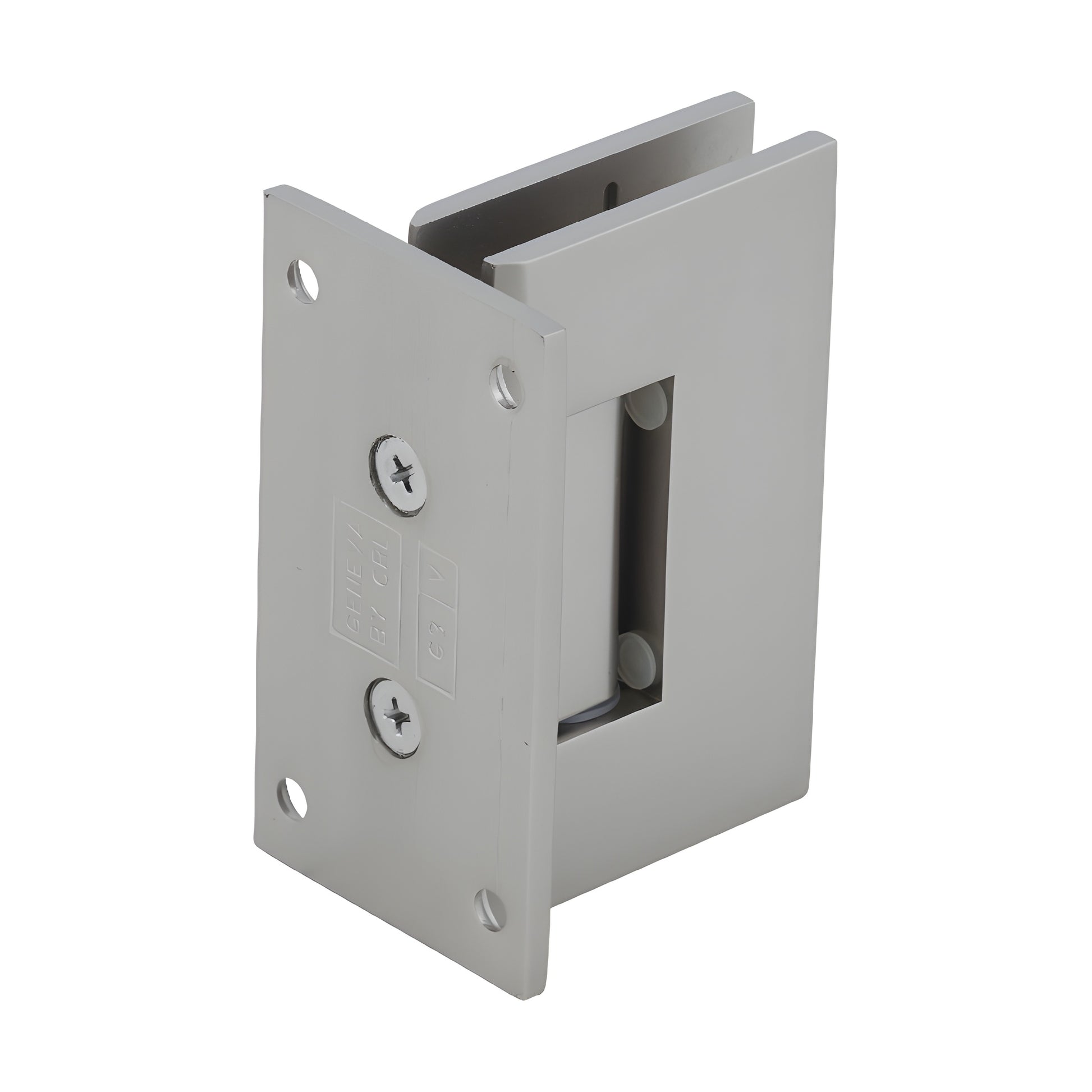

Standard Reversible Pivot Pin: Each hinge contains a reversible pivot pin marked 90° on one side and 85° on the other. Standard units ship with the 90° side activated; offset models ship pre-set to 85° for a 5° tighter closure into the shower interior. Rotate the pin (do not flip upside down) to change the active setting.

Custom Pivot Pin: Custom Pivot Pins (Cat. No. GENP1N) are available to accommodate off-angle installations up to 45°. If the standard 5° adjustment does not achieve the desired closing position, specify the required angle. Note: using a custom pivot pin may affect glass sizes and enclosure aesthetics—contact Technical Sales Shower Door Department for assistance.

Capacity:

• Two hinges with 8–12 mm glass support up to 80 lbs (36 kg) with a maximum door width of 28" (711 mm)
• Three hinges with 8–12 mm glass support up to 120 lbs (54 kg) with a maximum door width of 32" (813 mm)

SPECIFICATIONS:

Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) Tempered Safety Glass

Special Feature: Choice of Standard model (factory-set at 0° closing) or 5° pre-set model for tighter closure into shower interior

Construction: Solid brass with stainless steel pins and springs

Hinge Swings: 90° in and 90° out

Closing Type: Self-centering when within 15° of closed position

Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack must be purchased separately for use with 8 mm glass.

Custom finishes are available on request—contact Technical Sales Shower Door Division for options.
