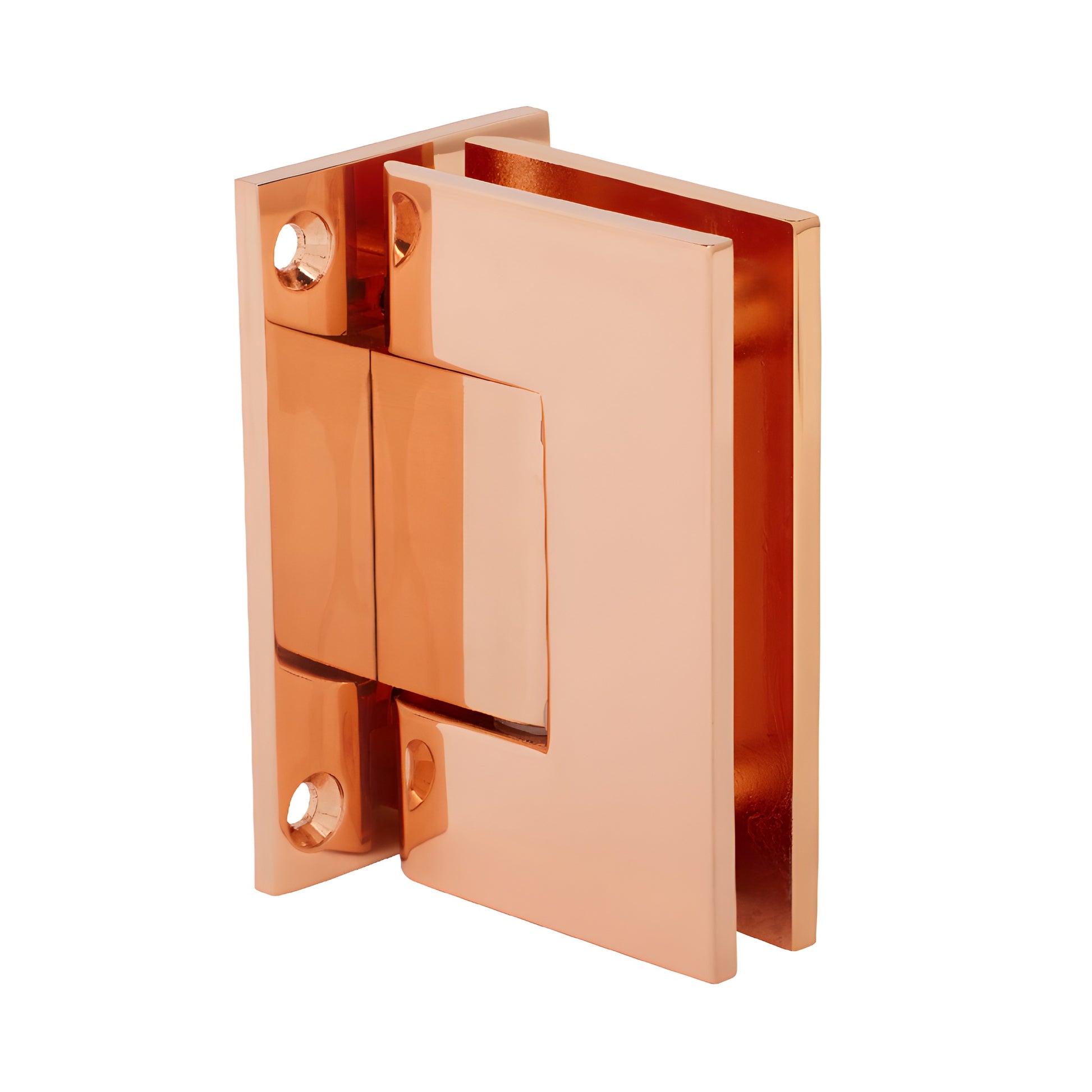

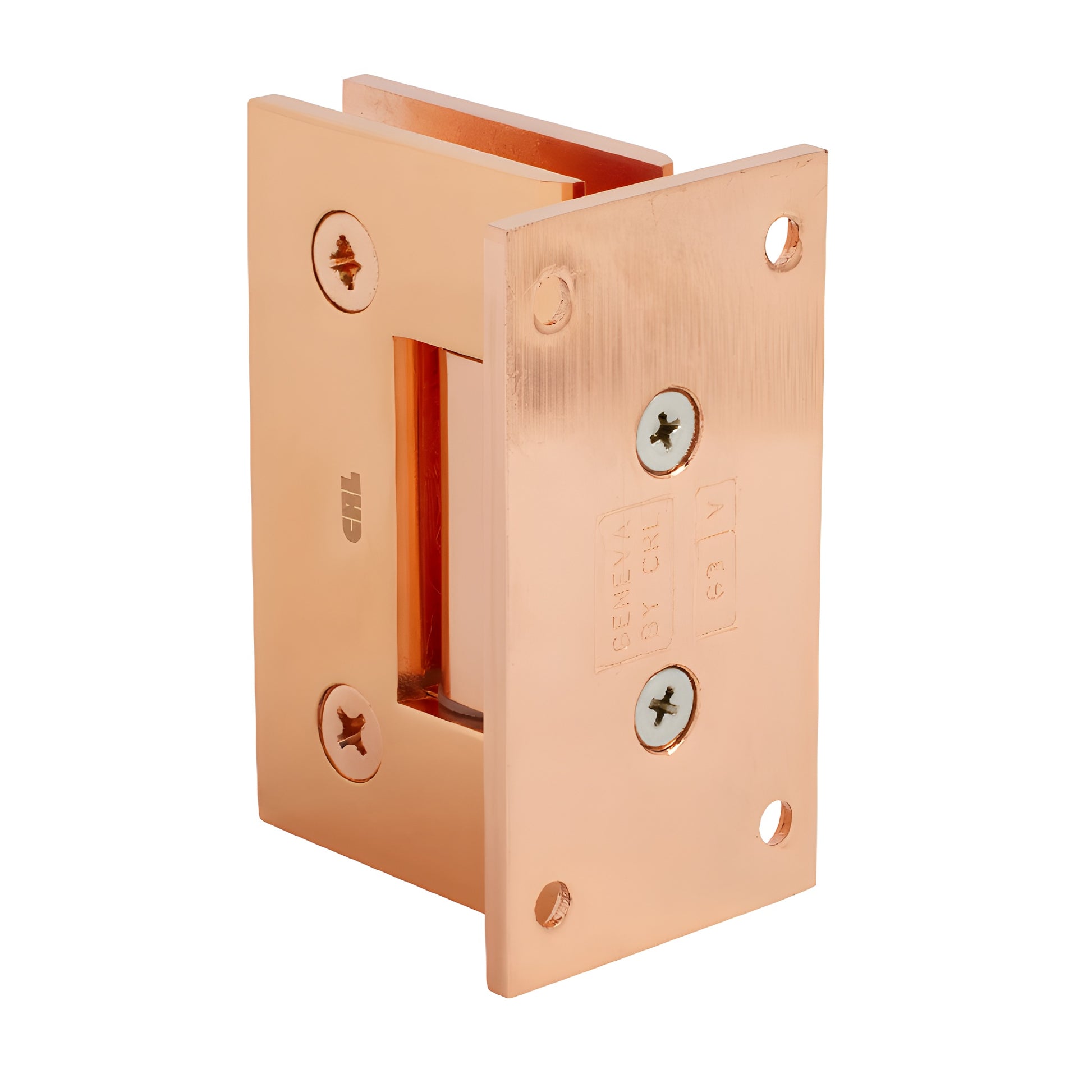

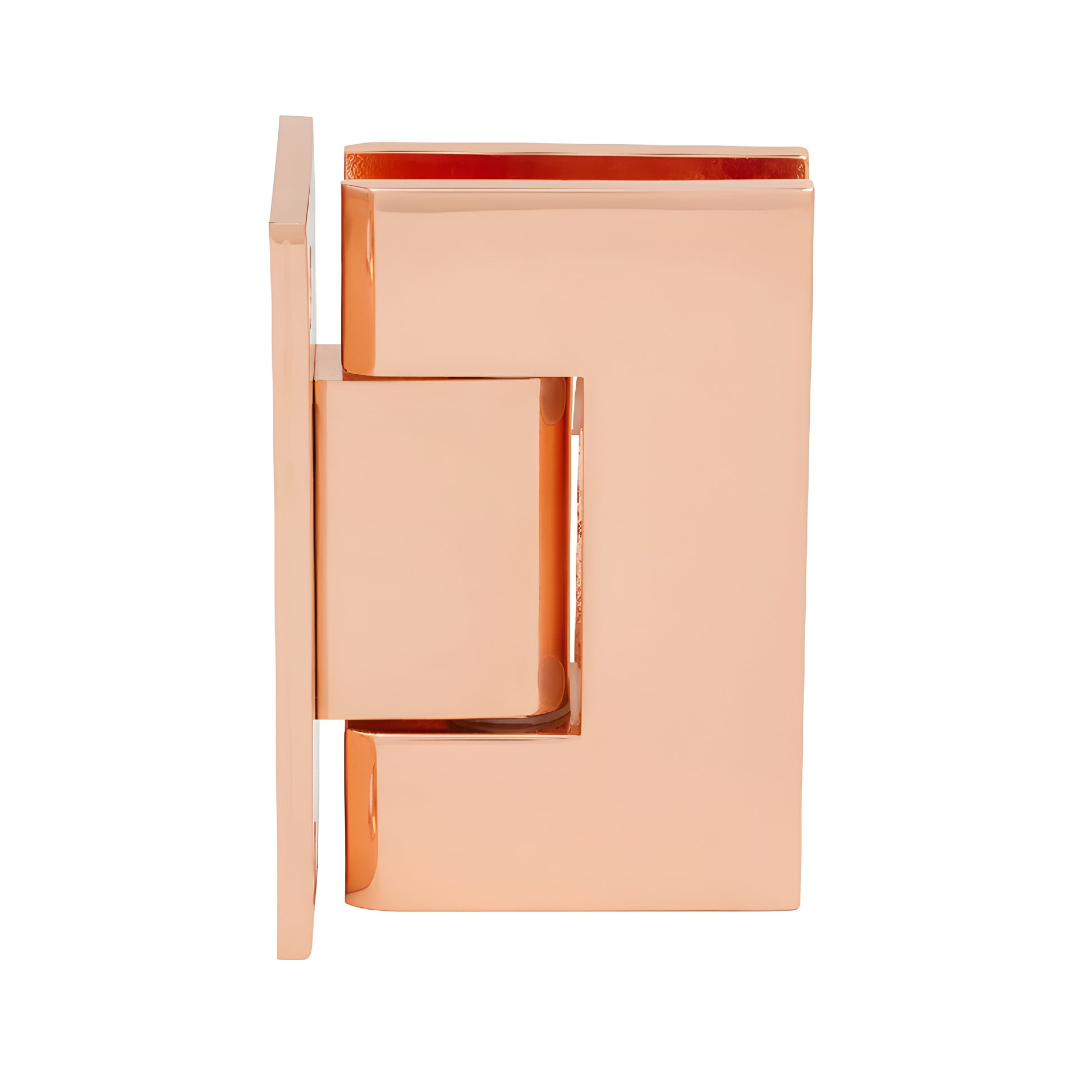

CRL Geneva 037 Polished Copper Wall-Mount Door Hinge Full Back Plate

• Self-centering with reversible 5° pivot pin
• For 5/16" (8 mm) to 1/2" (12 mm) monolithic tempered safety glass
• Available in several durable finishes (custom finishes on request)
• Three-year warranty
• Wall-mount full back plate standard model (factory set for standard closing position)

The CRL Geneva Series professional hinges (SKU: GEN037PC0) are solid-brass shower door hinges engineered for tempered glass shower enclosures. Designed for both wall-mount and glass-to-glass installations, Geneva offers six styles—three Wall Mount and three Glass-to-Glass—providing design flexibility for residential and hotel shower doors. These brass shower door hinges are self-centering and include a reversible 5° pivot pin; custom pivot pins are also available for off-angle installations. All moving parts (pins and springs) are stainless steel for corrosion resistance.


Standard Reversible Pivot Pin: Each hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side activated. Offset models are pre-set to 85° for a 5° tighter closure into the shower interior. The pin can be rotated (not flipped) to change the active angle.

Custom Pivot Pin: Custom Pivot Pins (Cat. No. GENP1N) can be specified for off-angle installations up to 45°. If the 5° reversible pin does not achieve the desired closing position, contact our Technical Sales Shower Door Department to specify the required angle. Using a custom pivot pin may affect glass sizes and enclosure aesthetics.

Performance: using two hinges on 5/16"–1/2" (8–12 mm) glass supports up to 80 lbs (36 kg) with a maximum door width of 28" (711 mm). Using three hinges supports up to 120 lbs (54 kg) with a maximum door width of 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Choice of Standard model (factory-set 0° closing) or 5° pre-set model for tighter closure into shower interior
Construction: Solid brass with stainless steel pins and springs
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack required separately for use with 5/16" (8 mm) tempered
